DDS238 1 single phase din rail type watt hour meter
- Category: >>>
- Supplier: Wenzhou Elsine Electric Co. Ltd.
Share on (60702098908):
Product Overview
Description
Product Description

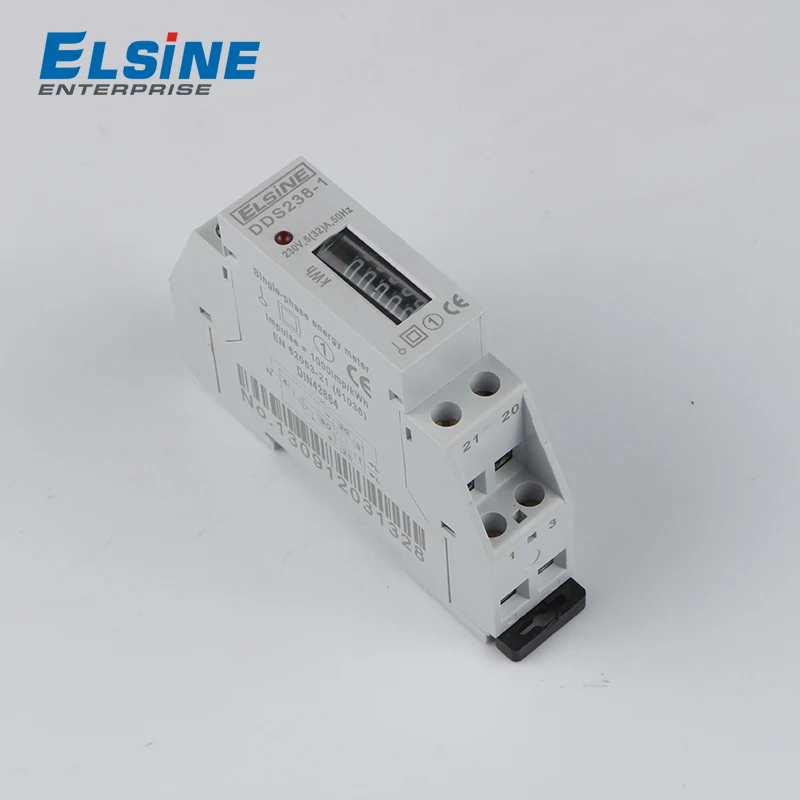

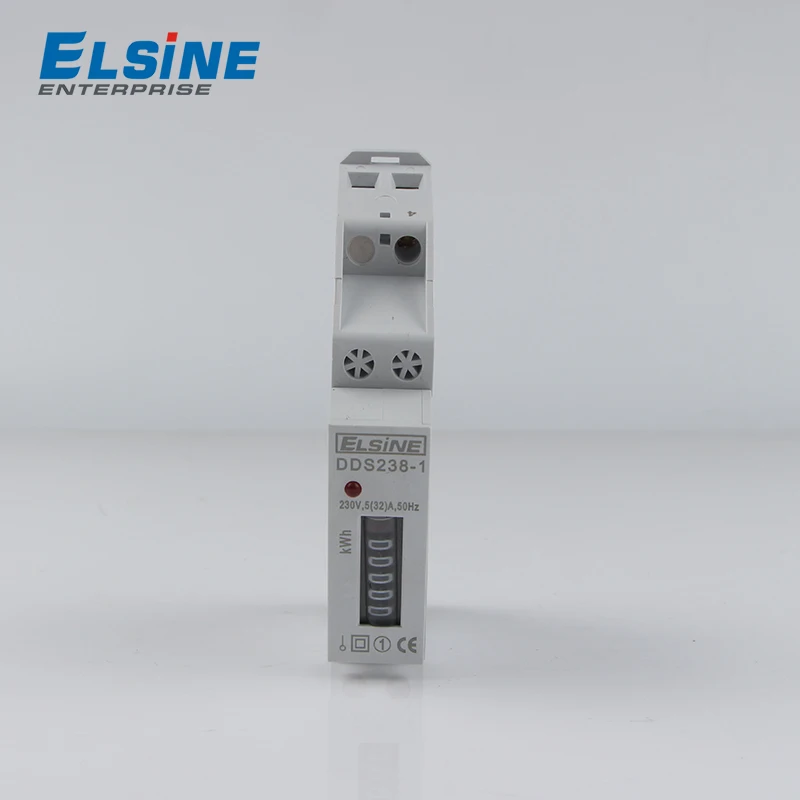

DDS238-1 single phase din rail type watt hour meter
The meter is designed to measure single phase two wire AC active energy .The meter comply with the relative technical requirement for class 1 single phase watt hour meter in IEC61036(IEC62053-21). It is a long life meter with the advantage of high stability , high over load capability , low power loss and small volume
Basic Function
mechanical step register 5+1 , LCD display 6+1(default) or 5+2
Bi-directional total active energy measurement ,reverse active energy measure in the total active energy
Pulse LED indicates working of meter Pulse output with optical coupling isolation

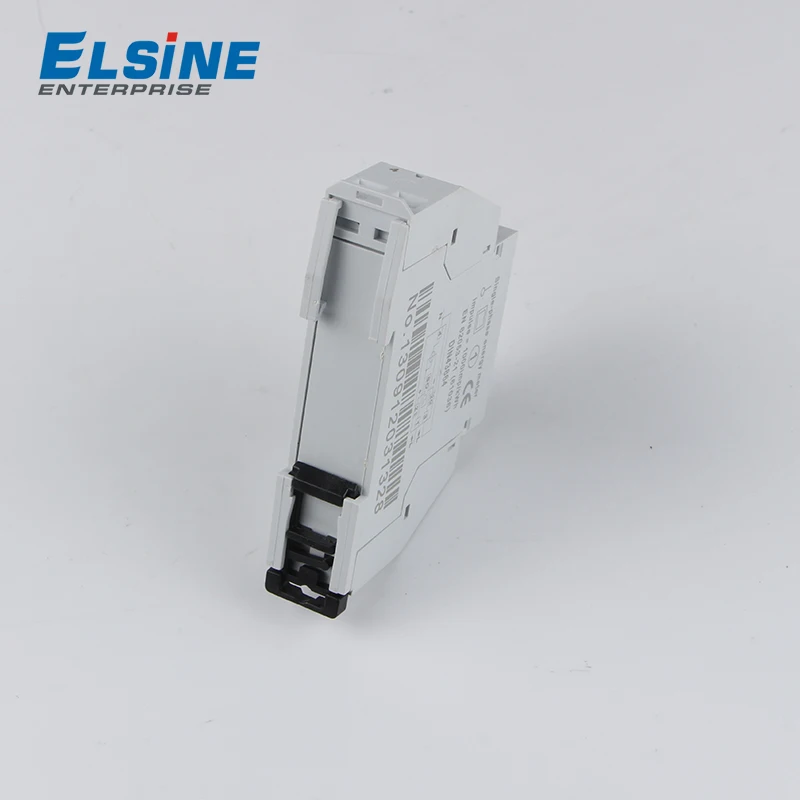

35mm din rail installation
Optional Function
long terminal cover protection
two neutral line terminal connection N-in , N-out
measure as unit Wh , LCD display 9999999 Wh
