DDS238 2 SW single phase din rail type multi function watt hour meter
- Category: >>>
- Supplier: Wenzhou Elsine Electric Co. Ltd.
Share on (60702213531):
Product Overview
Description
Product Description

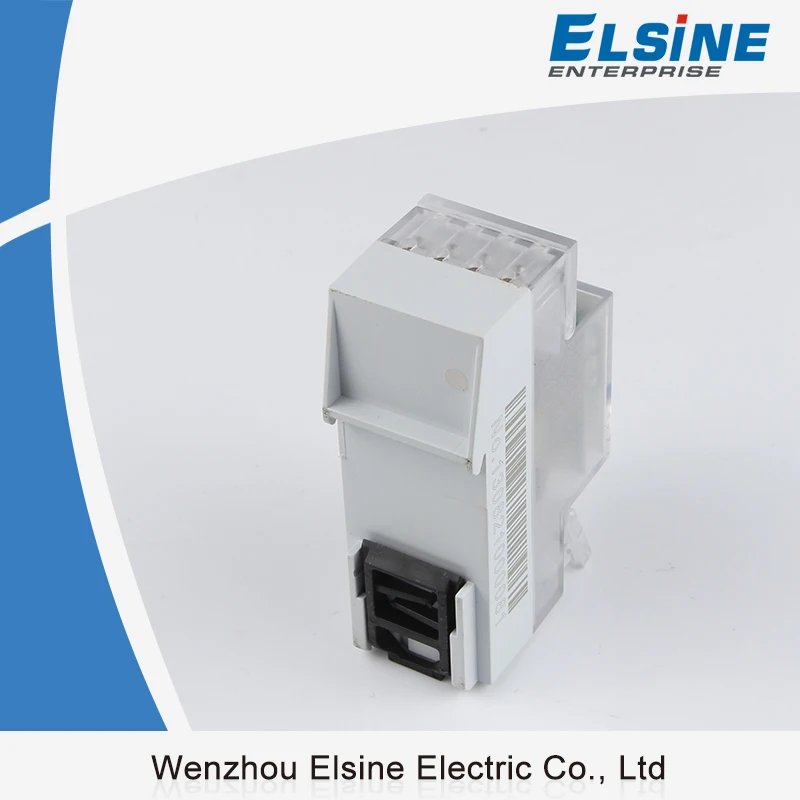

DDS238-2 SW single phase din rail type multi-function watt hour meter
The meter is designed to measure single phase two wire AC active energy and variable parameter. All of its functions comply with the relative technical requirement for class 1 single phase watt hour meter in IEC61036 and its data communication rules obey the requirement of DL/T645 or MODBUS-RTU. It is a long life meter with the advantage of high stability , high over load capability , low power loss and small volume .
Basic Function
♦ LCD display with backlight
♦ Bi-directional total active energy measurement, reverse active energy measure in the total active energy
♦The meter also display real voltage , real current, real power, real power factor, real frequency
♦ Pulse LED indicates working of meter. Pulse output with optical coupling isolation
♦ 35mm din rail installation
Optional Function
♦ the meter can measure and display the total forward/reverse active energy
♦ reset energy function (the reset energy kWh display is dependent with the total energy display, this reset will not affect the total energy )
