PCB Electronic silicone rubber keyboard membrane switch for medical equipment
- Category: >>>
- Supplier: Etouch Technology Co. Limited
Share on (60702239016):
Product Overview
Description
Product Description

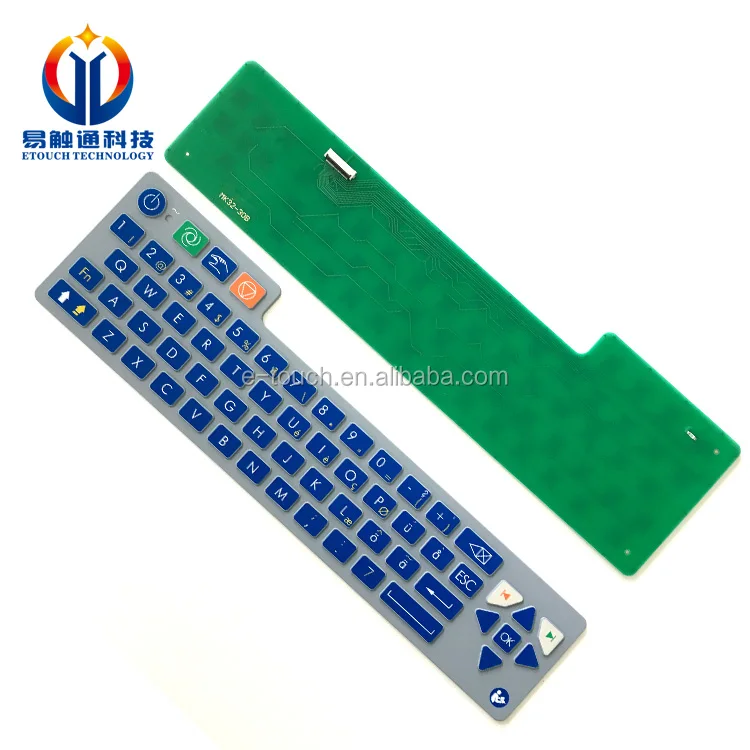

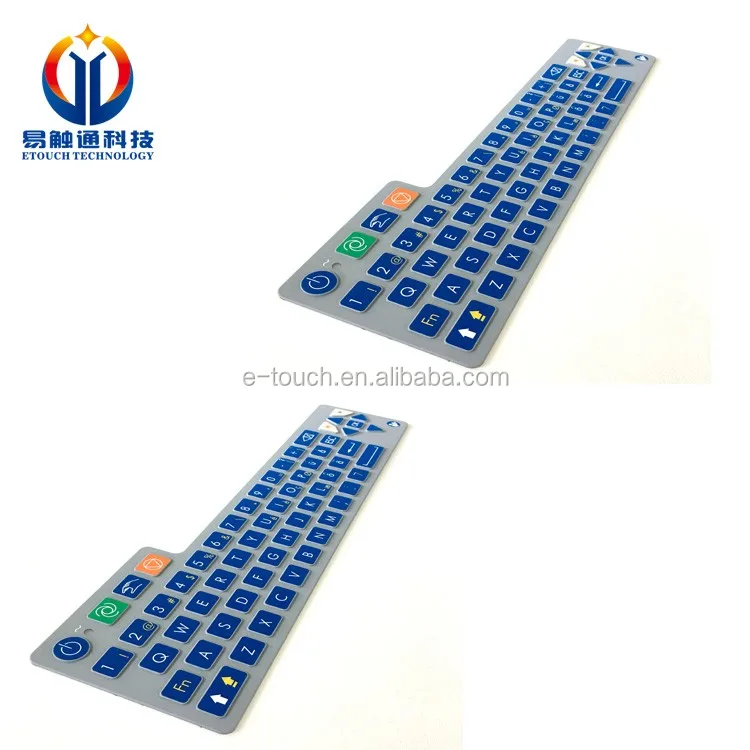

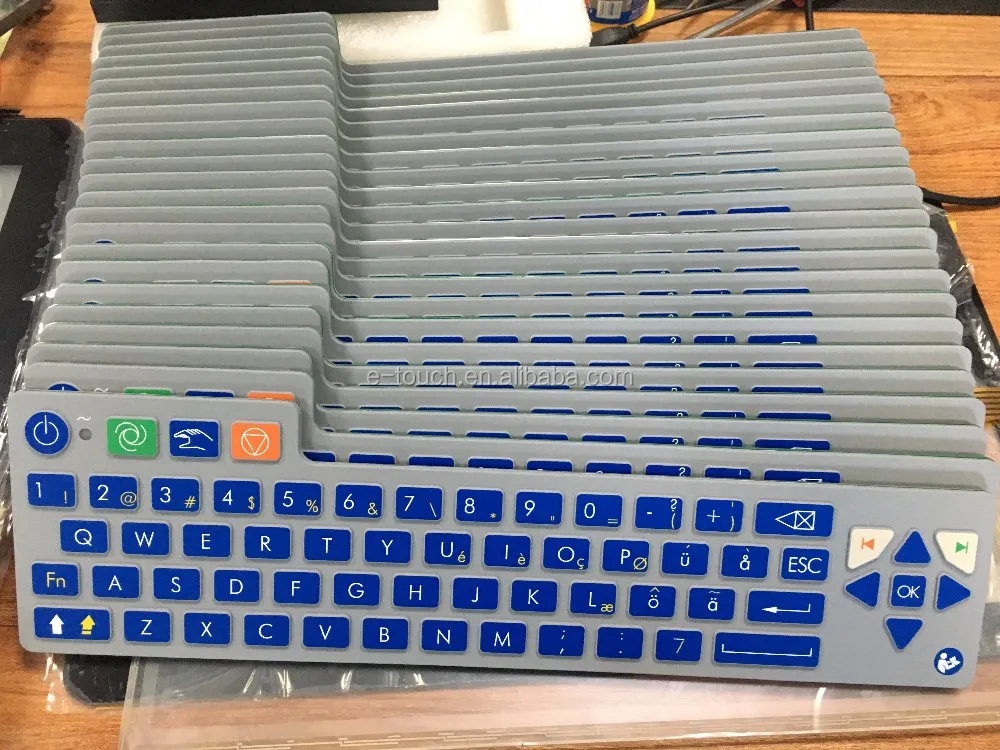

Rubber membrane keypad Front View
Environmental | Operating Tem | From -20 to 65 °C/ -4 to 149 °F | |
Storage Tem | From -40 to 85 °C/ -40 to 185 °F | ||
Seal | 3M permanent acrylic adhesive resists against dust, water, oil and moisture conditions. | ||
Special sealing options are available for wet environments. | |||
Mechanical | Travel | .007 inches to .015 inches | |
Operating Force | 4oz to 8oz | ||
Electrical | Operating Voltage | 30 volts maximum | |
Operating Current | 10 microamps to 100 milliamps, resistive | ||
Closed Circuit Resistance | 100 ohms typical, dependent on size and layout | ||
Open Circuit Resistance | 10 megohms | ||
Operating Power | 1 watt maximum | ||
Circuitry | X-Y matrix or one side common | ||

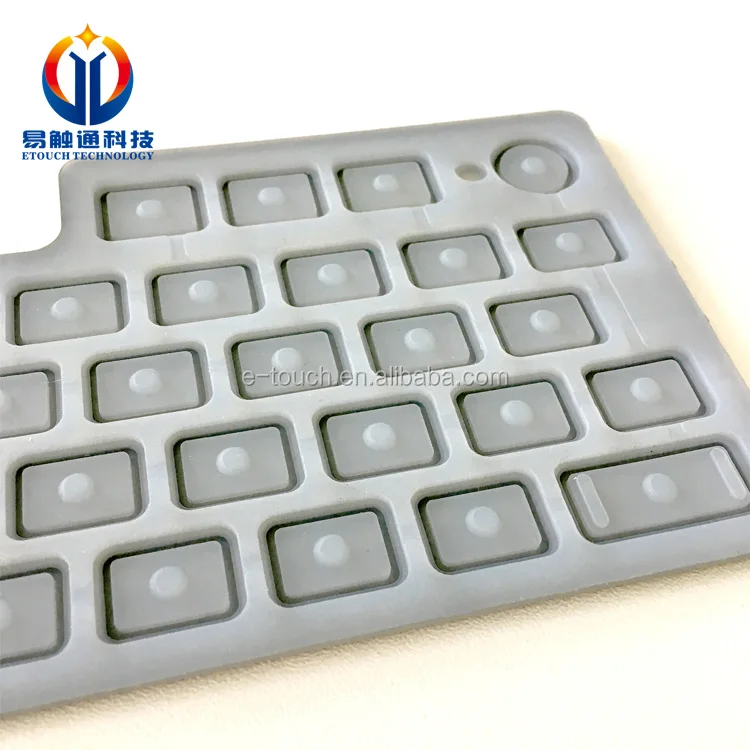

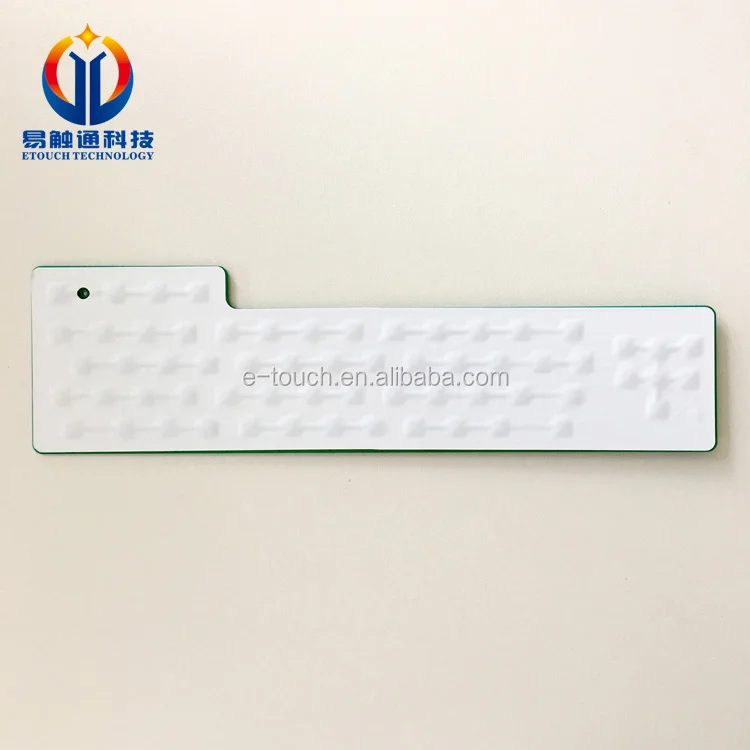

Back View

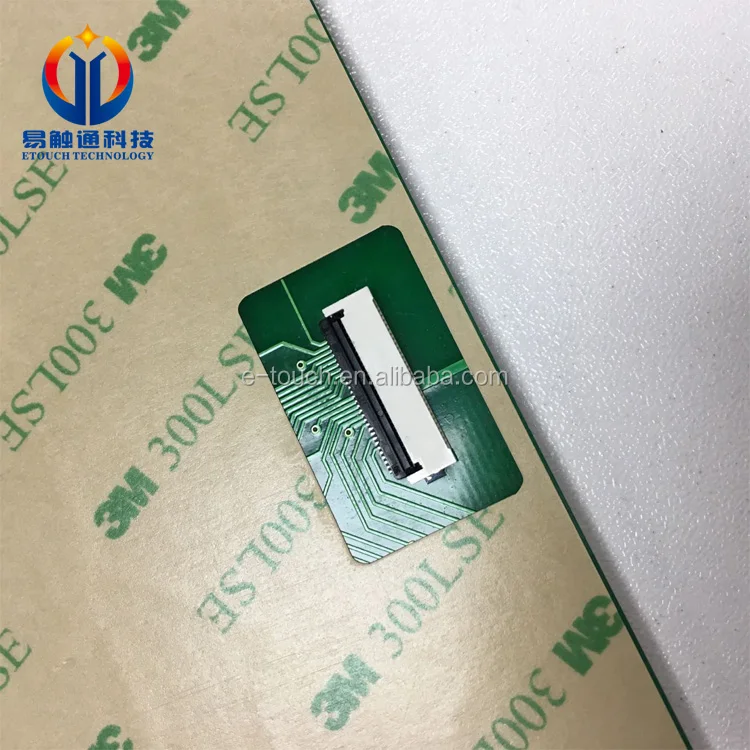

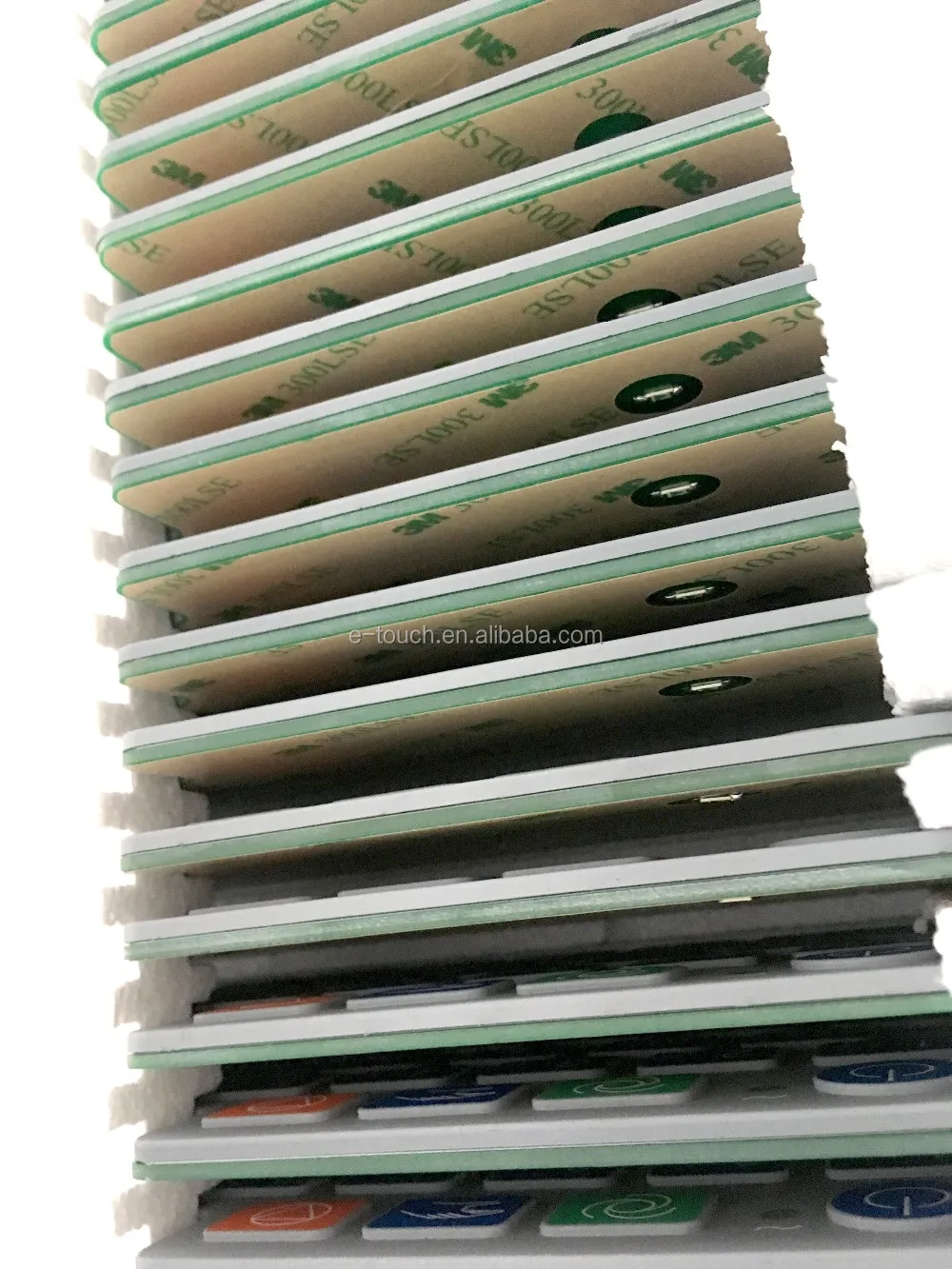

Back Adhesive
PCB with connector
Silicone Rubber Keyboard
1. Materials:
Made by top grade silicone rubber, environmental safe material, non-toxic, smooth feel, excellent transmission. The hardness of silicone rubber can be graded between 30 to 80 shore A. Suggested hardness for silicone rubber keypads is 40 to 60 shore A depending on customers' requirement.
We can do any kinds of keypads, including P+R keypads, silicone and rubber keypads, conductive keypads, mobile phone keypads, telephone keypads, remote control keypads and so on.
2. Contact Resistance:
Customized rubber Laptop keyboard pad/gel wrist rest keyboard pad,custom logo keyboard pad, Silicone rubber keypads can be co-molded with silicone conductive pills (carbon pills), gold plated pills and metal pills are also available for some special device.
3. Surface Processing:
We also can deal with the surface of the keypad with laser, PU coating, epoxy resin coating, silk printing and so on.
4. Rubber keyboard pad Color:
Various colors can be blended according to customer's request. Also with phosphorescent or fluorescent options
Latest new silk printing electronic silicone rubber keypads

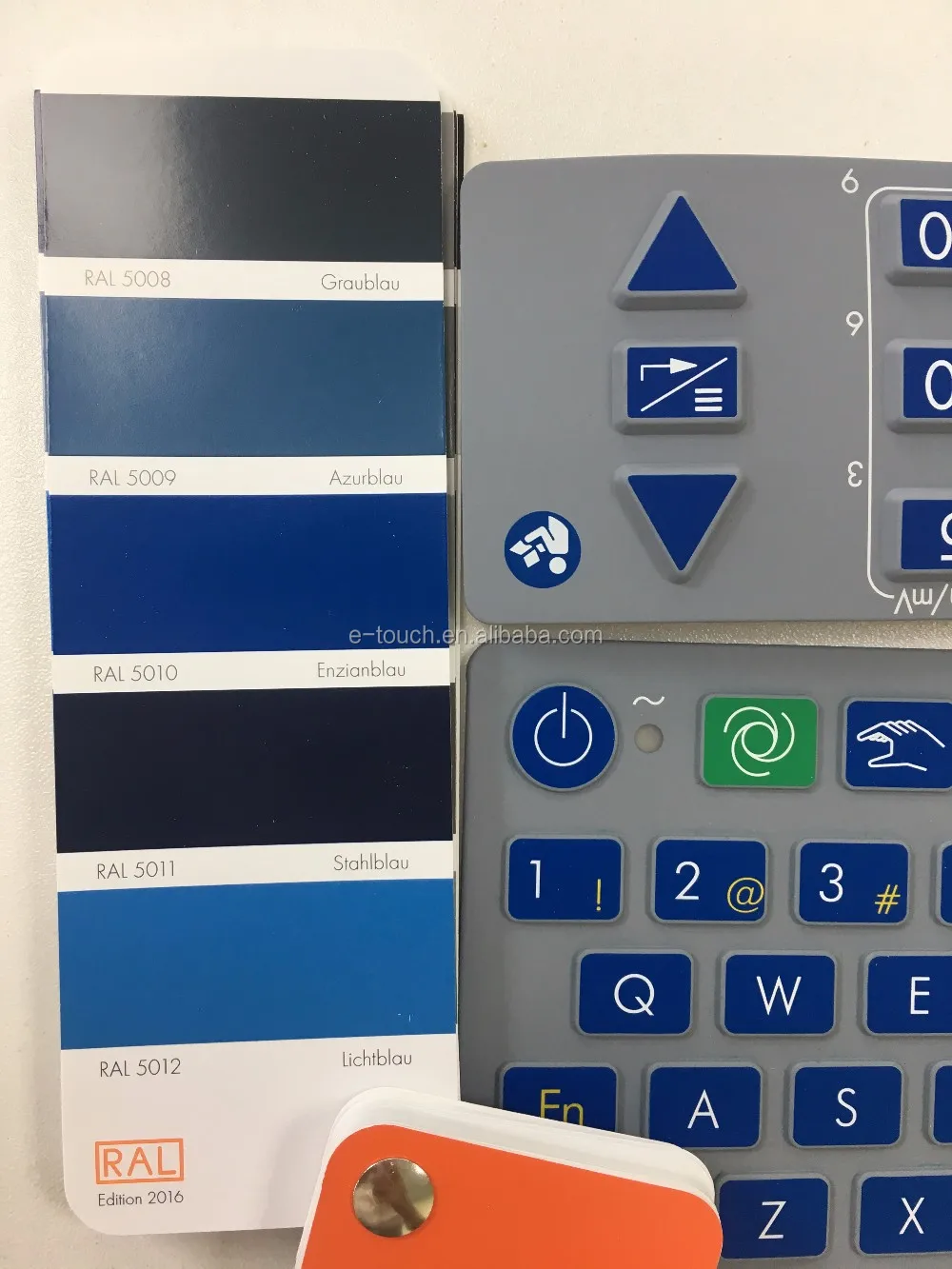

Color Inspection
All the products will be used RAL or Pantone color card to check the print colors.

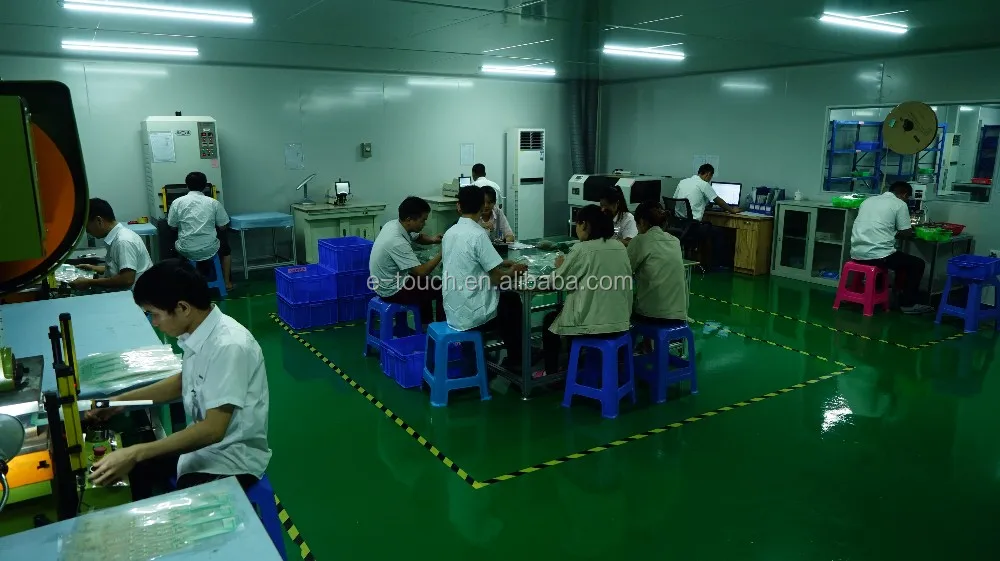

Our Company
Etouch Technology Co., limited (Etouch) was established in 2008, is a professional manufacturer on design, production and sales of capacitive and resistive touch screen , LCD display module, membrane switch, PCB keypad, silicon rubber keypad, FPC keypad, acrylic lens, overlays and other technology products . We mainly for industrial control, car navigation, household appliances, medical equipment , human-machine-Interface system, POS , bank system, gaming, etc

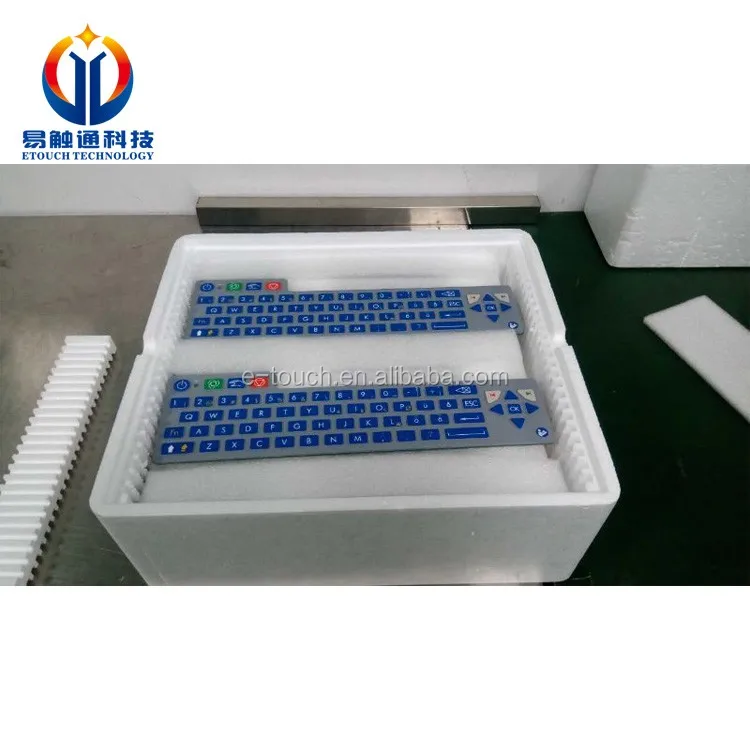

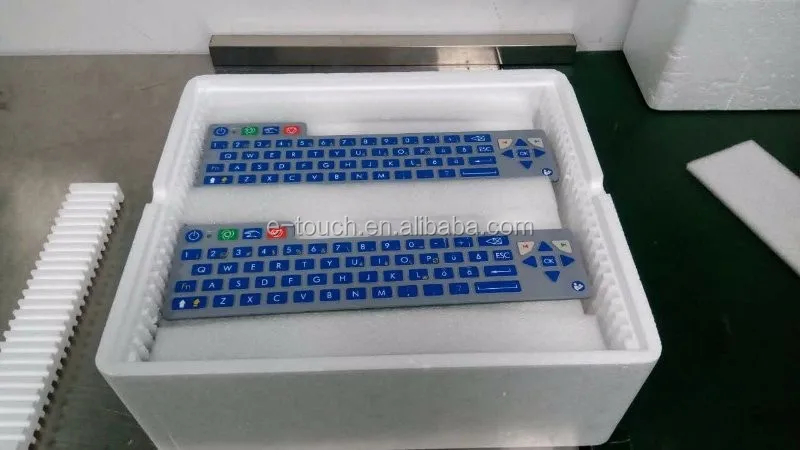

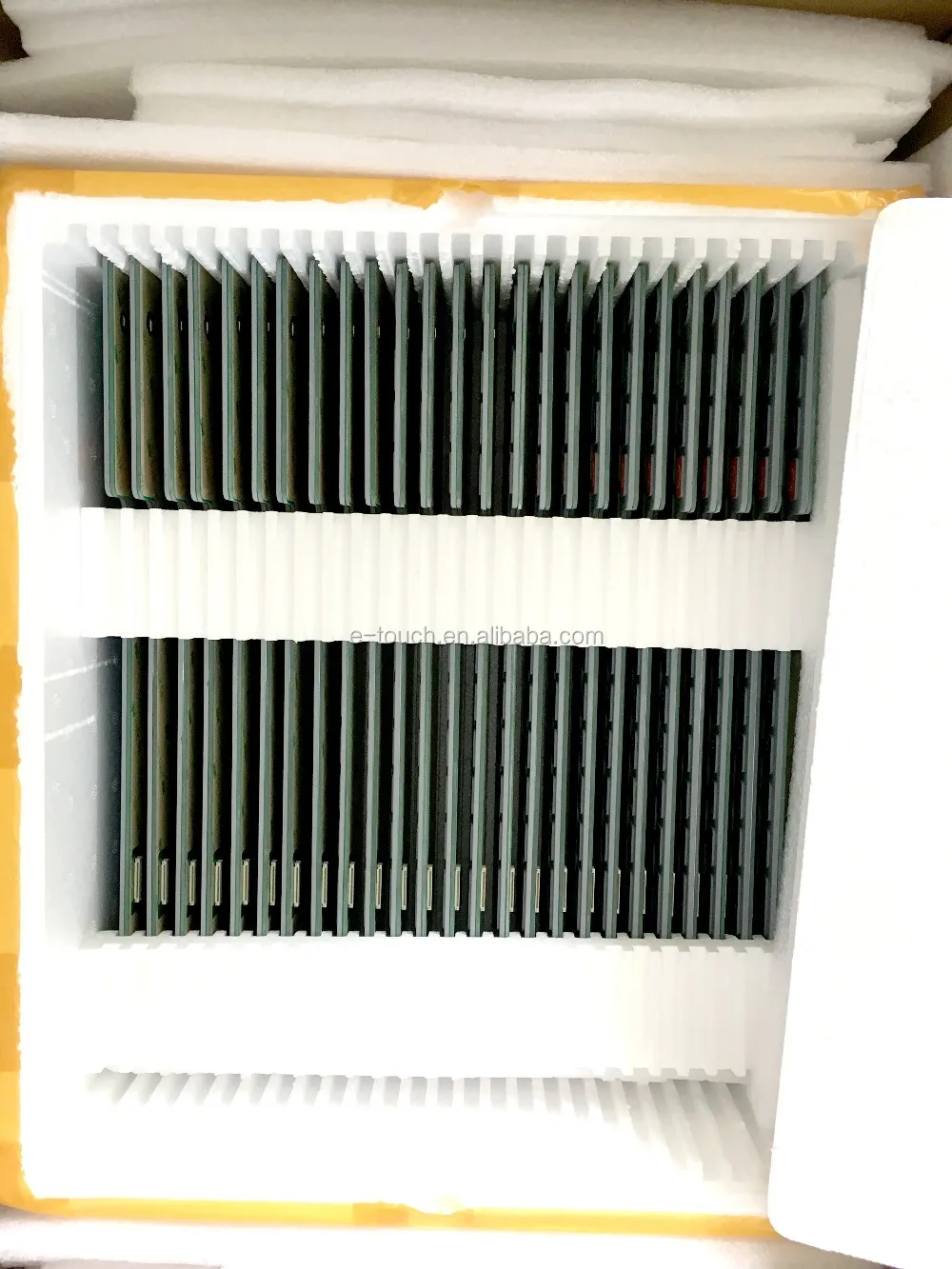

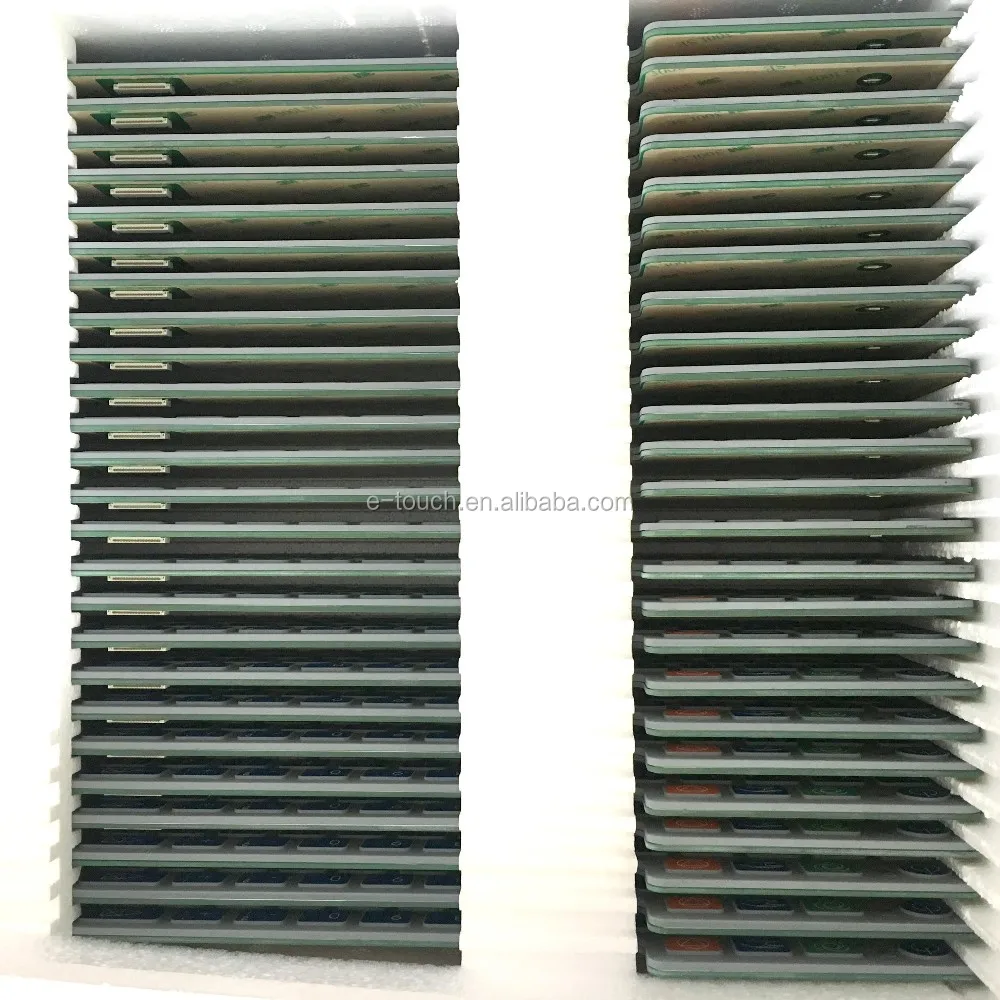

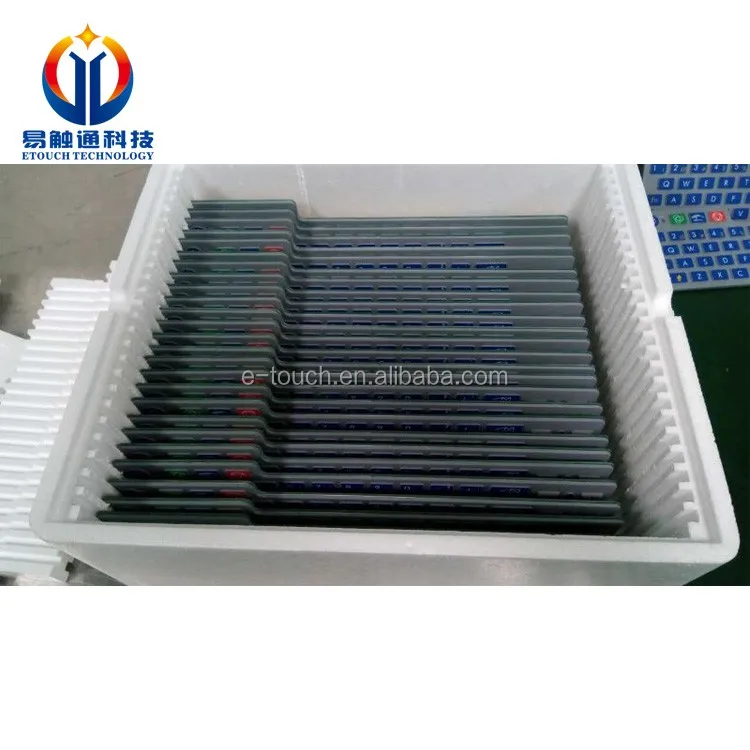

Packing
