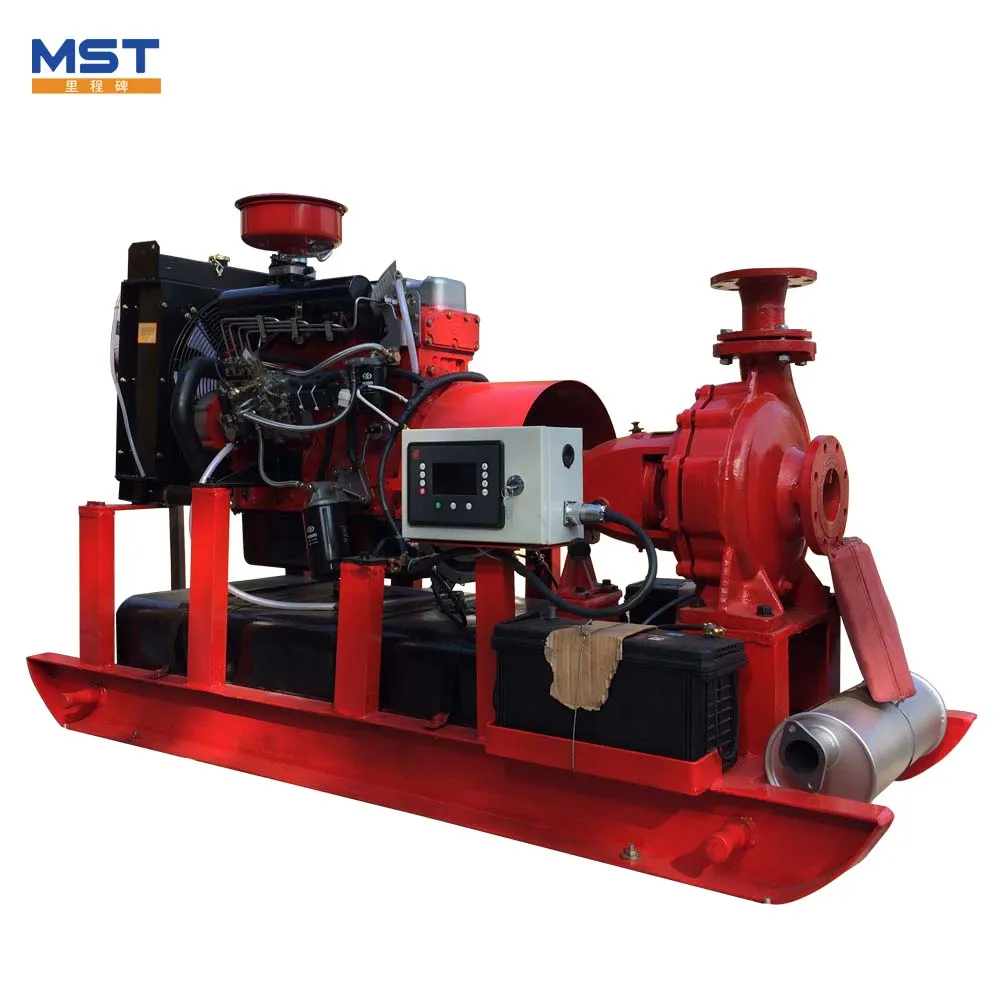

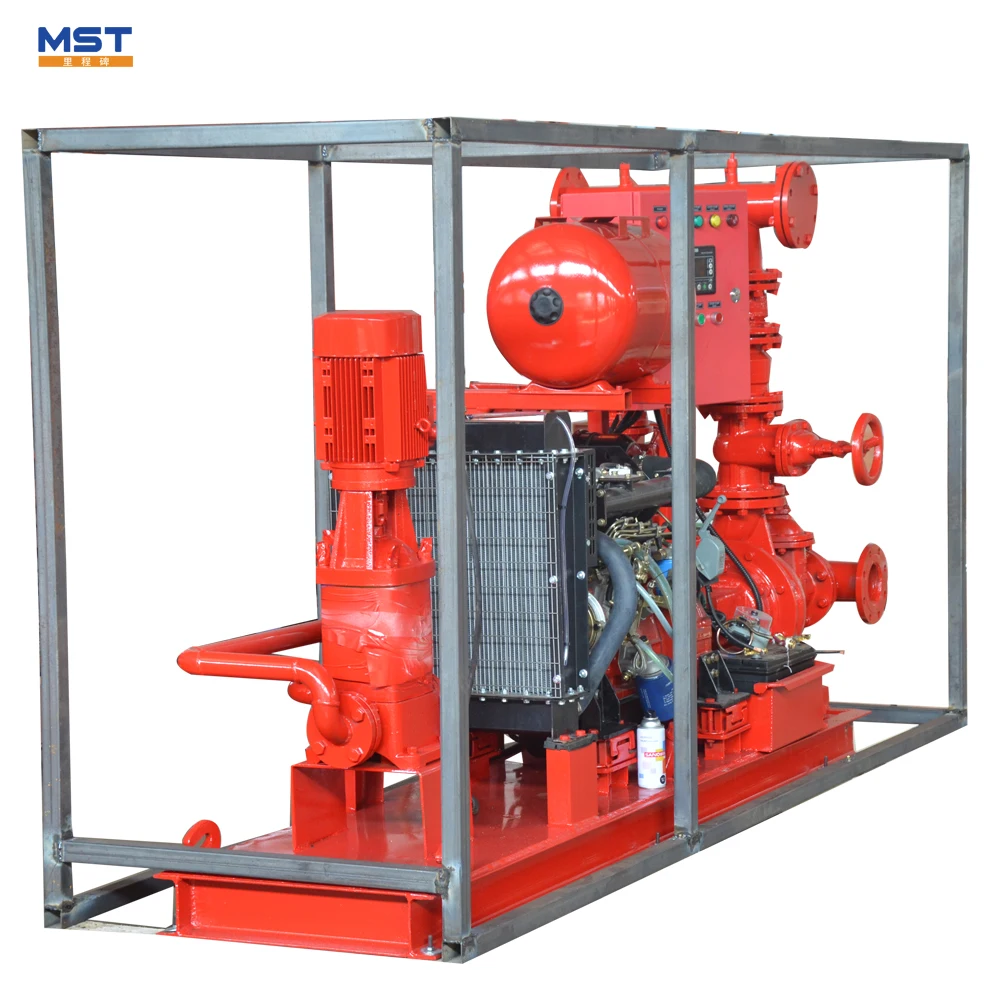

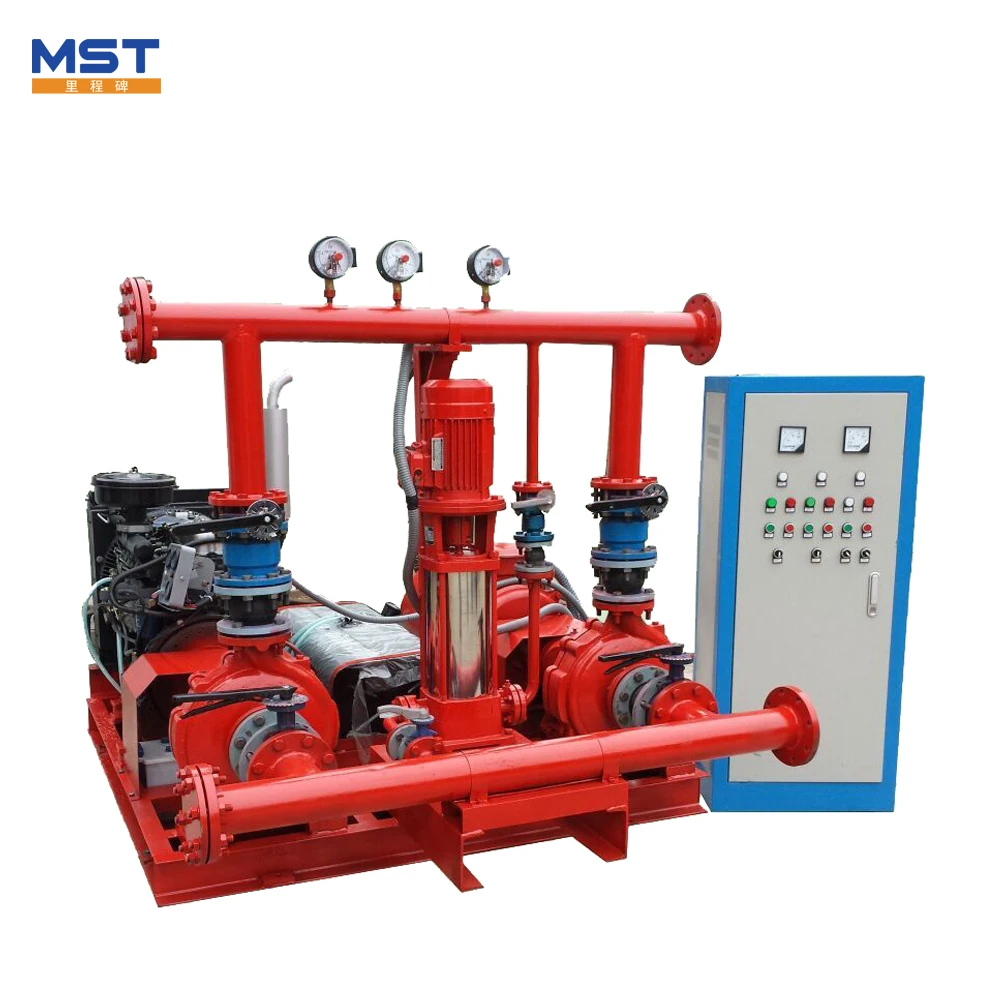

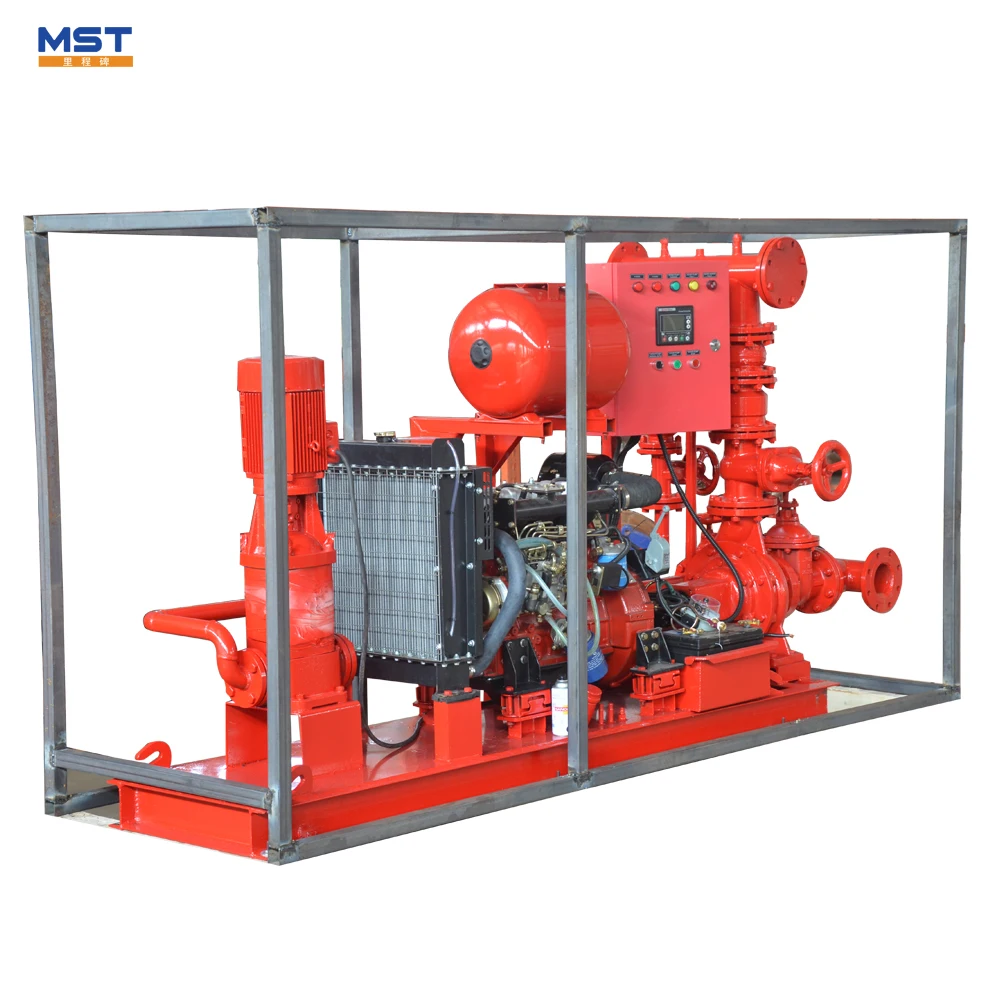

High Quality Diesel Engine Fire Fighting Pump

Product Overview

Description



High Quality Diesel Engine Fire Fighting Pump

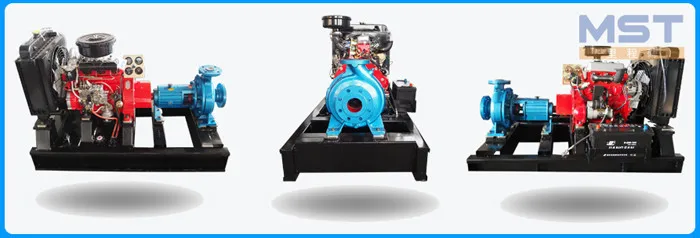

Our different series of  Irrigation water pump driven by diesel engine:













IS&ISR series New products diesel driven fire pump   handle clean water and the liquid of which physical and chemical properties are similar to clean water.  It is used for industrial and city clean water supply and drainage, irrigation, fire protection, long distance water supply, metallurgy, chemical, textile, china processing, pigment, paper making, etc.(IS:temperature not exceeding 80 degree celcius ,ISR: temperature lessnot exceeding than 150degree celcius)



Techanical data



1. Caliber: DN50-DN200mm

2. Capacity: 3.5-460m3/hr

3. Head: 4-132m

4. Rotate speed: 2900 r/min; 1450 r/min

5. Work temperature: ≤150°C

6. Viscosity: ≤150mm2/s

7. Pressure: ≤1.6Mpa

8. Motor power: 0.55-110Kw



Construction drawing

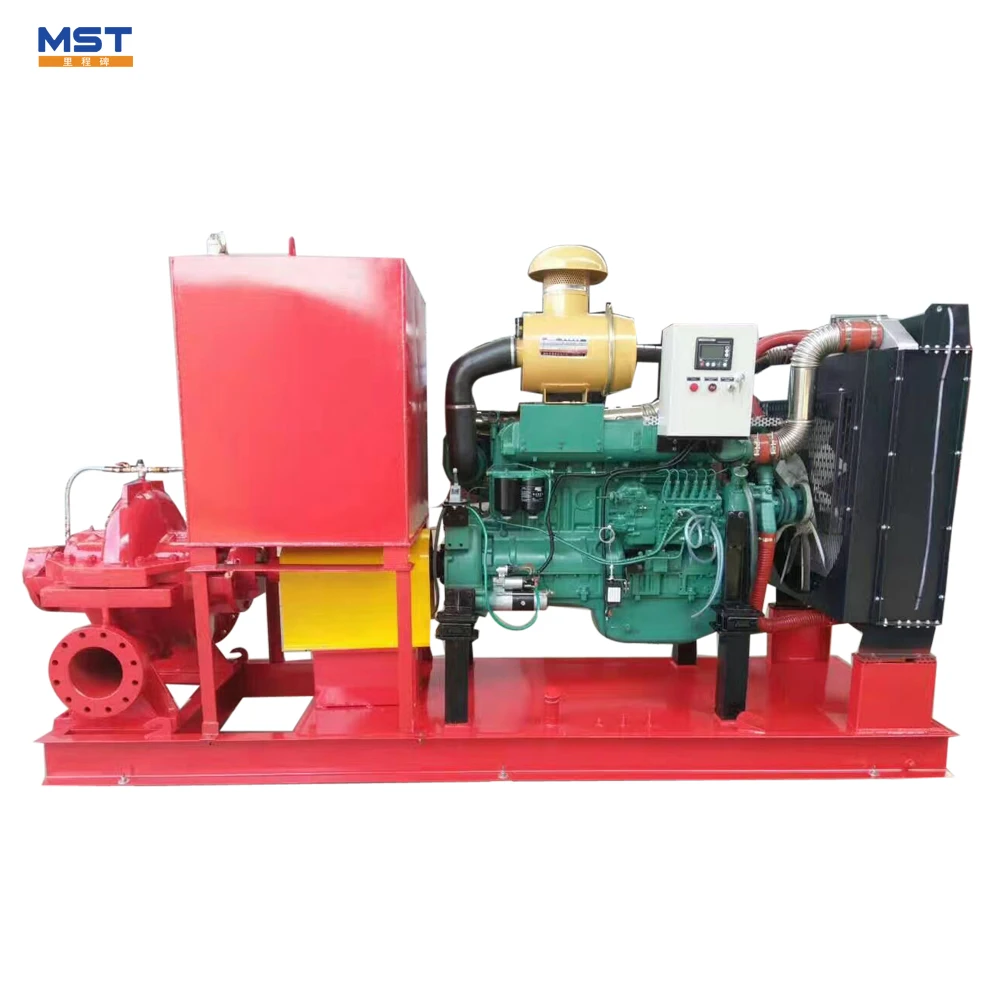

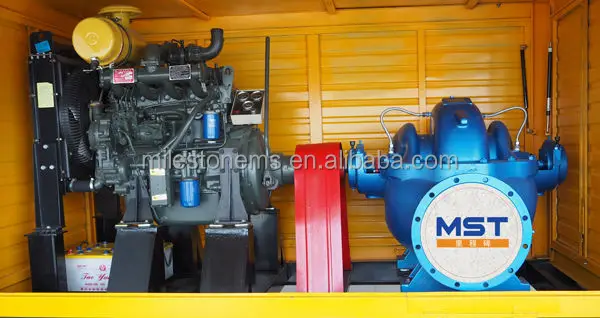

S type New products diesel driven fire pump  is a single-stage double-suction horizontal split centrifugal pump. S series split casing pumps designed for high volume water transfer in a wide range of applications.





Technical Data



Pump outlet:	80-800mm
Capacity:	65-11600m3/h
Head:	7-200m
Max working pressure:	25 bar
Temperature:	Max105℃
Max solids content:	80mg/L

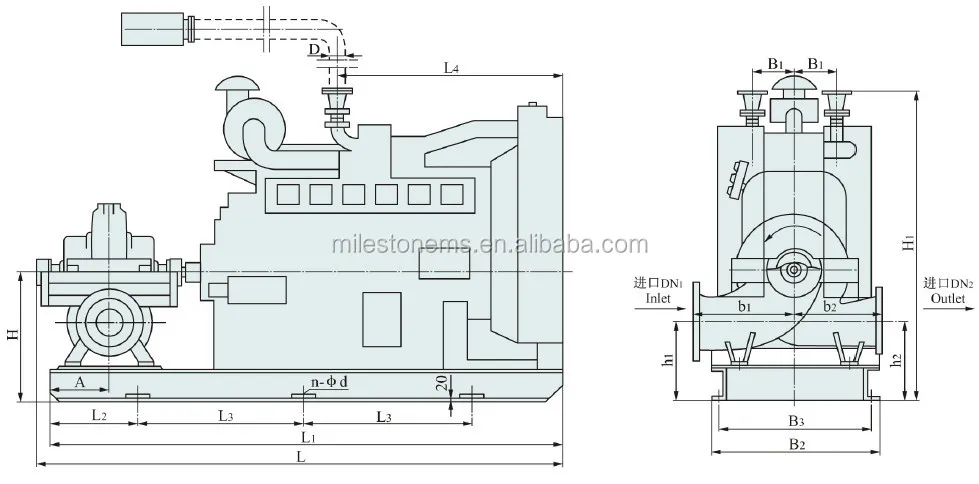

 Conatruction drawing

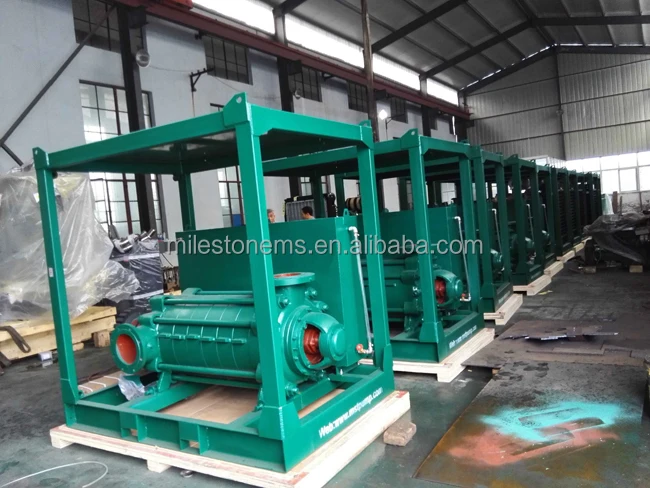

D/DG series New products diesel driven fire pump   is multistage section centrifugal pump. This series pumps have the feature of high head and great energy. It can deliver heat water, oil, corrosive or wearable medium by changing the material, seal or adding cooling systems.



Technical data

Discharge Nozzle Range	DN65 up to 200mm
Capacity:	3.75~840 cmh
Head:	19~680m
Frequency:	50hz/60hz
Operating temperature:	10 ℃~120℃
Pressure:	≤0.6MPa

Construction drawing













Diesel engines



Engine model	famous brand
rated power(KW)	10-1200
rated speed(r/min)	1500/3000
cylinder number	2/4/6/8/12
starting method	electric
cooling method	water cooled
speed mode	mechanical(electric optional)
control panel	display: water&oil temperature,oil pressure,speed

















Packaging & Shipping













Our factory



Milestone Engineering & Manufacturing Co., Ltd is Professional in water pumps,slurry pumps and many other kinds pumps. We have formed a complete system of pump design,develop,manufactur and maintenance. The pumps are widely used in papermaking, pro-environment,  construction, mining, metallurgy and other industries. We also manufacturer Pumps Spare Parts include:Pump casing,impeller,expeller,volute liner,back plate,throat bush etc.
