JUKI Automatic Pick and Place Machine for LED SMD Chip Mounter RX 6

Share on (60702349149):


Price:US$48,000.00 - US$50,000.00

Quantity:


Product Overview

Description


JUKI Automatic Pick and Place Machine/Juki LED SMD Chip Mounter Model: RX-6

JUKI RX-6 is special designed for LED and SMD applications by JUKI company, with widely applicable PCB range and high speed make it be the most popular chip mounter in LED and SMD application manufacturers.

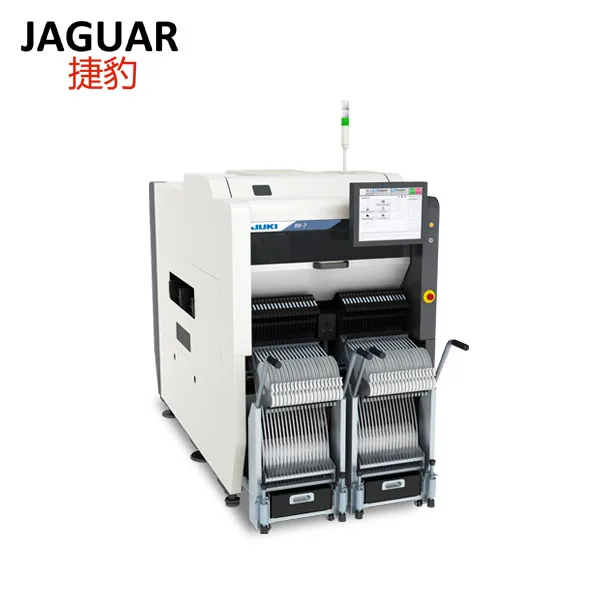

Juki RX7.jpg



Specifications:



Board size

M size (330×250 mm)



L size (410×360 mm)



L-Wide size (510×360 mm) *1



XL size (610×560 mm)



Applicability to long PWB (M size)*2

650×250mm

Applicability to long PWB (L size)*2

800×360mm

Applicability to long PWB (L-Wide size)*2

1,010×360mm

Applicability to long PWB (XL size)*2

1,210×560mm

Component height

6mm



12mm



Component size

Laser recognition

0402(01005)~33.5mm

Vision recognition

Standard camera

3mm*3~33.5mm

High-resolution camera

1.0×0.5mm*4~20mm

Placement speed

Chip

Optimum

23,500CPH

IPC9850

18,500CPH

IC*5

9,000CPH *6

Placement accuracy

Laser recognition

±0.05 mm (±3σ)

Vision recognition

±0.04 mm

Feeder inputs

Max.160 in case of 8mm tape
(on a Electric double tape feeder)*7









Hot products:



Gold Partners



Certifications



Workshop and Packing



FAQ

1) This is the first time I use this kind of machine, is it easy to operate?

 There is english manual or guide video that show you how to use machine.

 If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.



2) If machine have any problem after I receive it, how can I do ?

 Free parts send to you in machine warranty period.

 If the part is less than 0.5KG, we pay the postage.

 If it exceeds 0.5KG, you need to pay the postage.



3) MOQ ?

 1 set machine, mixed order is also welcomed.



4) How can I buy this machine from you? ( Very easy and flexible !)

 A. Consult us about this product on line or by e-mail.

 B. Negotiate and confirm the final price , shipping , payment methods and other terms.

 C. Send you the proforma invoice and confirm your order.

 D. Make the payment according to the method put on proforma invoice.

 E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

 And 100% quality check before shipping.

 F.Send your order by air or by sea.



5)Why choose us ?

 A. Gold supplier on Alibaba !

 B. Trade assurance to US$54,000 !

 C. Best price & Best shipping & Best service !

Contact Info:

Paul

Mob &Wechat: +8615889682100

Tel:+86-755-23316315   Fax:+86-755-29497125

Shenzhen Jaguar Automation Equipment Co.,Ltd.

Add:Building A07,hongtian jinyuan industrial zone,hongtian road, xinqiao street,shenzhen,China

Web: www.jaguar-ele.net
