Multi Working Copper Busbar Processing Machine JPMX 503ESK

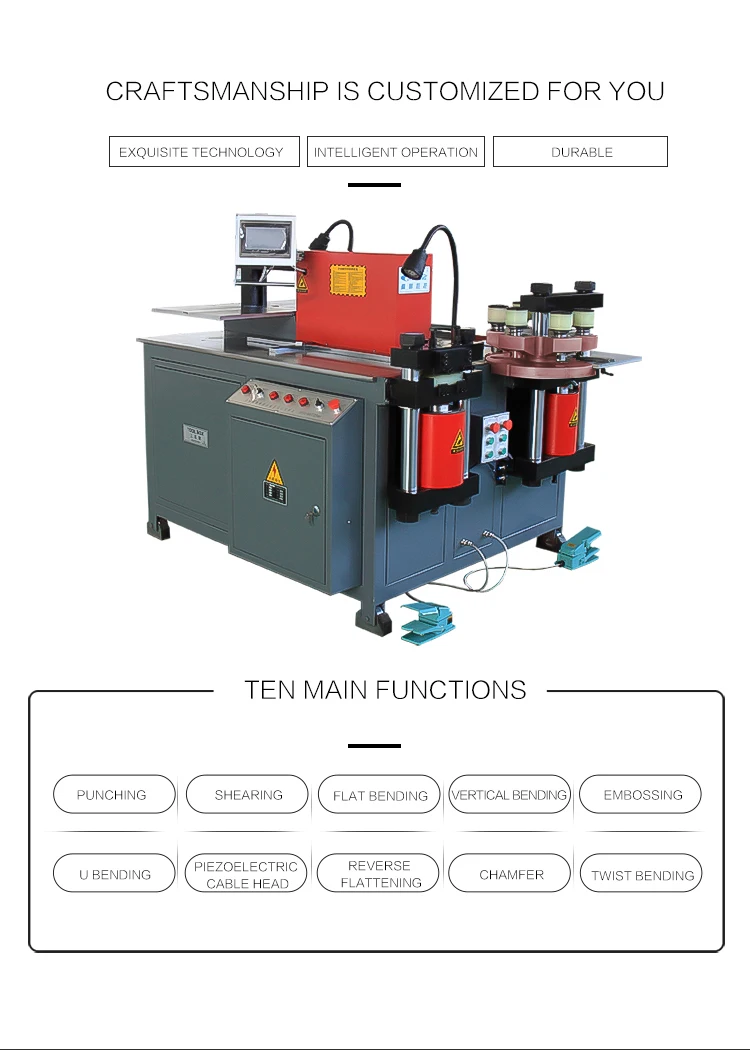

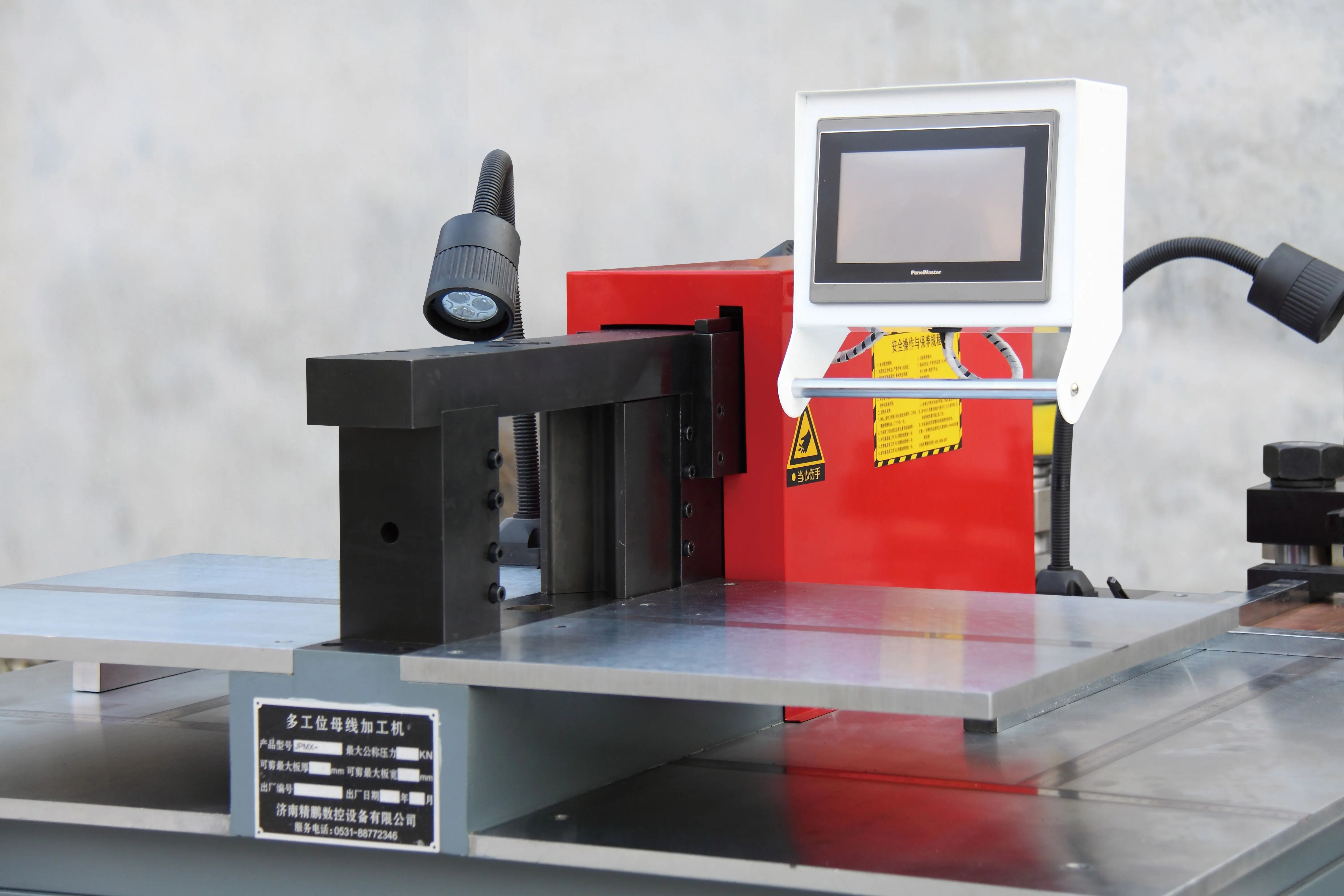

Appearance of busbar processing machine:

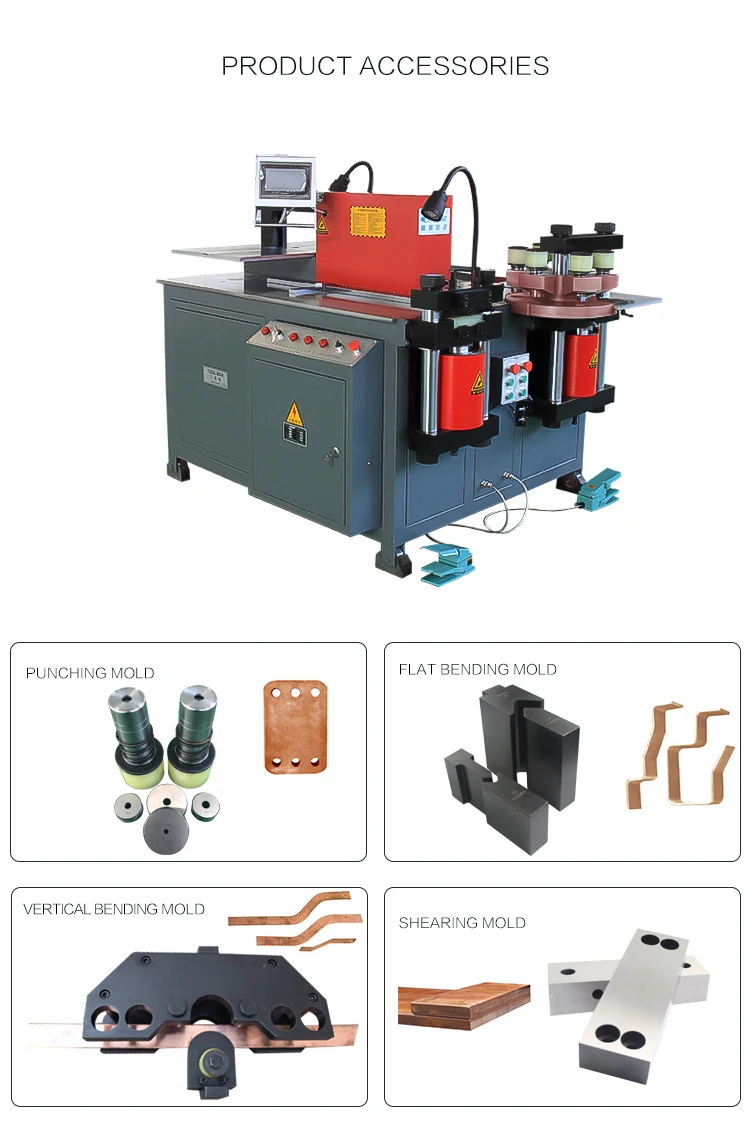

Busbar processing machines accessories:

Functions:

1. Punching copper and aluminum busbar.

2. Bending copper and aluminum busbar. (vertical direction and horizontal direction)

3. Cutting copper and aluminum busbar.

4. Twisting copper and aluminum busbar.

5. Cutting corner of copper and aluminum busbar.

6. Bending copper round bars.

Working Units:

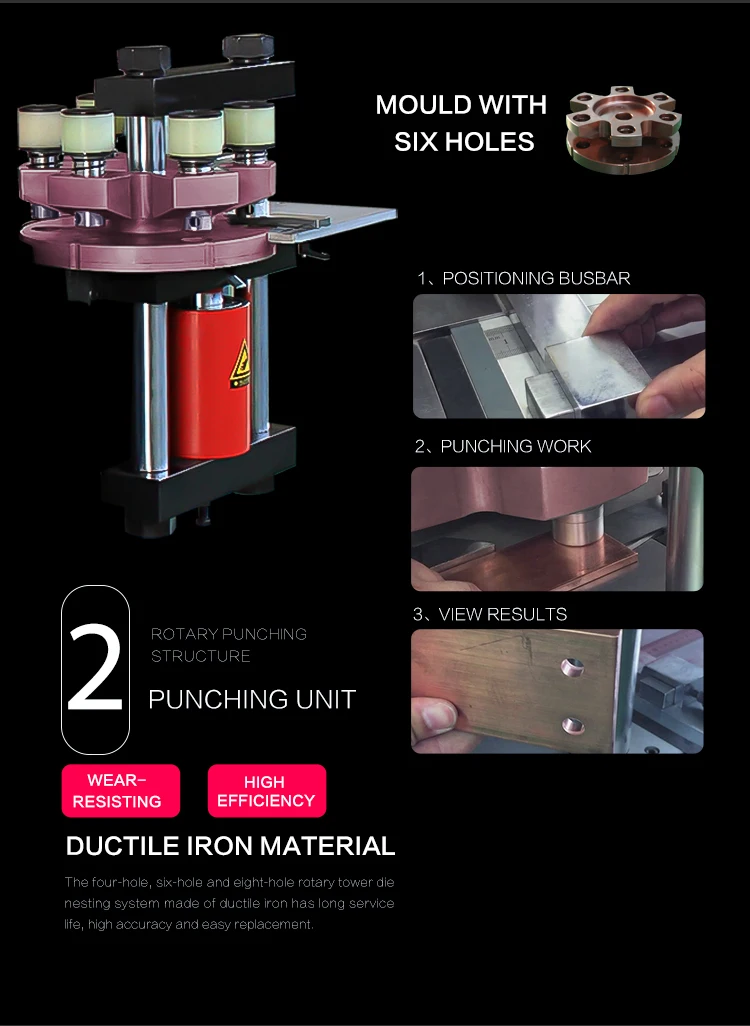

1. Punch

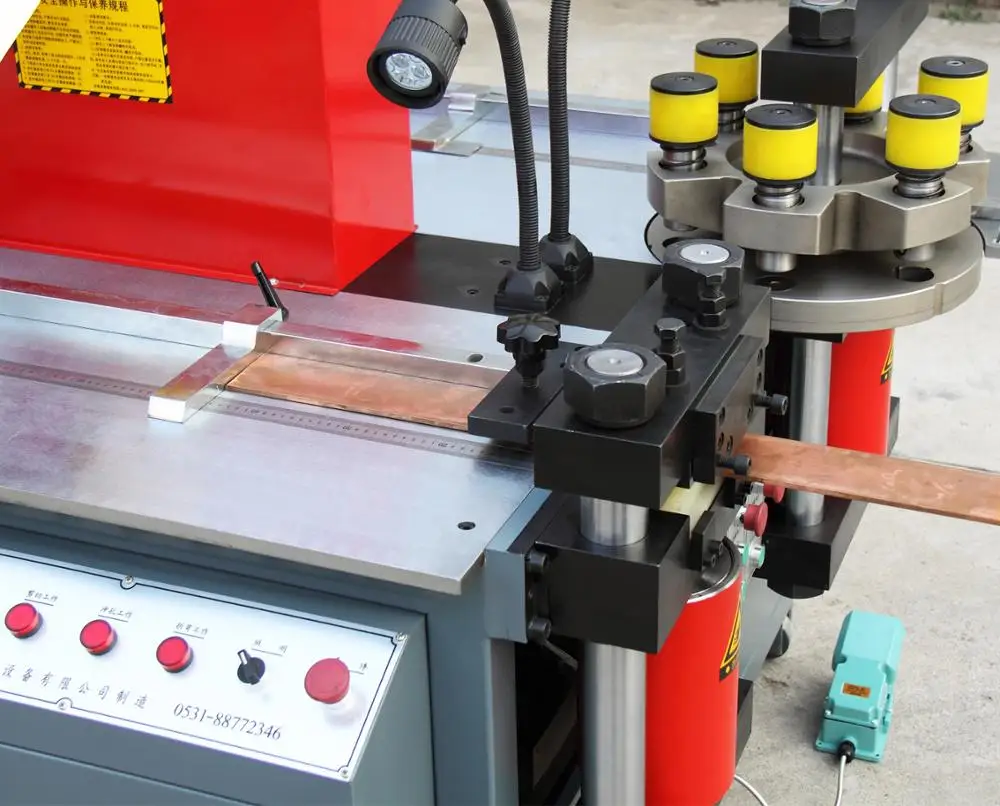

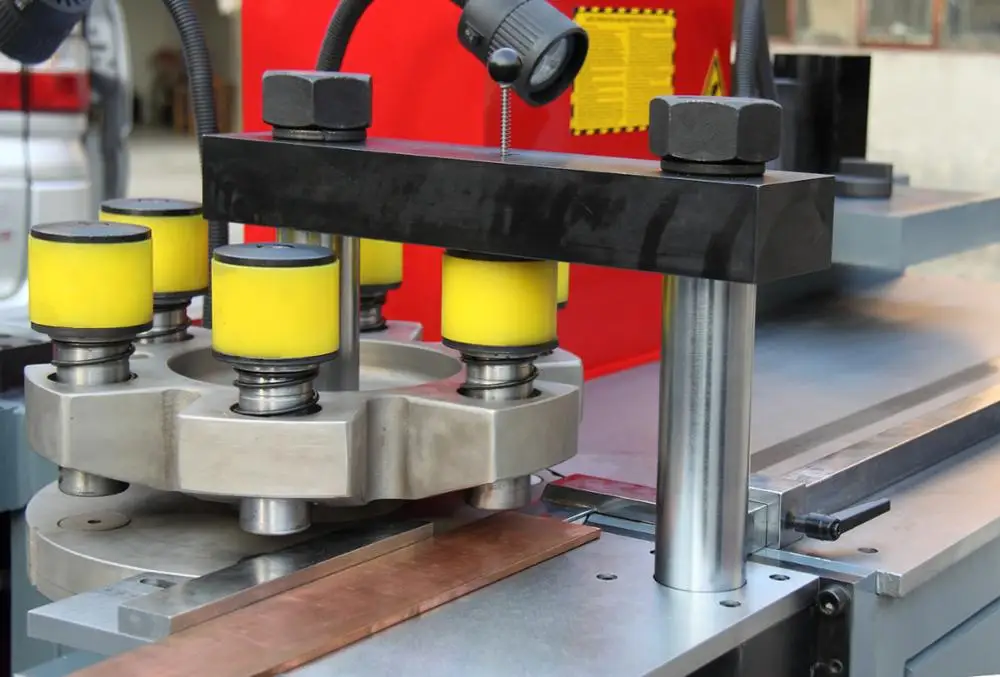

Punching unit: Turret punch unit installed with 6 punching dies, no need to change punching dies frequently, save time, reduce die change error, longthen the lifetime of punching dies.

2. Cut

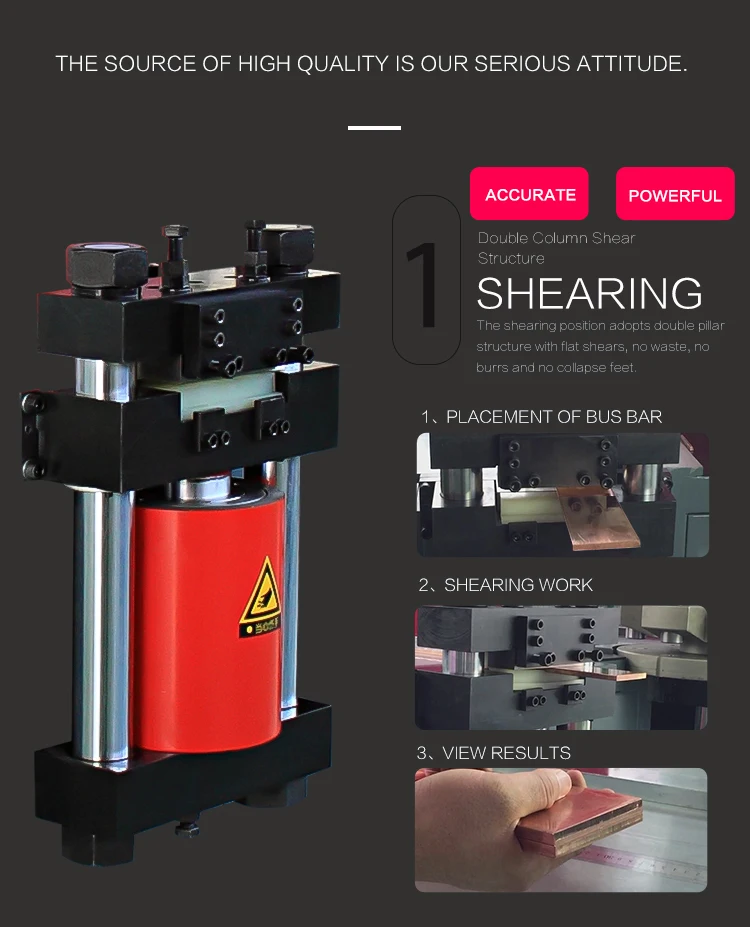

 Cutting unit: Two scissors shearing struction.  There is no waste busbar generated.  The cutting edge is smooth and neat.

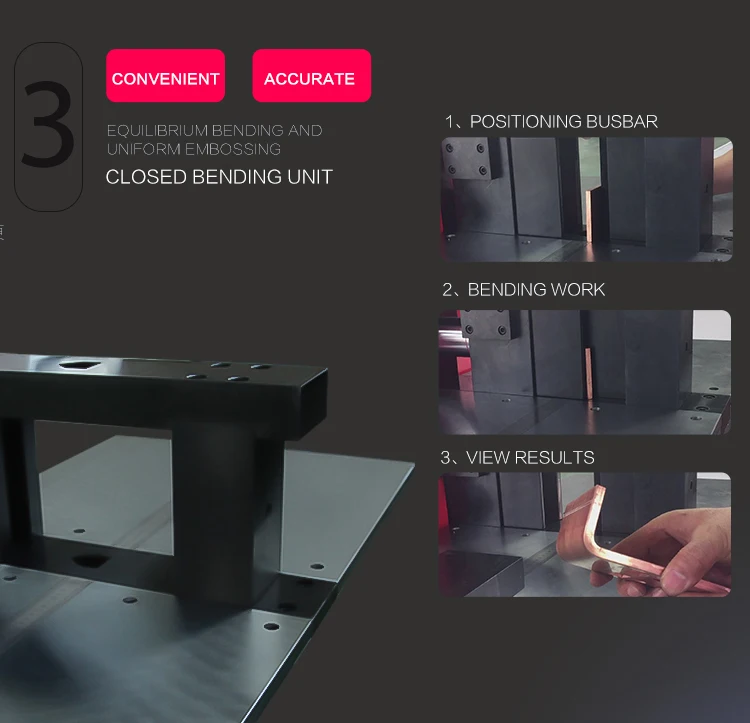

3. Bend

Bending unit: CNC control the precision of bending angel.  It can bend copper and aluminum busbar in vertical direction and horizontal direction.  Through using the customized dies.  The bending station can bend copper and aluminum round bars, twisting copper and aluminum flat bars, press cable joint etc.

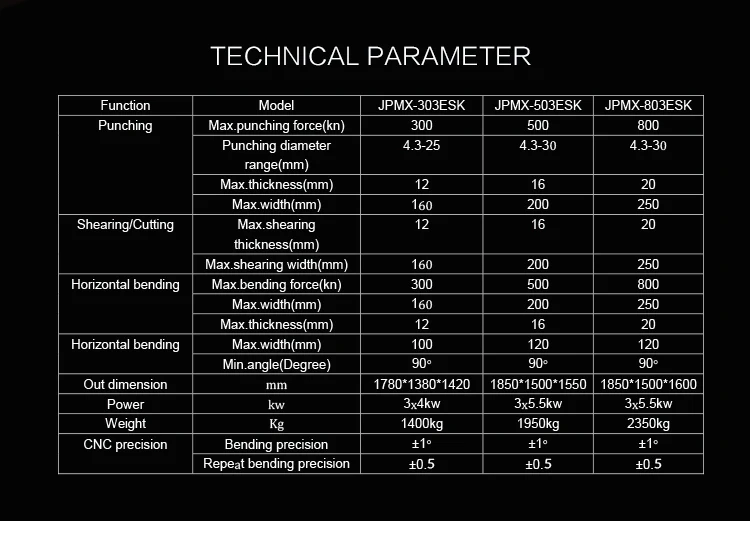

Technical parameters of the busbar processing machine:
