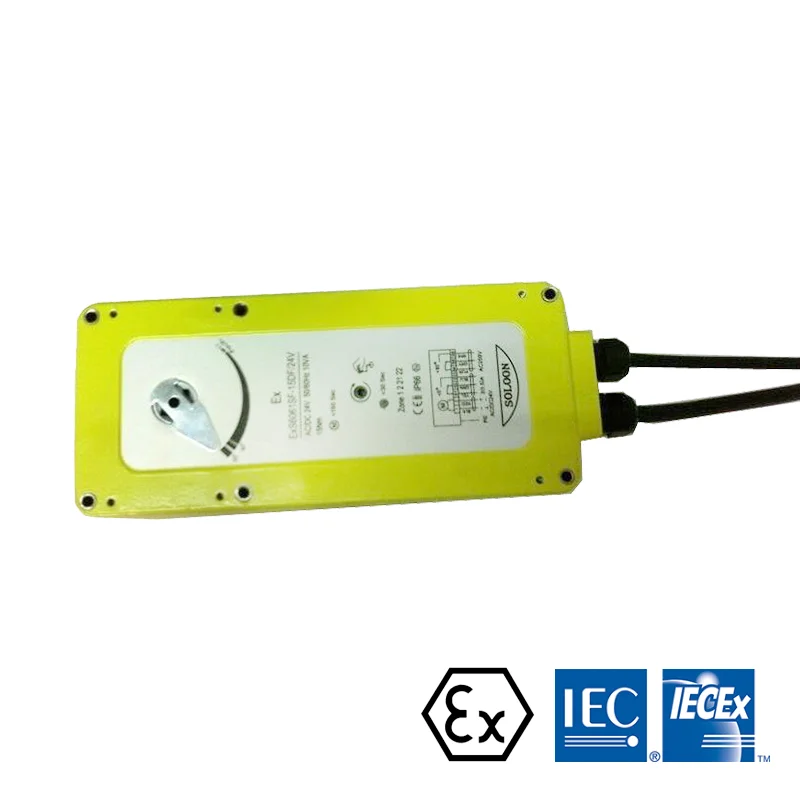

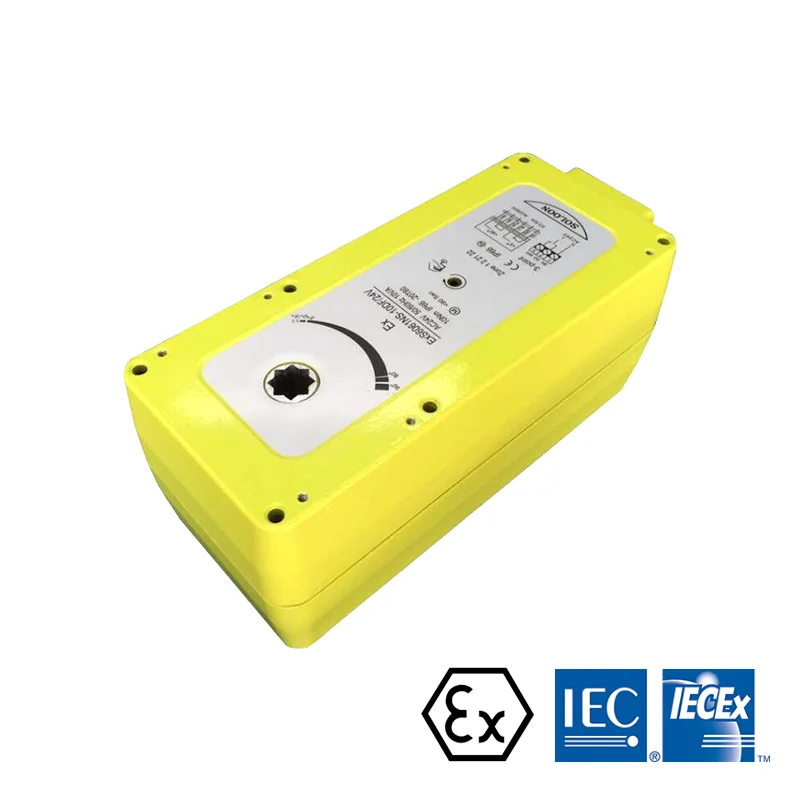

15NM ON/OFF ATEX IECEx Listed Explosion Proof Damper Actuator for HVAC System
- Category: >>>
- Supplier: Soloon Controls (Beijing) Co. Ltd.
Share on (60702448083):
Product Overview
Description
Product Description
Technical Specification
| Item | ExS6061SF-15DF/24V | ExS6061SF-15DF/230V |
| Torque | 15Nm | |
| Damper Area | 4.5m2 | |
| Running Time | Motor<150s Spring Return<30s | |
| Power Supply | AC/DC24V 50/60Hz | AC230V 50/60Hz |
| Operating Power Consumption | 12W | 12W |
| Control Signal | ON/OFF | |
| Wire size | 10.5VA | |
| Connection cable | Power:1m cable 3*0.75 m2 Auxiliary switch (F):1m cable 6*0.5 m2 | |
| Weight | 5Kg | |
| Angle of Rotation | 0~90°(Max 93º) | |
Auxiliary Switch Rating | 3(1.5)Amp 250V | |
Life Cycle | >70000 cycles | |
Noise Level | Max 50dB and 62dB | |
IP Protection | IP66 | |
Temperature | -20~+50℃ | |
Humidity | 5~95%RH | |
Storage Temperature | -40~+70℃ | |
| Certificate | ATEX & IECEx | |
Wiring Diagram: Auxiliary switch

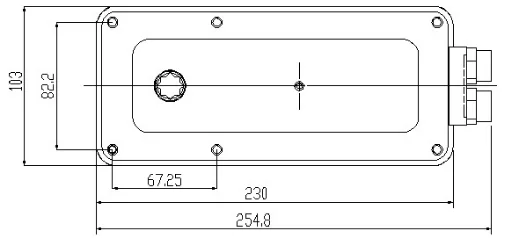

Outline Size:
