Hot Sale 30tph Beach Sand Cleaning Machine Sand Washing Machine
- Category: >>>
- Supplier: Zhengzhou Hengxing Heavy Equipment Co. Ltd.
Share on (60702462045):
Product Overview
Description
Hot Sale 30tph Beach Sand Cleaning Machine Sand Washing Machine:
For the beach sand cleaning machine ,you can select bucket wheel sand washer or spiral sand washer,spiral sand washing machine .
Beach sand cleaning machine -spiral snd washing machine application:
Spiral Sand washing machine improves the quality of sand by removing the dust in it. It is therefore widely used in building-sites, gravel factories, concrete dam sites, glass factories, cement mixture stations, quarries, hydropower stations, and electric pole factories, etc.applied materials :quarry, minerals, building materials, transportation, chemical industry, water conservation and hydropower, cement mixture station and so on.
Working Principle of the beach sand cleaning machine :

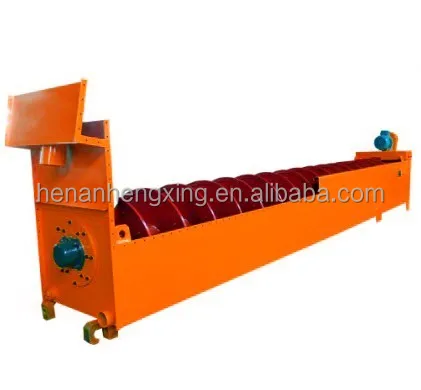

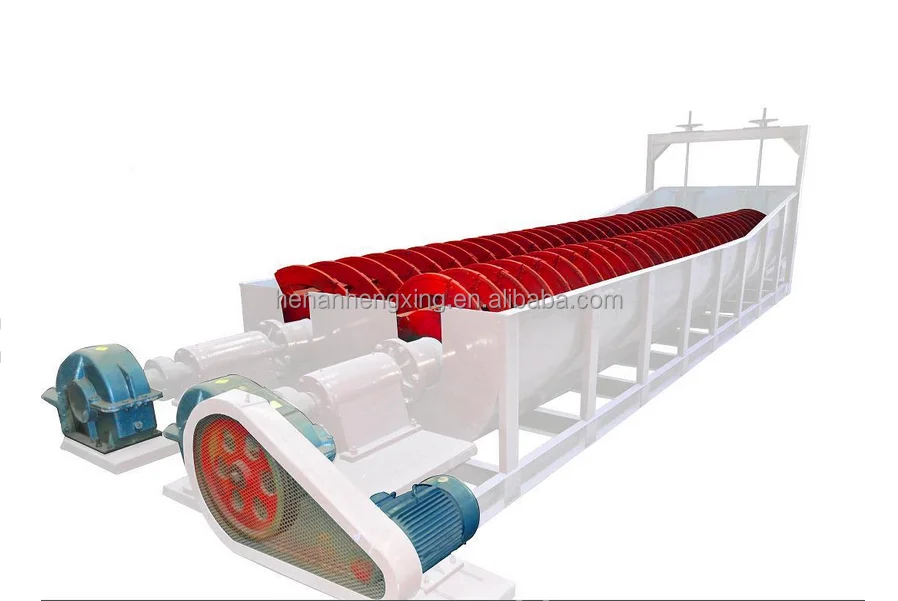

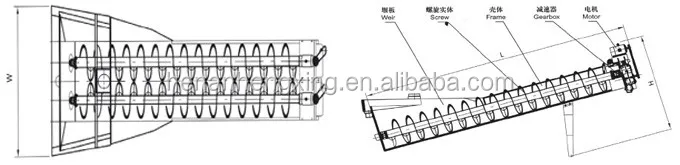

The sand and gravel flow into washing launder from feeding launder, churned, overturned by the impeller, the impurity in the sand will be washed away from washing launder. Finally, the clean sand will be lift up by the impeller to finish the washing process. the water will be remained in the launder to be reused.the sand washing machine structure is as follows:
Spiral sand washing machine main technical Parameters:
Model | XL508 | XL610 | XL762 | XL915 | 2XL915 | XL1115 | 2XL1115 |
Screw Diameter(mm) | 508 | 610 | 762 | 915 | 915 | 1115 | 1115 |
Length of Tub(mm) | 6705 | 7225 | 7620 | 7585 | 7585 | 9782 | 9782 |
Max Feed Size(mm) | ≤ 10 | ≤ 10 | ≤ 10 | ≤ 10 | ≤ 10 | ≤ 10 | ≤ 10 |
Capacity | 20 | 40-50 | 50-75 | 100 | 200 | 175 | 350 |
Speed of Screw | 38 | 32 | 26 | 21 | 21 | 17 | 17 |
Motor Power | 5.5 | 7.5 | 11 | 11 | 2×11 | 15 | 2×15 |
Water Consumption (t/h) | 6-60 | 6-63 | 9-63 | 10-80 | 20-160 | 20-150 | 40-300 |
Overall Dimensions (mm) | 8000×2343 | 8000×2050 | 8545×2650 | 8500×2810 | 8420×3765 | 10970×3945 | 10970×5250 |
Weight(t) | 2.67 | 3.80 | 5.23 | 6.27 | 11.11 | 10.18 | 17.94 |
Beach sand cleaning machine features:
1. Reasonable structure, convenient maintenance, large capacity, small power consumption, clean and high.
2. The novel sealing structure, fully enclosed oil bath type transmission device, the adjustable overflow weir plate, to ensure that the products efficiently.
3. Durable, and cleaning, dehydration, fine-grained product stable characteristics.
4. Saving water resource, without pollution
5. Less material loss after washing, high washing and selecting efficiency.
6. No quick-wear part, long service life.

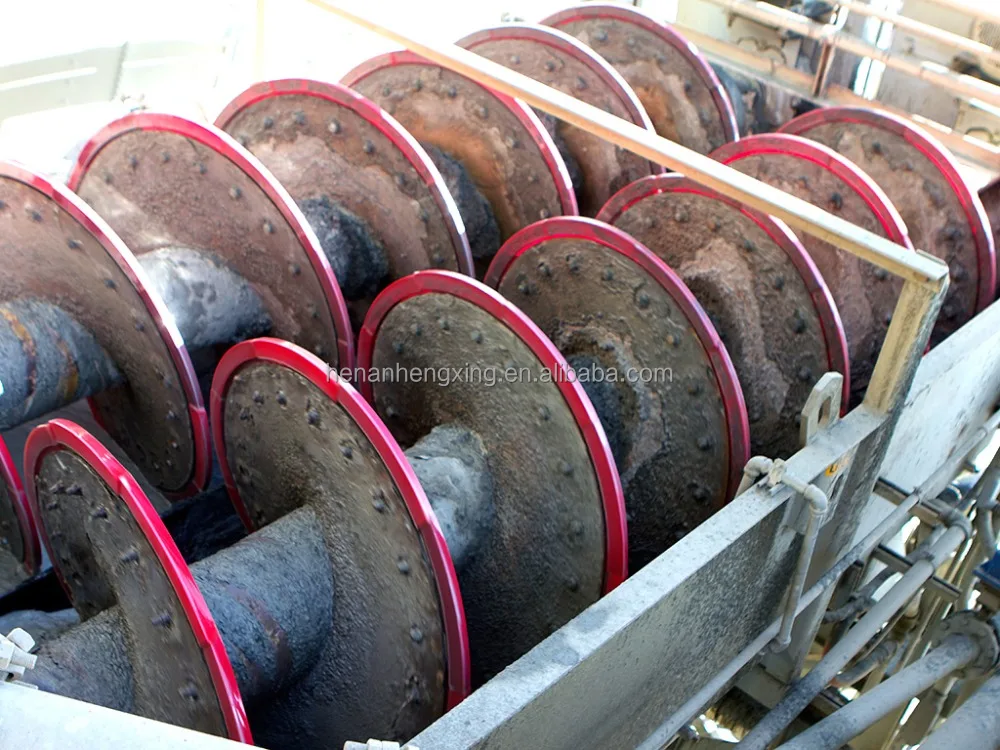

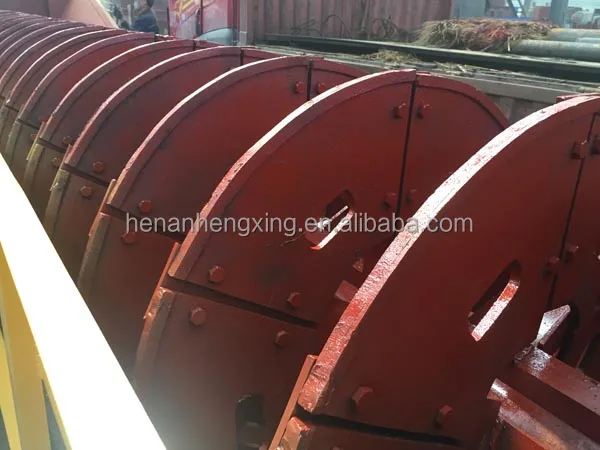

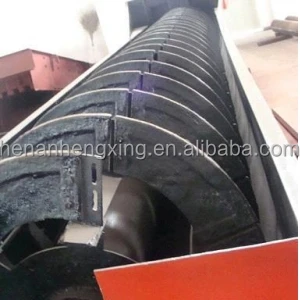

Impellers :

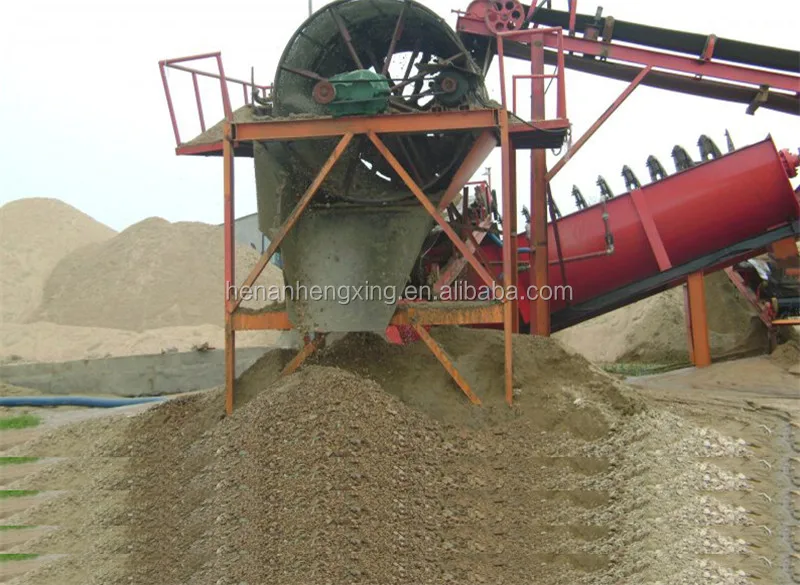

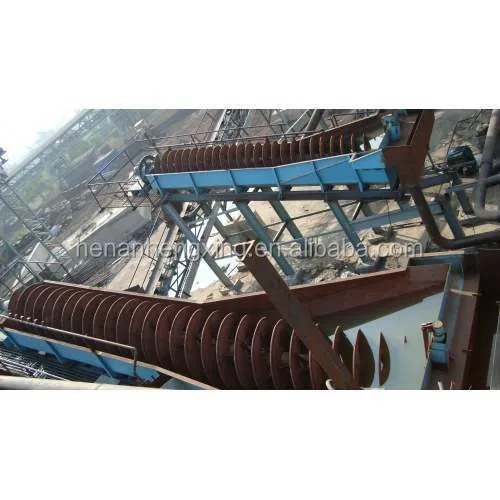

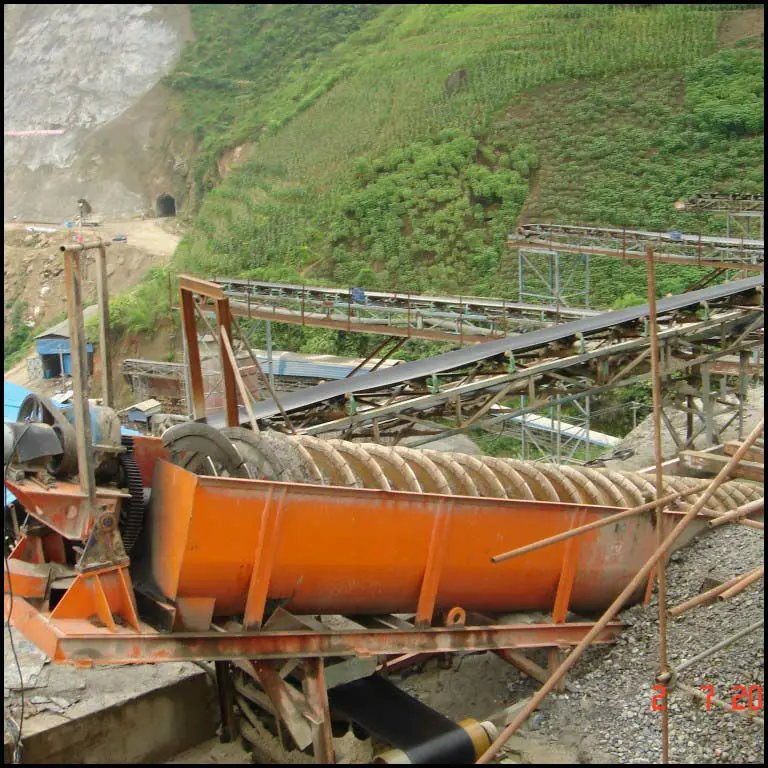

Beach sand cleaning machine user site :

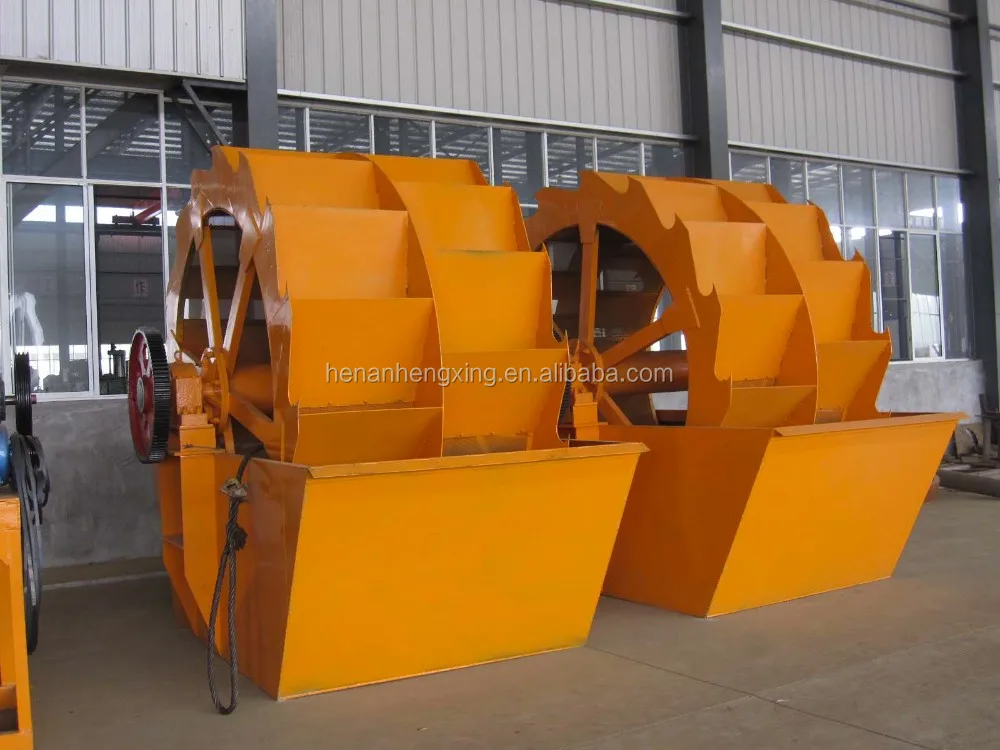

Wheel bucket type sand washing machine :
Related product for the beach sand cleaning machine production line :
Contact information :
Sara
Mobile Phone (whatsapp): 0086 137 8347 1727
Skype: sarapang6
Wechat: sarapang6
