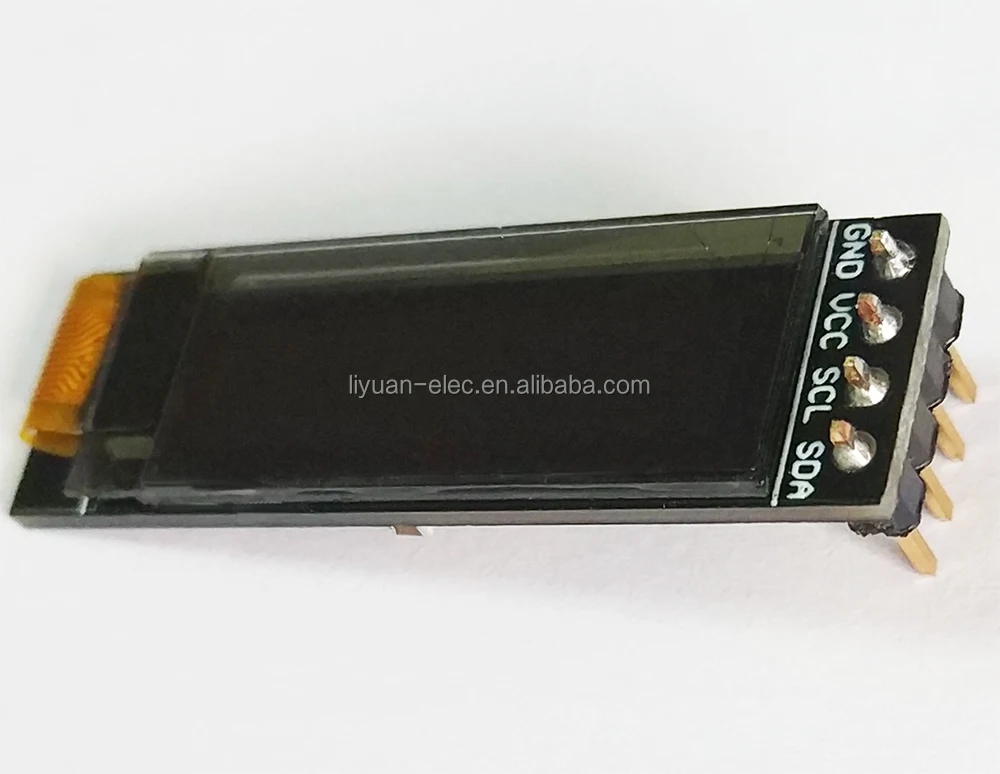

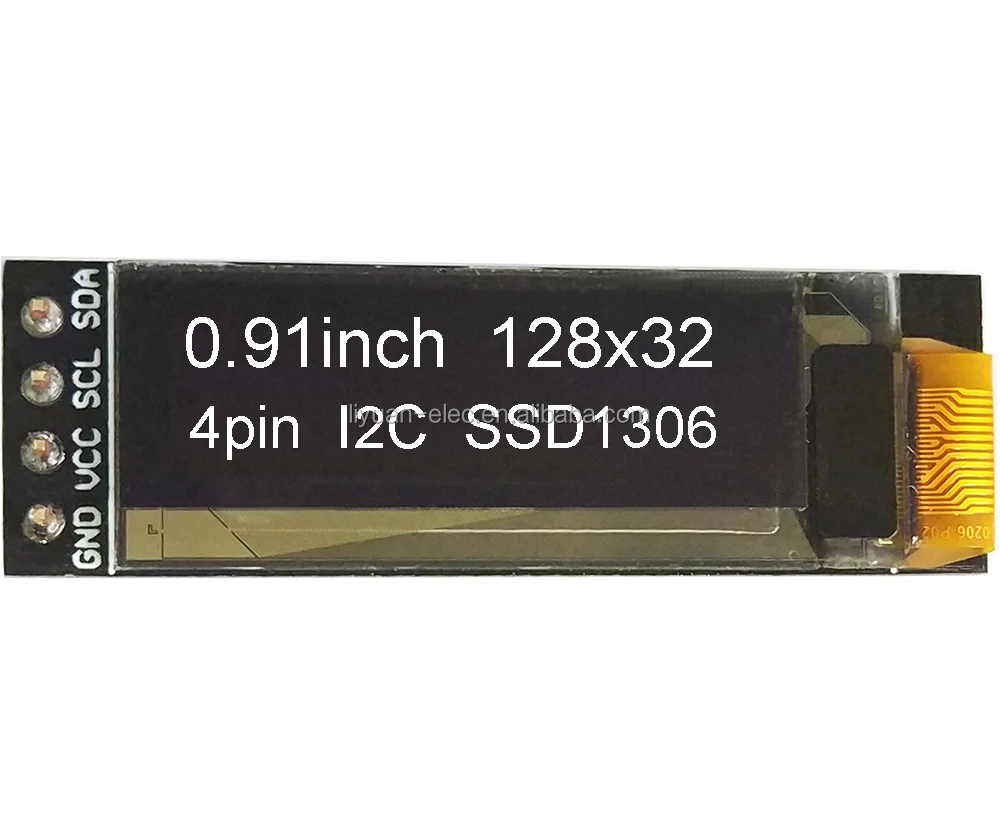

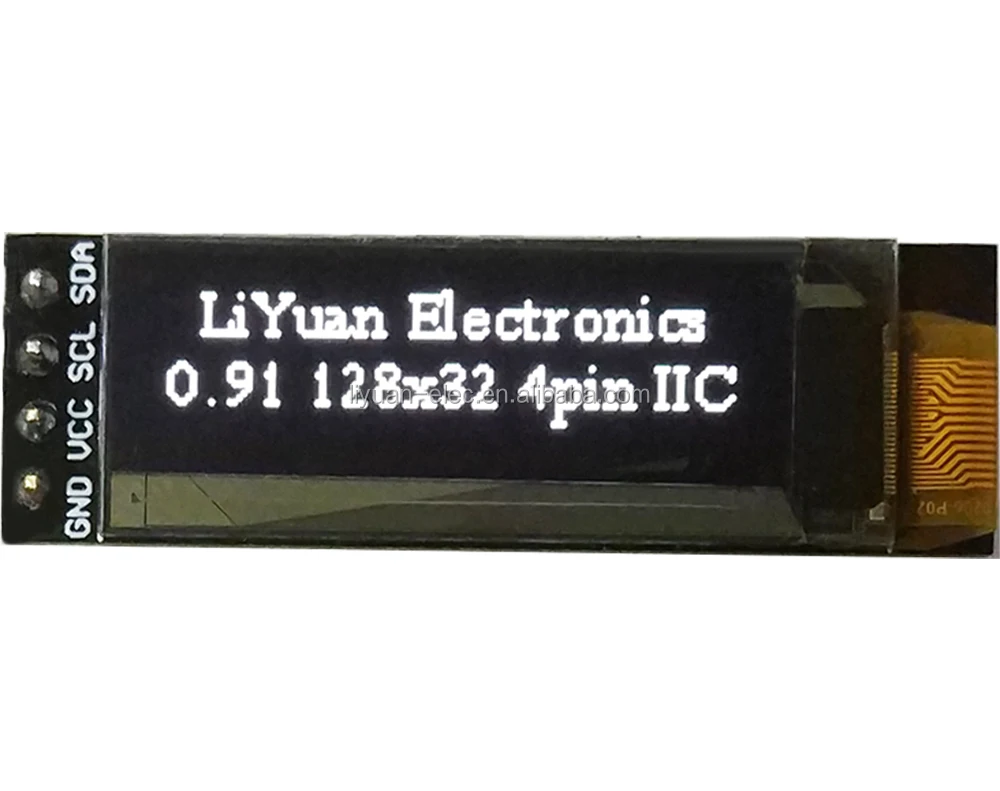

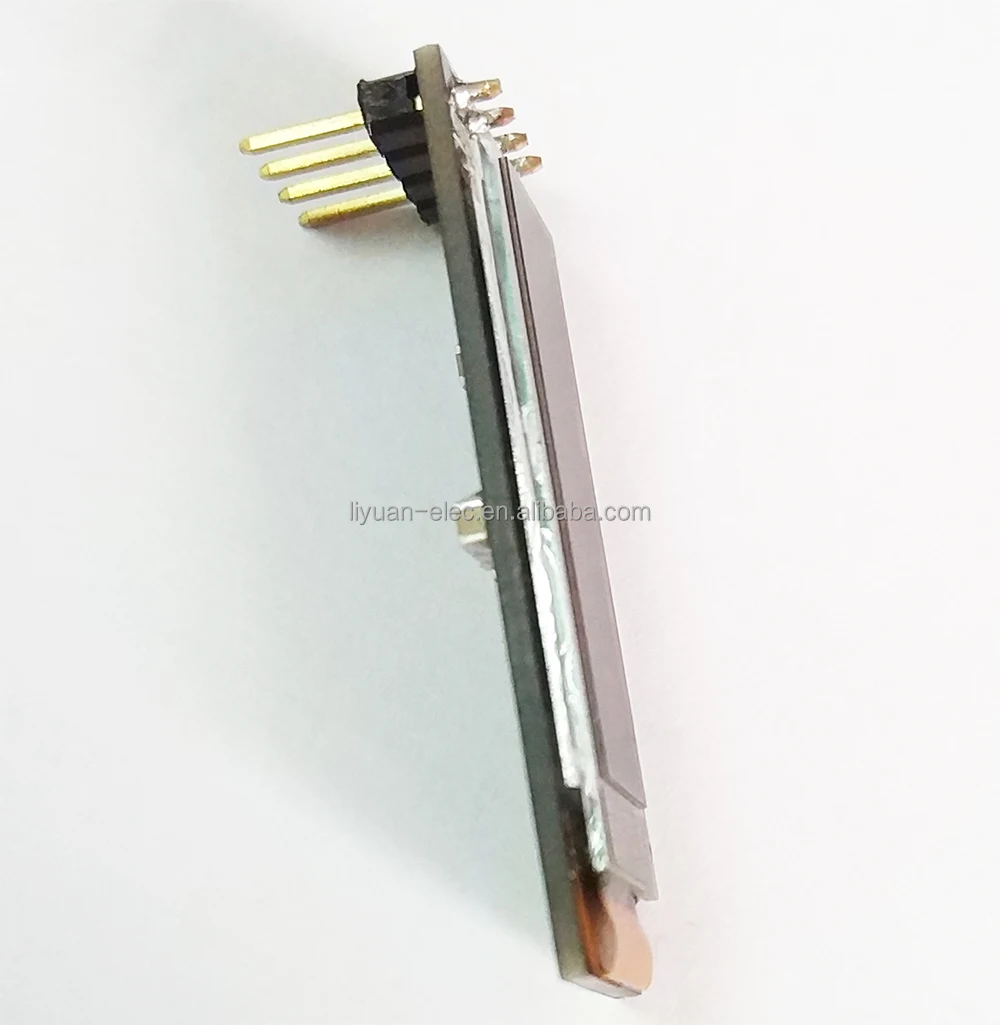

0,91 дюйма 128x32 SSD1306 4 контактный модуль I2C IIC oled с 4 отверстиями

 Part Number: LM091I-128032

 1. Display Specifications

1) Display Mode: Passive Matrix
2) Display Color: Monochrome (White)
3) Drive Duty: 1/32 Duty

4) Wide viewing angel: >160 degree

5) Brightness: 150 cd/m2

6) Dark Room Contrast: >2000:1

7) Sleep Mode Current for VCC: 5uA

2. Mechanical Specifications
1) Number of Pixels: 128 × 32

2) Panel Size: 38.0(W) x 12.0(H) x 2.8(T)(mm)
3) Active Area: 22.384(W) × 5.584(H) (mm)
4) Pixel Pitch: 0.175 × 0.175 (mm)
5) Pixel Size: 0.159 × 0.159 (mm)

6) Weight: 1.5(g)

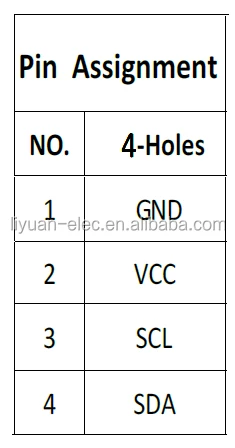

3. Pin: 4pin

4. Driver: SSD1306

5. Interface: IIC

If you have any questions in application circuit,we will provide detailed technical support.

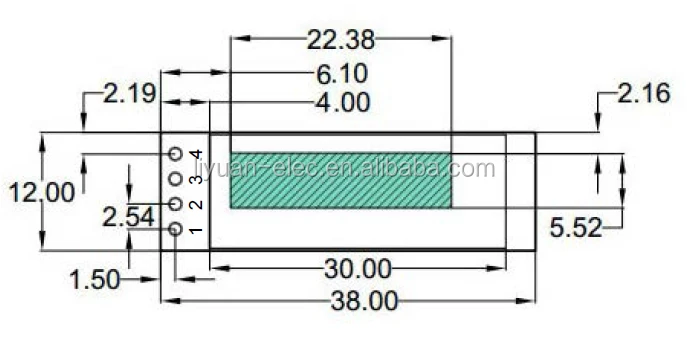

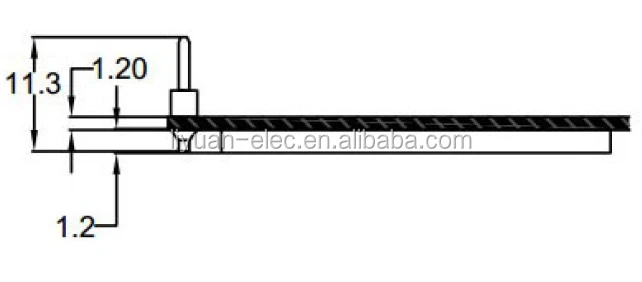

6. Drawing:

1). Datasheets
