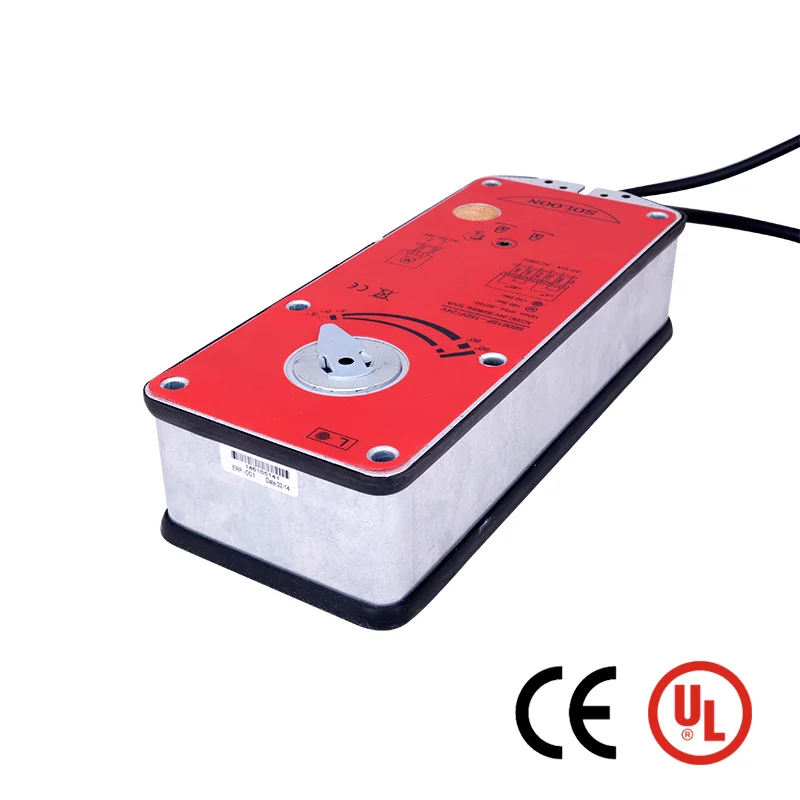

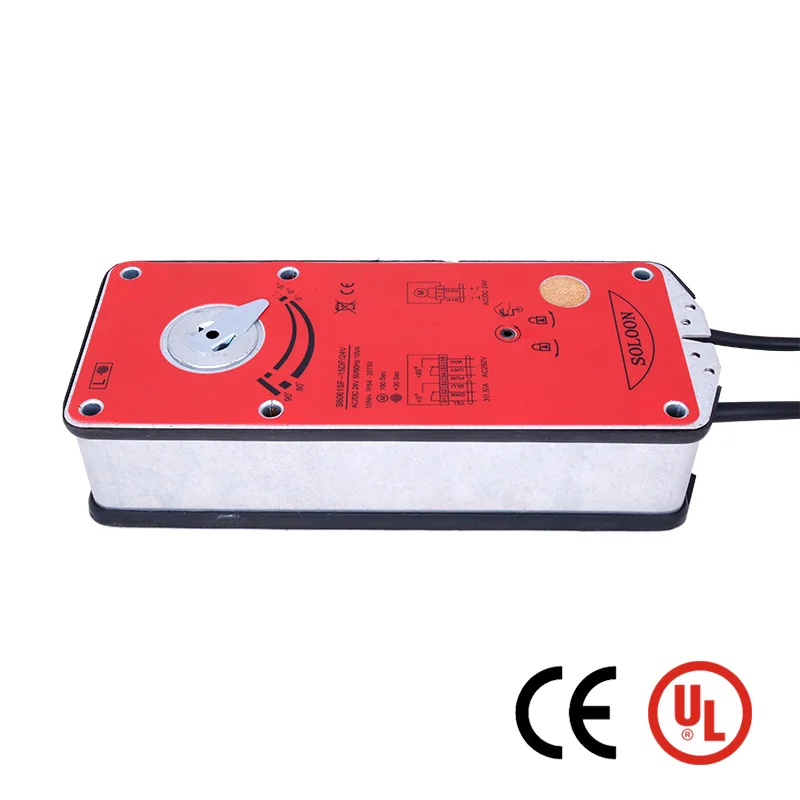

HVAC System 15NM ON/OFF 24V 230V fire smoke damper actuator
- Category: >>>
- Supplier: Soloon Controls (Beijing) Co. Ltd.
Share on (60702504829):
Product Overview
Description
Product Description
Technical Specification
| Item | S6061SF-15DF(S)/24V | S6061SF-15DF(S)/230V |
| Torque | 15NM | |
| Damper Area | 3m2 | |
| Running Time | Motor 100S;Spring return 20S | |
| Power Supply | 24VAC/DC 50/60Hz | AC90~250V 50/60Hz |
| Operating Power Consumption | 6W | |
| Wire Size | 10VA | |

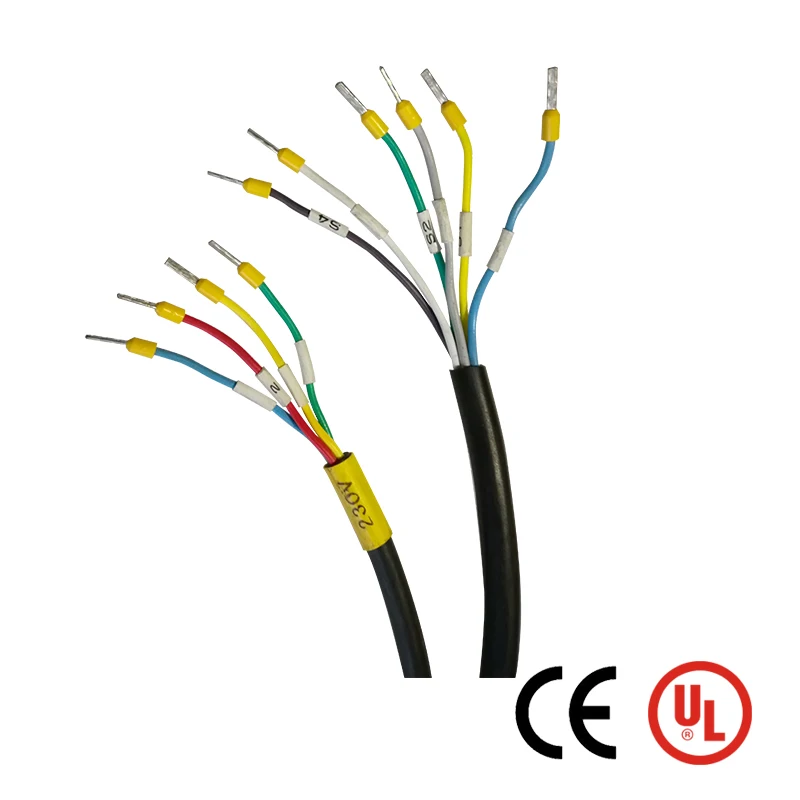

Connection cable | 1m cable 2*0.75 m2 Auxiliary switch (F):1m cable 6*0.5 m2 | |
| Control Signal | On/off | |
| Angle of Rotation | 0~90°(max 93º) | |
Auxiliary Switch Rating | 3(1.5)Amp 250V | |
Life Cycle | >70000 | |
Noise Level | 50dB(A) and 62dB(A) | |
Electric level | Ⅲ | Ⅱ |
IP Protection | IP54 | |
Temperature | -20~+50℃ | |
Humidity | 5~95%RH | |
Storage Temperature | -40~+70℃ | |
| Certificate | CE & UL | |
S6061SF-15D:
Wiring diagram: Auxiliary switch:
Outline Size:

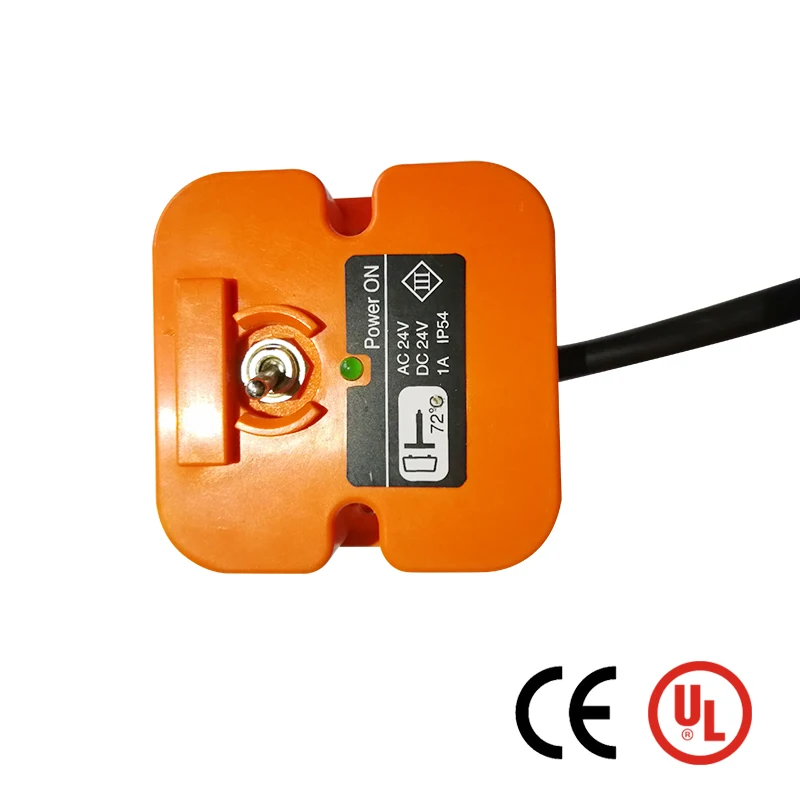

72℃ thermal sensor
