Dental Imaging System with high resolution

Product Overview

Description

High-definition image quality, low-dose imaging protocols and touch-screen user interface.

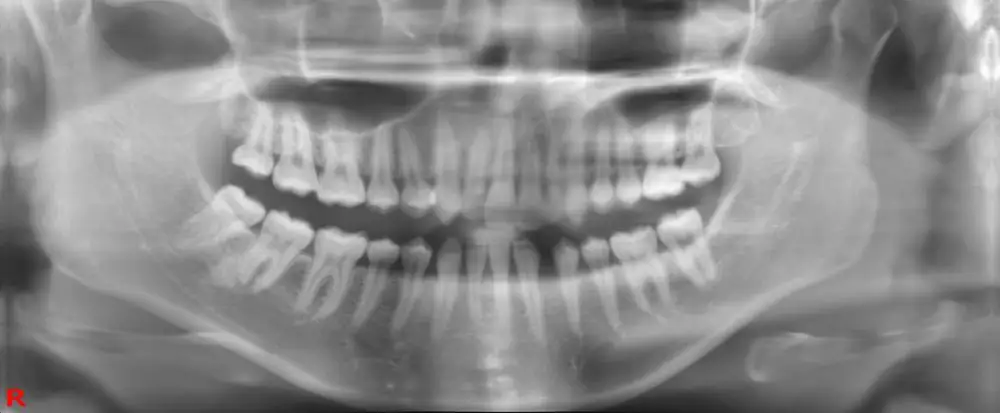

1.     Panoramic



two-side check fixing device and chin-rest for panoramic acquisitions improves clarity and reducing the risk of re-takes.

Smart 3D is designed to be upgradable from panoramic imaging and Cone Beam Computed Tomography to cephalometric.

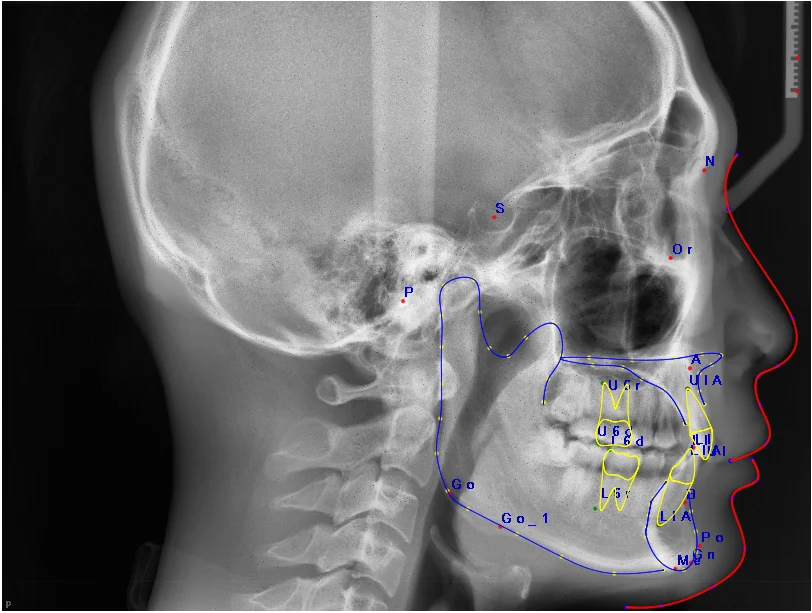

2.     Cephalometric



The scanning ceph module allows clinicians to upgrade their diagnostic capabilities while keeping costs to minimum. High-resolution images provide all the clinical information needed while keeping radiation exposure low. Full and Half width images optimize dose to cater to dentist’s requirements.







3.     CT Imaging



Practitioners can display the acquisition field of view on the patient’s face, indicating the exact area during the examination.

Pre-program the fields of view from 5x5 to 15x8 according to clinical application requirement. Zero dose presentation mode is for safety and relax patient’s anxiety.

Self-developed and owned image reconstruction algorithms provide high-quality images with drastically reduced x-ray dose. The image reconstruction algorithms reduce the processing time of x-ray data to 15 seconds.





4.     Integrates easily into the office network

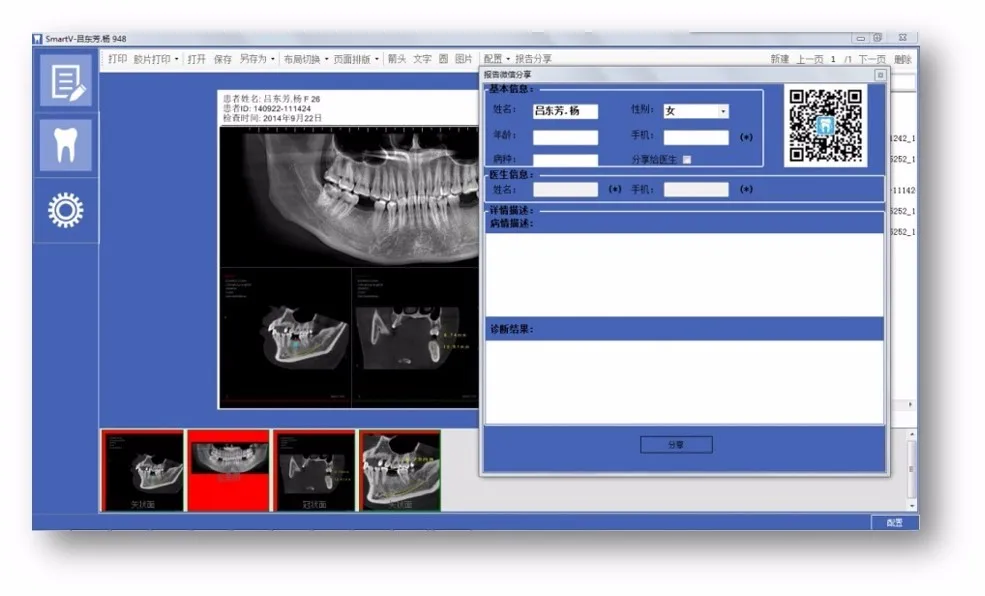

Better diagnostics with panoramic imaging begins with accurate, clear views of the patient’s anatomy. The Smart 3D is able to capture well-defined, high-quality images with consistent magnification and image uniformity with its powerful imaging tools. Utilize its equipped software SmartV2, it realizes cloud sharing.





5.      Multifunctional software

 3D image view with intuitive user interface

 Implant simulation with adjustment of sectional view

 Airway segmentation and analysis

















Technical Specifications
Smart3D
X-ray Tube Voltage	60-100kV
X-ray Tube Current	2-10mA
Max Exposure Power	600W
CT Sensor Type	CsI+CMOS Flat Panel Detector
CT Field of View            (D * H)	15cm x 8cm or 12cm x 8cm 8cm x 8cm 5cm x 5cm
CT Voxel Size	0.25mm 0.125mm 0.1mm 0.075mm
CT Spatial Resolution	2.0 lp/mm
CT Scan Time	15s
CT Exposure Time	13s
CT Reconstruction Time	15s~40s
Pan Sensor Type	CsI+CMOS Flat Panel Detector
Pan Sensor Pixel Size	0.1mm
Pan Exposure Time	6s~11s
Ceph Sensor Type	Csl+CCD TDI Detector
Ceph Sensor Pixel Size	27μm
Ceph Exposure Time	8s~13s
Focal Spot Size	0.5(IEC336)
Weight	With Ceph function: 335kg Without Ceph function: 285kg
Power Requirements	AC220V±10%, 50Hz, 2000VA
Outer Dimensions	With Ceph function: 1978mm × 1526mm × 1693~2393mm Without Ceph function: 1100mm × 1526mm × 1693~2393mm
Room Requirements	With Ceph function: 2.5m × 2.1m × 2.5m Without Ceph function: 1.6m × 2.1m × 2.5m
