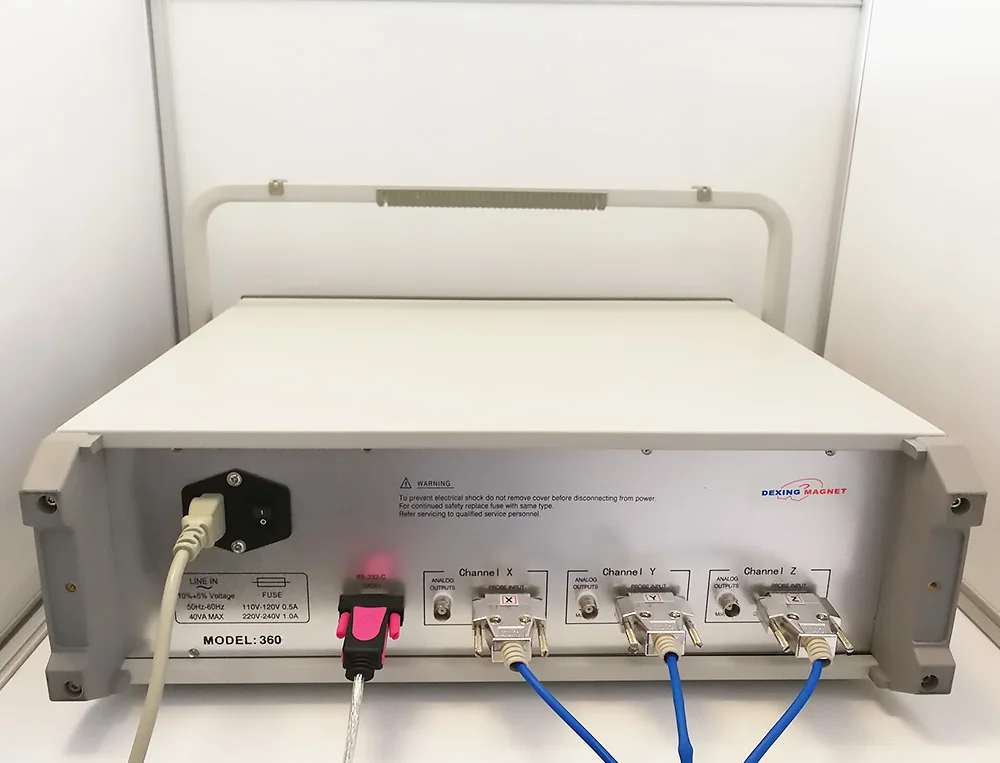

DX 360 AC/DC Intelligent Digital Three Dimensional Gauss Meter/Tesla Meter for University Laboratory

Product Overview

Description

DX-360 AC/DC Intelligent Digital Three Dimensional Gauss Meter



  DX-360 Intelligent Digital Gauss / Tesla meter is the world's advanced Gauss meter, applied the latest technology of magnetic field measurement. The panel is very easy to operate, has a very good man-machine communication interface. The screen has a large VGA display, can display all the required information, and choose whether to display. All options can be achieved through the operation button on the panel. VGA display can simultaneously or optionally display a variety of different measurements of each channel: magnetic field density, frequency, temperature, maximum value, minimum value, the peak, valley, date, time. DX-360 has the function of vector overlay. It could choose three axis Gauss meter probe. Its main characters are high resolution ( 0.1mG 10nT ), high precision ( + 0.15%), VGA large screen high speed display, simultaneous measurement of temperature and frequency efficiency, automatic zero, automatic measurement, automatic acquisition of maximum value, minimum value, the peak, valley, vector superposition value, angle and real-time graphic display of test results. It provides a variety of display units: Gauss, Tesla, Oe, A / m; RS-232 interface or IEEE485 interface, large capacity and real-time data output and multiple communication mode, and high precision analog output. It is the best choice for scientific research institutions and aerospace.



Features



5 ¾-bit resolution on VGA color panel	Automically capture max./min.value
Easy use menu driven mode	Relative mode,grafical display of real-time measurement
vector superposition measured value and angle	Auto-zero, automatic/manual range
Probe Auto Calibration / Auto Memory operation mode / Probe temperature compensation	IEEE-485 or RS-232 interface
Automatic zero, temperature compensation	Date,Time and Brightness setting
dozens of optional square or circular probes	High capacity for data storage
Automaticly identified probe codfficient and numbers	Threshold alarm filter
Optional units: Gauss, Tesla, Oe, A / m	Data reading, the operation mode of memory



Specifications



Model-360 Specifications
	0.1mT=1Gs
Range	3G (300µT)/ 300G (30mT)/ 3kG/(300mT)                                                              /30kG (3T) /100kG/(10T)
Resolution	0.1mG(10nT)
Accuracy (display value)	One dimensional DC	±0.05% of reading , ±0.005% of range
	Three dimensional DC	±0.15% of reading , ±0.005% of range
	AC	±1% of reading , ±0. 5% of range
Frequency Range	DC mode	DC
	AC mode	20Hz to 30kHz
	Frequency display range	DC to 25kHz
Analog Output (x,y,x)	Output Voltage	±3V F.S.
	Connectors	Standard BNC
Additional effects	Temperature Coefficient	±(0.015% ±1 count)/ ºC
Temperature range	Working temperature	0ºC to 50ºC
	Storage temperature	-20ºC to 60ºC
Panel Display	VGA,800 x 480 Pixel, 7” color screen
Communication Interface	RS-232       Standard 9-pin D-type connectors
	IEEE-485   Standard 9-pin GPIB-type connectors
Supply power	Voltage: 100/120v  200/240v      Frequency: 50-60 Hz



Probes:three dimensional probe, two dimensional probe, uniaxial probe, transverse probe



DX-360 optional accessories



1. Test micro dynamic platform and probe fixed frame
2.3D drawing software: 3D angle collection, the 3D graph, graph drawing print.



Multi-dimensional magnetic measurement pictures

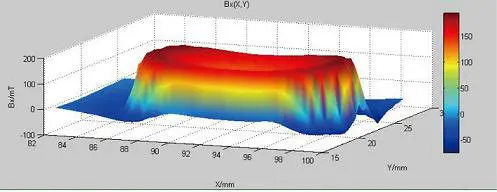

Picture 1: D plot of rectangular magnets

Picture2: D plot of elliptic magnets

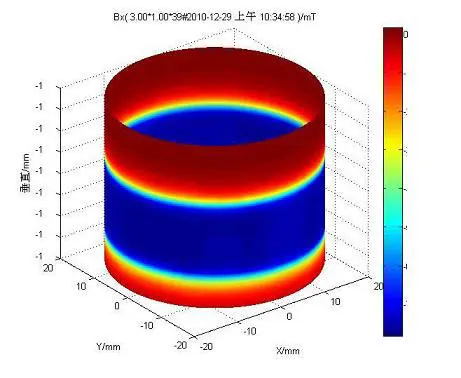

Picture3: D plot of cylindrical magnets

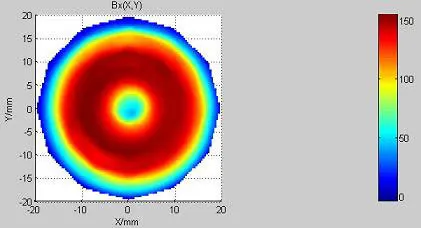

Picture4: D plot of circular magnets

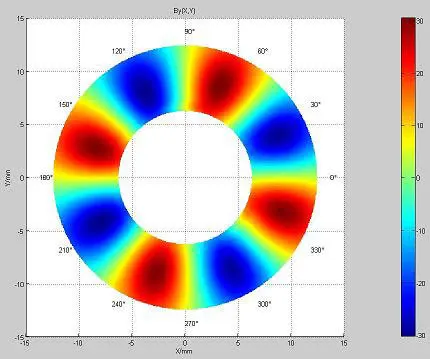

Picture5: D plot of multipole ring magnets

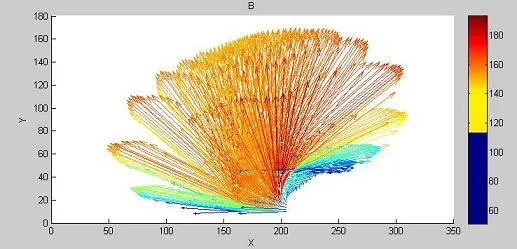

Picture6: Magnets 3 D distribution vector diagram





DX-360 Gauss / Tesla Meter Detail:

DC Measurement(DC):

DC display resolution: 5 ¾ (6 digital filter display)

DX-1800	*0-3mT	0-30mT	0-300mT	0-3T	*0-10T
Resolution	0.00001mT	0.0001mT	0.001mT	0.01mT	0.1mT

Marked * are the Automatic identification rangs of low magnetic field probe and ultra-high magnetic field probe
DC Accuracy: ±0.15% of reading ±0.005% of range
DC Temperature Coefficient:±(0.015% ±1 count)/ ºC
Acquisition Speed: 10/s

AC Effective Values(AC) and Frequency Measurement
AC Display Resolution: 0.001mT
AC RMS Frequency Range: 20Hz-30kHz
AC RMS Accuracy: ±1% of reading ±0.3% of range
AC RMS Frequency Response: 20Hz-2000Hz
Acquisition Speed: 10/s

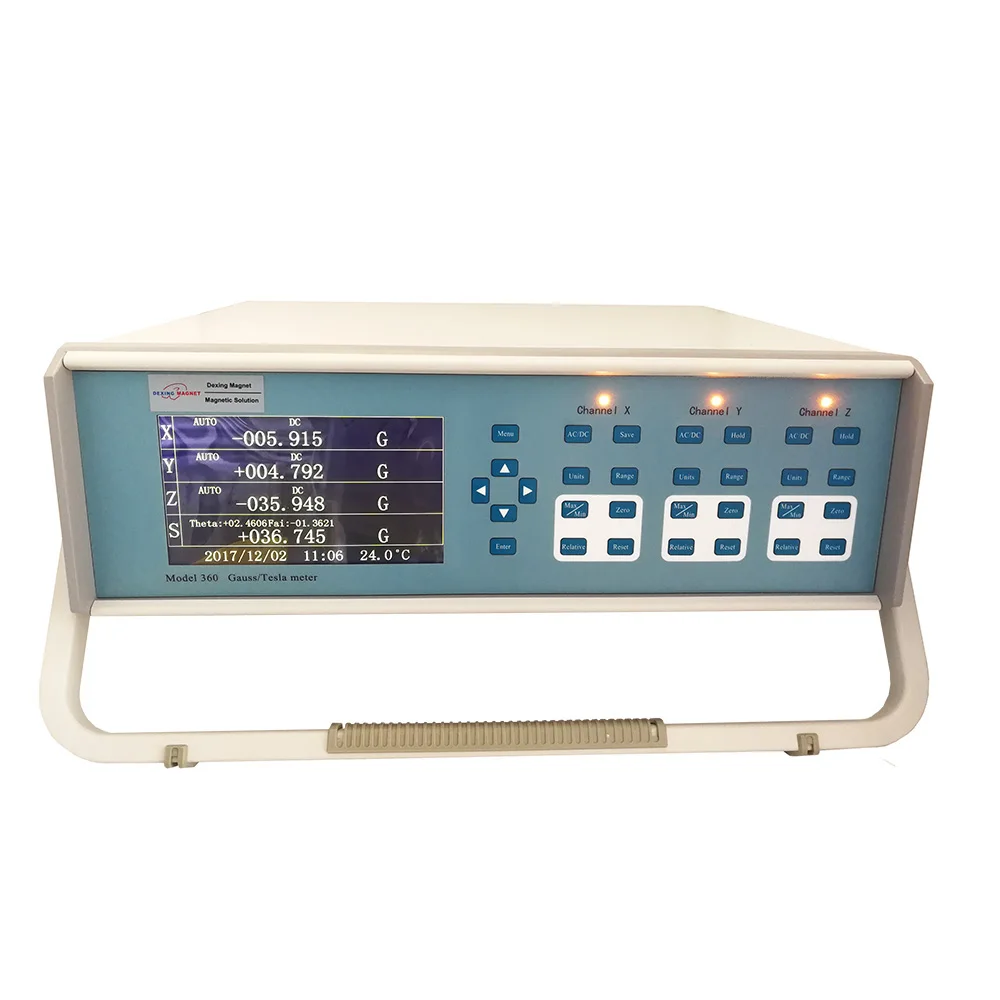

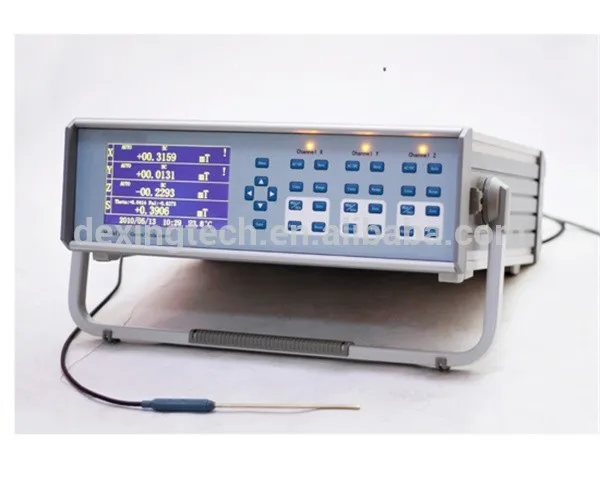

Front Panel

Display: value of X,Y,Z axis, pitch angle value, clip angle value,date,time,temperature
Display Type: 800 x 480 Pixel,7 inch full view color screen
Display Resolution: 5 ¾ (6 digital filter display)
Display Update Rate:3rdg /s
Display Units: Gauss(G), Tesla(T), Amps/m(A/m), Oster(Oe)
Unit Multiplier: m,k,M
Definitions of control keys: AC/DC Switch, Measurement Units, Range Switch, Data Storage, Up/Down/Left/Right Direction, Menu, Max/Min/Interface Lock, Zero Mode, Confirmation Button, Relative Mode, Reset Mode
Keyboard: 14 membrane keys
Front Panel Features: Good Communication Ability, Intuitive Operation, Display Hints, Brightness Control, Panel Lock, Graphic Display

Probe Specifications

Input Type: Three dimensional Hall Effect Sensor
Probe Features: Linearity Compensation, Temperature Compensation, Auto Probe ZeroProbe
Compatibility: Standard probe or special probe
Connector: 15 pin D-type

Interface Features

RS - 232C interface function
Baudrate: 19600, 57600, 115200
Connector: 9 pin D-type, Terminal Configuration
Software Suppot: Standard interface definition
Analog output monitoring
Configuration: Real-time analog voltage output
Rang: ± 3 V
Frequency Response: 20Hz to 3000Hz
Accuracy: depending on probes
Minimum load resistance: 1 k (Short-Circuit Protection)
Connector: BNC

General Parameters

Chassis: Metal shielded
Environment Temperature: 15℃to 35℃rated accuracy; 5℃to 40℃accuracy reducing
Power Requirements: 220-240(+5 %, -10 %), 50 or 60Hz
Size: 460 mmWidth× 160mmheight× 465mm
Weight:8kg
