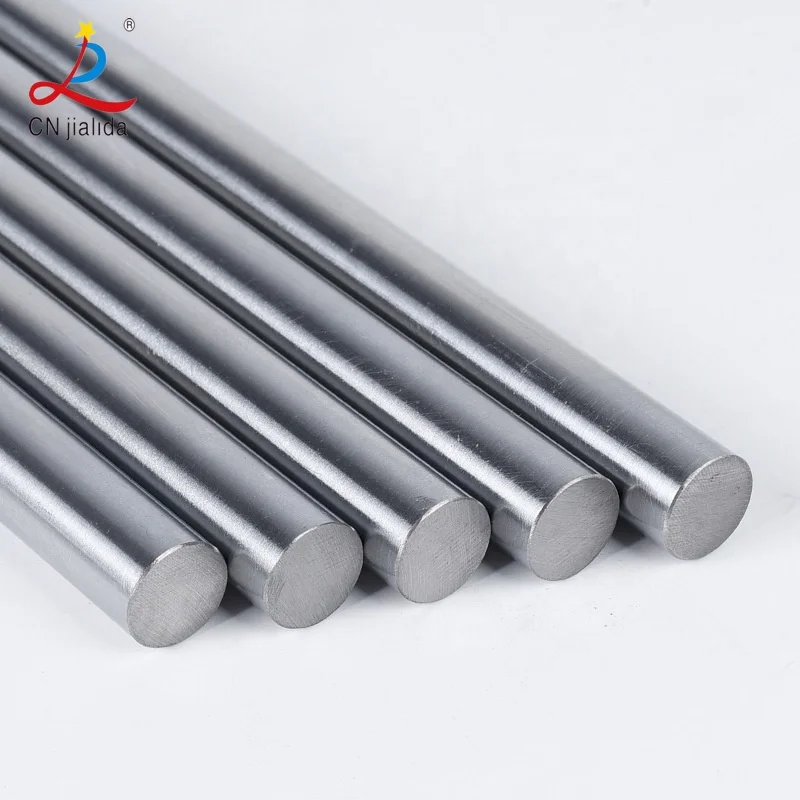

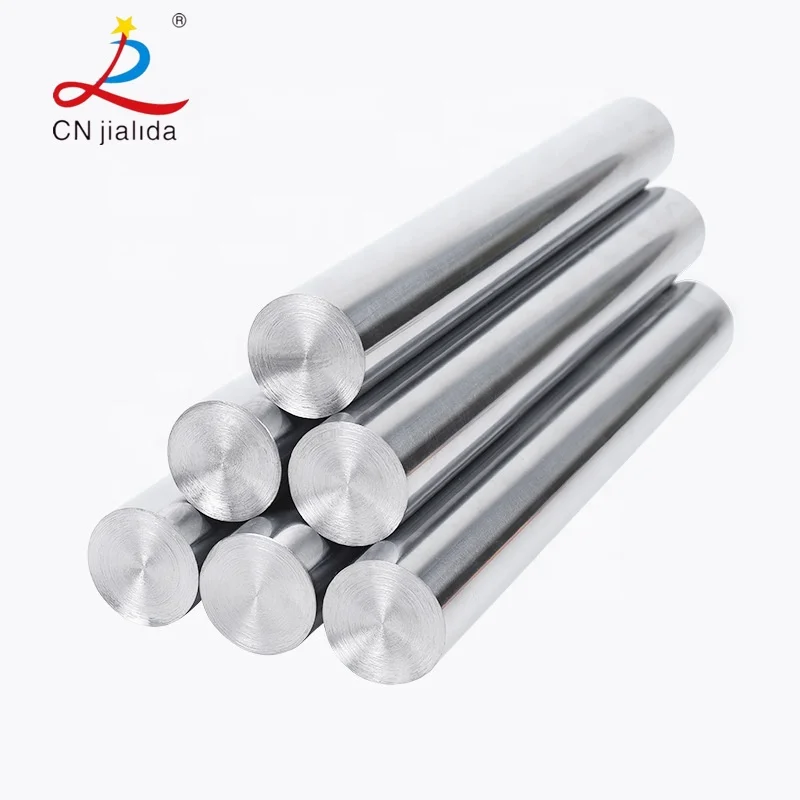

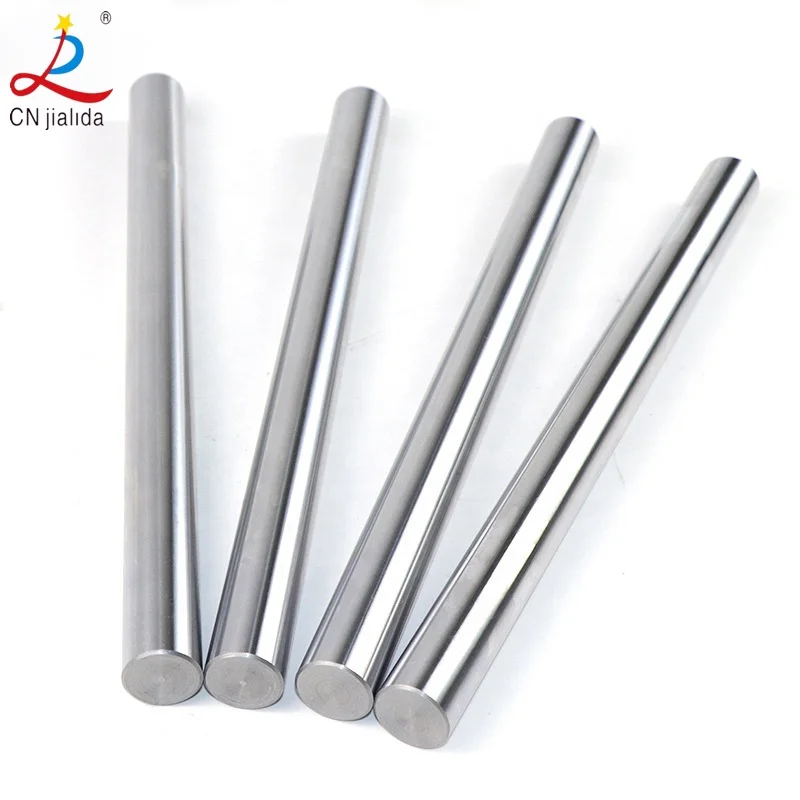

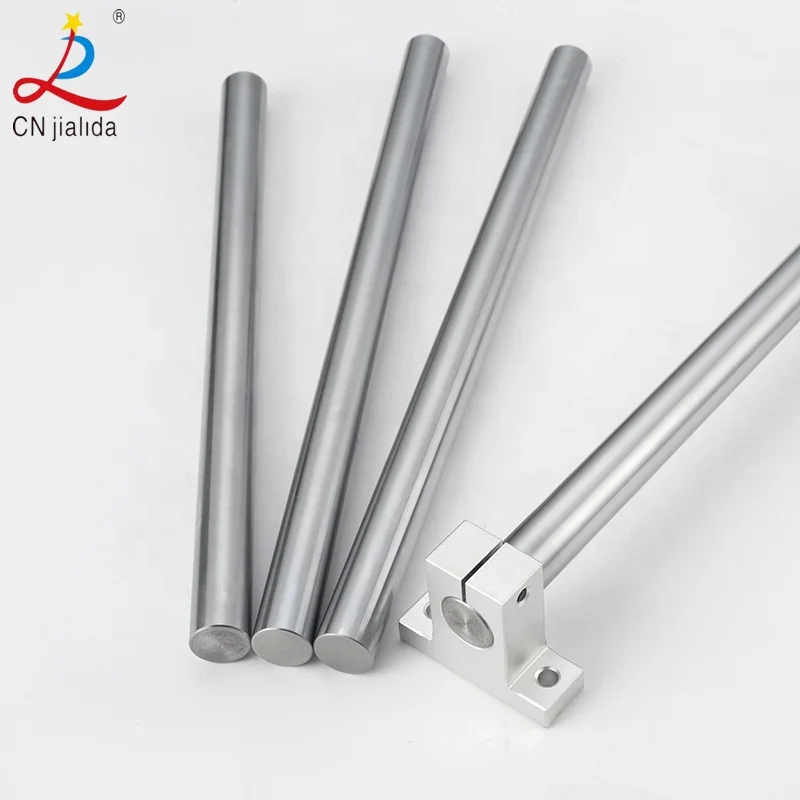

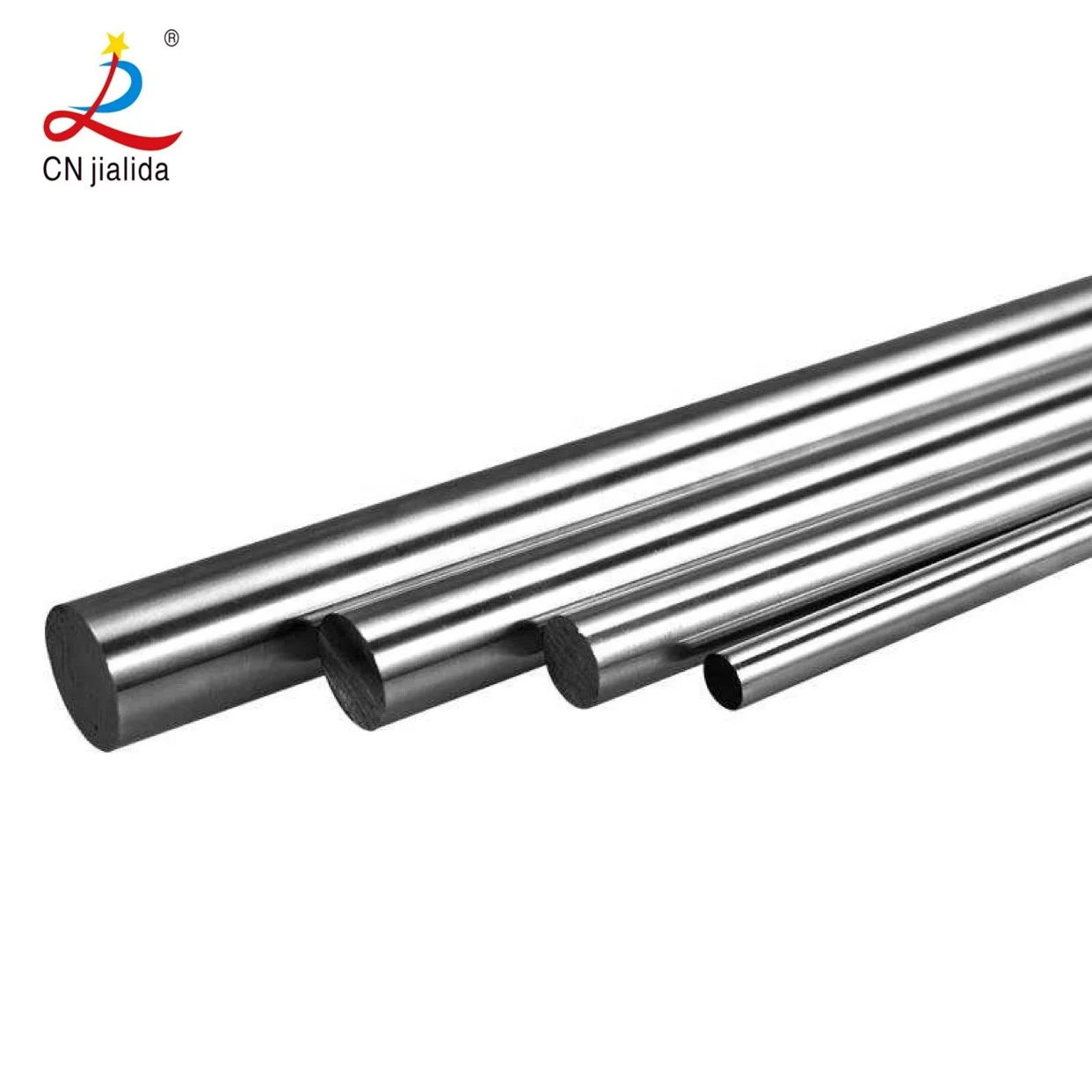

CNC Machine 3D Printer Round Hardened and Hard Chrome Plated Linear Transmission Steel Bearing Shaft (3mm 80mm)
- Category: Shafts >>>
- Supplier: Lishui City Jialida Bearing Co. Ltd
Share on (60702731255):
Product Overview
Description
High Quality Harden and Chrome Plated Linear Shaft from Professional Shaft Manufacturer
Linear shaft is induction hardened, precision ground, and polished to the tolerances required by the demanding linear motion industry.
1.Good finish and straightness: The surface is treated by special grinded, and then mirror polished. The surface is smooth, without cracks.
2.Corrosion resistance: Surface chrome plated(10um-20um)
3. Durable resistance: Adapting C45 high quality steel, high frequency hardness degree HRC60 ~ 64
4.High Accuracy : G6;Diameter tolerance:-0.005mm-.0.27mm; Length tolerance:+/-0.5mm(1M-3M);+/-1mm(3M-6M)

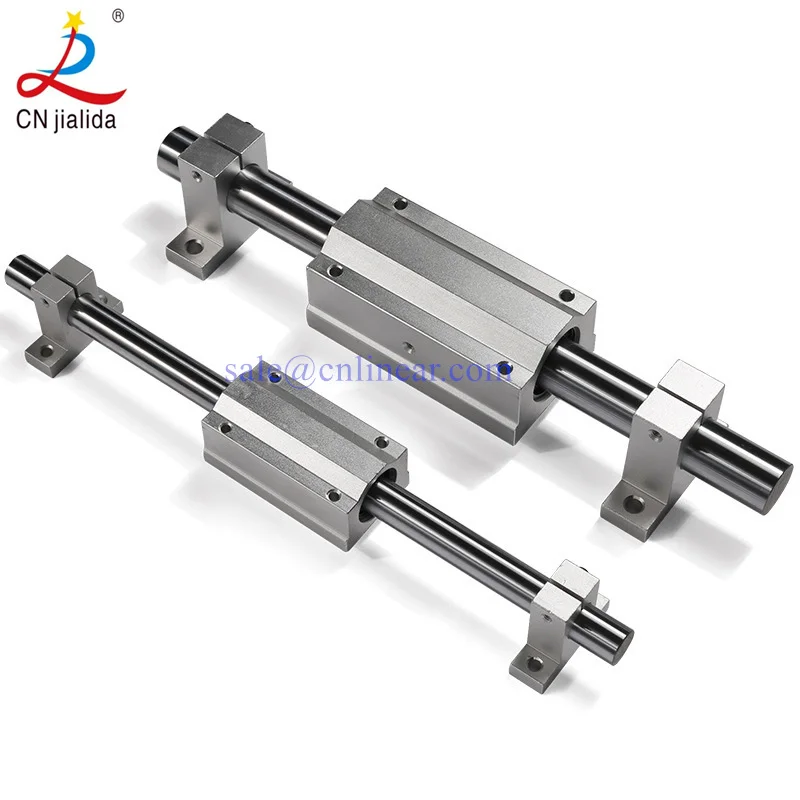

5. High Fitness: Chamfer on both ends, easier to install linear bearings and won't hurt fingers when installing it.
| Model Number | WCS SFC Series Solid shaft(Linear rod;Steel bar;Optical axis) | ||||||||

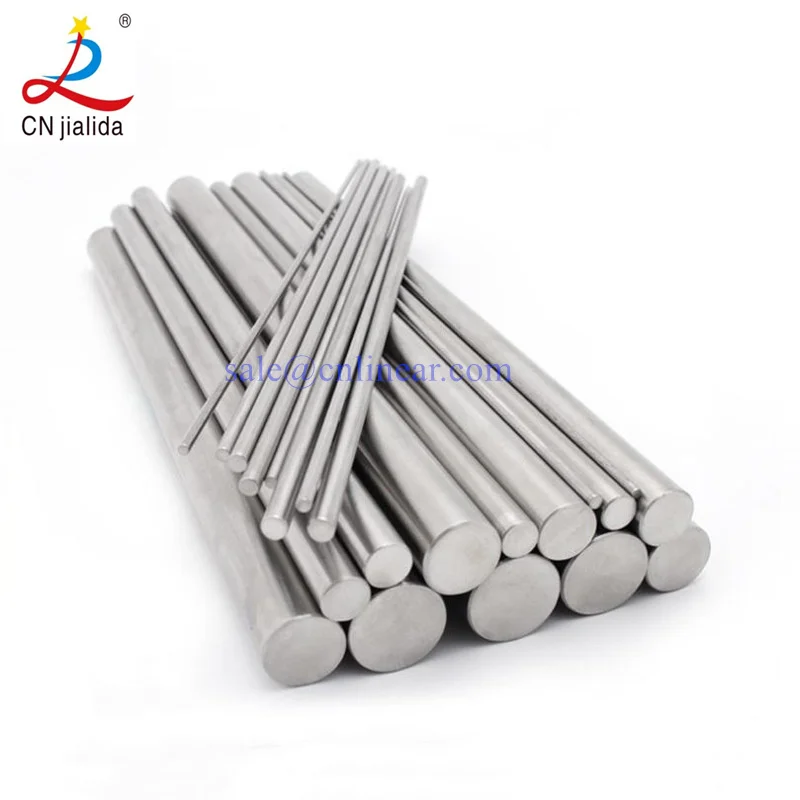

| Diameter of Linear Shaft | Metric Diameter : 3mm,4mm,5mm,6mm,8mm,10mm,12mm,16mm, 20mm, 25mm, 30mm, 35mm,40mm, 50mm,60mm,80mm,100mm Inch Diameter : 6.35mm,9.525mm,12.7mm,15.875,19.05,25.4mm,31.75mm,38.1mm | ||||||||
| Material | Steel 45#;GCR15; | ||||||||
| Hardness | HRC:58-62 | ||||||||
| Hardened Layer Thickness | 0.8-3.00mm | ||||||||
| Precision | G6 | ||||||||
| Roughness | Within1.5μm | ||||||||
| Roundness | Within 3.0μm(Rmax) | ||||||||
| Straightness | Not excess 1.5μm of 100mm (Rmax) | ||||||||
| Thickness of Chrome Plated | 10-20μm,15μm on average | ||||||||

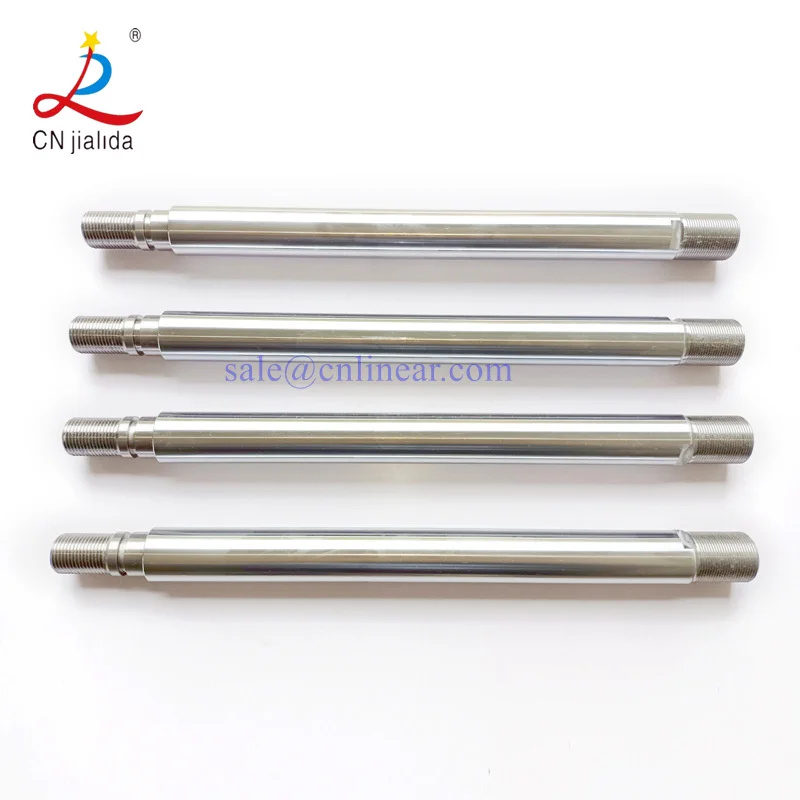

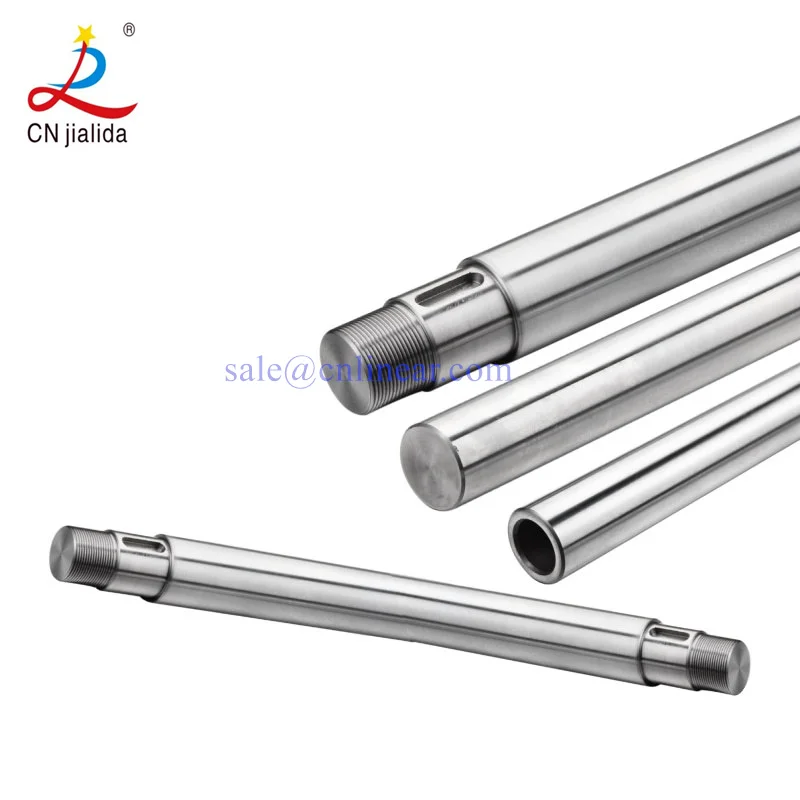

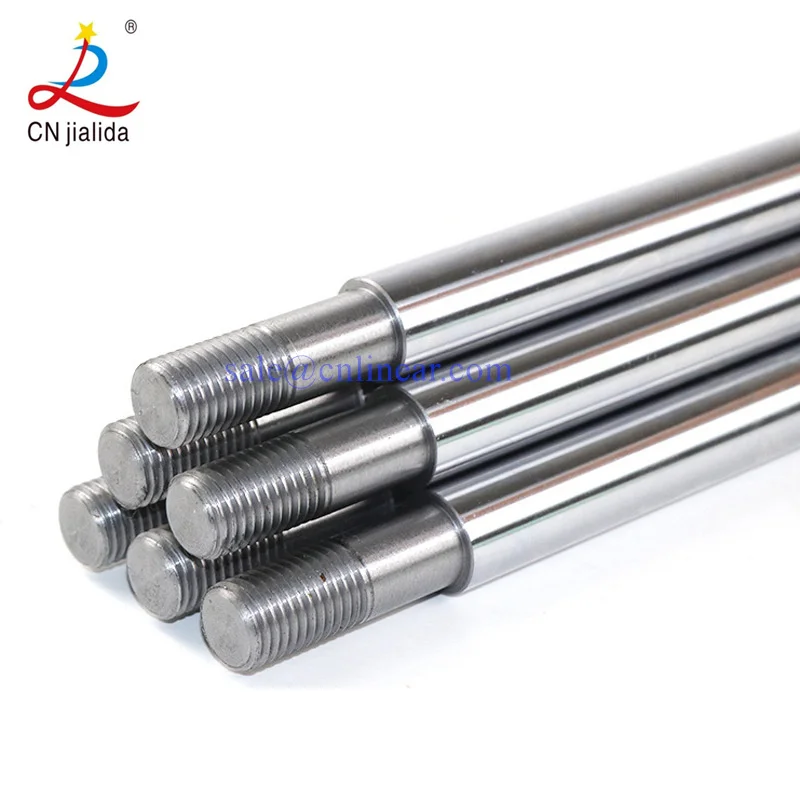

| Service | Specisl requirement onmachining,such as threading,coaxial holes drilled and tapped,radial holes drilled and tapped,reduced shaft diameter etc;We could supply OEM to our customers. | ||||||||
| Application | 3d printer machine,Machine centers,Machine tools,Precision machining machines,Heavy cutting machines,Punching machines,Marble cutting machines,Automatic equipments,Grinding machines,High speed transfer equipments,Injection molding machines,Measuring equipments | ||||||||
