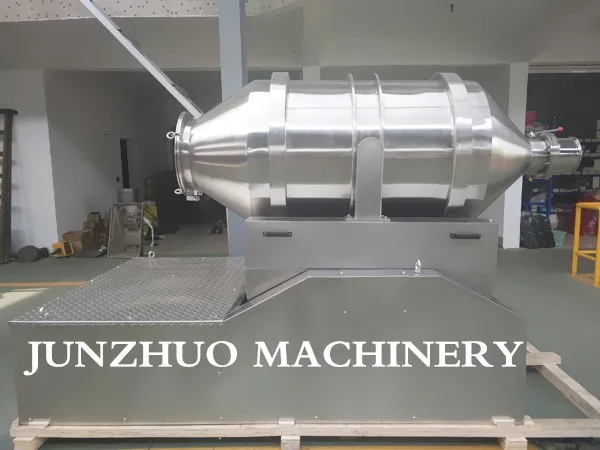

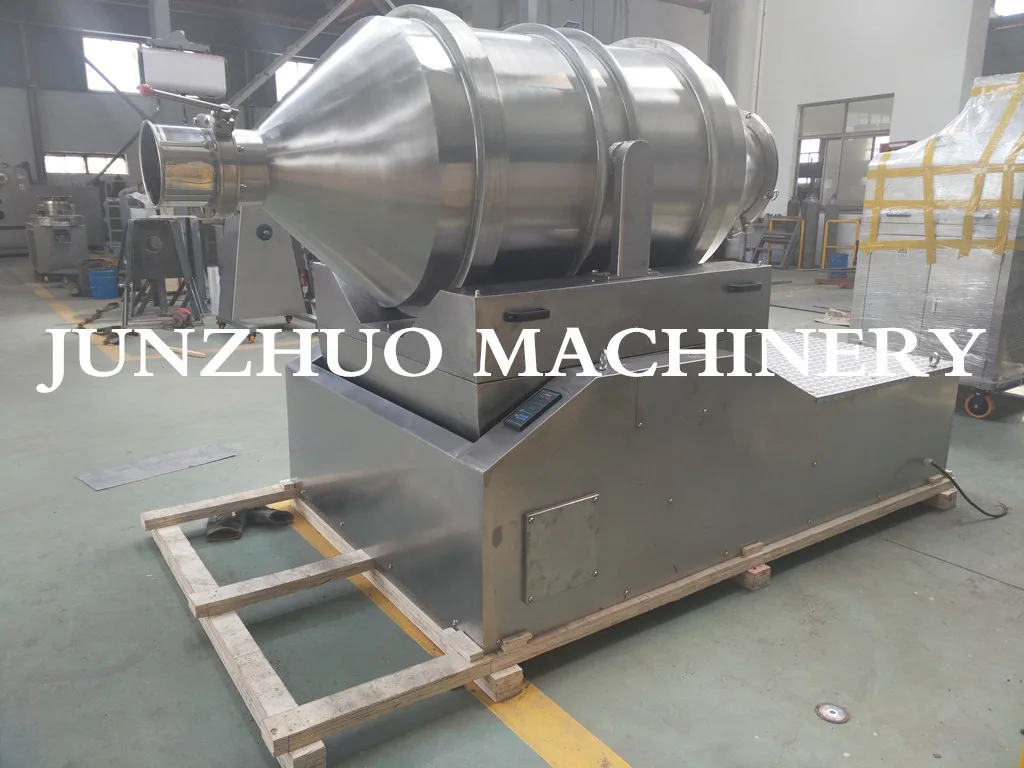

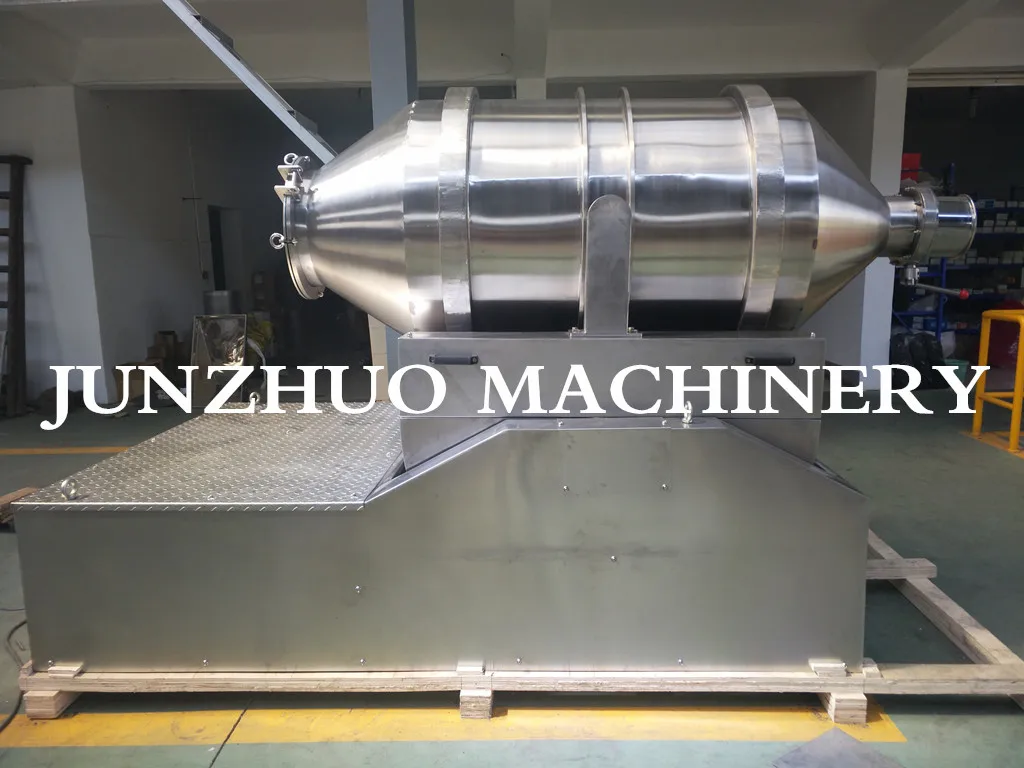

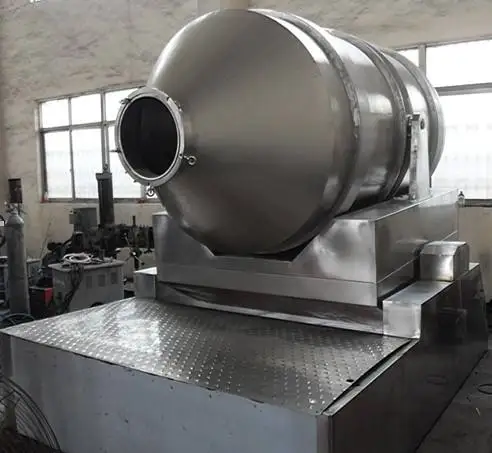

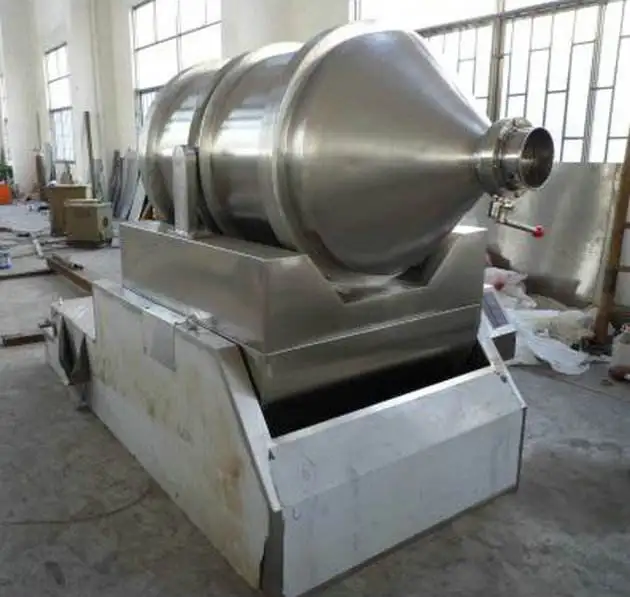

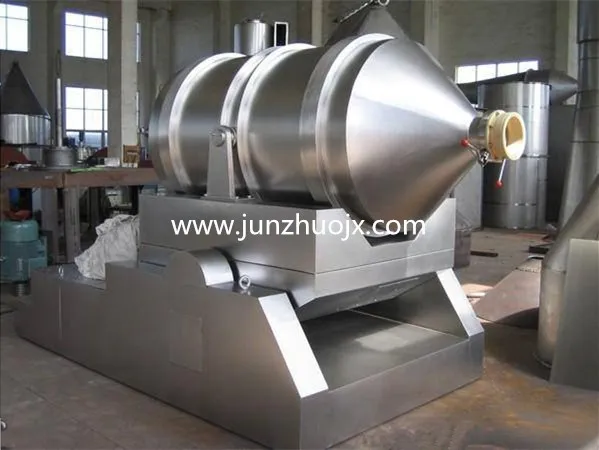

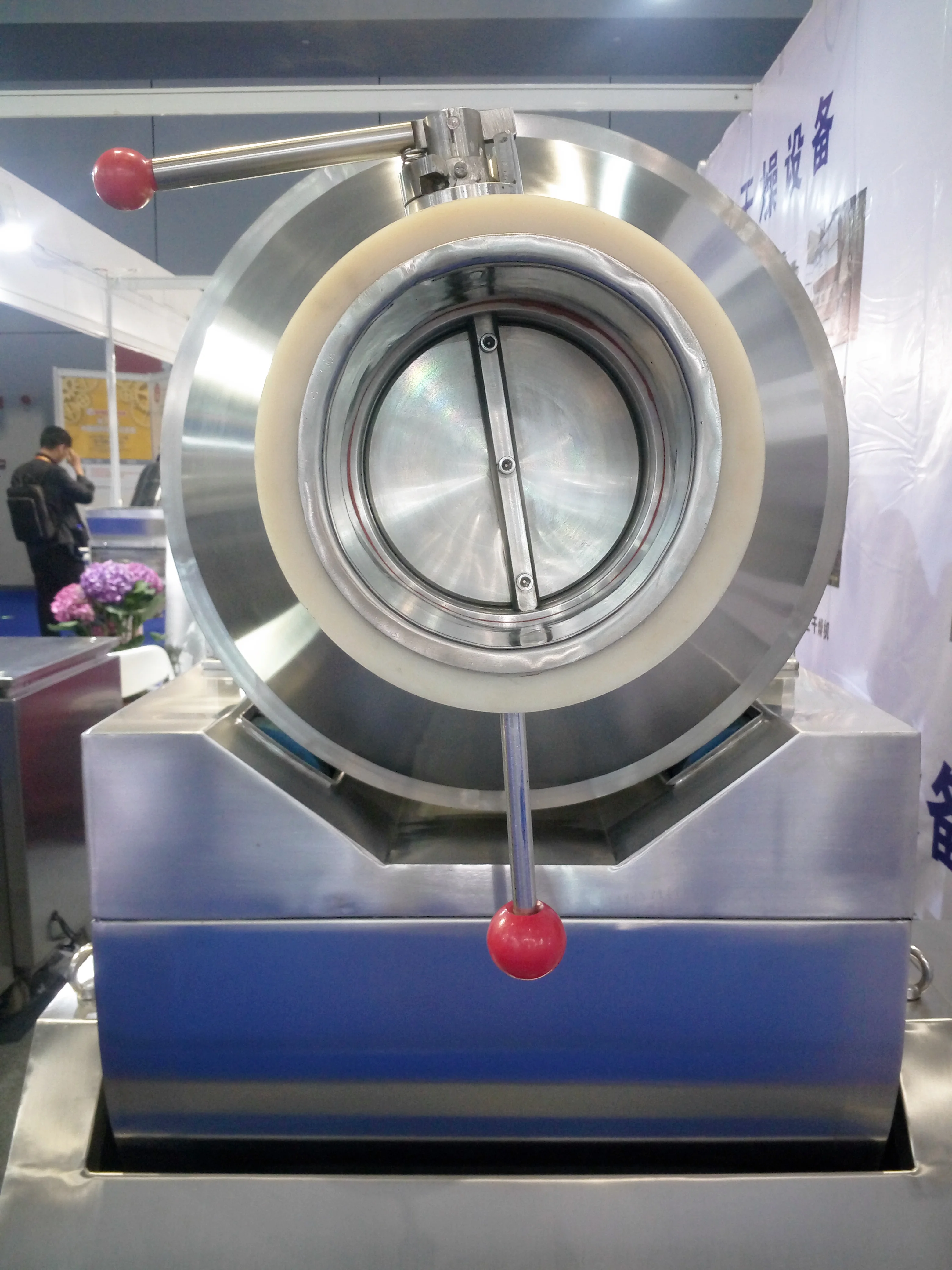

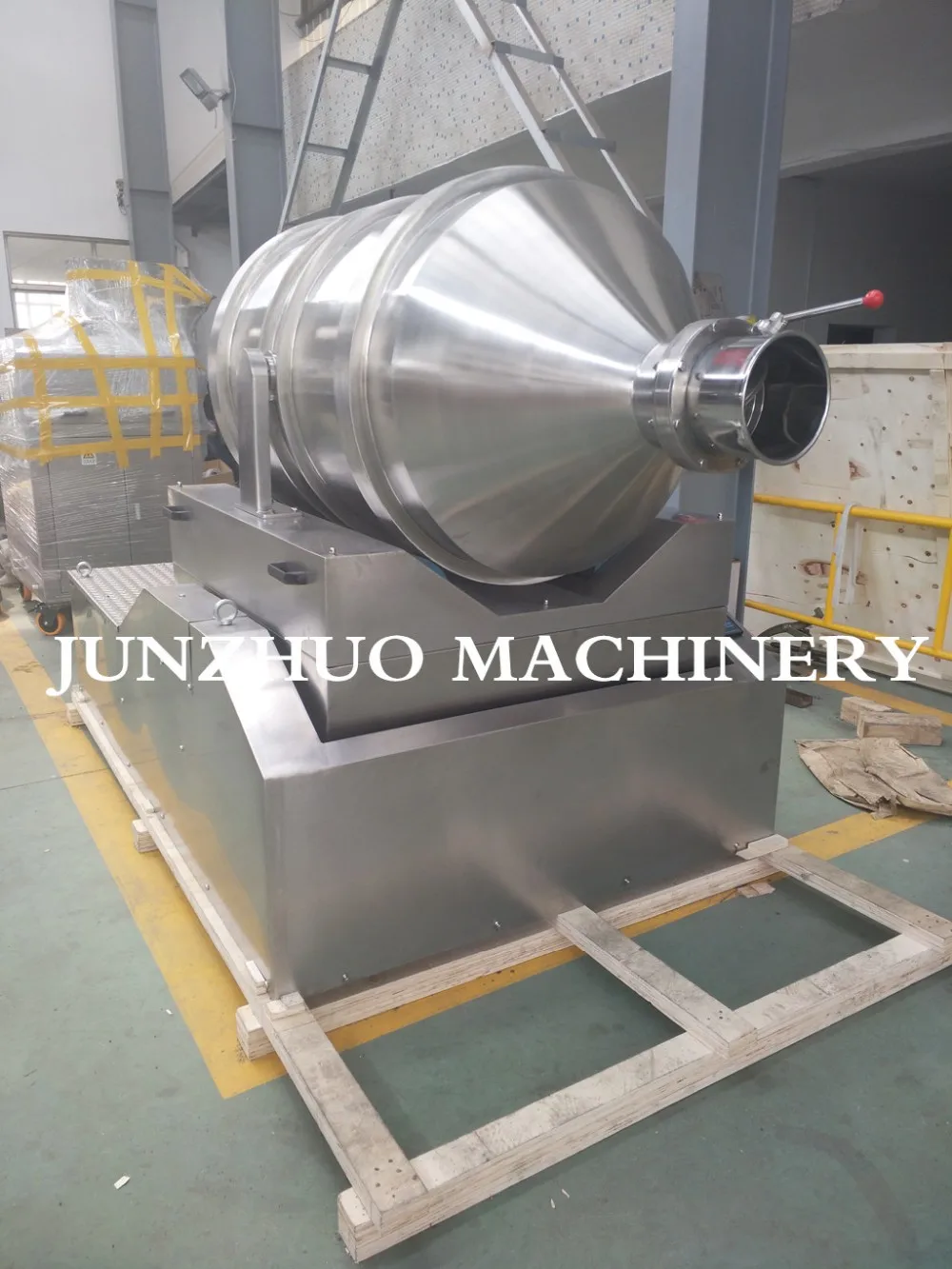

EYH Series Two Dimensional Mixer/Lab Mixing Equipment
- Category: >>>
- Supplier: Jiangyin Junzhuo Machinery Manufacturing Co. Ltd.
Share on (60702847091):
Product Overview
Description
Product Description
2D Mixer with good Mixing Systems
Main Application:
This type of mixer is suitable for the mixing of dry, powder and granule materials for the pharmaceutical, chemical industries etc. Especially for mixing of materials with high moisture content and a wide particle size distribution.
Working Principle:

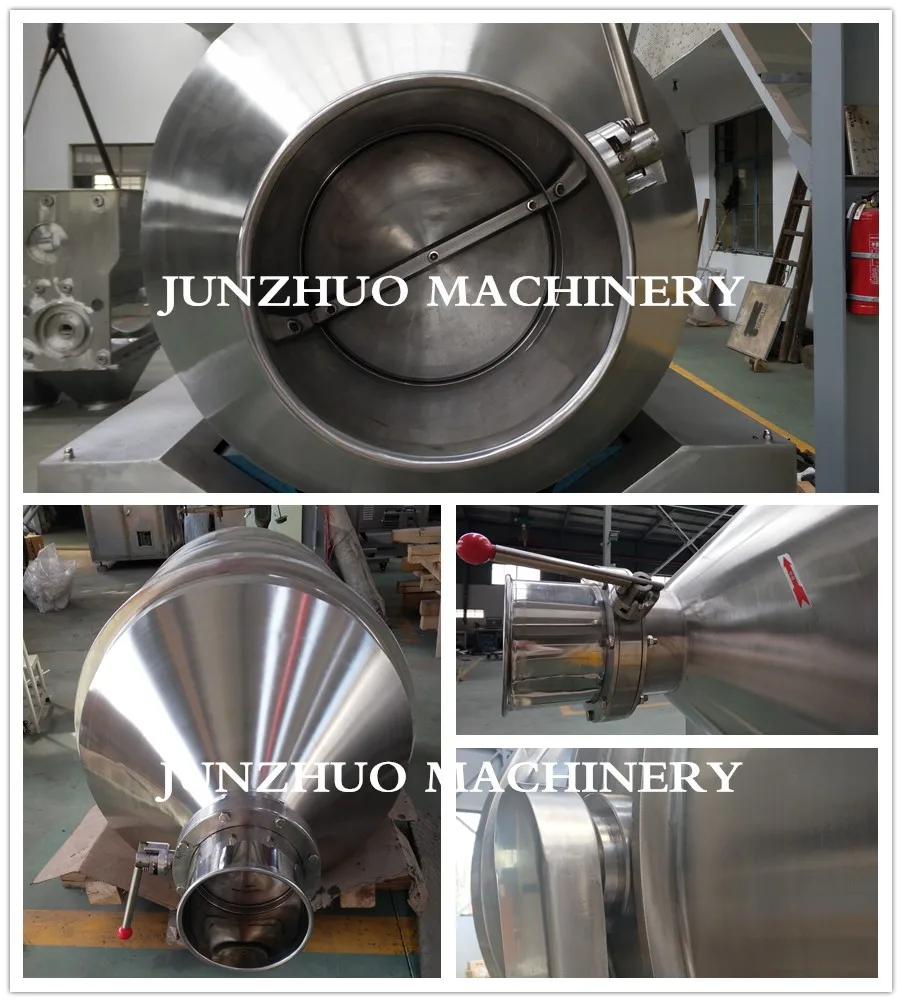

The barrel of EYH two-dimensional mixer has two movements, one is the rotation of barrel, and another is motion with the swing frame. The mixed materials rotate and turnover in the barrel. With the two movements, the material can be mixed well in a short time.
Technical Parameter
Model | EYH-300 | EYH-600 | EYH-1000 | EYH-2000 | EYH-5000 |
Barrel Volume(L) | 300 | 600 | 1000 | 2000 | 5000 |
Max. Loading Volume(L) | 150 | 300 | 500 | 1000 | 2500 |
Max. Loading Weight(kg) | 75 | 150 | 250 | 500 | 1250 |
Rotary Motor Power(kw) | 0.37 | 1.1 | 1.5 | 3 | 3 |
Sway Motor Power(kw) | 0.75 | 1.5 | 1.5 | 4 | 4 |
Overall Size(mm) | 2100*1200*1600 | 2250*1880*1915 | 2850*1465*1880 | 3565*1675*2300 | 4485*2110*2880 |
Approx. Weight(kg) | 680 | 1300 | 2400 | 3010 | 4300 |
Company Profile
Since 2008
JUNZHUO MACHINERY was set up to 2008 with the objective to develop & provide process technology offering of international standards. We keep the mission of staying committed to innovation and by consistently exceeding customer expectations, helping companies do business more efficiently and profitably. Our customers range from small family run operations to famous companies. Regardless of customer size, our philosophy for each is the same, to achieve a creative process solution that efficiently and economically meets the requirements of the application with a smiling service.
Our dry granulation system comprising of roll compactor and cone mill, wet granulation system including of oscillating granulator,basket extruder and screw granulator. All of the products have scale up capability from lab to production equipment, we make over 90% of our machine parts in-house, ensuring stringent quality control. JUNZHUO MACHINERY also provide mixing machine, crushing machine, grinding machine, sifting machine and other machines. The main motto of the company is to deliver best quality products at most economic price & excellent customer service after delivery.
Product packaging
Spare Parts
It will be packed into a wodden case, such as motor, screen sieves, O-ring and so on.
