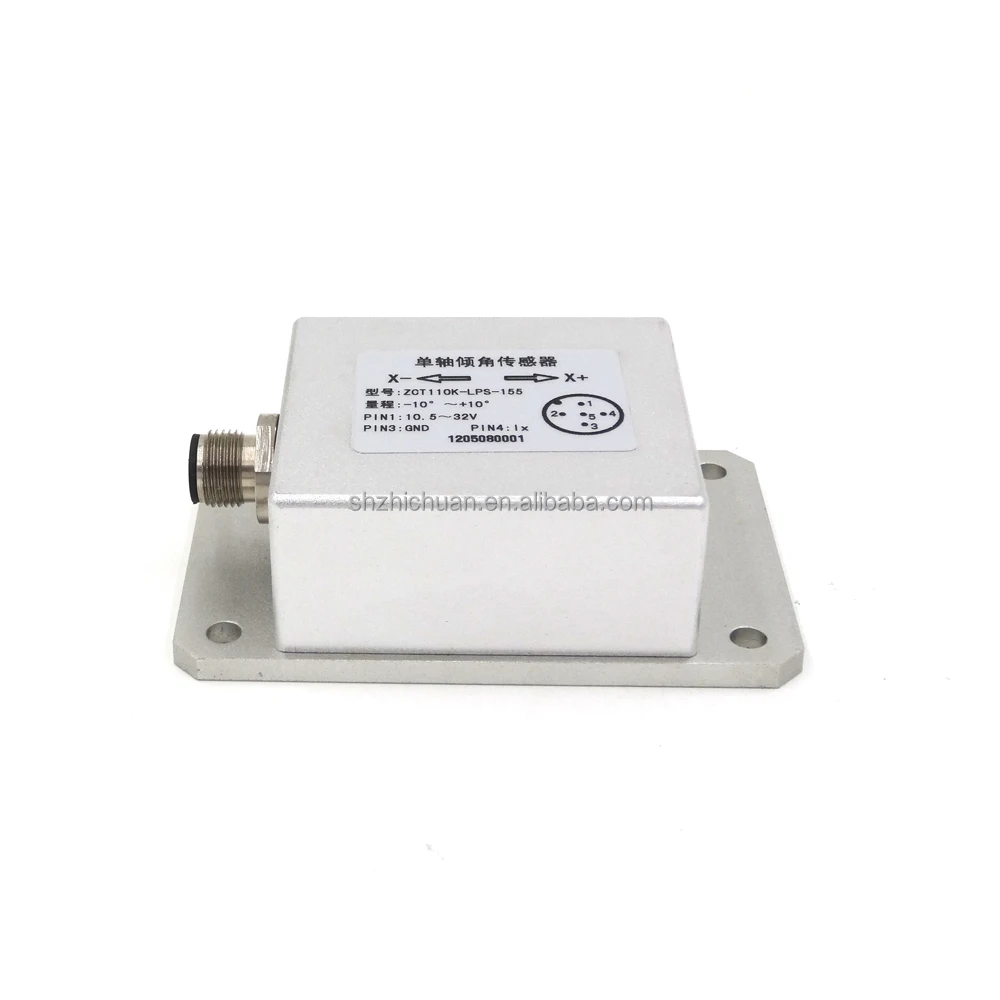

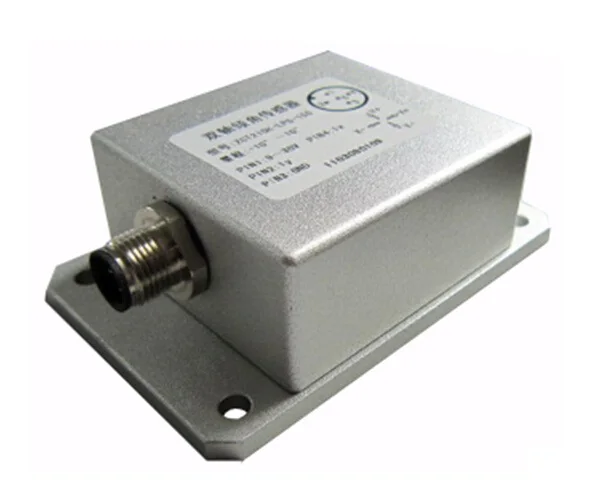

4 20mA analog tilt sensor for degree angle measure / 60 degree

Product Overview

Description

 Hot sale 4-20mA analog output tilt sensor for tilt degree angle measure

Features	Applications
Robust aluminum case Protection level: IP67 Standard three wires 4-20mA output Standard M12 connector	Construction machine Angle measurement Security control, monitoring, alarm Alignment control, warping control Tilt position recorder Mechanical arm Angle measurement





Technical specification

 (Unless otherwise specified, the following parameters were measured at room temperature25°C)

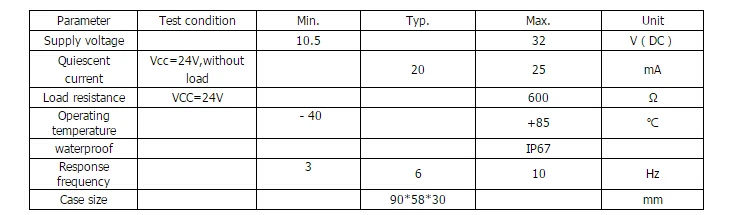

1. Electronic specification

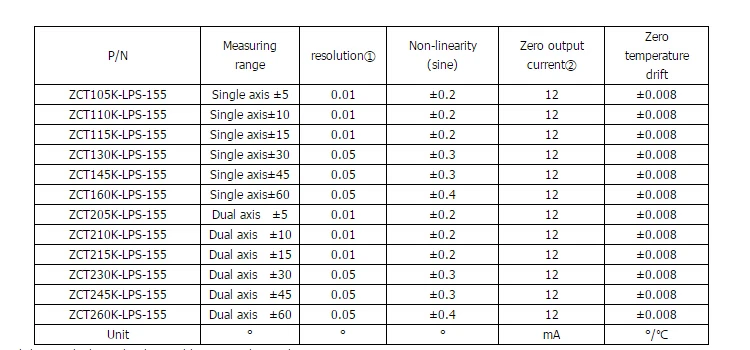

2. Performance specification:





Remark1: Resolution means the least variation of measured device which can be detected by sensor during the measuring range.

Remark2: Zero angle deviation≤±1.5 degree.
