High Speed Automatic PP Strap Winder

Share on:

Price:RUB 709,682.67 - RUB 780,729.00
Price in USD:Details


Product Overview


Product Description

Automatic  PP/PET strap winder

Torque motor(with governor):60N﹒m(4 stages)
Torque motor(set):4
Winding number (pics): 4
Meter recorder (set):2
Winding paper size: 200*180mm

Net weight: 450KG
Dimensions (MM): 1950L * 1500W * 2000H

Conveyor part: gear motor (Taiwan Shengbang Brand)

Control switch: DELDCI brand

Relay: Omron brand

Solenoid valve and cylinder: AirTAC brand

Power switch: MIWE brand

Our unmanned automatic winding machine features:
1. Solve the innermost 1-2KG manual winding caused by instability.
2. To solve the high demand for artificial high-quality dependence.
3. greatly reduced the rate of waste generated.
4. For both sides of the edge greatly reduced the range of degrees, can easily unmanned automatic balers.
5. Rewinding finished product the same size, more beautiful.
6. Save labor, and greatly reduce labor intensity.
7. PLC control, replacement specifications without changing gear, you can set the height of the core paper.

Detailed Images
Packing & Delivery

Packaging Details: Before dilivery, our workers will carefully pack the whole set machine to promise safely arriving to customer's workshop. Cling film packing/ Buble film packing.

Delivery Time: 30 days


About us

Yong Xing Zhan Xing Tecnology CO.LTD. is a manufactory over 10 years, specializing in desingning and manufacturing plastic PP/PET packaging strap and PP/PET pakaging strap making machine with high quality and pretty competitive price.

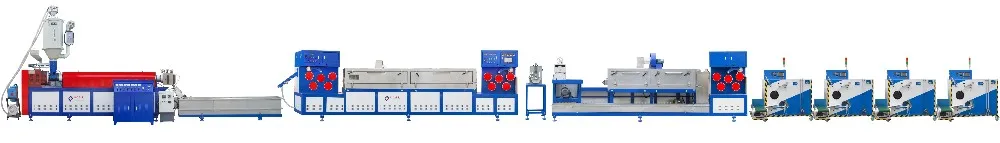

The main machine:

At present, the main products of our company with packing production line are:

PP single-screw output 2 straps

PP single-screw output 4 straps

PP single-screw output 6 straps

PP single-screw output 8 straps

PP double-screw output 2 straps

PP double-screw output 4 straps

PP double-screw output 6 straps

PET single-screw output 2 straps

PET single-screw output 4 straps

 PP bicolor and PP / PET dual-use environmentally friendly packaging belt production line.

Why choose us
    We have developed many kinds of plastic extrusion equipment and PP/PET packaging strap.
Meanwhile, we introduce and absorbe the advavnced plastic processing technology, which can provide the technology and machinery one-stop service.

    We have adopted ISO9001-2016 quality management system and our company has own PP/PET packing belt production workshop.

     We sincerely invite all of you to our factory to communicate the production technology. If you buy our products or machines, we can provide annual warranty and lifelong maintenance for equipment.

Industry Display

Related Products

main extruder  $27,700

Screw material (CrMoAIA):38

Screw diameter: 110mm

Hardened tooth-surface reducer model: ZLYJ250

Motor/ Inverter(kw):37/37

Automatic feeder:  program self-suction

Automatic dryer(kg): 150

Automatic screen changers:(diameter)150mm

The first/Second/Third haul-off machine $4615/per

Size of five roller wheels: 250×260

Material: wear-resistance aluminum-alloy stainless steel

Transmission: 6 double chains

Frequency conversion motor/ Inverter(KW): 2.2

Speed range(m/min): 0-30

Extended oven  $8500/per

Extended oven(mm): 4000×400×530

Material: SUS202

Heating style: wind circulation

Fan (kw):1.1

Heater power:18KW

Embossing machine $2770

Embossing roller(mm):2-∮155.5×150

Frequency conversion motor/Inverter(KW): 3.7

Embossing style: synchronous belt

Speed range(m/min): 0-300

Embossing roller material: SKD-11

Inker/Inkwriter $1100

Can be customized

Additional Remarks

(1)Voltage:3 phase 380V/50Hz;

(2)FS export bearing;

(3)Speed reduction motor is from Chinese Brand Taiwan Chengbang;

(4)Inverter is from Shenzhen Brand INVT;

(5)Temperature controller is from Brand Omron; switch, contactor and Electric relay us Brand Schneider.

(6)Screw, Barrel, gear tank use good quality items from Zhejiang Province.

(7)Energy saved motor. The host horse machine adopts Brand Siemens;

(8)All shafts are heat treated, straightened and grinded with good concentricity and durability.

(9)Main body(MM):100*100*4.0T (thick enough, international standard)


We provide the entire production line of operation manuals, including drawings, photos, production procedures and wiring diagrams, etc.
At delivery, we provide equipment bill of materials.


We have the most professional team for designing and manufacturing machine. All technicians have more than 5 year’s experiences on designing and testing. Our machines apply the newest tachnology in the world.

We use the best quality material and advance electricity parts to ensure high quality and good performance. All our products are come with high quality and strong tension.All machines have CE certification.

We will test all machines before shipment and supply all electricity and water connection drawing to customer. We have experienced technicians to install machine and train workers for customer. And we provide customized service.


Q: Are you factory?

A: yes, we are. Our detail address is in the Shenzhen Guangdong.

Q: What about the delivery?

A: Shipped in 7-15 days after payment./ 30 working days.

Q: What's your product range?

A:We specialized in Pet strap/PP strap, and Pet strap production line/PP strap production line for 8 years . All of our products can be customized.

Q: What's your packaging? Shipping? What about your payment terms?

A: Packaging: according to our normal packing or according to customer request

    Shipping: by sea /Ground transportation or according to customer request

    Payment: T/T.
 Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.

 Q: What about your after-service?

A: We provide annual warranty and lifelong maintenance for equipment.
