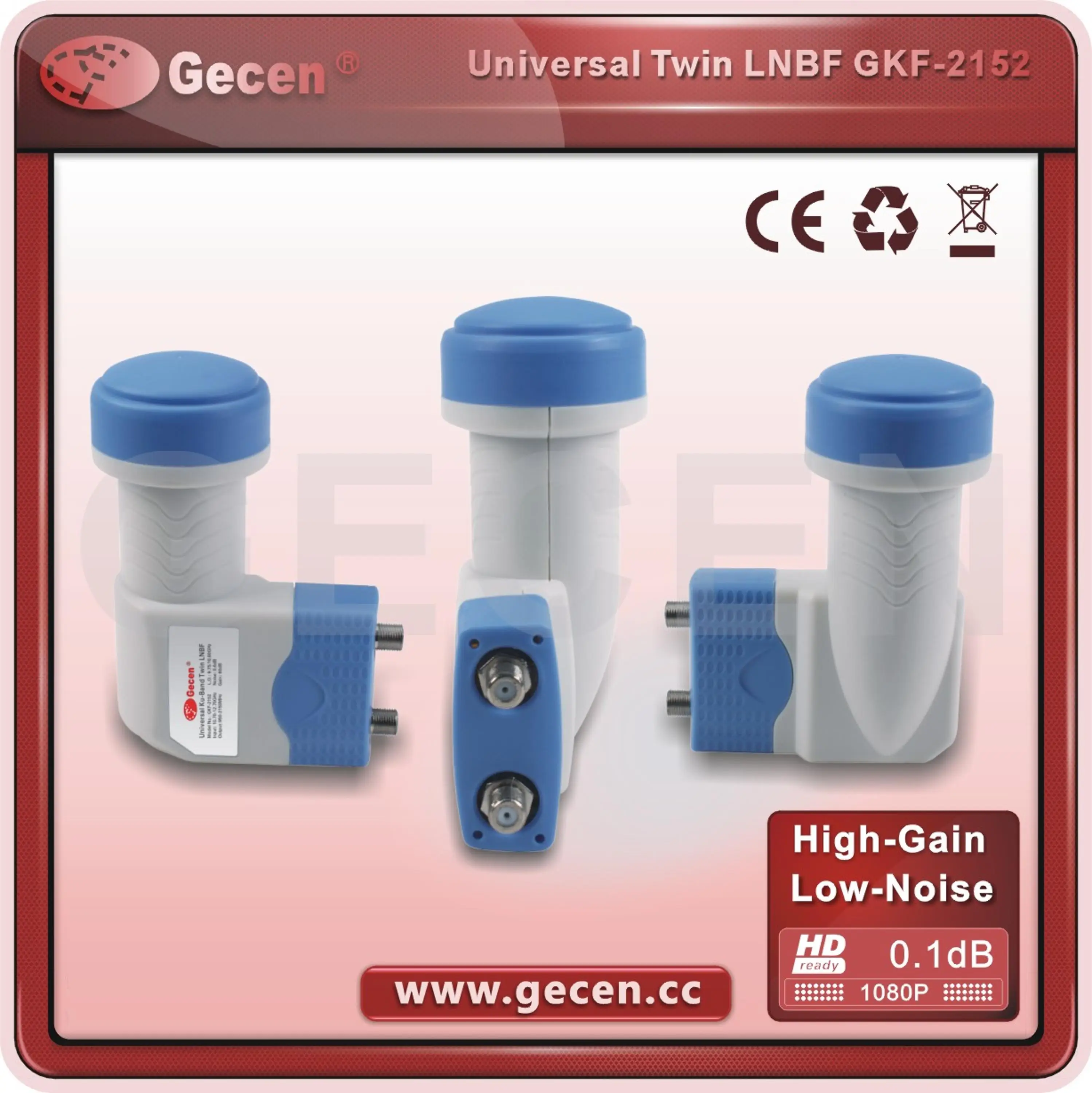

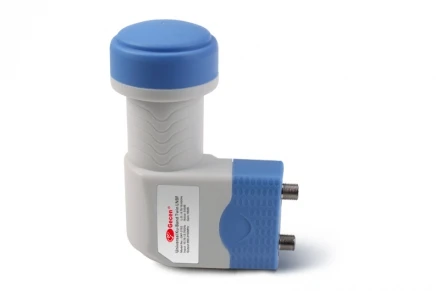

KU Band Universal Twin LNB GKF 2152 Twin LNBF
KU Band Universal Twin LNB GKF-2152 Twin LNBF
KU Band Universal Twin LNB GKF-2152 Twin LNBF
KU Band Universal Twin LNB GKF-2152 Twin LNBF
KU Band Universal Twin LNB GKF-2152 Twin LNBF

KU Band Universal Twin LNB GKF 2152 Twin LNBF

Share on (60702986555):


Price:$2.50 - $3.00

Quantity:


Product Overview

Description



Specifications




































































Item






Specification






Item



Specification


Input Frequency RangeLow Band:10.70~11.70GHz
High Band:11.70~12.75GHz		L.O. Phase Noise-50dBc/Hz@1KHz
-75dBc/Hz@10KHz
-95dBc/Hz@100KHz
Output Frequency RangeLow Band:950~1950MHz
High Band:1100~2150MHz		Image Rejection40dB(Min.)
Noise FigureLow Band:0.6dB(Typ.)
High Band:0.6dB(Typ.)		Output VSWR2.0:1(Max.)
Conversion Gain60dB(Typ.)Output Power

0dBm (Min.)(at 1dB gain
compression)


Gain Flatness±0.5dB/26MHzConnector Type75Ω Female Connector
Cross POL. Isolation25dB(Typ.)DC Current Consumption80mA(Typ.)
L.O. FrequencyLow Band:9.75GHz
High Band:10.60GHz		Low/High Band SwitchingLow Band:0Hz
High Band:22KHz±4KHz
L.O. Frequency Stability±1.0MHz (Max.)@+25℃
±2.0 MHz (Max.)@-30℃~+70℃		POL. Switching Voltage10.5~14.0V @VP
16.0~20.0V @HP
 Operating Temperature -30℃~+70℃
