Vacuum sausage machine sausage stuffer sausage making machine

Share on (60702989976):


Price:

Quantity:


Product Overview

Description


Vacuum sausage machine sausage stuffer sausage making machine

Sausage clipper machine and sausage filler machine

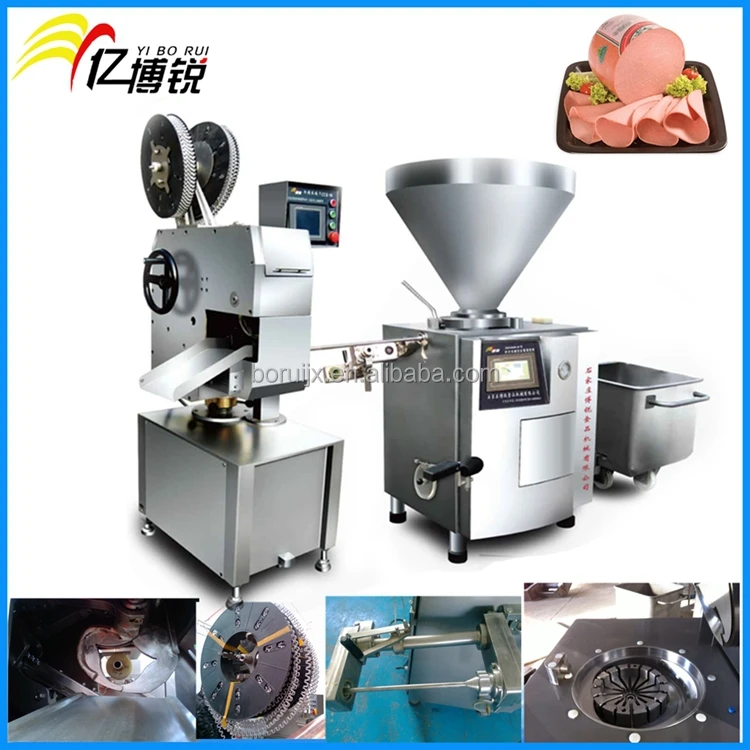

CCK+ZG6000

Vacuum sausage machine sausage stuffer sausage making machine.jpg



Sausage clipper machine

Electric-Mechanical Double-Clipping sausage machine CCK

Product Description

 Electric-Mechanical Double-Clip(Great Wall) adopts good quality 304 stainless steel material. Taking PLC as the core, with friendly human-computer interface, adopting servo motor as electric power source, it is a new kind of industrial automated equipment integrating technology of automation, computer and communication. It also has features such as flexible programming. Complete function, high efficiency, simple structure and convenient operation, etc. his machine can be incorporated with various kinds of filling machine to form automatic production line.

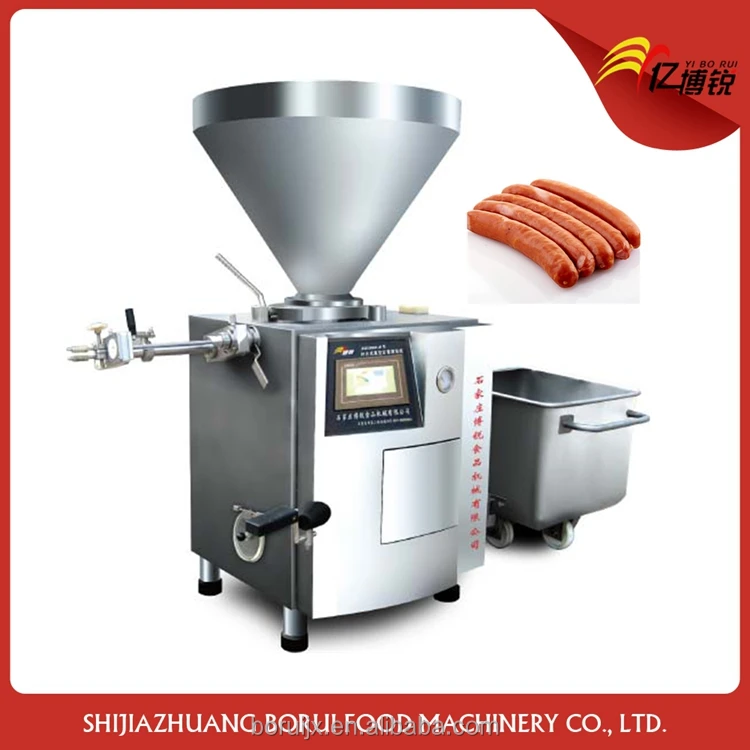

Sausage filler machine--Vacuum vane quantified filler ZG6000

 1.This machine adopts vane pump, Servomotor,touchable screen demonstration and computer controlled.

2.It can fill in succession and be very high efficiency. It suits for protein sausage casing, composite casing and other casings.

3.The whole process is controlled in vacuum. Otherwise, It can seal by itself (with automatic knot tying device). it is very high efficiency, simple to Operate, waterproof and washing conveniently .

4.Stainless steel is used for all parts that contact the material under processing so that it can resist acid and corrosion. It is the ideal equipment for meat producer.



Parameter
CCK sausage clipper machine
Speed40-100pcs/min
Air source pressure0.5-0.6Mpa
Air consumption0.3mm3/h
Voltage 220V/380V   50HZ
Casing semicircle60-160mm
Height of center1000mm
Power2.7KW
Dimension850mm*900mm*1800mm
Weight500kg
Vacuum sausage machine sausage stuffer sausage making machine.jpg

ZG6000 Sausage filler machine

Speed200pcs/min
Number of kink turns1-10
Height of Machine center1000mm
Filling tube diameter20mm, 33mm
Power6.5KW
Voltage380V 50HZ
Vacuum pump pressure(-0.01Mpa)
Dimension910mm*900mm*1770mm
Weight550kg

 Vacuum sausage machine sausage stuffer sausage making machine.jpg

Packaging & Shipping

 Vacuum sausage machine sausage stuffer sausage making machine



Our Services

1.If you need,our technicians will go to your place to help you install and adjust the machine.

2.Train your workers how to use and maintain the machine in daily use.

3.Any parts you need will be sent directly from us.



FAQ



1. Q: Will you supply customer machine manual/operation Instruction?
A: Yes, We will supply the machine manual/operation Instruction In English to customer.


2. Q: Does the accessories of machine come with equipment?
A: Yes, the accessories of the machine will come with equipment and send to customer.


3. Q: Can the machine be washed down?
A: Yes, you can wash the machine by water.But please pay attentions that don't wash the electric parts. And shut off the power before washing.


4. Q: If we need your technical service, how do you solve?
A:If the machine works failure, please contact me first. Email me and send picture or video to show the problems. I will give customer solutions. If that still doesn't work, we will send technician to customer site for machine check. (Maintenance and repair)

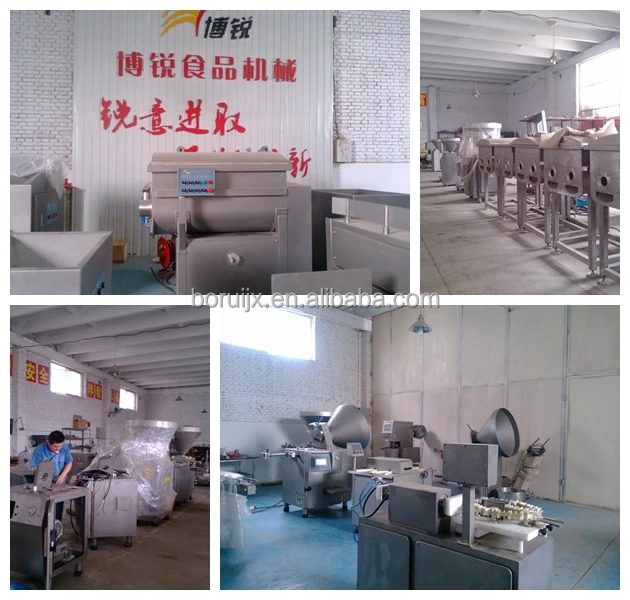

Company Information



We are a professional manufacturer and exporter of various meat processing equipment. We major in development and production of sausage filling machine, meat saline injector, meat grinder, meat mixer, meat tumbler, meat bowl cutter, and etc. Our high quality and competitive price makes us outstanding in this field. We should be absolutely considered if you are in need of meat equipment. And we are eager to take use of our capability to do a great job for you. Welcome to visit us if you're available at any time.

We have very big markets. Main customers are from Thailand, Vietnam, New Zealand, Mongolia, Congo, Canada, Russia, India, Israel, Kazakhstan, Fiji Island, and etc.



Vacuum sausage machine sausage stuffer sausage making machineVacuum sausage machine sausage stuffer sausage making machine

  Being actual manufacturers, we are able to guarantee a uniform quality and excellent workmanship of our goods, and we shall be gald to be favoured, as before, with your esteemed orders, which shall have our prompt and careful attention.





Our Other Products

Meat bowl cutter   ZB-80   GZB-125   GZB-200

Meat grinder/mincer      JRJ-120    JRJ-130     JRJ-140     JRJ-160

Vacuum Meat Mixer  ZKSJB-300      ZKSJB-650     ZKSJB-1200

Sausage Stuffer   SGI-III    ZG3000
