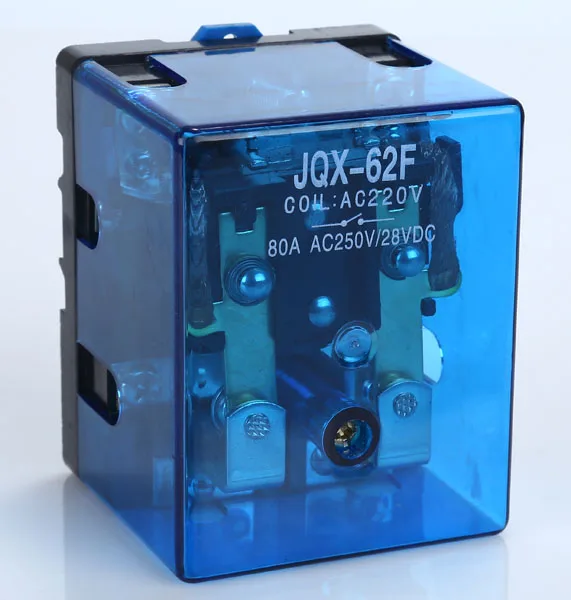

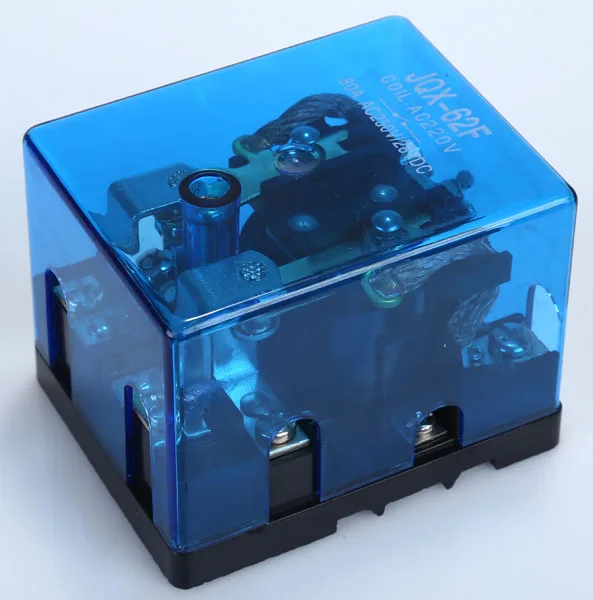

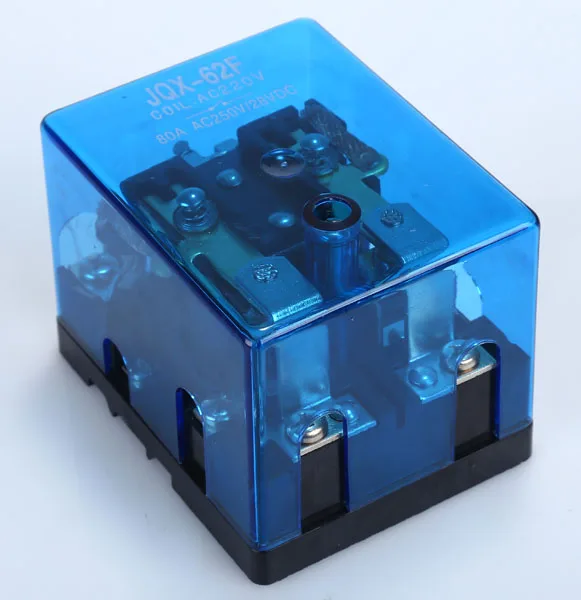

jqx 62f power relay 2z 120a ac250v 28v dc industrial automation relay

Product Overview

Description

jqx-62f power relay 2z 120a ac250v 28v dc industrial automation relay

• 80A Contact Change-over Capacity
• With Opening and Dust-Proof Type
• Outline dimensions: 84.0 X68.0X65.0

Specification:

Contact Form	2C
Contact Material	Silver Alloy
Max,Operating Current	80A
Max.Operating Voltage	250VAC
Max.Opearting Power	20000VA
Rated Load(Resistive load)	80A 250VAC
HInsulation Resistance	1000MΩ
Dielectric Strength(Coil and Contact)	2500VAC
Ambient Temperature	-40°C~+70°C
Operate/Release Time	25ms/25ms
Mechanical Llife	1000000
Electrical Life	50000
Terminal Type	Screw Mounting



Coil Ratings:

Rated Voltage	6~240VAC/6~110VDC
Nominal Operating Power	2.0W/10VA

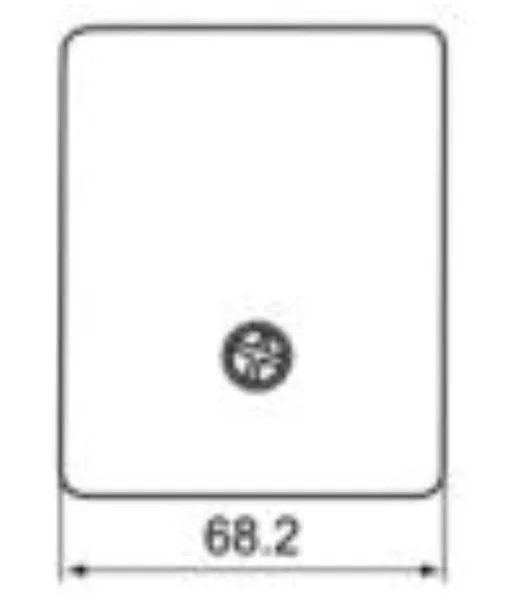

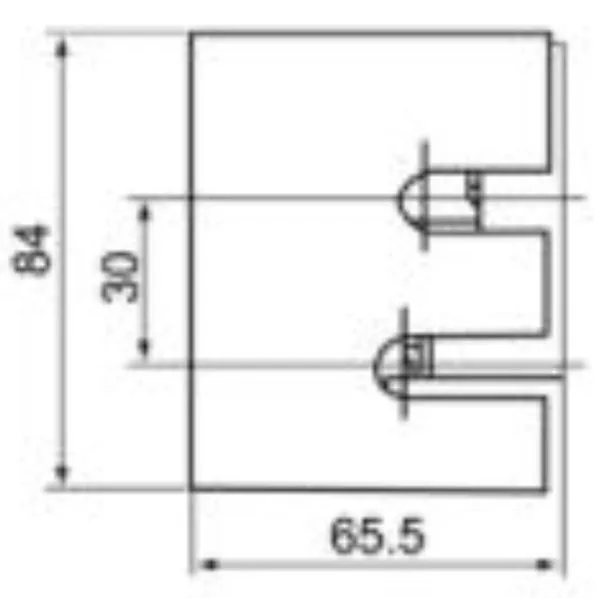

EXTERNAL DIMENSIONS:



Remark: (1)In case of no tolerance shown in outline dimension: outline dimension≤1mm, tolerance should be ±0.2mm;
Outline dimension>1mm and≤5mm, tolerance should be ±0.3mm; outline dimension>5mm,
tolerance should be ±0.4mm.
