Gold Alluvial Procossing Washing Trommel
Product description
The trommel sieve provide a simple, efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing. Our Gold Trommel Screen are constructed of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance This material out from the Gold Trommel Screen is then passed on to the downstream process equipment which can be in various forms such as centrifugal Concentrator, spirals, jigs etc.

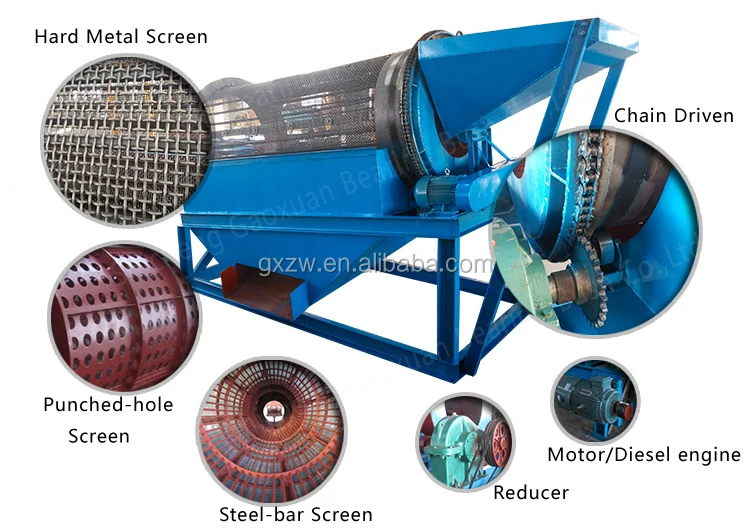

Our trammel sieve is consist of round trommel, rack, discharging, speed reducer, motor, water flusher etc 6 parts. The ores are fed into trommel, with the help of rotating centrifuge power and jigging to classify materials, and are classified from different screen mesh.
Feature of trommel
lEconomical & efficient classification, Screening
lScreen replaceable for different mesh sizes
lMultiple screen size
lEasily changed screen plates
lLarge capacity
lUnique design with higher capacity & no clogging
lHeavy duty feed hopper and extension
lGear drive mechanism
lVariable speed drive mechanism

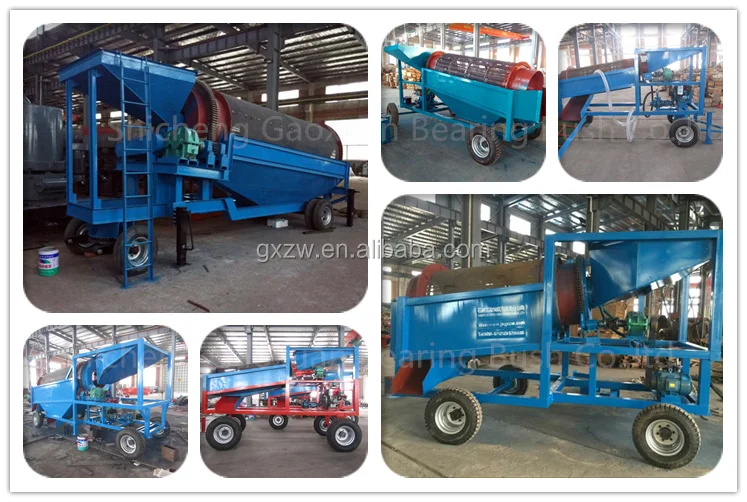

Mobile Type trommel

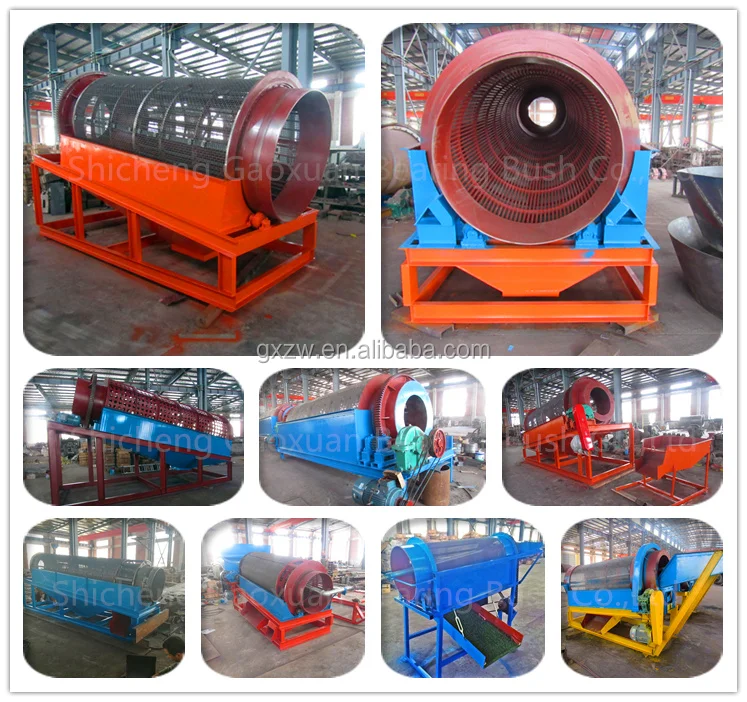

Fixed Type trommel

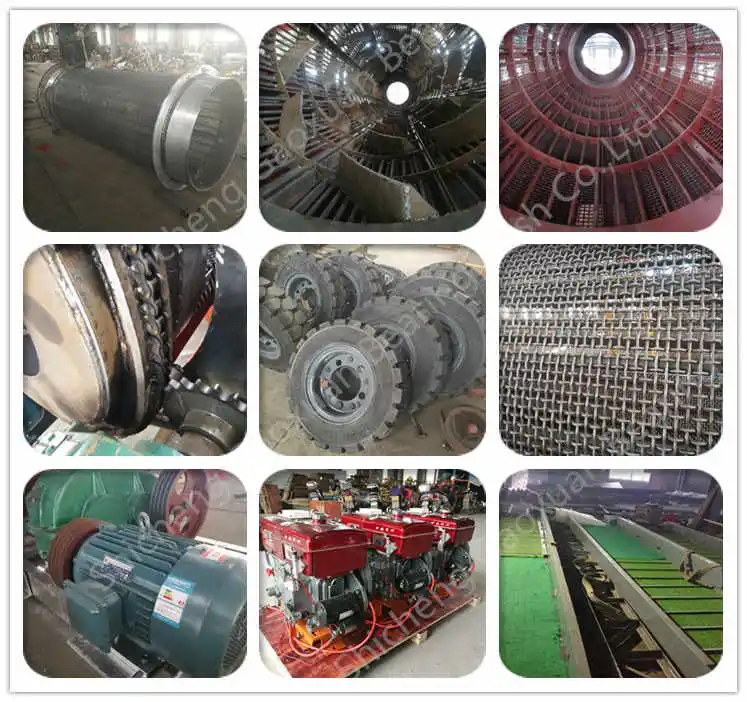

Workshop and accessories of trommel sieve
Technical Parameter
| Model | Capacity | Power | Drum diameter | Drum length | Screen size | Dimension | Weight |
| (t/h) | (kw) | (mm) | (mm) | (mm) | (mm) | (kg) | |
| GX0510 | 1-10 | 1.5 | 500 | 1000 | <3~10 | 1800*1020*1500 | 1000 |
| GX1015 | 5-20 | 4.0 | 1000 | 1500 | 3000*1400*2145 | 2200 | |
| GX1020 | 10-40 | 5.5 | 1000 | 2000 | 3460*1400*2145 | 2800 | |
| GX1225 | 20-60 | 7.5 | 1200 | 2500 | 4146*1600*2680 | 4200 | |
| GX1530 | 30-90 | 11 | 1500 | 3000 | 4460*1900*2820 | 5100 | |
| GX1545 | 50-120 | 15 | 1500 | 4500 | 5960*1900*3080 | 6000 | |
| GX1848 | 70-180 | 22 | 1800 | 4800 | 6500*2300*4000 | 7000 | |
| GX1860 | 80-200 | 22 | 1800 | 6000 | 8000*2300*4000 | 7500 | |
| GT2055 | 120-250 | 30 | 2000 | 5500 | 7500*2500*4000 | 8600 |
Application

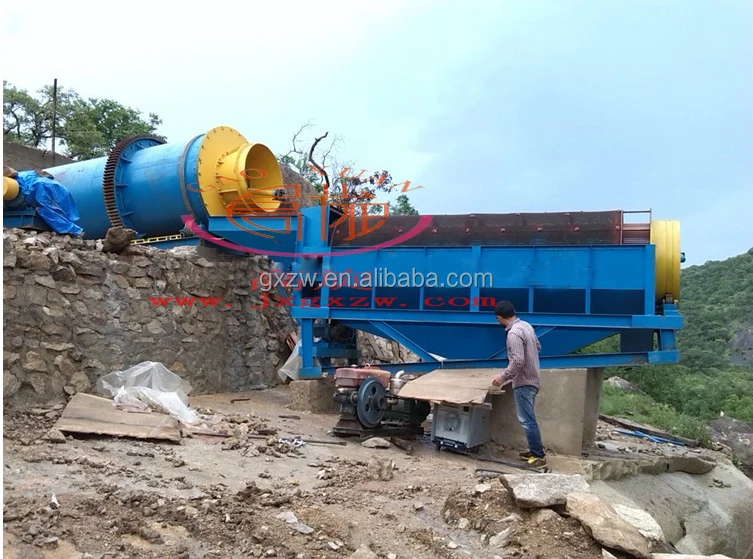

Gaoxuan trommel is usually used at the primary separation period of placer gold mining so as to washing and screening gold ore. The upper sizes out are always reckoned as unuseful materials. The bottom sizes which contain the gold are usually processed by centrifugal concentrator or gold sluice box continuously to upgrade gold ore. The concentrates of centrifugal concentrator could be processed by shaking table which is used to separate the gold from other minerals.
Packaging & Shipping
| Payment Terms of Shaker Table |
| • We usually accept T/T, L/C |
| • T/T: 30% of total amount as deposit, 70% balance before delivery. |
| • We will take pictures of finished products to you before delivery. |

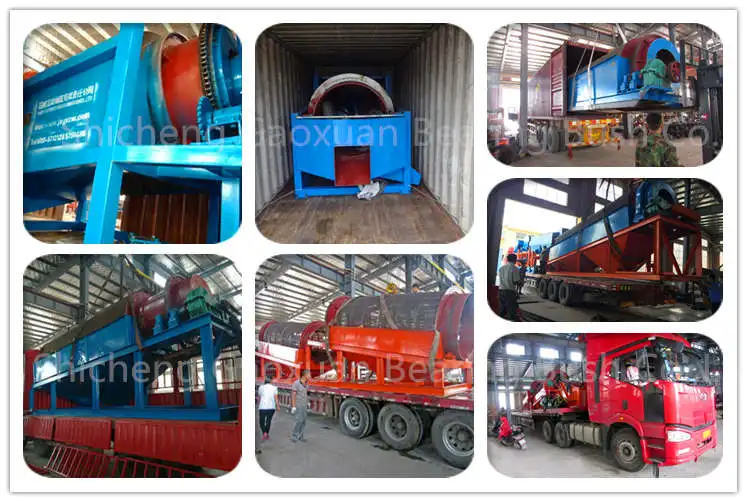

| Way of Packing of Shaker Table |
| • FCL & LCL export standard container 20/40 feet. |
| • FCL: Sea-worthy package. Machines are fixed in container; spare parts are packed in wooden boxes. |
| • LCL: Machines are packed in steel frame with plywood boxes. Customized package is available. |
| Shipping of Shaker Table |
| • By sea shipment |
| MSK/MSC/APL/EMC/PIL and so on |
| • By air shipment |
| • By courier express |
| The lab equipment could be delivered by the courier express, such as UPS, DHL etc. |
Related Products
Company Information
Shicheng Gaoxuan Bearing Bush Co.,Ltd established in 1958 with a subsidiary corporation named Jiangxi Changyi Mining Machinery factory,located in Ganjiang River source and Wuyi mountain,is a professional supplier in producing and sale kinds of bearing bushes and mining equipments
We produce high precise bearing bushes,vibrating feederJaw crusher,Hammer crusher,Vibrating screen,spiral classifier,ball mill,belt conveyor,shaking table,centrifugal concentrator,spiral chute,jig machine,flotation cell,magnetic separator,rotary scrubber,gold trommel screen,lab mining equipment etc.
Our Company won the reputation of "Jiangxi High Quality Products".
