2000BPH 2cavity pet bottle blowing machine for plastic bottle
- Category: >>>
- Supplier: Zhangjiagang Zenith Beverage Machinery Co. Ltd.
Share on (60703044173):
Product Overview
Description
Detailed Images
Product Description
Product Application

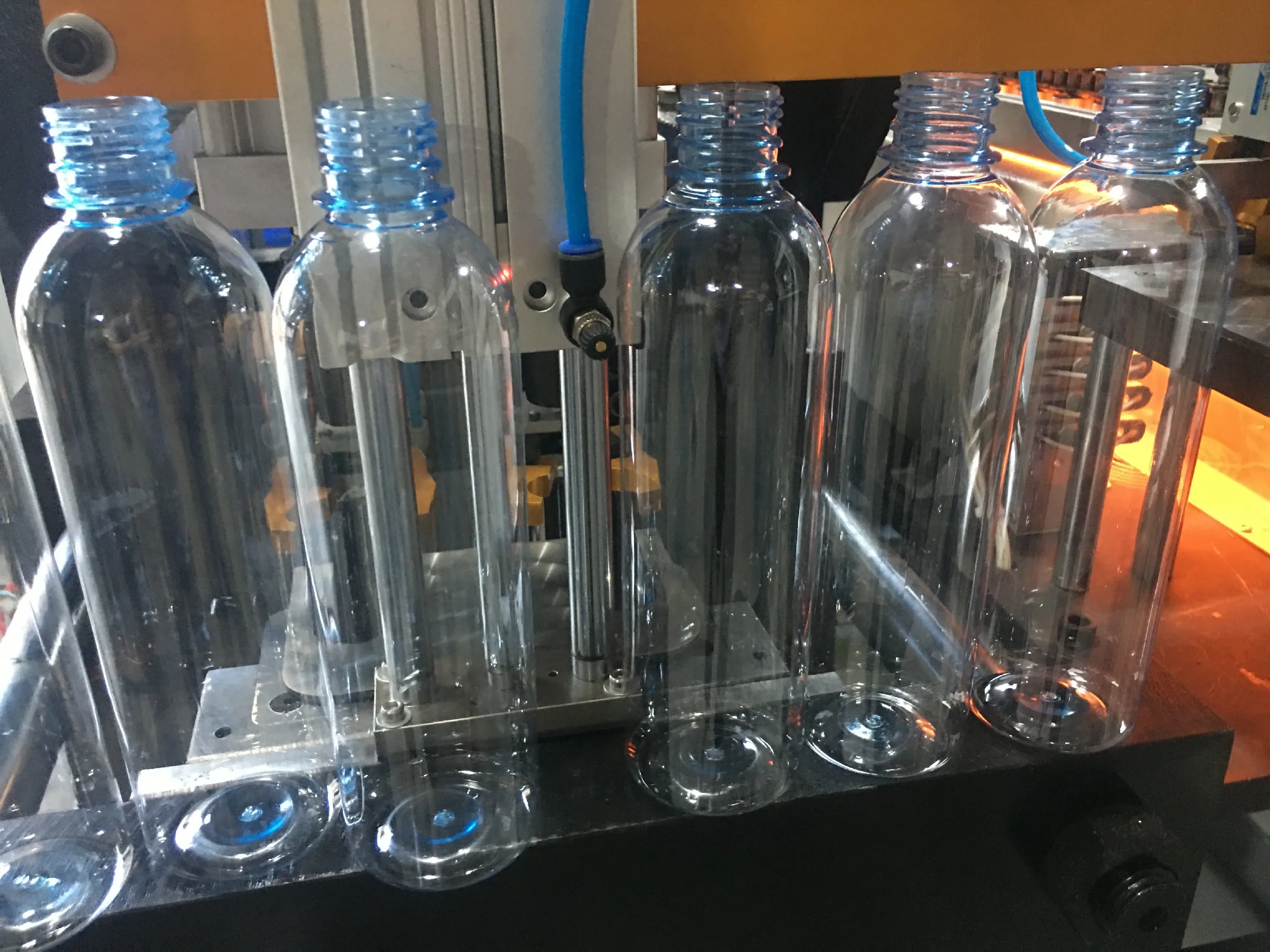

plastic bottle making machine price is specialized in- blowing small volume beverage bottle up to 1.5L for an average production capacity 3000bph,
It considers fully automation and simplification,to save both labour cost and investment,
pet bottle making machine price is most suitable for customers who want low investment and high automation for small bottle production line,

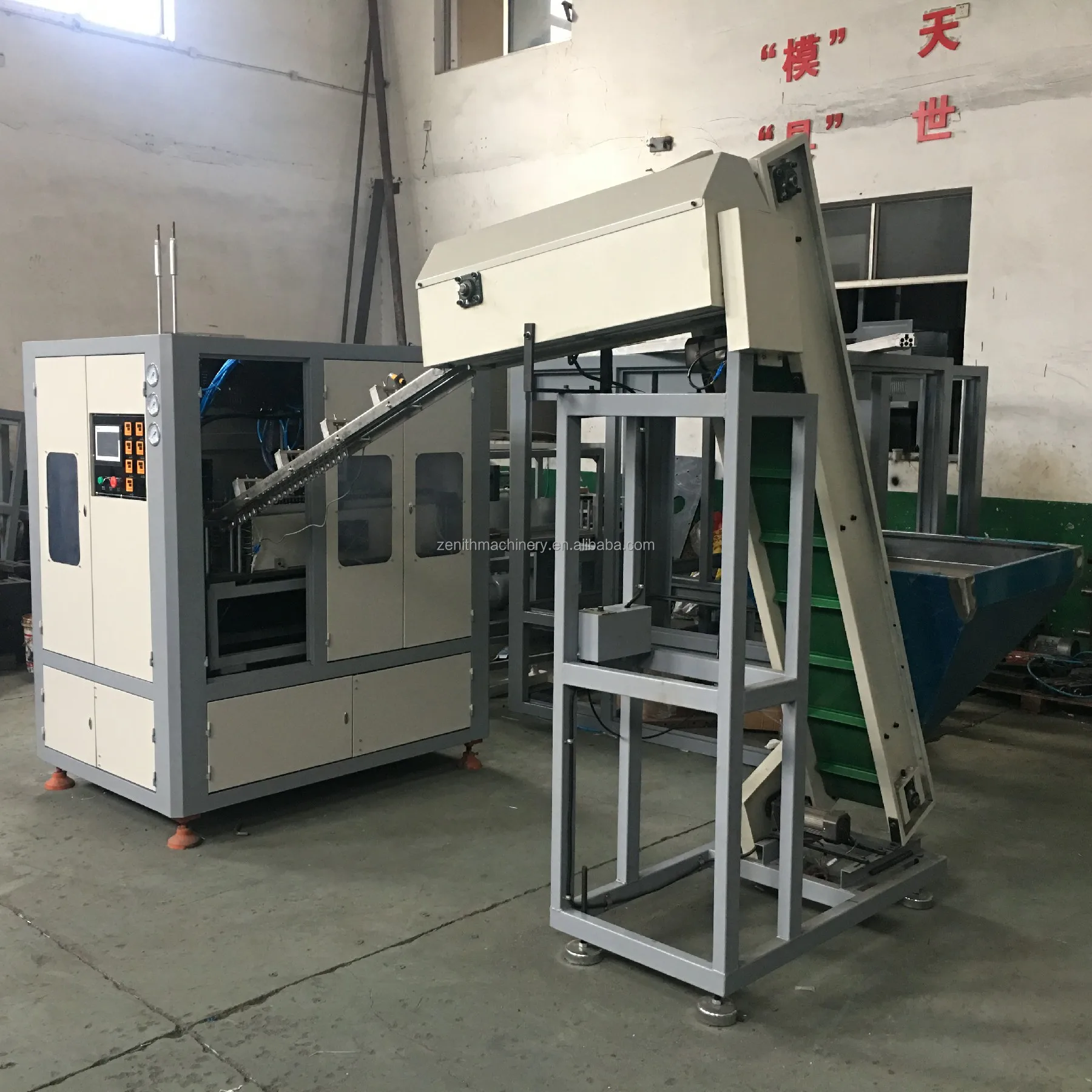

plastic bottle making machine is combined with three main units,with preheater and blowing unit in one machine and preform autoloader,

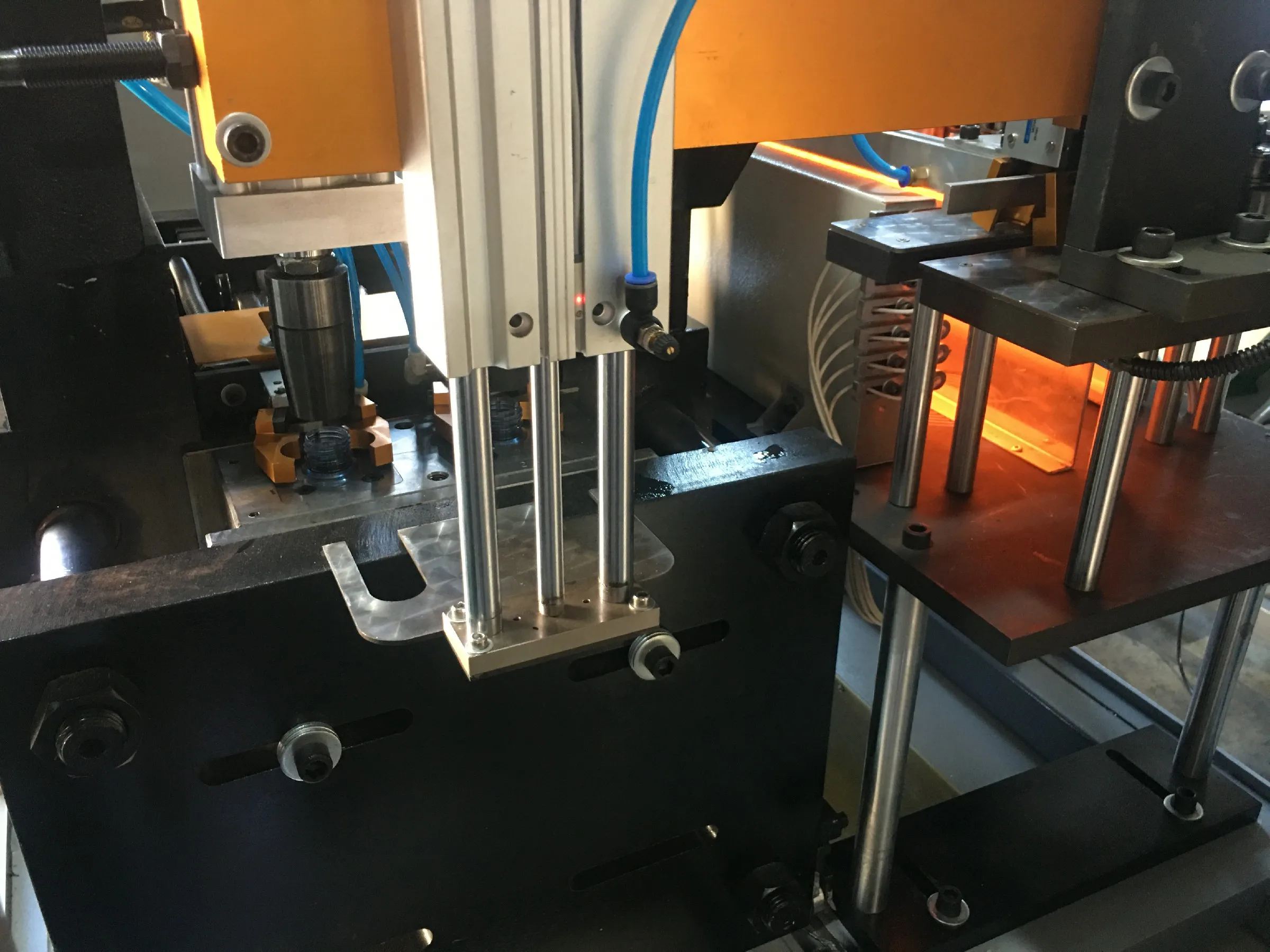

The machine is high quality fully-automatic operation, with automatic perform mechanical hand loading, automatic preform heating by infrared lamp and automatic blowing, blowed bottle automatic pushed out for packaging,

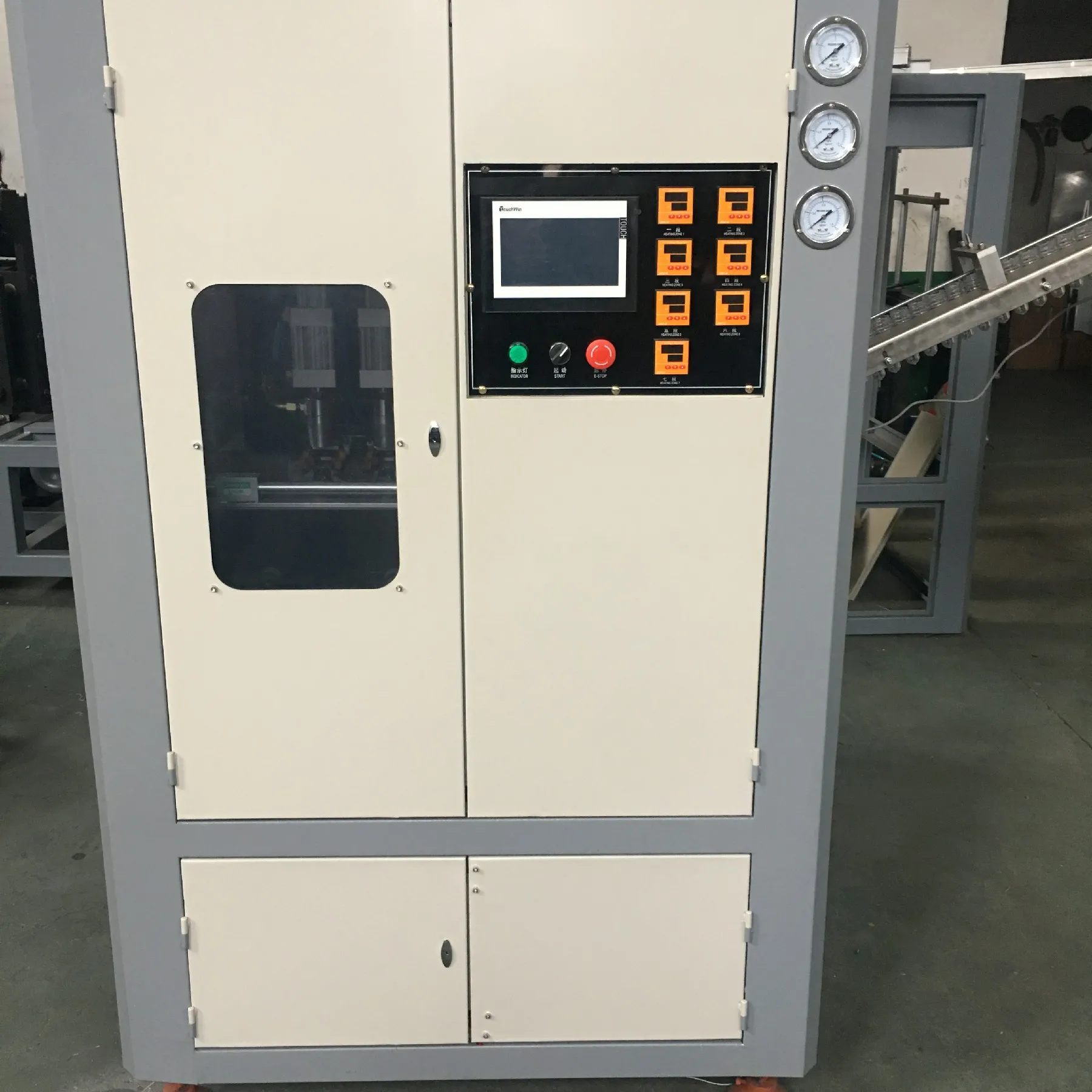

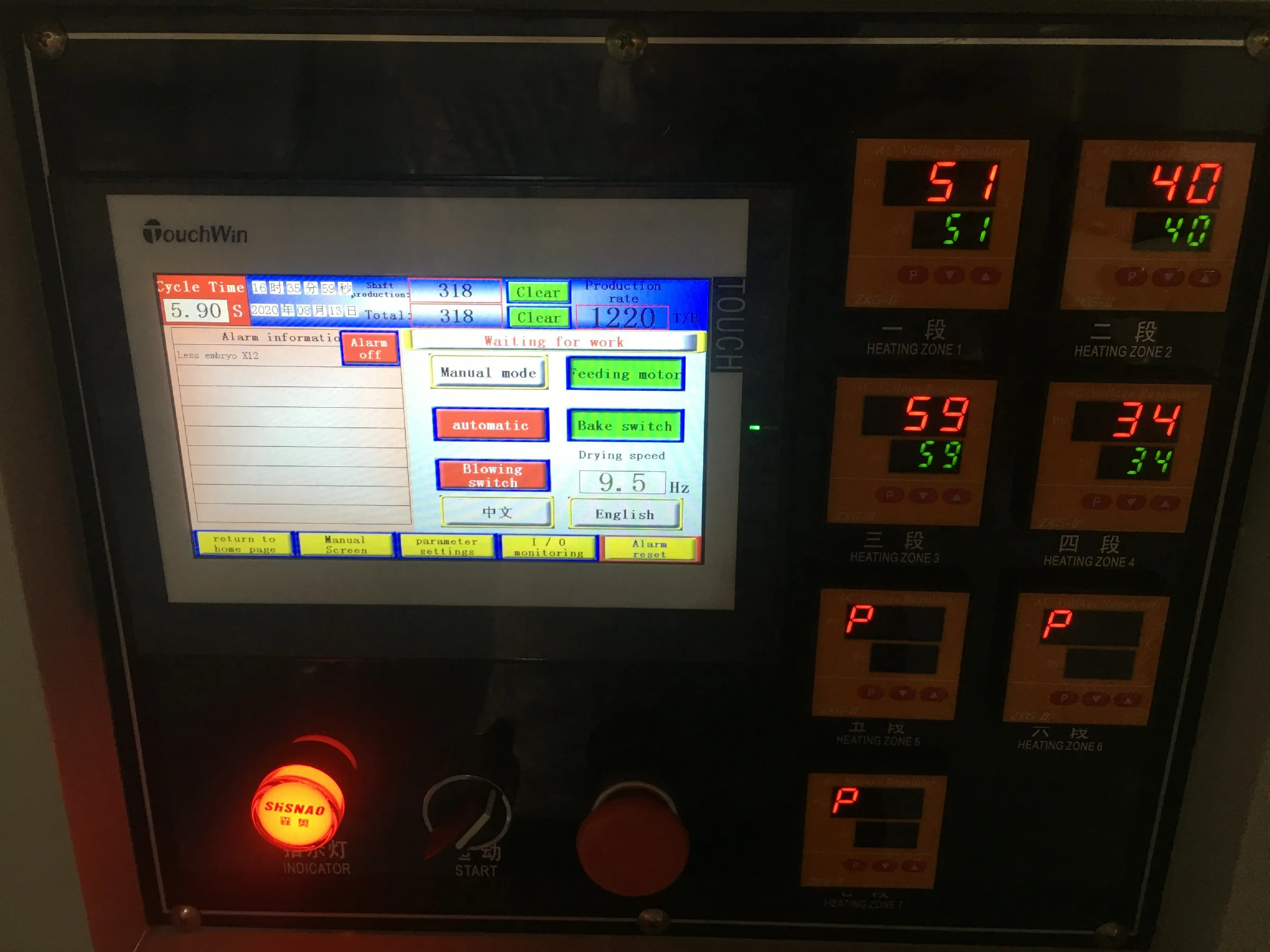

All the procedure controlled by PLC and touch screen operation,and reliable pueumatic pistons, its operation is stable and easy maintenance,

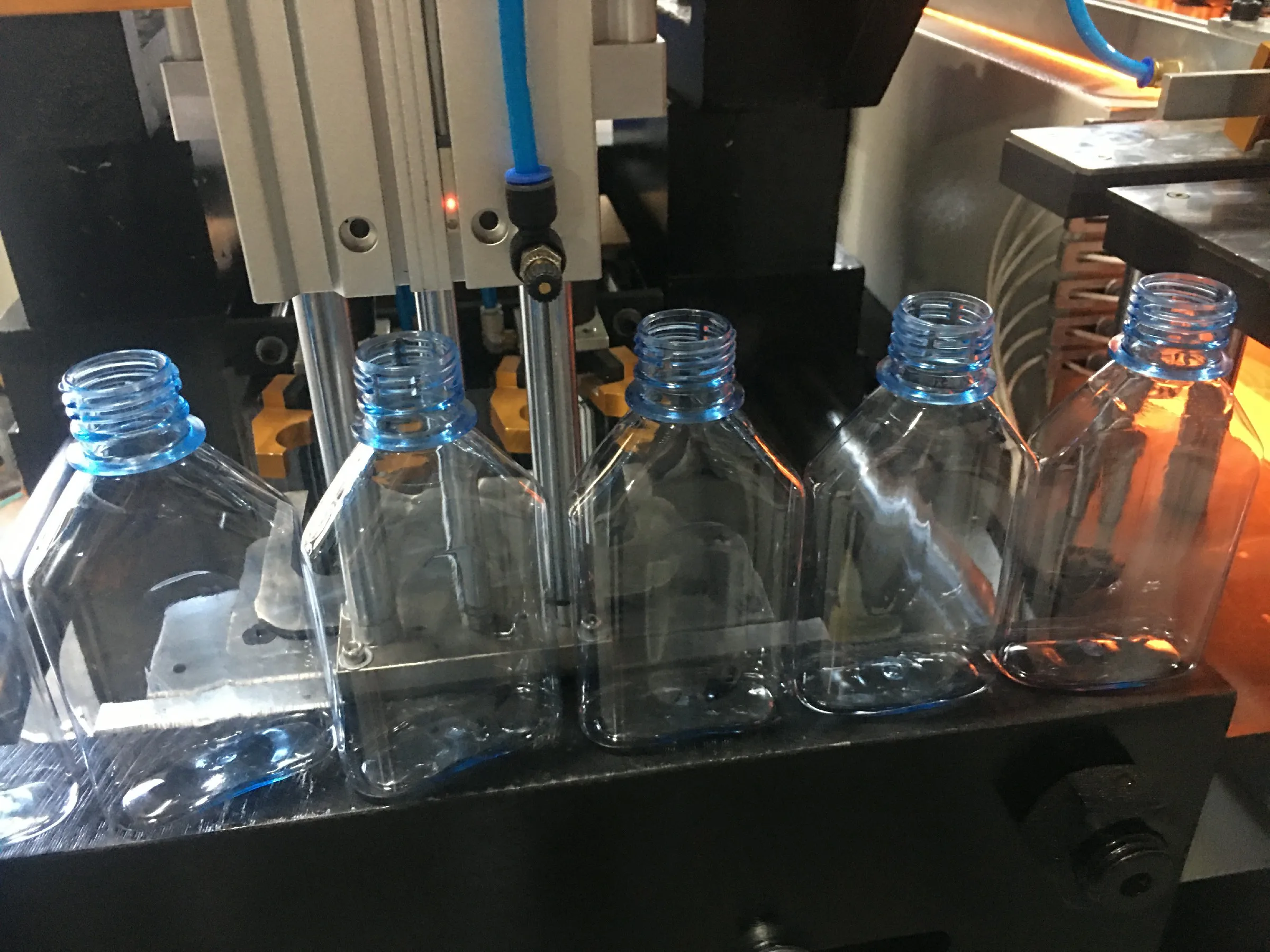

Blow mould is designed according to customer sample,
It considers fully automation and simplification,to save both labour cost and investment,
pet bottle making machine price is most suitable for customers who want low investment and high automation for small bottle production line,
plastic bottle making machine is combined with three main units,with preheater and blowing unit in one machine and preform autoloader,
The machine is high quality fully-automatic operation, with automatic perform mechanical hand loading, automatic preform heating by infrared lamp and automatic blowing, blowed bottle automatic pushed out for packaging,
All the procedure controlled by PLC and touch screen operation,and reliable pueumatic pistons, its operation is stable and easy maintenance,
Blow mould is designed according to customer sample,
Main Specification
MODEL | Unit | ZA-2S | ||
Container | Max.container volume | ml | 1500 | |
Max. neck diameter | mm | 38 | ||
Max. container diameter | mm | 95 | ||
Max. container height | mm | 320 | ||
Number of cavities | 2 | |||
Theoretical output | BPH | 1800 | ||
Electricity | Installed power | Kw | 16 | |
Max. heating power | Kw | 14 | ||
Compressed Air system | Operation pressure | Mpa | 0.7 | |
Low pressure Air consuming | M3 /min | 2.0 | ||
Blowing pressure | Mpa | 3.5 | ||
High pressure Air consuming | M3 /min | 1.5-2.0 | ||
Chilled water | Pressure | Mpa | 0.3-0.5 | |
Temperature | ℃ | 10-12 | ||
Flow rate | L/min | 30 | ||
Machine size and weight | Size(L*W*H) | m | 1.8X1.2X1.8 | |
Weight | Kg | 1500 | ||
Components List
S/N | Main Components Name | Brand |
1 | PLC | XINJE,Canada |
2 | Touch Screen | XINJE,Canada |
3 | Stretching Piston | FESTO,German |
4 | Clamping Piston | Airtac,Taiwan |
5 | Action Valve | FESTO,German |
6 | Photoelectric Switch | Omron,Japan |
7 | Contactor | Schneider,France |
8 | Power Supplier | Meanwell,Taiwan |
Accessory machines
Shangair brand High Pressure Air compressor
High pressure Air Tank
Air Cooling Dryer With two Air Filters
Water Chiller Air Cooling Type
