Cheap Bore Well Drilling Machines Price for Borehole Drilling Machine
Introduction of Borehole Drilling Machine
The dilling rigs are widely used in water well drilling, geological exploration, construction building exploration, drilling inspection of concrete structure holes, river dam construction, subgrade grouting hole drilling and direct grouting, ground temprerature central conditioning construction,etc.
Main features of Borehole Drilling Machine
- MT-3 is equipped with wheel-walking gear, hydraulic cylinder pillar and can adjust to and keep balance quickly.
- Oil pressure feeding mechanism highly improves drilling efficiency.
- Hydraulic system controlled drill tower.
- It has high rotating speed level and reasonable rotating speed range with large torque.
- The main machine has two shifts reverse speed, easy to deal with sudden changes.
- Advanced structure makes it well layout, easy to maintain and service.
- The machine has large power, long-feed distance and capable to improve the drill rate, to reduce blocking the drill bits which guarantees a safe and efficient operation.
- MT-3 mixes the pressure table and hydraulic table together, use rushing oil and quake-proof system and drill pressure scale is easy to read, accurate indicating and time-saving.
- Hand levers are installed together and reasonable layout gives you simple and reliable operation.
Specification of Borehole Drilling Machine
| Drilling depth | 600 m |
| Drilling diameter | 75-300 mm |
| Open hole diameter | 300 mm |
| End hole diameter | 75 mm |
| Drill pipe | Φ60 |
| Drilling angle | 60-90 |
| Main spindle | |
| Single line lifting speed | 0.5-1.9 m/s |
| Wirerope diameter | 12.5 mm |
| Single line lifting capacity | 30 KN |
| Drum diameter | 300 mm |
| Drum capacity | 65 m |
| Mud pump | |
| Model | BW-250 |
| Displacement | 250 L/MIN |
| Working pressure | 80 kg/cm2 |
| Water inlet pipe diameter | 76 mm |
| Water outlet pipe diameter | 51 mm |
| Gear pump | |
| Double gear oil pump | CBF-F63/25 |
| Front flow pressure | 63 L/MIN 20Mpa |
| Back flow pressure | 25 L/MIN 20 Mpa |
| Drilling rig power | |
| Diesel motor | 39 kw/2400 rpm |
| Electric motor | 22 kw/1470 rpm |
| Dimension | 2500*900*1800 mm |
| Weight | 1600 kg |

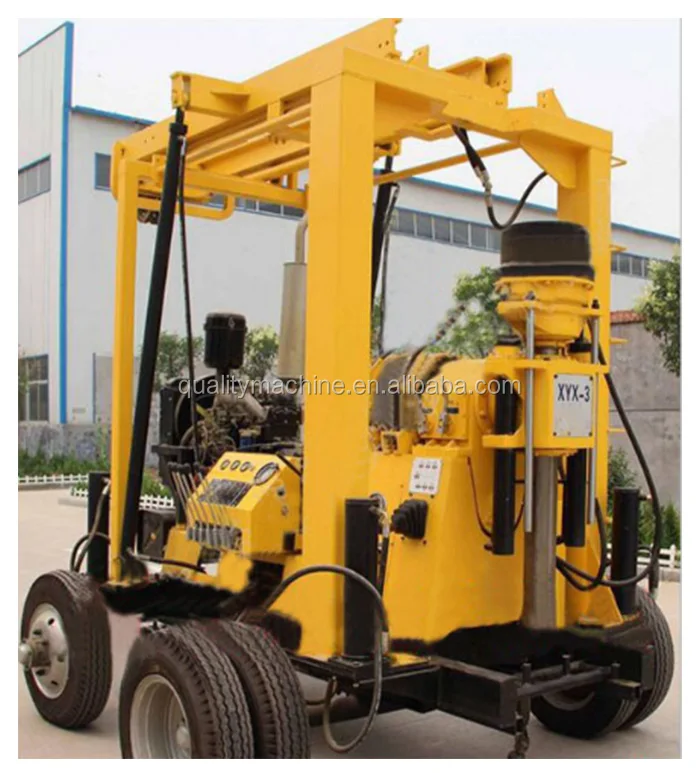

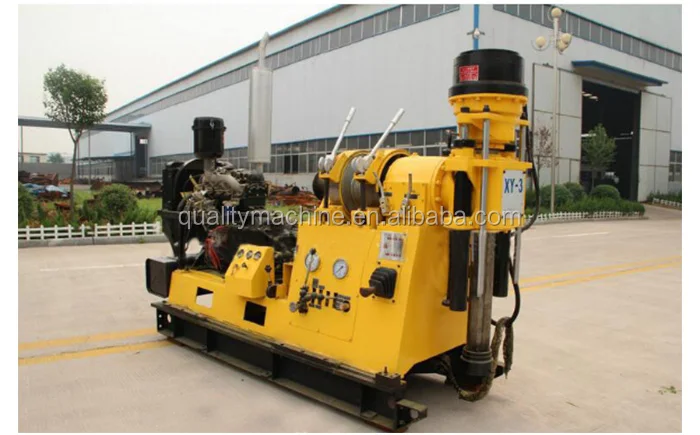

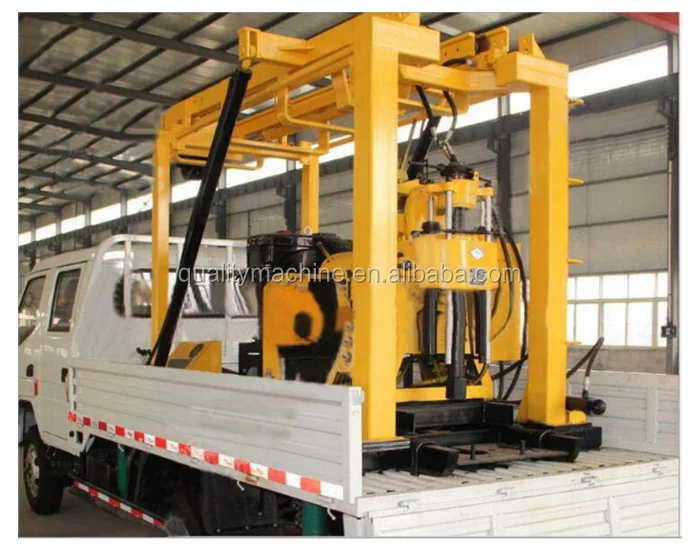

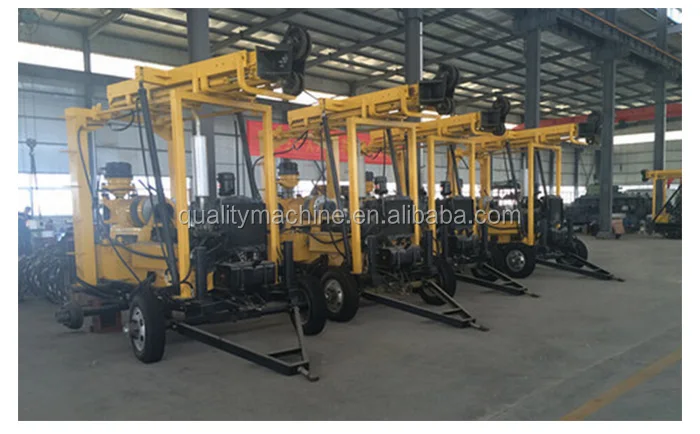

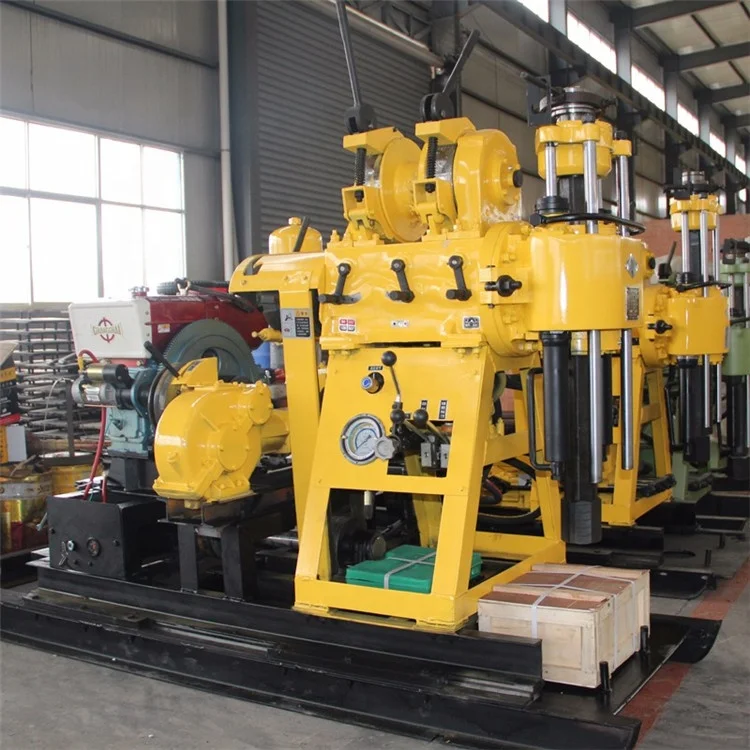

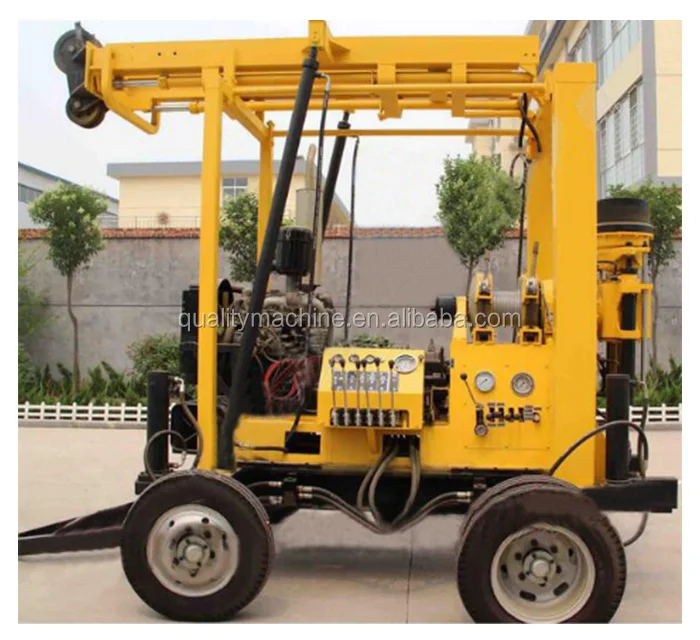

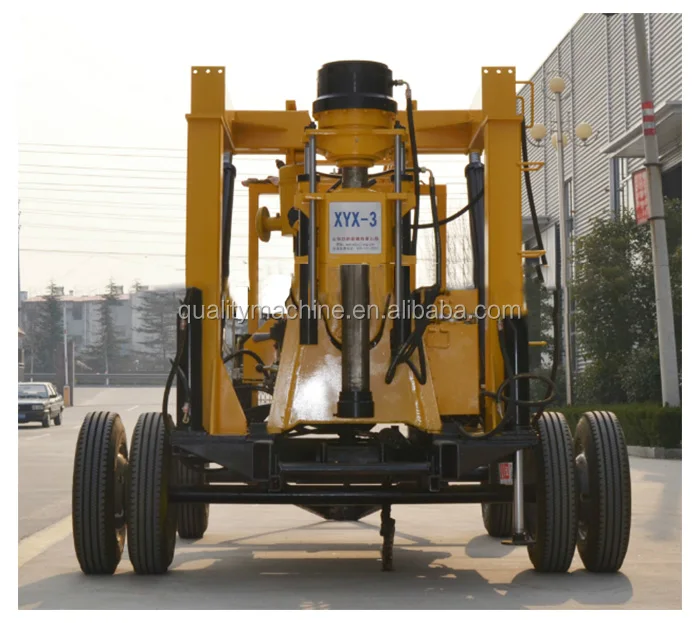

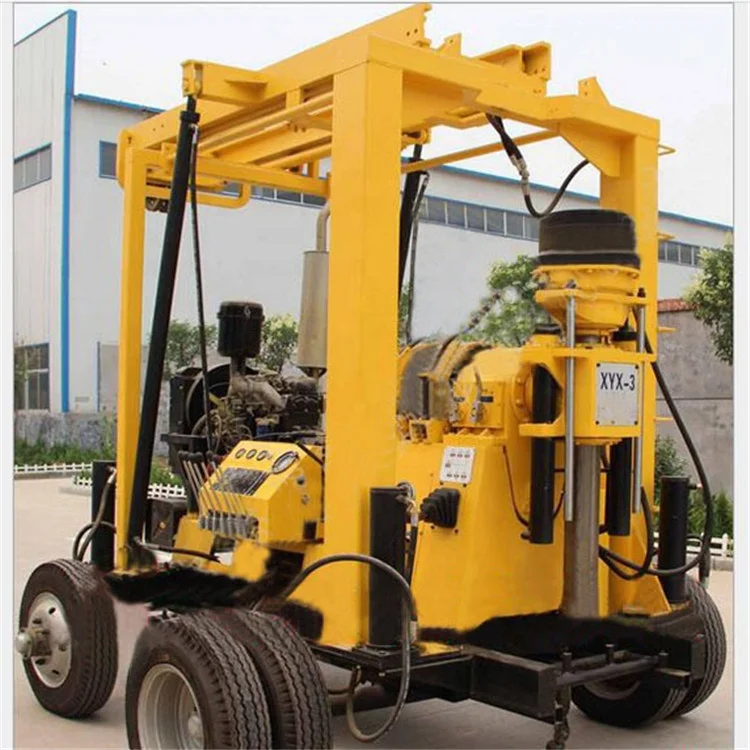

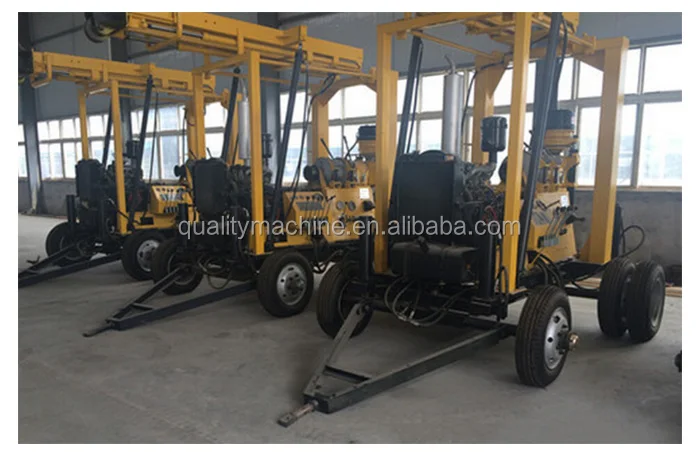

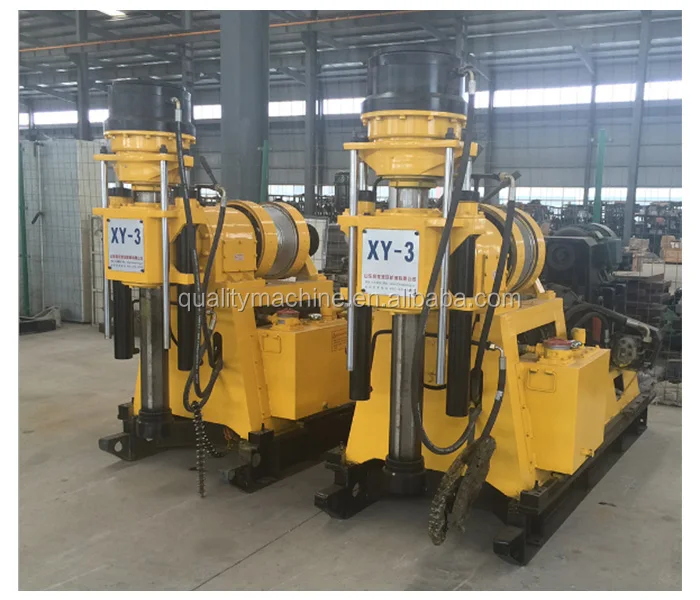

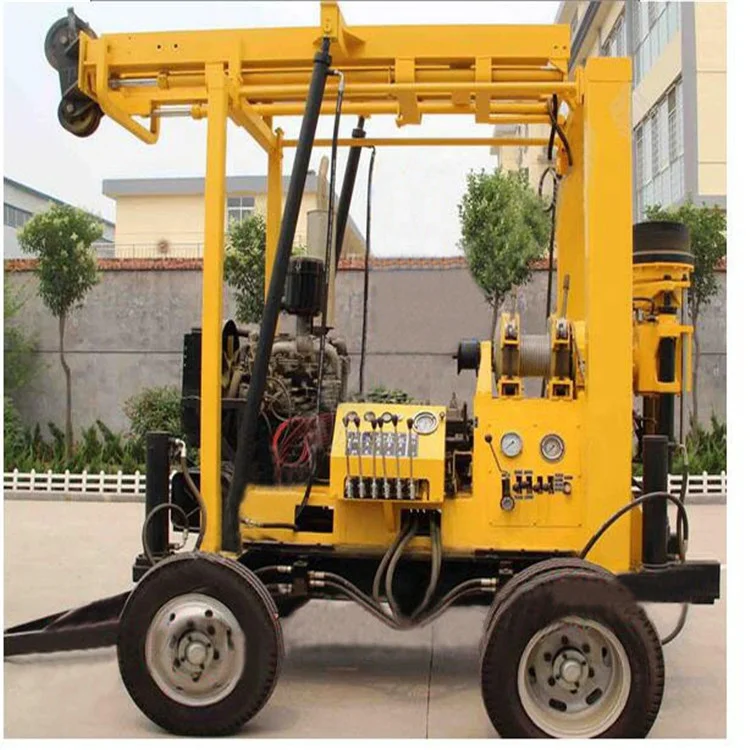

Pictures of Borehole Drilling Machine
Packaging & Shipping
Our Services
Service before sale of Borehole Drilling Machine
1. 24 hours online .Your inquiry will be quick reply by email .
Also can go through all questions with you by any online chatting tools (Wechat ,Whatsapp ,Skype ,Viber ,QQ , TradeManager )
2. Professionally and patiently introduction,details pictures and working video to show machine
Service on sale of Borehole Drilling Machine
1. Test every machine and inspect the machine seriously .
2.Send the machine picture which you order , then packing it with standard export wooden box after you confirm the machine is ok .
3.Delivery:If ship by sea .after delivery to seaport .Will tell you the shipping time and arrival time . Finally, send all original documents to you by Express For Free.
If delivery it by Express to your door(DHL, TNT,Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request . We will tell you the tracking number after delivery.
Service after sale of Borehole Drilling Machine
1. Free insurance for goods
2.24 hours online to solve any problem . Supply you English manual book and technical support , maintain and install video to help you solve the problem, or dispatch worker to your factory.
