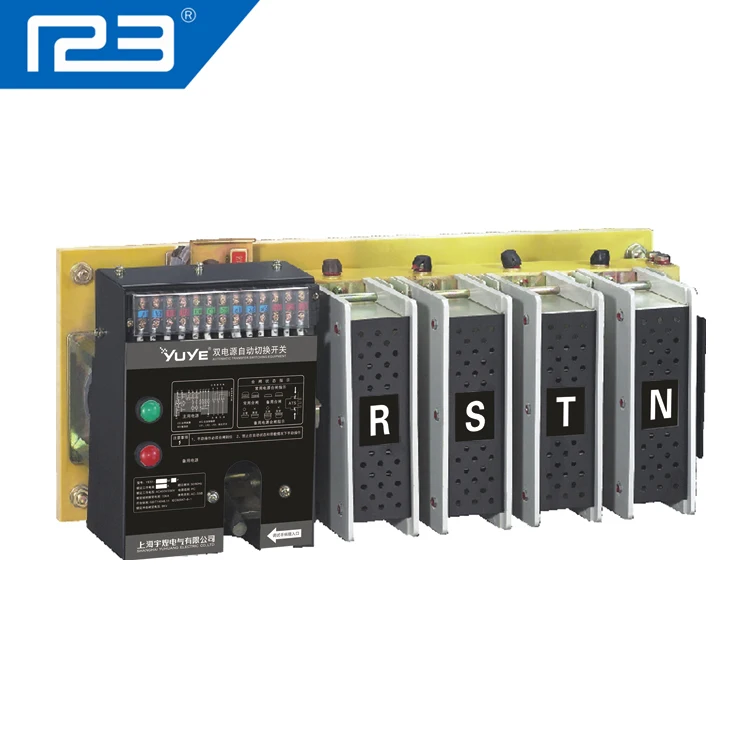

YUYE ATS PC Class Changeover Switch YES1 M 630A to 1600A automatic transfer switch

Dual-power Automatic Transfer Switch is divided into two parts,namely Special ATSE and Derived ATSE.The former could connect and bear load,but can't break short circuit current.Derived ATSE is divided into derived PC Class,CB Class and CC Class.Here derived PC Class will be introduced.

Our derived PC Class has many types including NA,N,C,M,Q,S,G and each type has all kinds of current ranks for you to choose.Derived PC Class takes load isolating switch as switch body and it also could connect and bear load,but can't break short circuit current.What's more,with the exception of GA type,other types have electromagnetic winding inside and are quite stable to use.The transfer time of PC Class is within 50ms.There are integral type with controller inside and split type with controller outside..Moreover,PC Class could make different voltage,such as (120V/208V),(220V/380V) and so on.

Quick Details
           Place of Origin: Zhejiang, China (Mainland)
           Brand Name: YUYE
           Model Number: YES1-C
           Max. Current: 400A

           Rated working voltage: AC 220V/400V, 50Hz
           Current Rank:32A,125A,250A,400A
           Pole number: 2p(Below 125A), 3p, 4p
           Certification:CE,CCC

Application:

YES1 Series ATS are mainly used for the state of a load,widely applicable to the fire,postal communication,hospitals,hotels,Urban rail transport and high-rise buildings,industrial assembly line,television stations need electricity for the important parts,Main power Emergency Power can be power grids,with self-excitation generator sets,battery,and so on.
