Cheap polycarbonate roofing sheet price/PC roofing panel
US $1.00-$9.00
Защита от дождя, прозрачные однотонные поликарбонатные листы для windows, цена
- Category: Sun Sheets & PC Embossed Sheets >>>
- Supplier: Baoding Xinhai Plastic Sheet Co. Ltd.
Share on (60703208931):
Product Overview
Description
Product Description

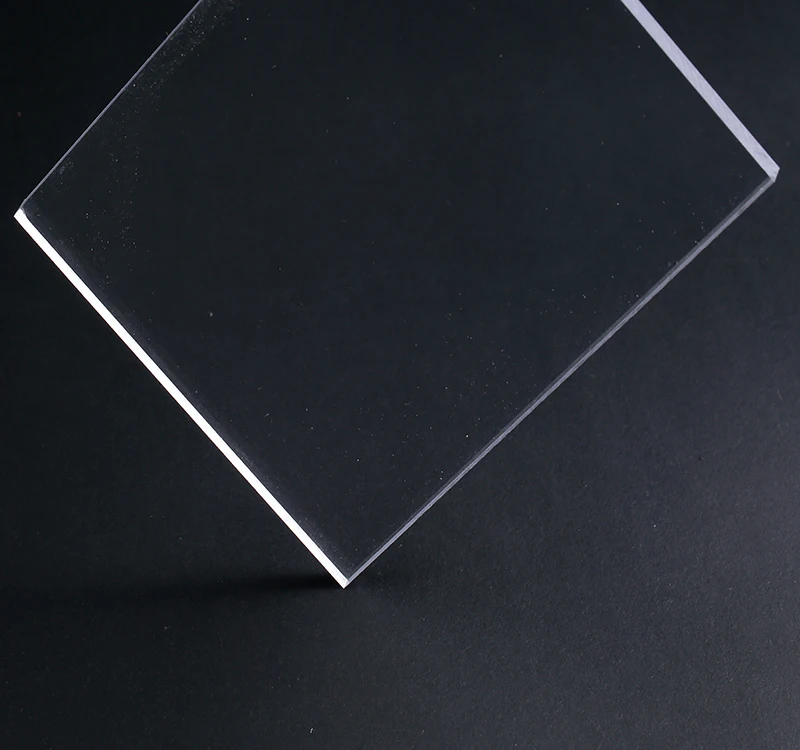

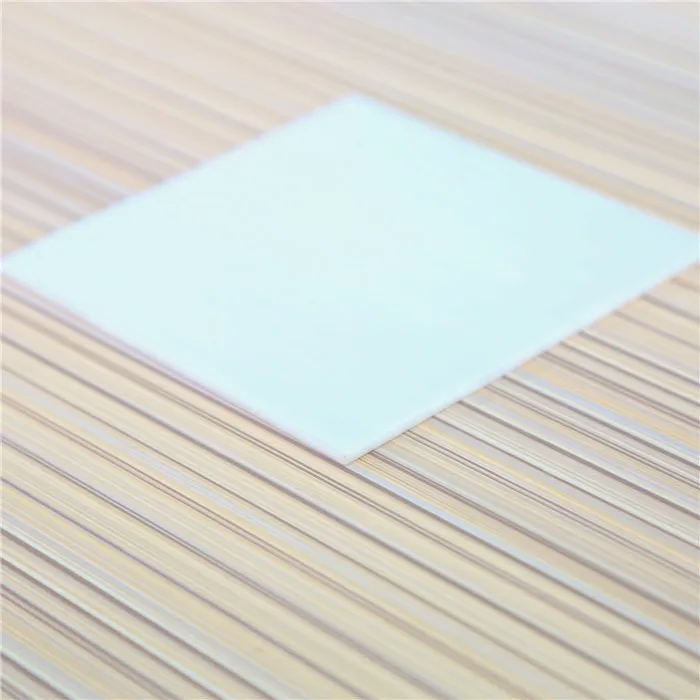

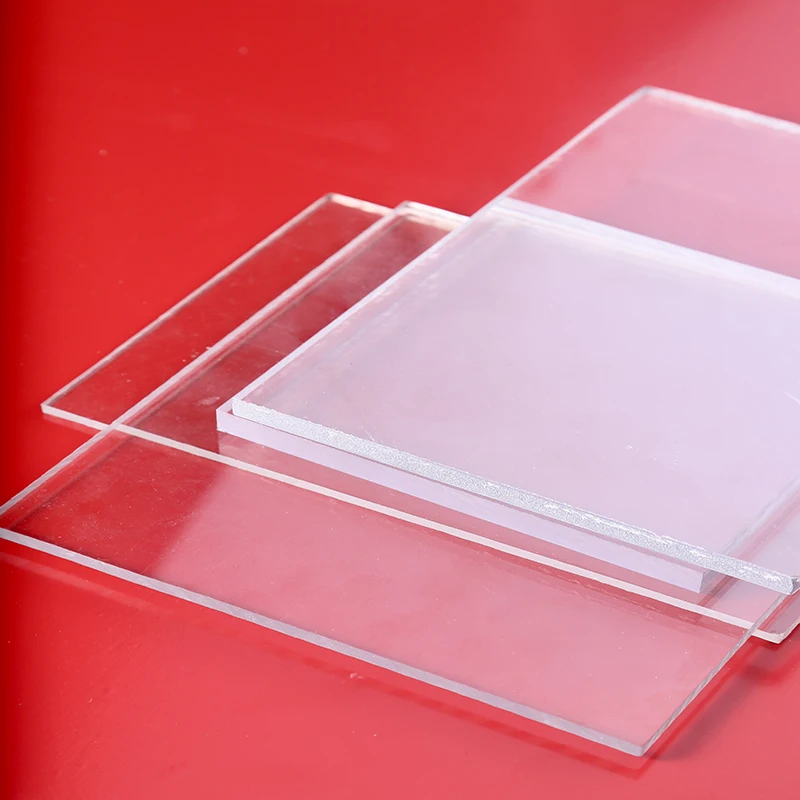

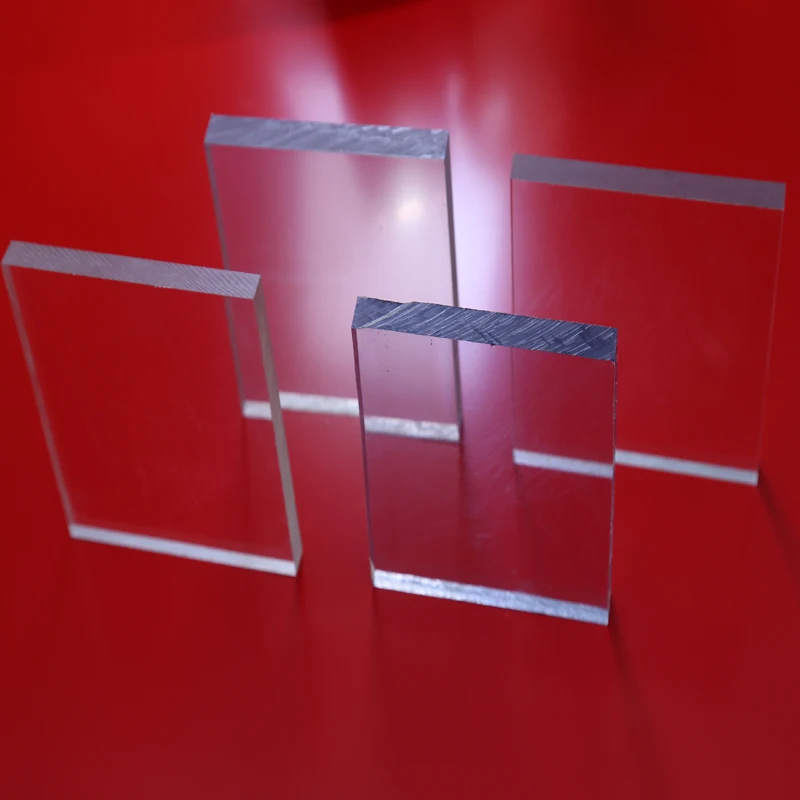

Window awning 10 years guarantee Bayer makrolon polycarbonate plastic soild sheet
Solid polycarbonate Sheet Specificatiion:
Approved by: ISO9001:2008
Quality:100% virgin lexan material
UV coating 50 um
Fire and Heat proof
Light transmission: 89%

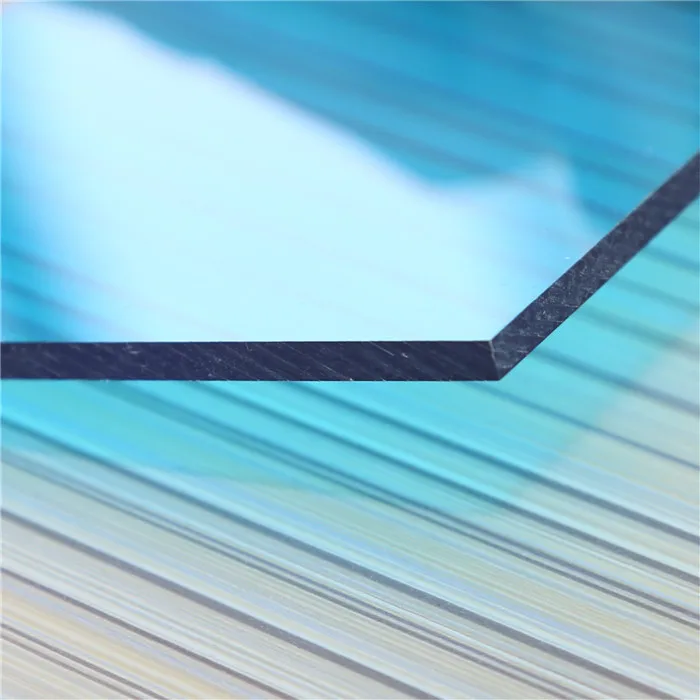

Product: solid polycarbonate sheet
Place of origin:baoding,China

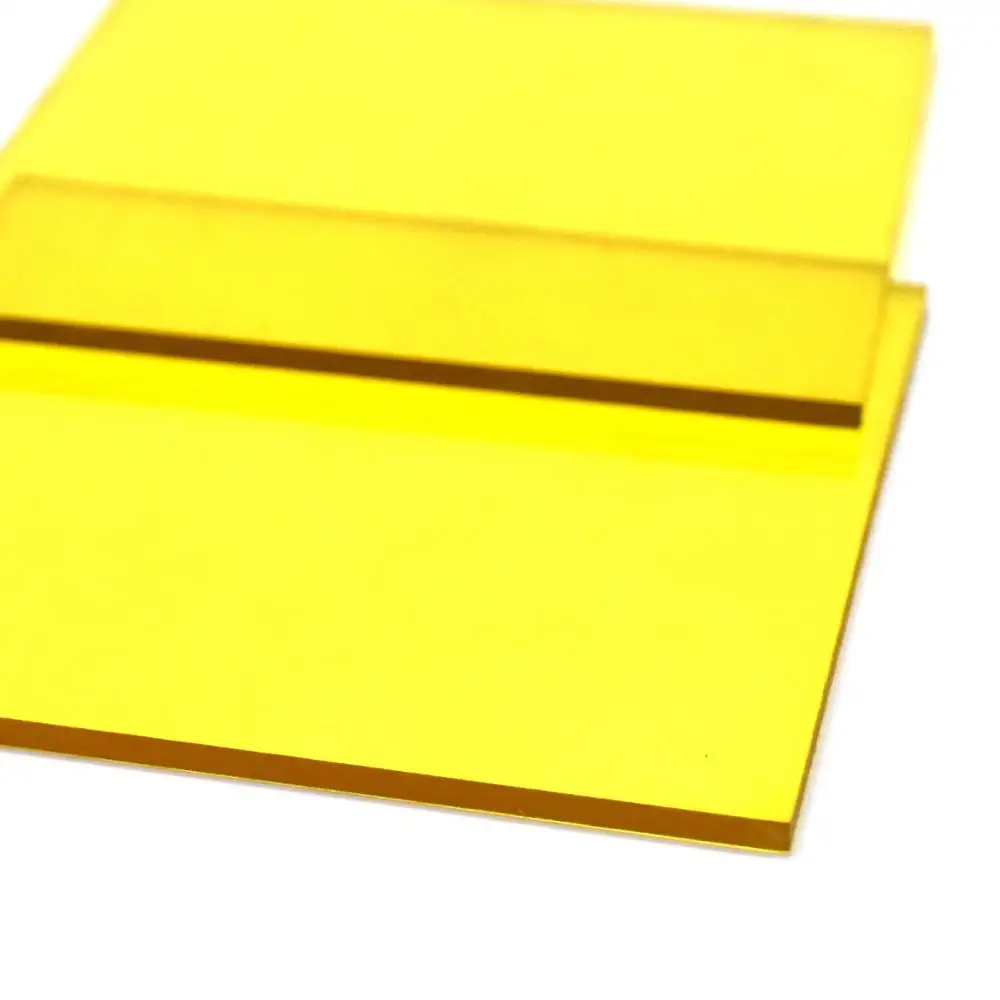

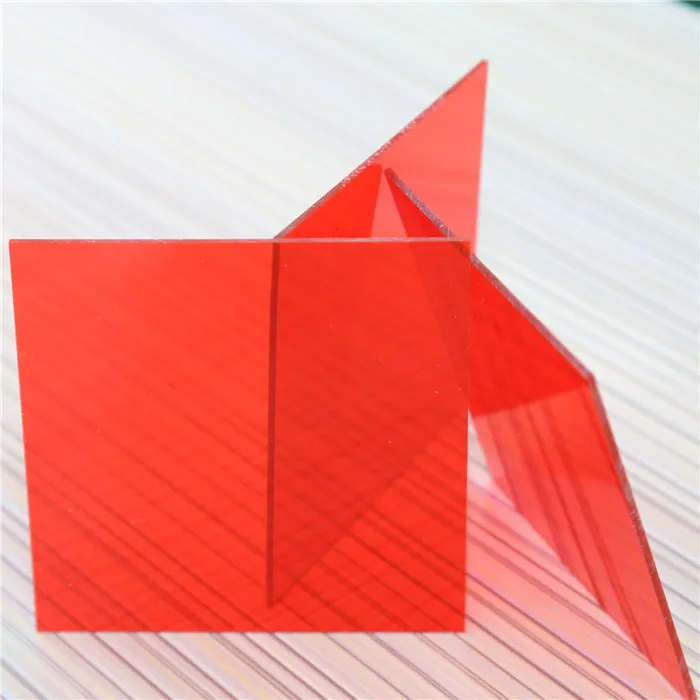

Colour : Clear , Opal , Green , Blue , Bronze , Lake-blue, etc
Thickness: 1.2-18mm
Standard width: 2100mm
Length:not limited
Colour : Clear , Opal , Green , Blue , Bronze , Lake-blue, etc
Thickness: 1.2-18mm
Standard width: 2100mm
Length:not limited
Specification
Polycarbonate Solid Sheet Specification
Color Available | Width (mm) | Thickness (mm) | Weight (kg/m2) | Min Curving Radius(mm) | Min Span Accordingly(mm) | ||
Clear Transparent Opal Bronze Blue Lake blue Green Light green Yellow Red White Grey | 1220 1560 1820 2100 Customized | 1.5 | 1.8 | 270 | 540 | ||
2.0 | 2.4 | 360 | 720 | ||||
2.4 | 2.88 | 430 | 860 | ||||
3.0 | 3.6 | 540 | 1080 | ||||
3.8 | 4.56 | 680 | 1360 | ||||
4.0 | 4.8 | 720 | 1440 | ||||
5.0 | 6 | 900 | 1800 | ||||
6.0 | 7.2 | 1080 | 2160 | ||||
8.0 | 9.6 | 1450 | 2900 | ||||
9.0 | 10.8 | 1620 | 3240 | ||||
10.0 | 12 | 1800 | 3600 | ||||
12.0 | 14.4 | 2160 | 4320 | ||||
Technical data: | |||||||
Characterics | Unit | Data | |||||
Impact strength | J/m | 2.1 | |||||
Light transmission | % | 50-85 | |||||
Specify Gravity | g/m | 1.2 | |||||
Coefficient Thermal Expansion | mm/m℃ | 0.065 | |||||
Service Temperature | ℃ | -40℃--+120℃ | |||||
Heat conductively | W/m2℃ | 3.0-5.0 | |||||
Flexural strength | N/mm2℃ | 100 | |||||
Modulus of elasticity | Mpa | 2400 | |||||
Packaging & Shipping
Polycarbonate Solid Sheet Packaging & Shipping
Packaging | Both sides with PE film,on the outside with kraft paper,the thinckness within 4.5mm can be packed in roll,over 4.5mm it will be packed in flat.Other package are available based on customer's requirment | |||
Delivery | within 7-10 working days once we received the deposit. | |||
Payment | L/C, T/T, Western Union,Paypal,Cash. | |||
Capacity for 20'container
| 2.1m*5.8m*1.2mm | 1,482 sheet | ||
2.1m*5.8m*1.5mm | 1,185 sheet | |||
2.1m*5.8m*2mm | 889 sheet | |||
2.1m*5.8m*3mm | 592 sheet | |||
2.1m*5.8m*4mm | 444 sheet | |||
2.1m*5.8m*6mm | 296 sheet | |||
2.1m*5.8m*8mm | 222 sheet | |||
2.1m*5.8m*10mm | 177 sheet | |||

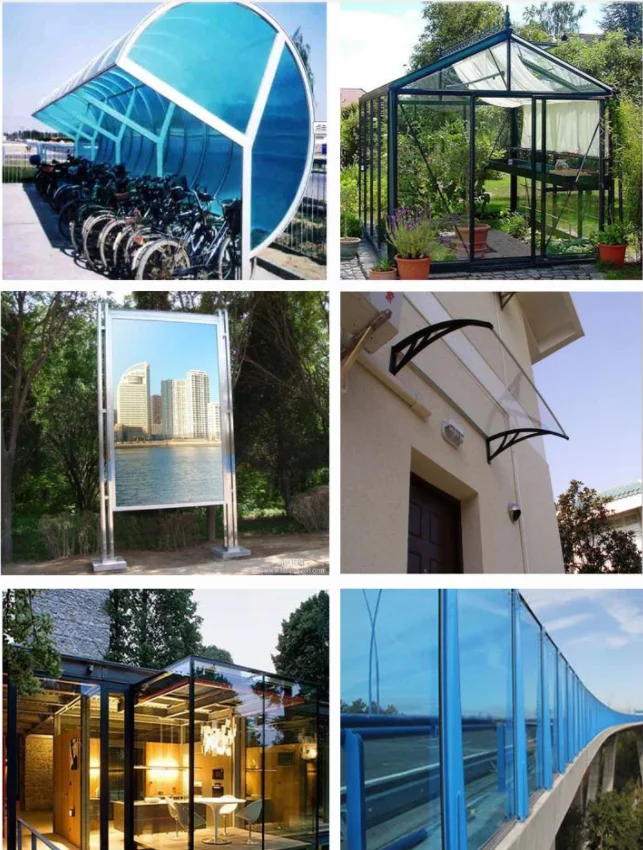

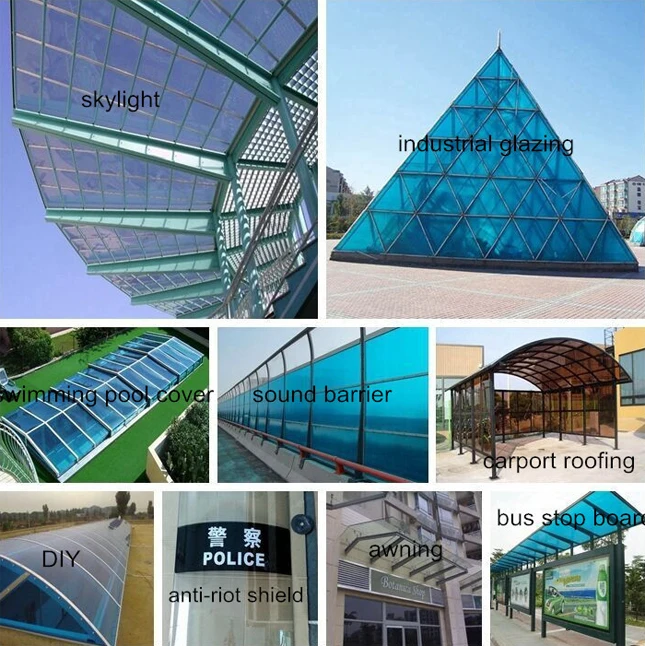

Applications
Polycarbonate Solid Sheet Applications

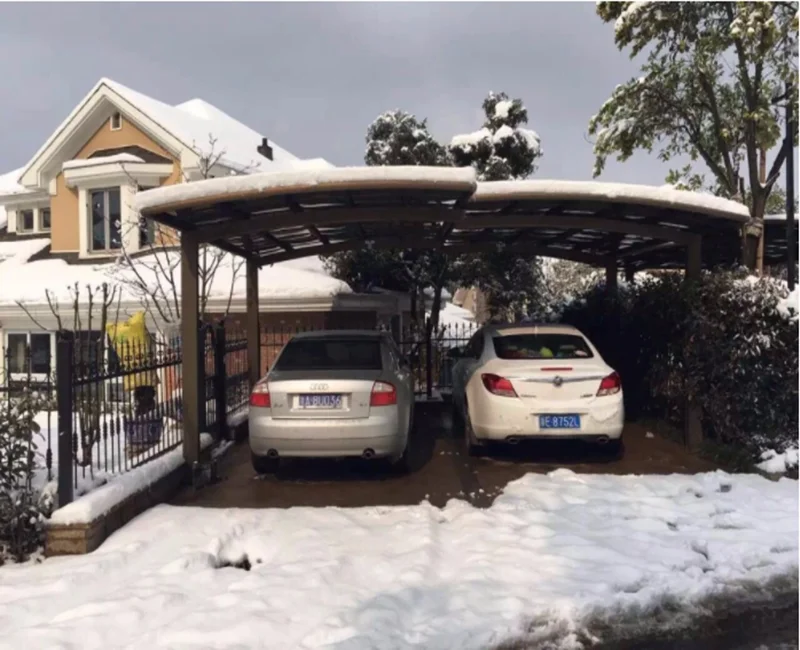

1. Roofing skylight for office building,department store, hotel, stadium, school
2. Soundproof shields on express ways
3. LED diffused, Advertising lamp boxes, sign board.Telepohne booths
4. Anti-riot shield, bullet resistant material, Bank ATMs.
5. Agricultural greenhouses, zoos, botanical gardens.a
6. Swimming Pools roofing/cover/sheet
7. Lighting for corridors, balcony, passages and subway entries, walkways.
8. Walls, roofs,windows,screens,shower enclosure.
9. Instrument and machine windscreen
Features
Polycarbonate Solid Sheet Features
1) Super light:It weighs half of ordinary silicate glass
2) Impact resistance: 80 times that of glass, 15 times that of acrylic sheeting.
3) Temperature resistance range: -40 ~ 120℃
4) Light weight: only 1/12 of the weight of glass of the same thickness
5)Super stablity: Its 50-micron UV coating can effectively protect it from ultraviolet rays in order to prevent aging
6) Flame resistance: rated class B1
7) Sound and heat proofa
Company Information
Factory Profile
Baoding Xinhai Plastic Sheet Co., Ltd.is a manufacturer of polycarbonate hollow and solid sheet with well-equipped production lines and strong technical force.Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome all customers from all walks of life to contact us for future business relationships and mutual success.
Main products - pc sheet (OEM):

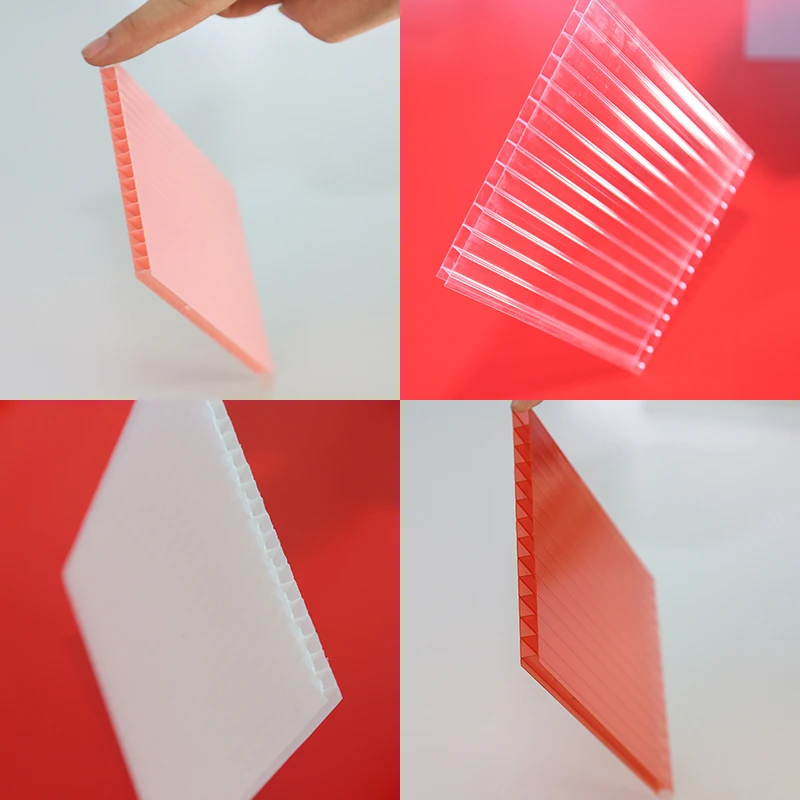

1) Polycarbonate hollow sheet:Twin wall polycarbonate sheet/Triple wall polycarbonate sheet/Four wall polycarbonate sheet/Multiwall polycarbonate sheet
2) Polycarbonate solid sheet
3) Polycarbonate embossed sheet
4)Polycarbonate profiles:U profiles/H profiles
5) polycarbonate honeycomb sheet
6)corrugated polycarbonate sheet
7) Anti-fog polycarbonate shee
8) Polycarbonate frosted sheet
9)UV coated polycarbonate sheet
twin wall polycarbonate hollow sheet

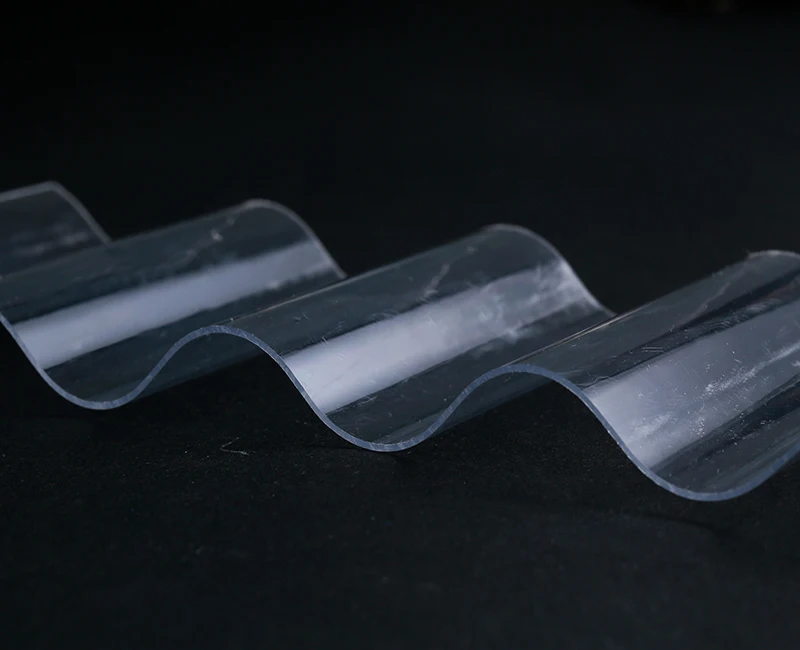

Corrugated polycarbonate sheet
Certificate
Raw Material
100% GE, makrolon bayer,sabic lexan,samsung,LG etc.
