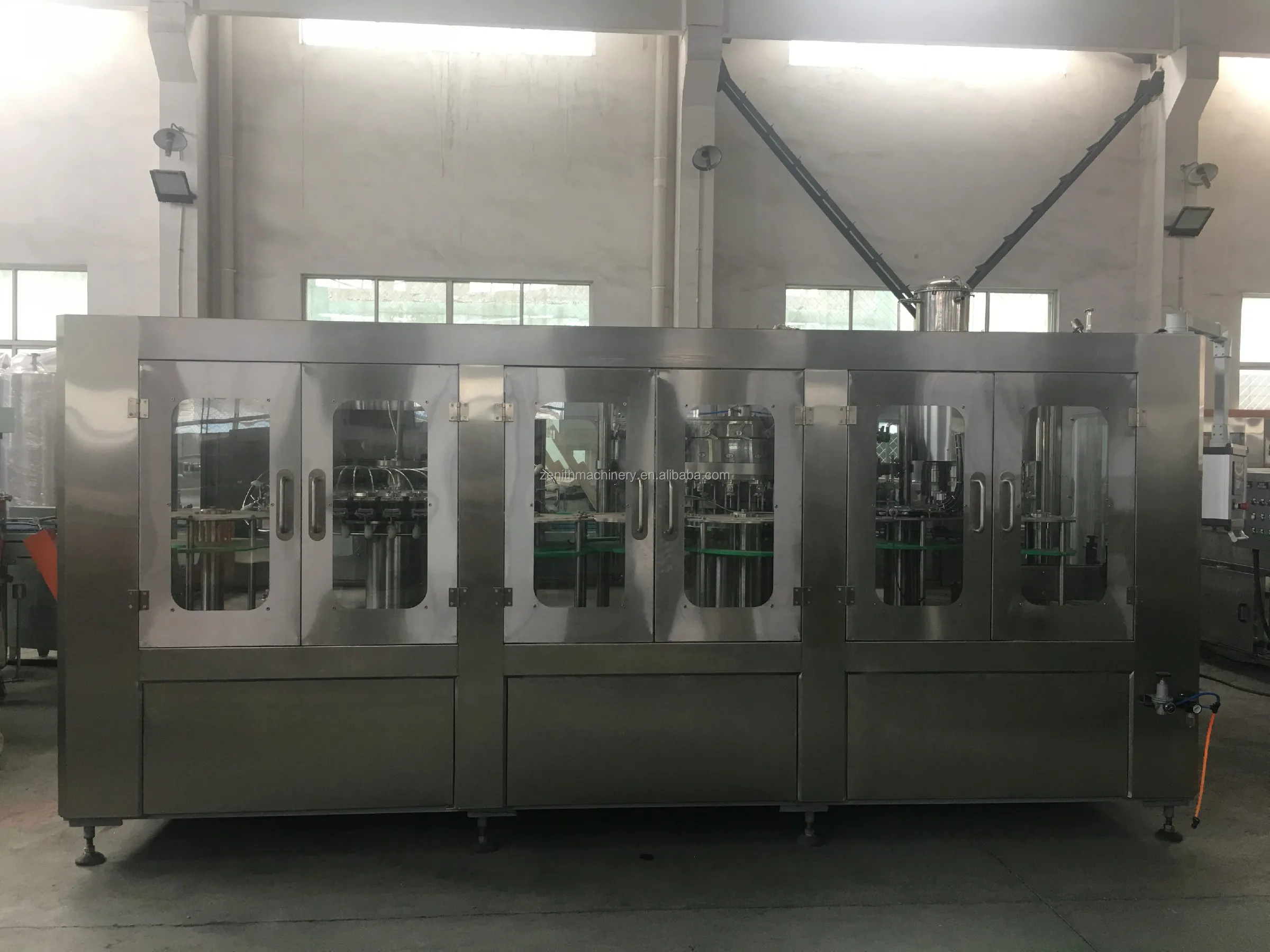

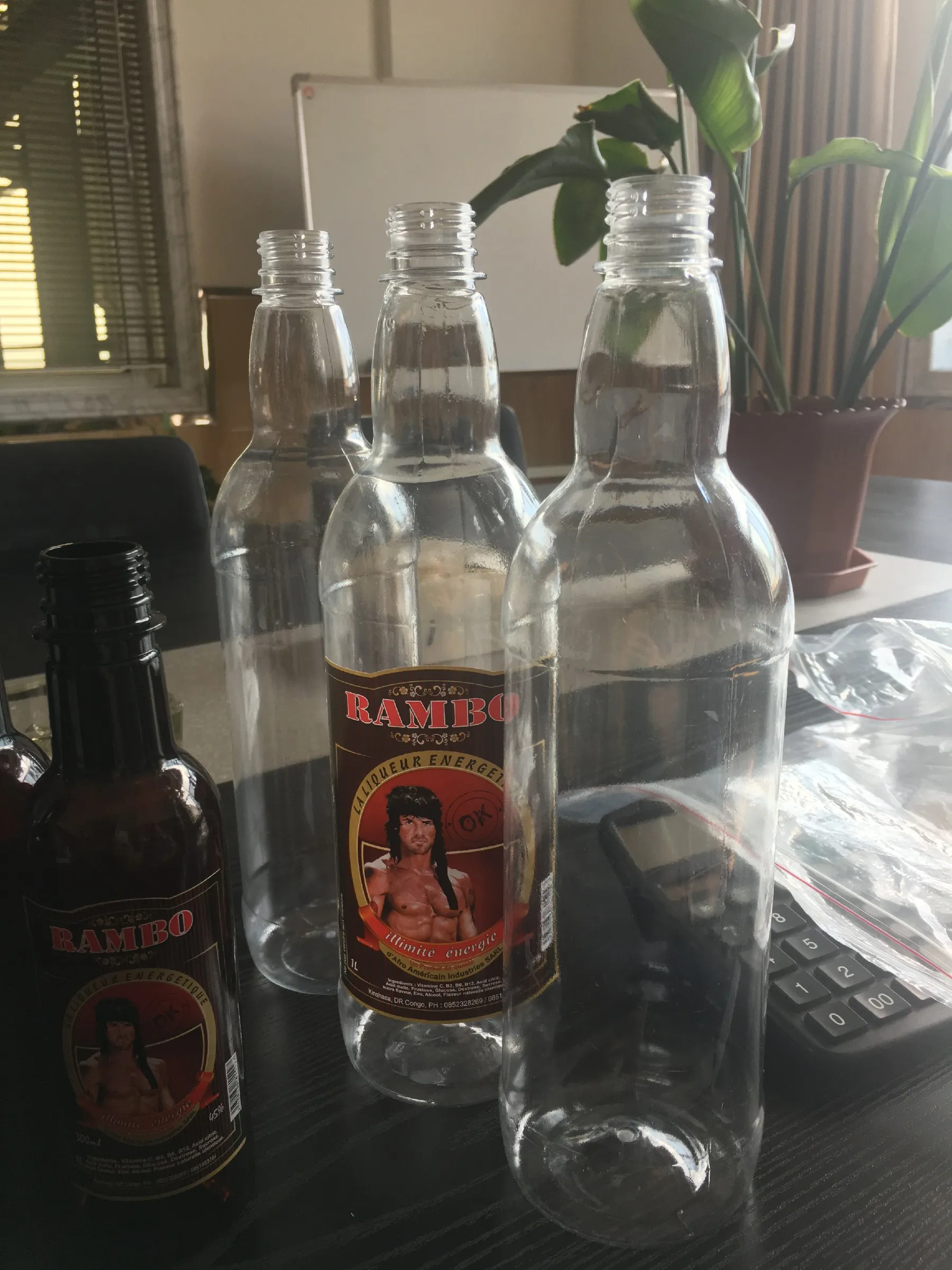

9000BPH liquor vodka plastic glass bottle filling machine
- Category: >>>
- Supplier: Zhangjiagang Zenith Beverage Machinery Co. Ltd.
Share on (60703251302):
Product Overview
Description
\t\t\t\t\t\t\t\t\tDetailed Images \t\t\t\t\t\t\t
Product Description
Product Application
liquor filling capping machine is mainly used for filling none-carbonated beverage such as edible oil,wine,alcohol, The machine is most applied for plastic PET bottle, it can be easily adjusted to fill various shape and volume of bottles,
liquor filling machine combines filling unit, capping unit in one machine, it can fulfill the filling capping automatically, bottles will be fed to the filling machine automatically to fill liquid with high speed and fixed quantity. After that, the filled bottles will be capped by the automatic capping machine and then be transported to the labeling and packing process,
liquor bottle filling machine adopt normal pressure filling, the filling operation is faster and liquid level is precise and accurate,
The machine use advanced technology and design from Italy and Germany, The appearance is beautiful and design of machine is scientific, its operation and maintenance is convenient, with high automation.
FEATURES

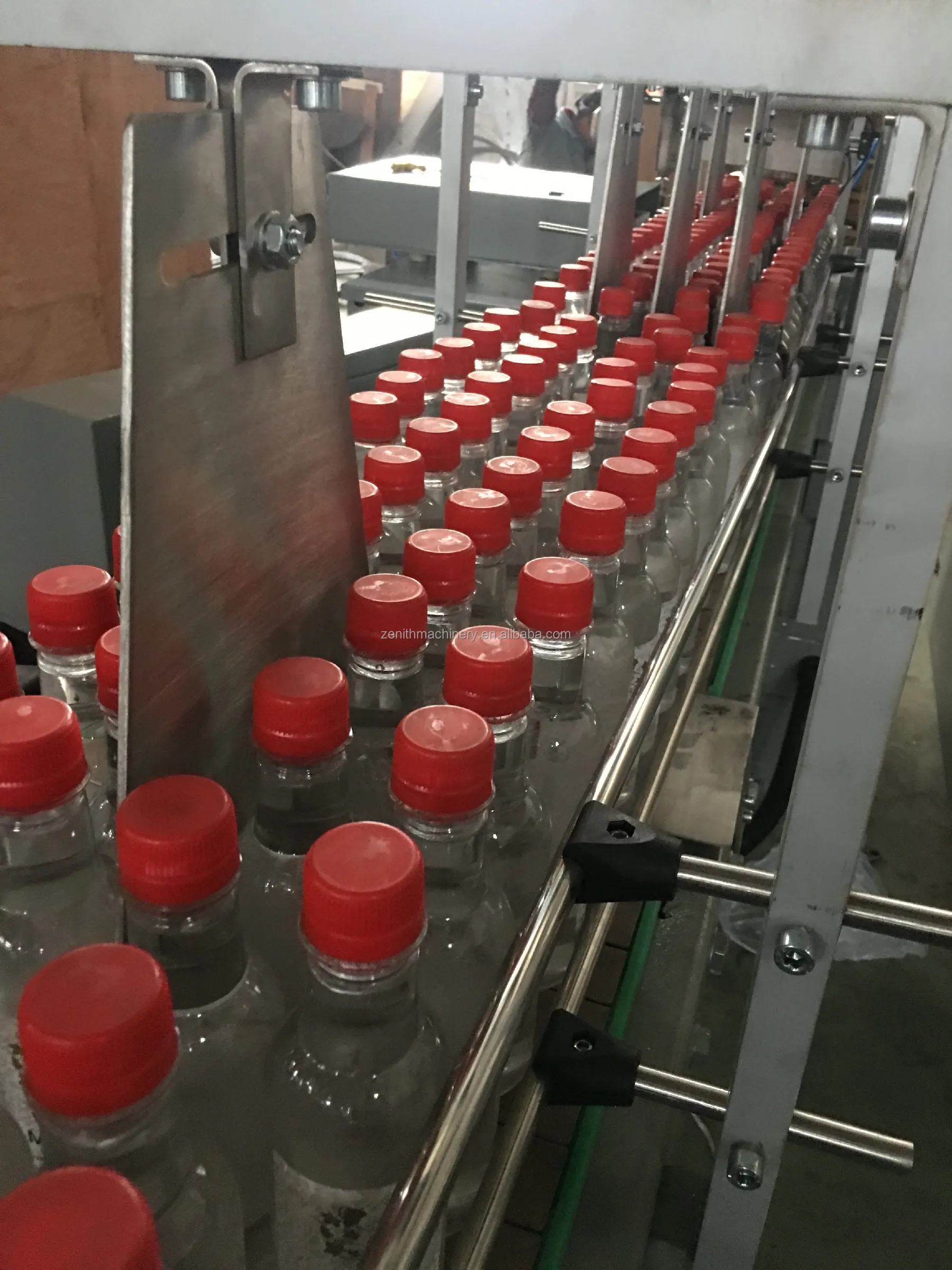

1.\tbelt conveyor system is adopted in bottle inlet and exit section, the two conveyor system speed can be adjusted to work in synchronization with transducer of the main machine to make the operations of moving bottle steadily and reliably,
2.\tIt adopt hanging type conveying-bottle structure, The bottle neck is cramped and bottles are suspended during the operation process, this avoid many malfunctions caused by thinner bottle body and different height of bottles, the design also reduce the required number of changeable parts for changing between various bottle, make bottle change more convenient and with high efficiency,

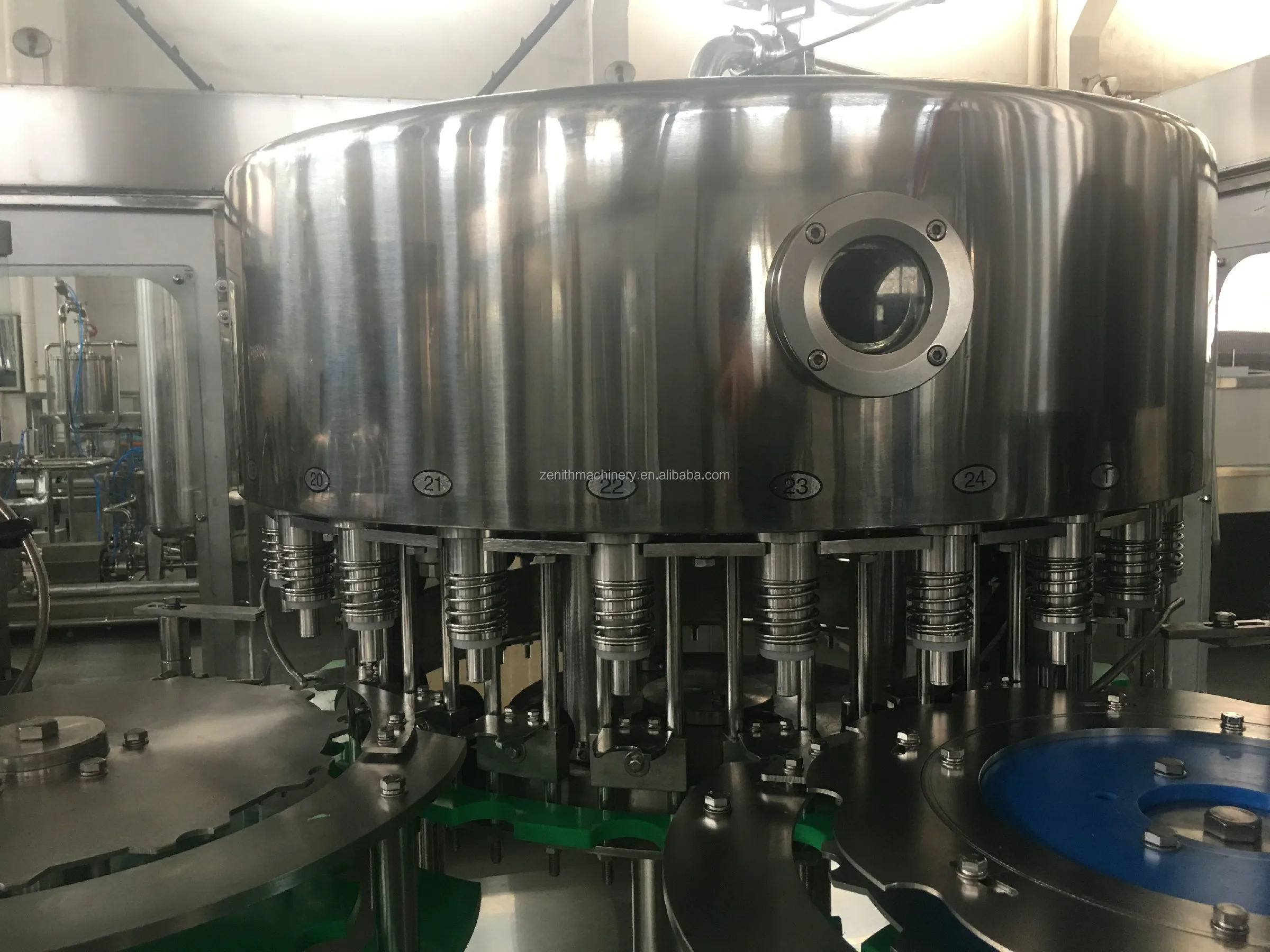

3.\tJapanese and Italy technology is employed by using fixed liquid surface gravity filling, the filling is faster and liquid level is accurately controlled, and avoid leakage and dropping,
4.\tThe magnetic torque is used for screw capping, the force of cap grabing, and screw capping can be adjusted steplessly, the force of the screw capping can also be fixed to avoid cap damaged and make sure reliable capping
5.\tThe horizontal rotary pneumatic cap sorting device is used to avoid the damage to the surface of the caps, and when there is a shortage of caps in the cap storage tank, alarm signal will be generated and the caps will be fed automatically
6.\tThe whole machine is controlled by PLC program with touch screen as the human-machine interface,The liquid level in the storage tank is automatically controlled, the filling and capping will automatically stop when there is no bottle, when the bottles are cramped wrongly or when caps not available, the machine will stop automatically,
7.\tUse Mitsubishi frequency changing technology to adjust the operation speed steplessly,the production capacity will be displayed digitally and easy for adjusting,
8.\tAll parts that have direct contact with water are made in SUS304 stainless steel to reach the requirements of Food sanitation
9.\tMain components of the machine is adopting imported brands,PLC and touch screen from Mitsubishi, electronics from Schneider and Omron, pneumatic parts from Airtac or Festo,Main motor from Siemens, and Transducer from Mitsubishi, to guarantee heavy duty machine
Main Specification
Model | GX24-8 |
Production Capacity(Bph)(500ml) | 8000-9000 |
Heads of Filller | 24 |
Heads of Capper | 8 |
Applicable Bottle Type (mm) | bottle diameter:Φ50-Φ90 bottle height:50-320 |
Motor Power (kw) | 4.2 |
Dimension （L*W*H）（mm） | 2500x1800x2400 |
Weight（kg） | 3500 |
Components List
No. | Item | Brand |
1 | PLC | Japan Mitsubishi |
2 | Touch screen | Winview Taiwan |
3 | Transducer | Japan Mitsubishi |
4 | Main motor | Germany Siemens |
5 | Main pneumatic piston | Taiwan AIRTAC |
6 | Small pneumatic piston | Taiwan AIRTAC |
7 | Other pneumatic elements | Taiwan AIRTAC |
8 | Solenoid valve | Taiwan AIRTAC |
9 | Relay | French Schneider |
10 | Button | French Schneider |
11 | Air switch | French Schneider |
12 | Photo Electricity | Japan Omron |
13 | Stainless steel | SUS304 |
\t\t\t\t\t\t\t\t\tRelated Machines \t\t\t\t\t\t\t
Fully-automatic bottle Unscrambler

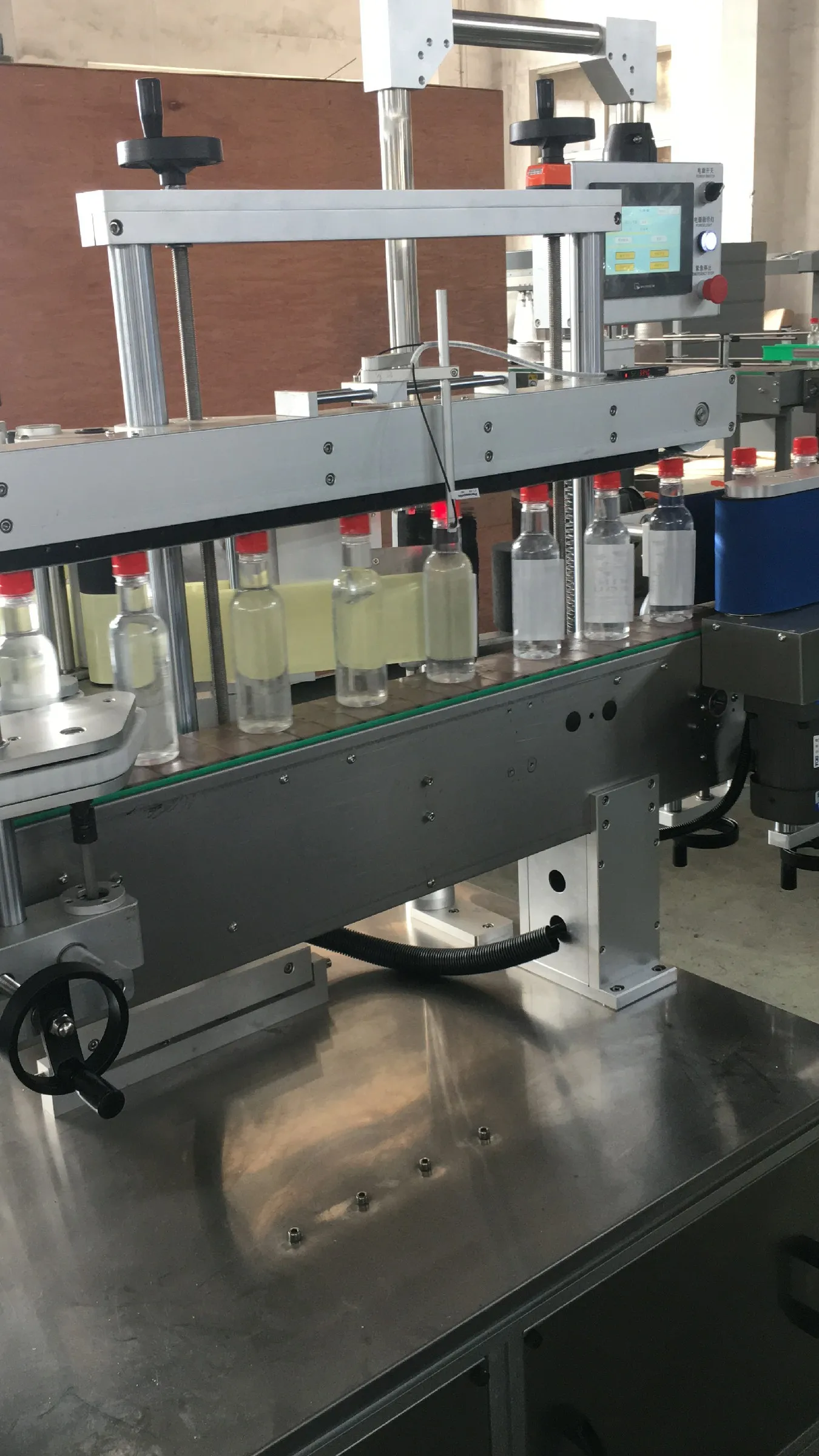

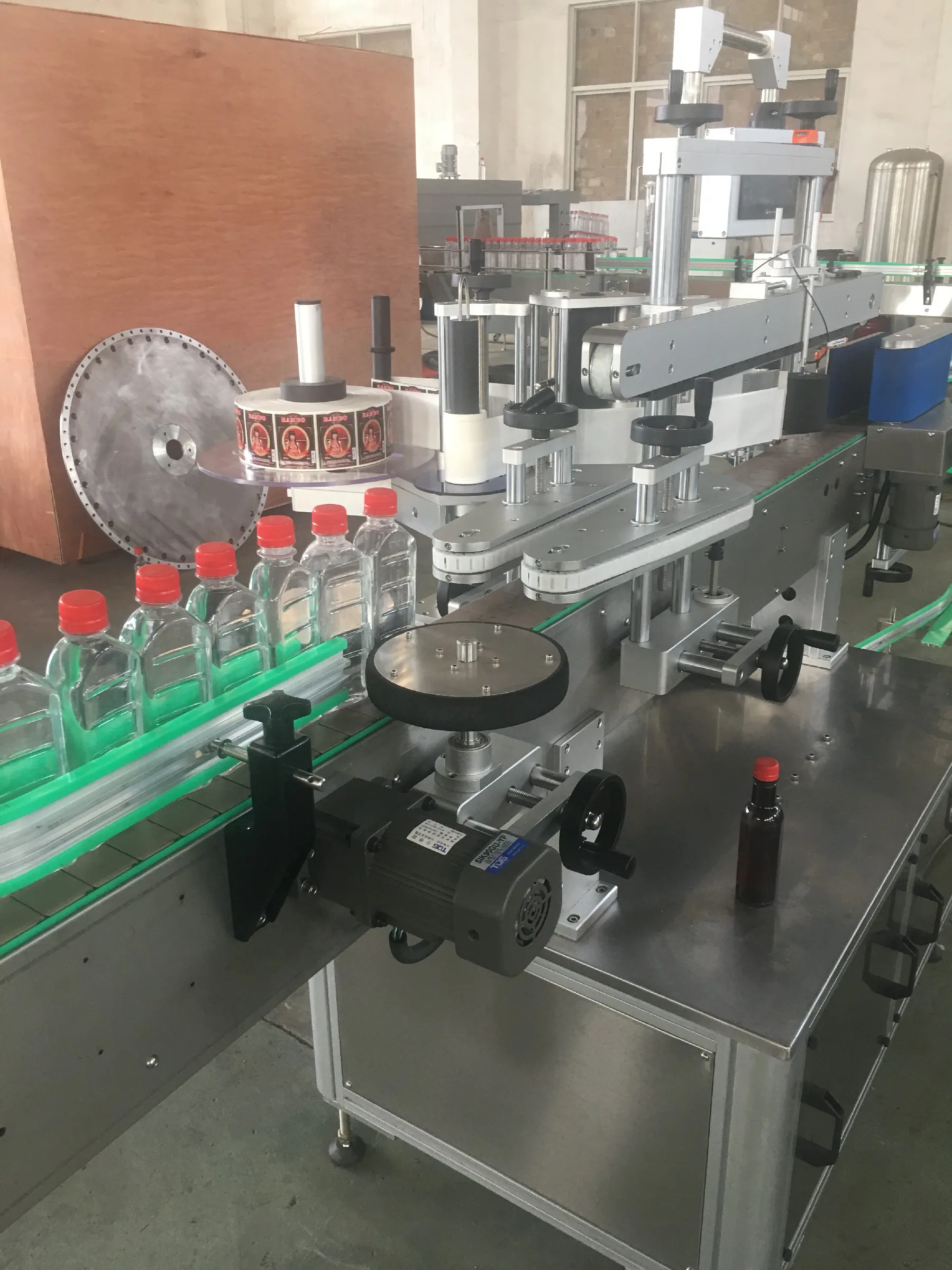

Automatic Labeling Machine
Inkjet printer
,

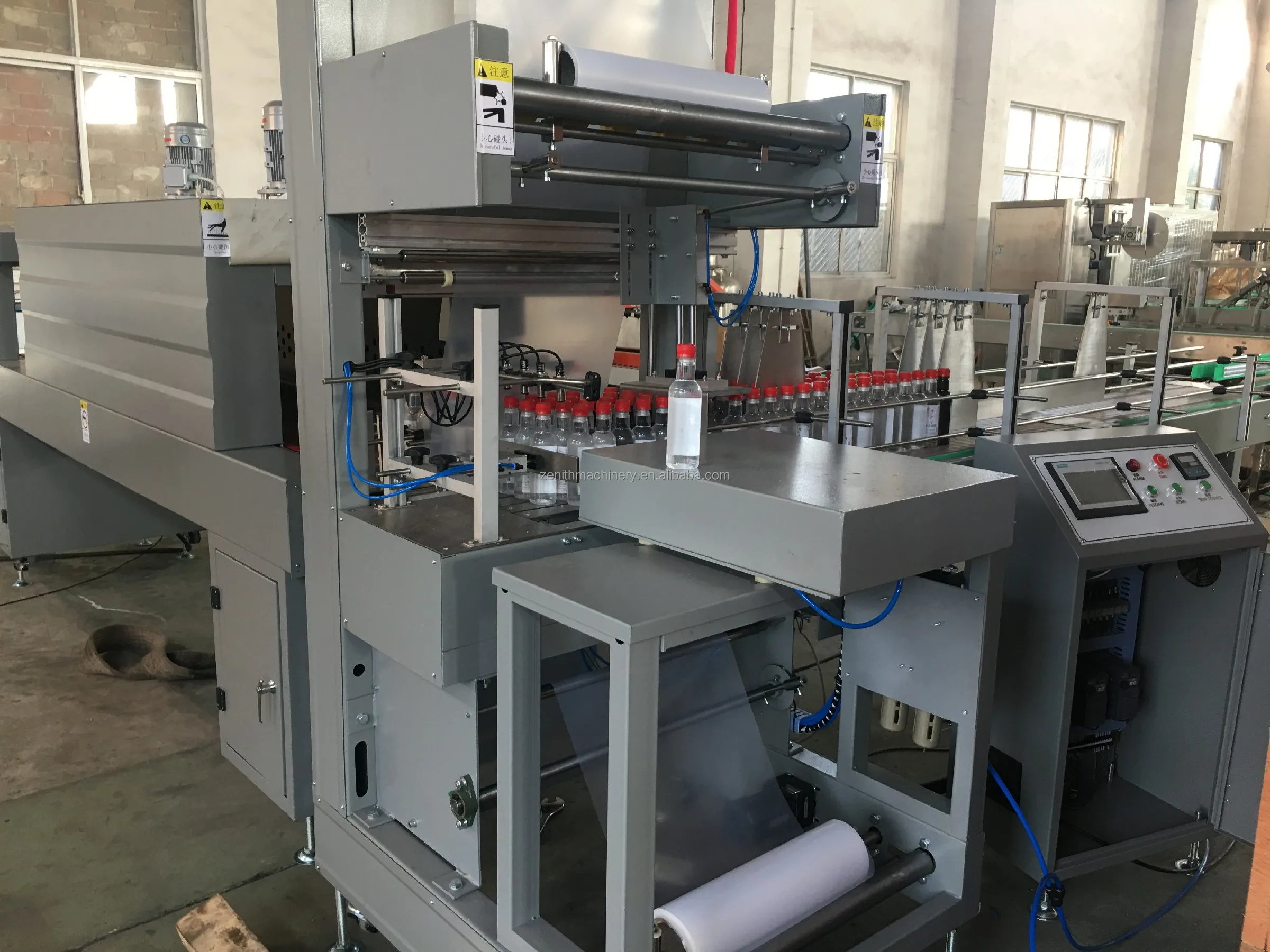

Automatic Shrink Film Packing Machine
LOW PRESSURE AIR COMPRESSOR
