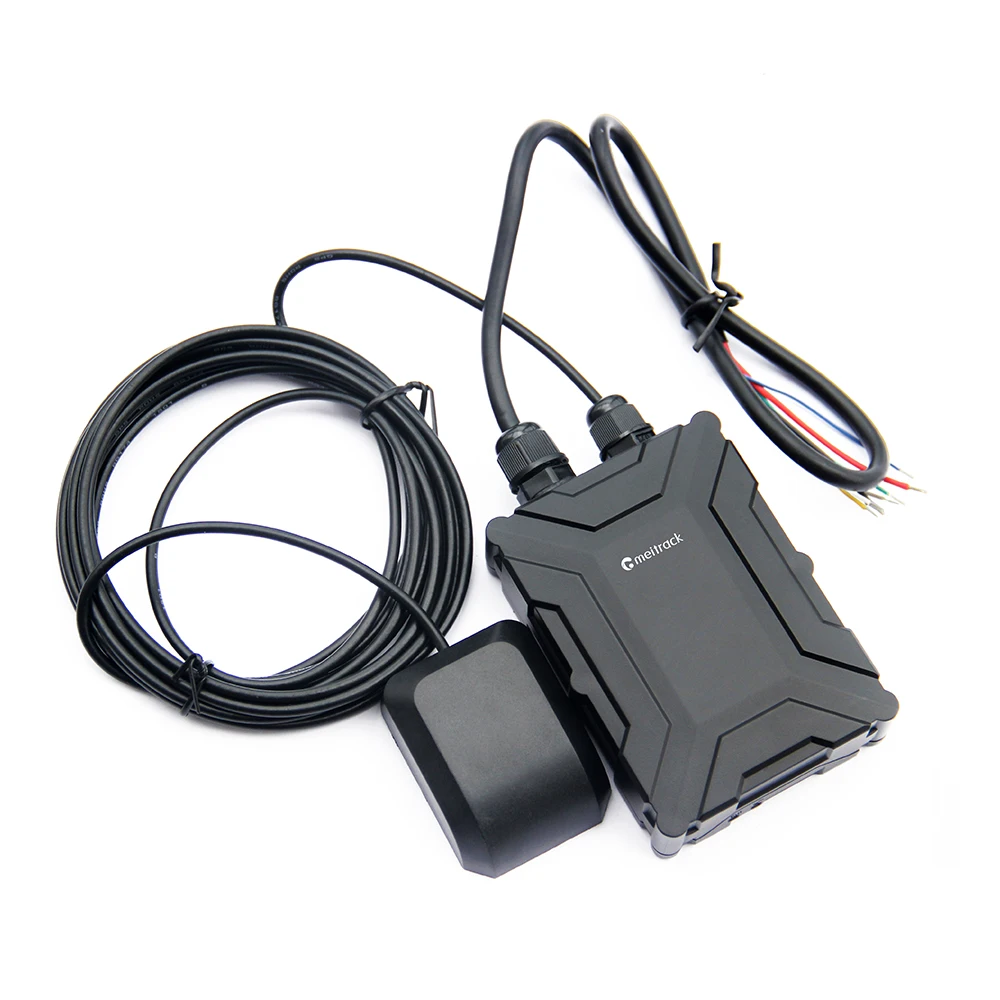

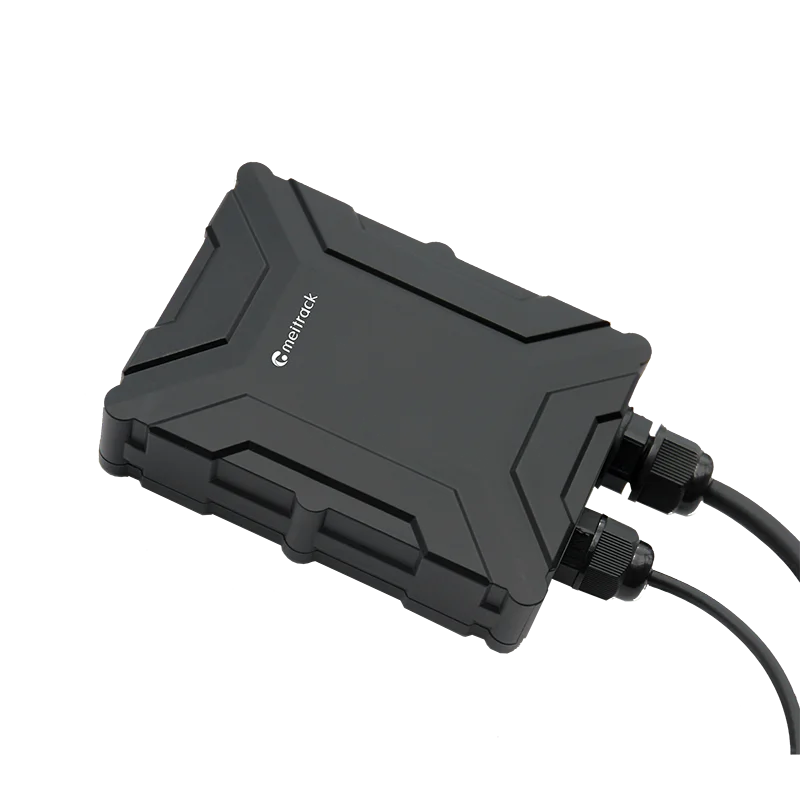

Meitrack T366 GPRS GPS Vehicle Tracker
- Category: >>>
- Supplier: Meitrack Group (Shenzhen)
Share on (60703297698):
Product Overview
Description
| PRODUCT OVERVIEW |

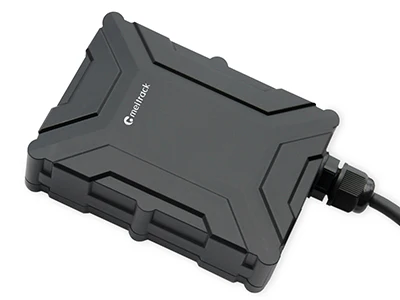

Meitrack T366
Vehicle GPS Tracker
The T366 is a vehicle GPS tracker with IP67 water-resistance rating and can be installed into cars, motorcycles, yachts, and boats. This unit is equipped with a 1-Wire interface, which can be connected to the iButton reader, temperature sensor, fuel level sensor, etc. In addition, you may choose the standard T366 version or T366 RS232 version according to your preferences. The T366 RS232 version can be compatible with more accessories to achieve more functions.
| FEATURES |
 | Harsh acceleration/braking alert Within 3-axis accelerometer, harsh acceleration/ braking alert can be realized. |  | Flexible configurable I/O Offer outstanding configuration flexibility to cater to a wide variety of requirements. |
 | IP67 water resistant Specialized design provides a tough casing that stands up to the elements. |  | High temperature resistant |
| APPLICATIONS |
| SPECIFICATIONS |
| Dimension | 80.5 mm x 60 mm x 23.5 mm | Weight | 100g |
| I/O power cable length | 50 cm | Power supply | DC 11.4–90 V/1.5 A |
| Power consumption | Current in standby mode: 65 mA | Operating temperature | -35°C to 80°C (without battery) |
| Operating humidity | 5% to 95% | LED indicator | Green indicator showing the GSM signal, Blue indicator showing the GPS signal |

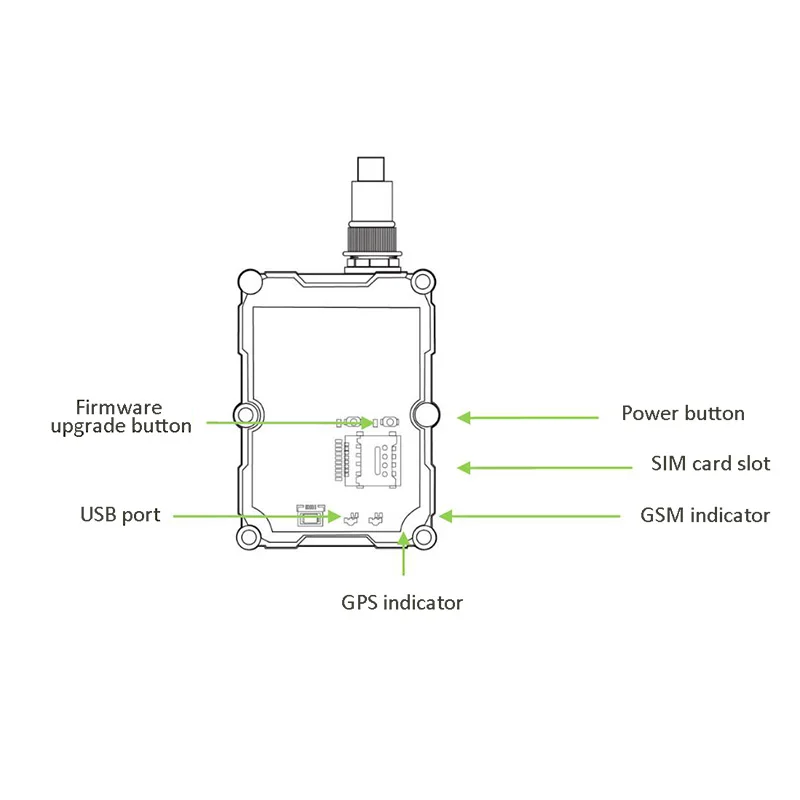

| Button/Switch | 1 upgrade button (used to manually upgrade the firmware), 1 power button | Memory | 8 MB buffer |
| Memory | 8 MB buffer | Sensor | 3-axis accelerometer |
| Sensor | 3-axis accelerometer (used to wake the device up by vibration and detect towing alerts, harsh acceleration alerts, and harsh braking alerts) | GSM frequency band | 850/900/1800/1900MHz |
| GPS sensitivity | -165 dB | Positioning accuracy | 2.5m |
| I/O port | 2 digital inputs and 1 analog detection input (0–30 V; selectable positive, negative, and analog detection inputs) 1 output 1 USB port 1-Wire® iButton 1-Wire® temperature sensor 1 output (voltage: 5V) 1 RS232 port (T366 RS232 version): GND/TX/RX |
| ACCESSORIES |
| Accesories | T366 Tracker | L wrench | Hexagon screw | CD download card |
| Optional Accessories | Relay (12 V/24 V) | Buzzer | A52 digital temperature sensor | iButton reader |
| A64 remote control receiver | A53 fuel level sensor | A67 remote control | USB cable | |
| 400 mAh battery | External GPS antenna | Ultrasonic fuel level sensor | LED display | |
| RFID |
| CERTIFICATES |

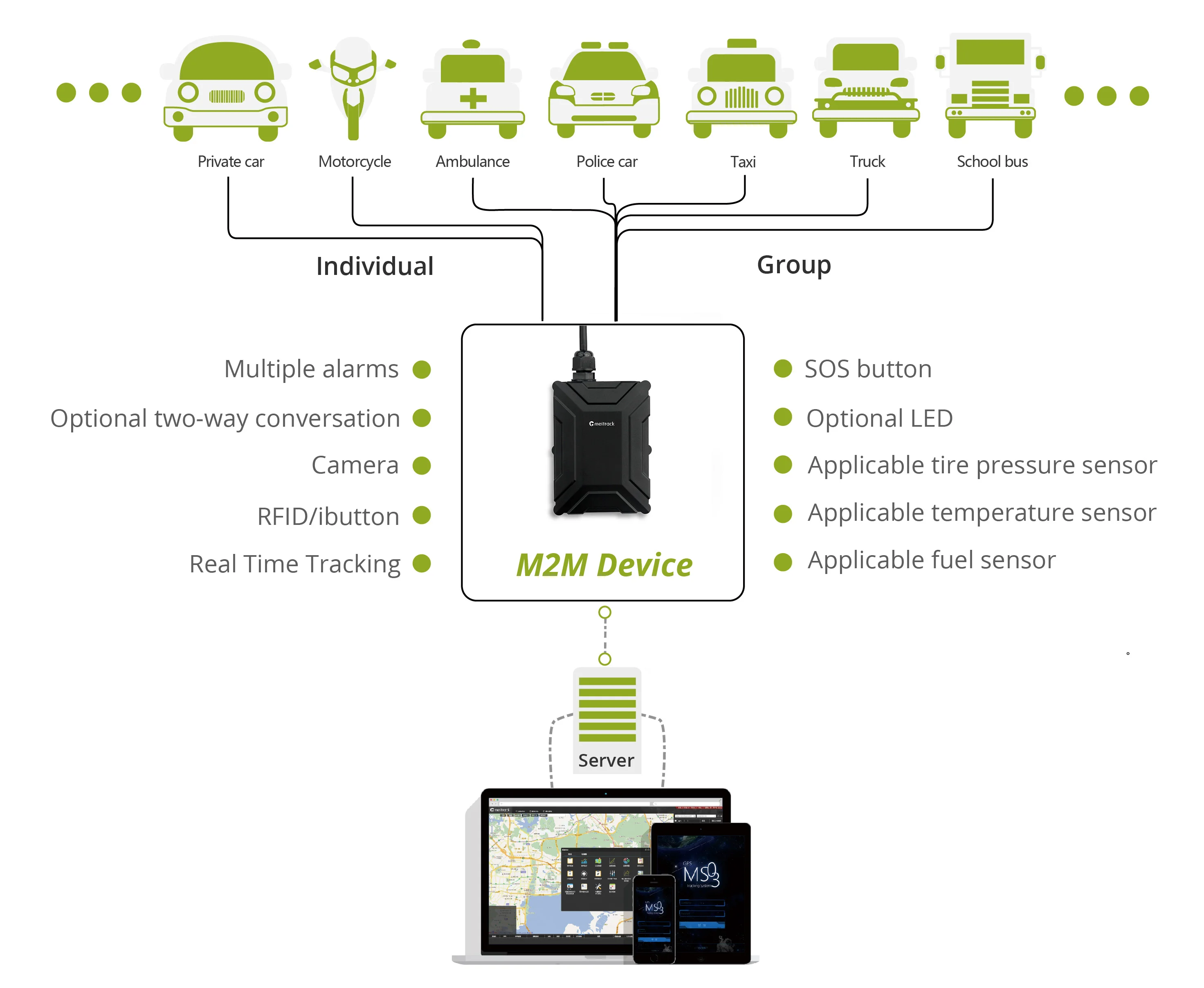

| MEITRACK GPS TRACKING PLATFORM MS03 |
300+functions customizable
With self-owned sourcing code, we can customize almost every function for you.
Rebrandable
Place your own logo, login in from your own website, on our serve.
Account management
Unlimited authorization to your account and sub-account.
4 configuration methods
Use our professional software Meitrack manager, or use OTA by website/APP, or simply send a SMS.
Multi-screen monitoring
Manage your fleet from anywhere, PC, Laptop, or even on your mobile phone, you can do all three at the same time.
24/7 support
Provide worldwide after service in 24 hours, 7 days a week.
| COMPANY OVERVIEW |
Since 2002.
20,000m² state of the art manufacturing facility based in Shenzhen, China.
Placed in-house R&D centers in Taiwan, Shenzhen and the United States.
Providing OEM&ODM service.
Providing software development service.
Global network covering Europe, USA, CIS, Middle East, and Asia Pacific Region.
| R & D CENTERS |
| FACTORY TOUR |
| GLOBAL NETWORK |
| STRATEGIC COOPERATION |
| DISTRIBUTION NETWORK |
| DISTRIBUTION WANTED |
