Curing Chamber for tyre retread

Curing Chamber is an autoclave-type device that applies specified heat and pressure, and over a period of time, causes the bonding layer in the built tyre to cure, to permanently adhere the new pre-cured tread to the prepared casing.

Description

Two controlling systems are available based on different clients’ needs, manual (semi-automatic), and PLC automatic (LCD screen optional). Main data and parameters can be seen on the LCD screen, and be recorded by removable device.
The hot source can adapt steam, thermal oil, and electric.
All our curing chambers are customized, so the capacity is based on the productivity, commonly available for 6 tyres,8 tyres,12 tyres, 16tyres, 18tyres, 22tyres, and 24tyres.

SPECIFICATIONS FOR MELION INDUSTRIES CURING CHAMBERS
Vessel Design	Pressure	Mpa	0.8
	Temperature	Celsius degree	180
	Materials	Carbon Steel	Q345
Tyre Process	Tyre Sizes	15'',16'',20'',22.5''
	Technology	Precure	Cold
	Application	Truck,Bus,Trailer,Forklift etc.
Heating Method	Electric	30-90 Kw
	Thermal Oil	30000-90000kcal/h
	Steam	30000-90000kcal/h

Main Features

1.Both manual (semi-automatic) controlled and PLC automatic (LCD screen optional) controlled.
2.Apply aerospace insulation materials and multi-layers insulation, energy efficiency and cost saving.
3.The hot source can adapt steam, oil, and electric.
4.Optimal design, balanced and uniformed temperature in the chamber, for special design of hot-air cycling system.
5.Multiple safety interlock to guarantee safe operation.

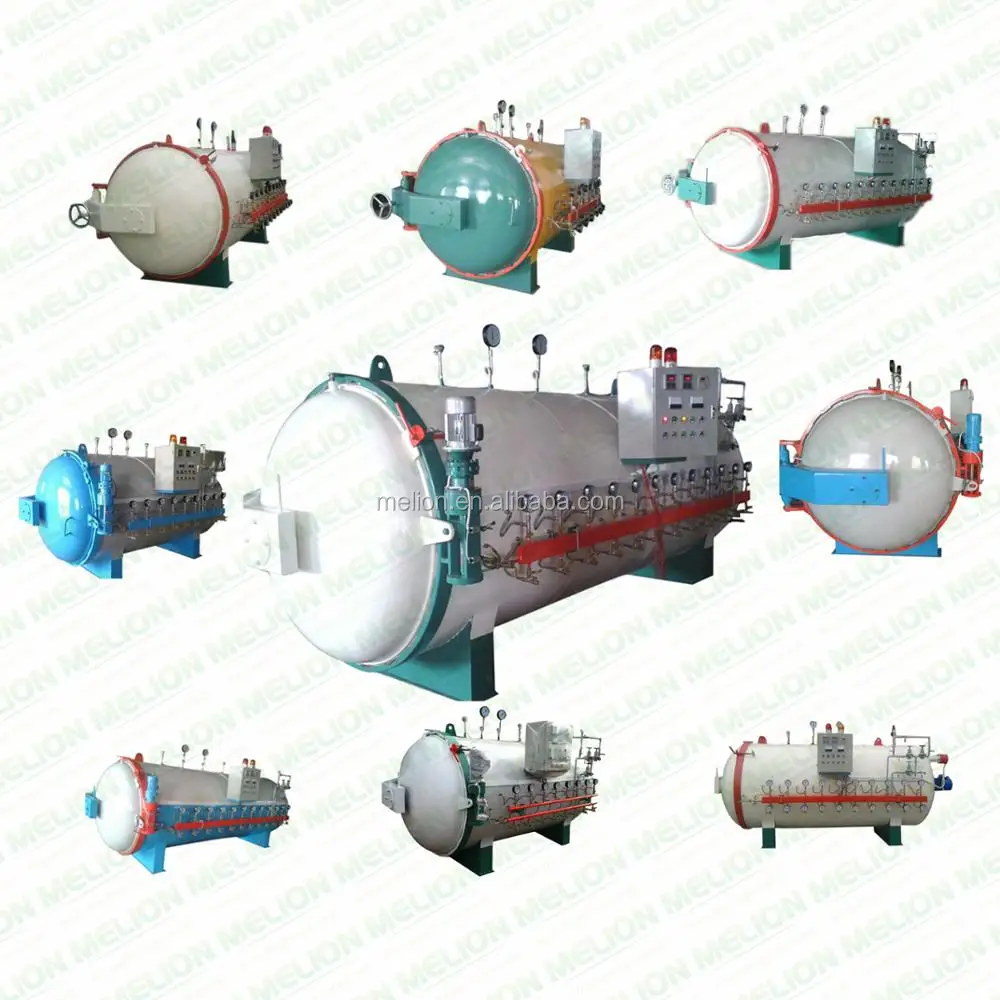

Curing Chambers

Detailed Images

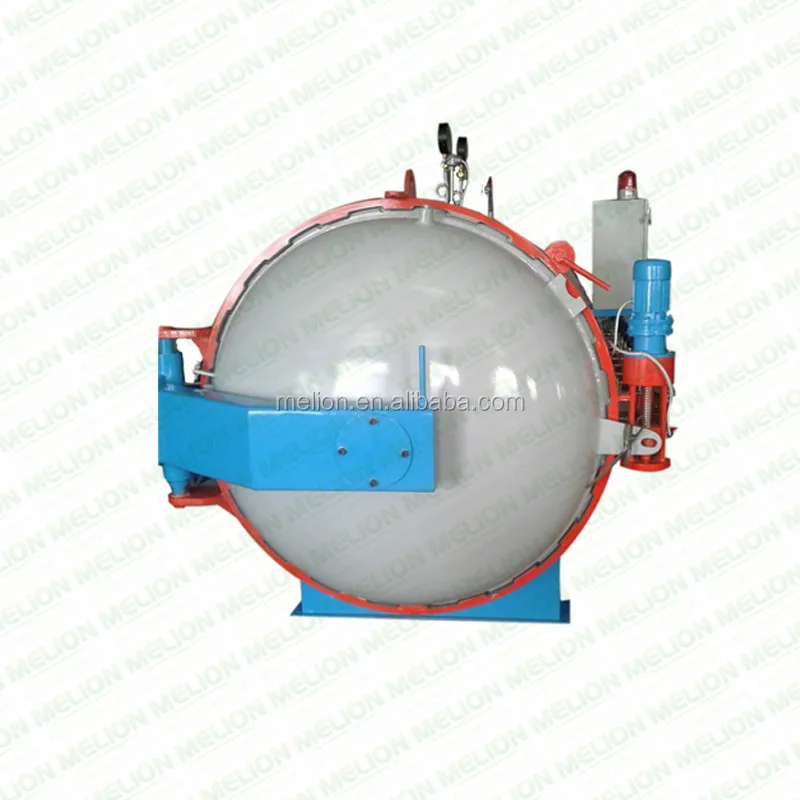

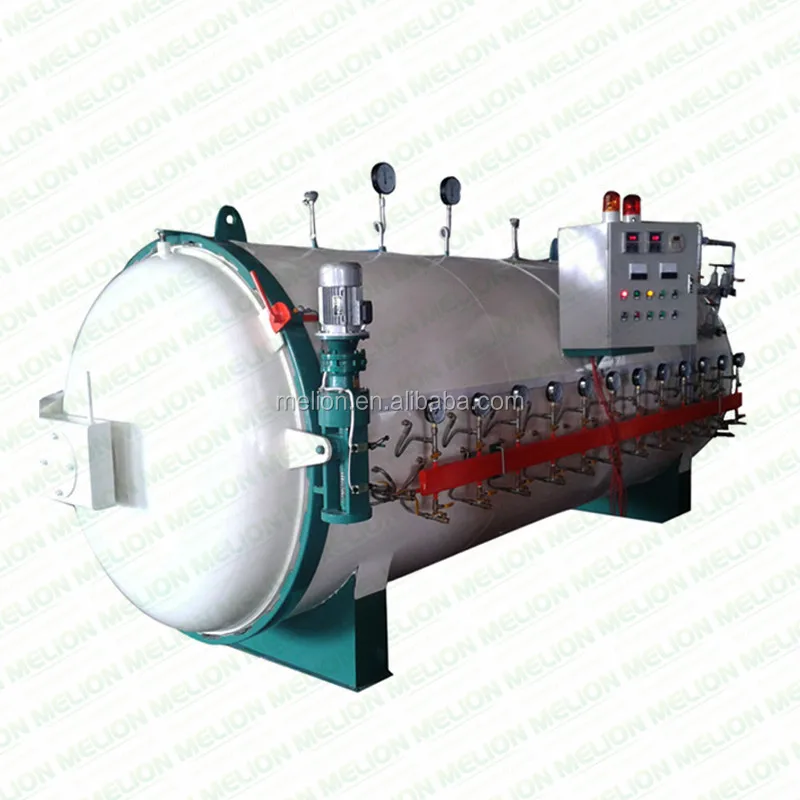

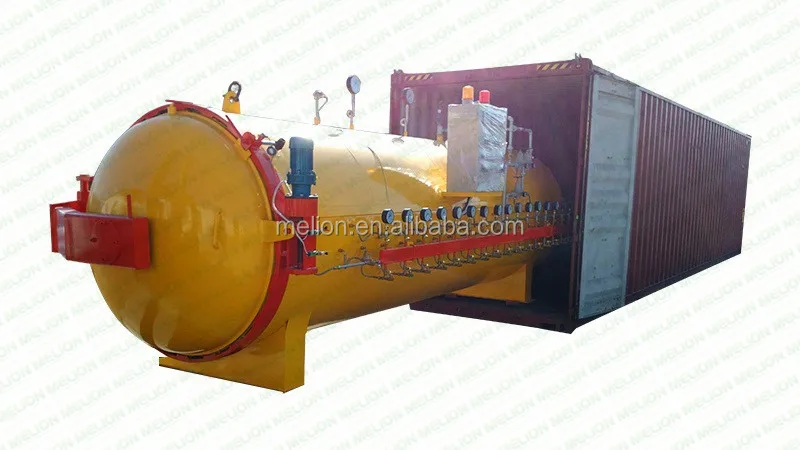

Curing Chamber for truck tyres

Diameter: 1500 mm

Brand: Melion

Original: Shandong ,China

Tyre Sizes:15'',16'',20'',22.5'',24''

This equipment mainly consists of Door, Shell, Door Opening-Closing Device, High-Temperature Circulator and Electric Control Cabinet.

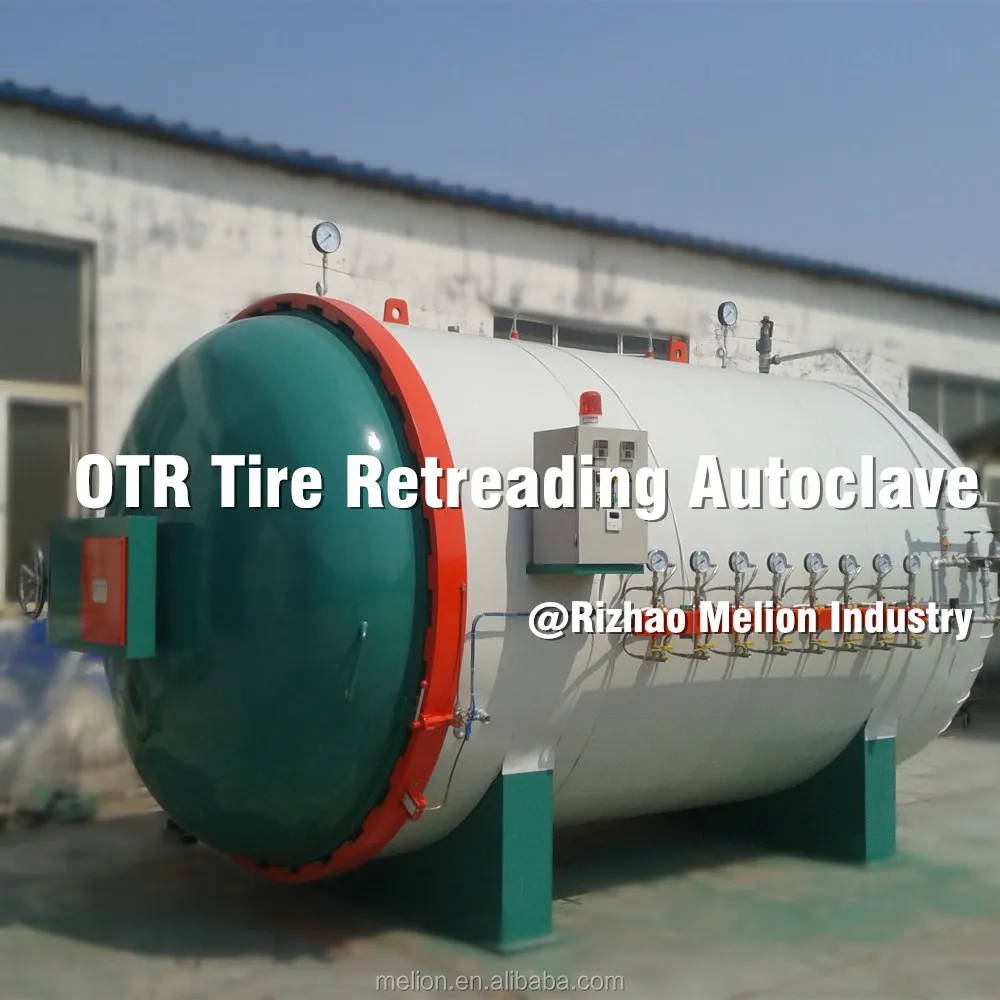

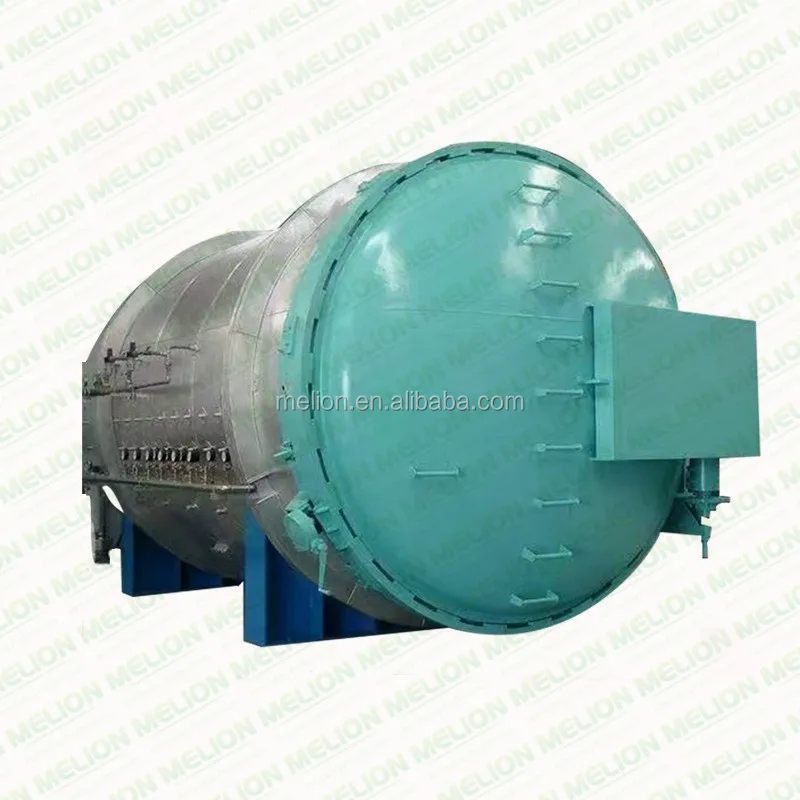

Curing Chamber OTR

Tyre Size: 25''
Diameter: 2000 mm,2500mm
Original: Melion
This equipment mainly consists of Door, Shell, Door Opening-Closing Device, High-Temperature Circulator and Electric Control Cabinet.

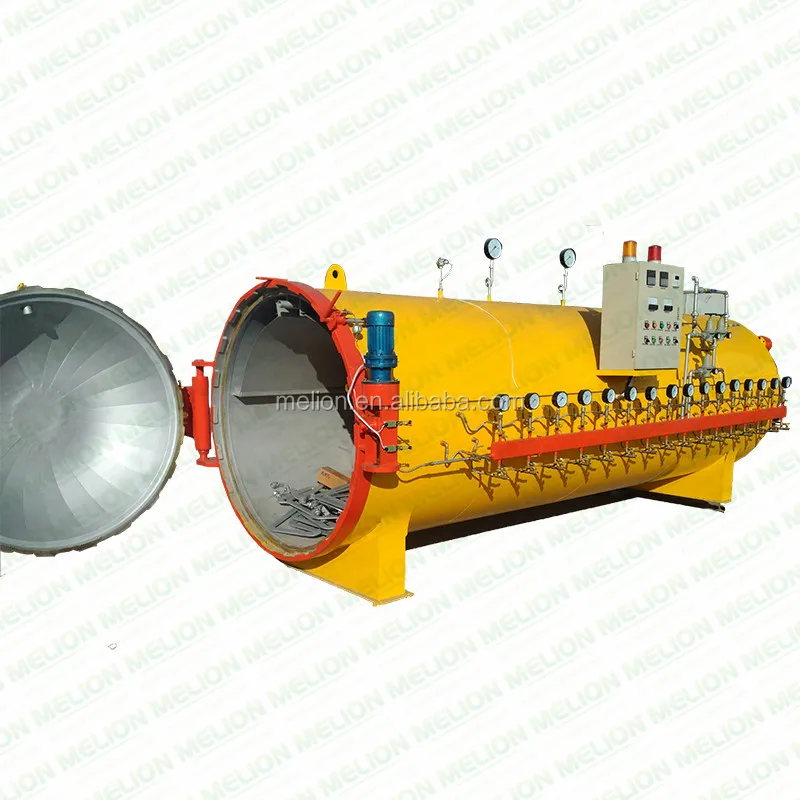

Giant Tyre Curing Chamber

Tyre Size: 33'',49'',51''
Brand: Melion
Original: China
Giant tyre retreading Curing Chamber design for 2700-49'',3300-51''

Our Service

Rubber Materials

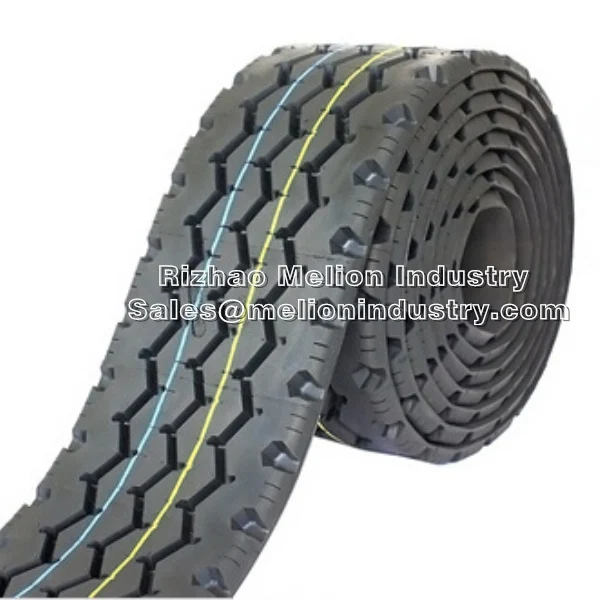

* Precure Tread Rubber

* Cushion Gum

* Retreading Tools and Accessories

Technical Training and Support

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

*Provide customers with advanced technical solutions

Packing & Delivery

Packaging
Size	12 tyre retreading machines
Weight	10 T
Packaging Details	1X40HQ contaier to load full set of melion retread machines: Curing Chamber,Buffing Machine,Building Machine,Building Machine,Envelope Spreader,Rim mounting machine,Extruder Machine,Mixing Tank,Monorail,Tyre Repair Machine,curing rims,etc.

Packaging
Name	Curing Chamber
Weight	5 T
Packaging Details	Curing Chamber 12 tyres, Curing Chamber 10 Tyres, Curing Chamber 8 Tyres, Curing Chamber 6 Tyres, and monorail with tyre hangers
