Tobee Effluent Handling
$12,600

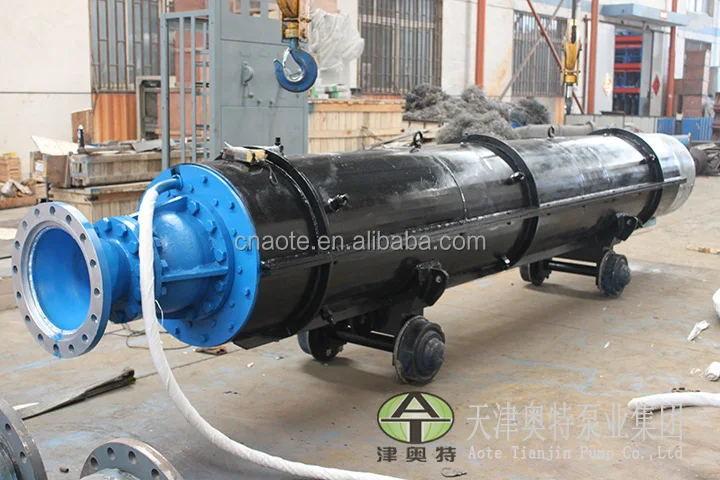

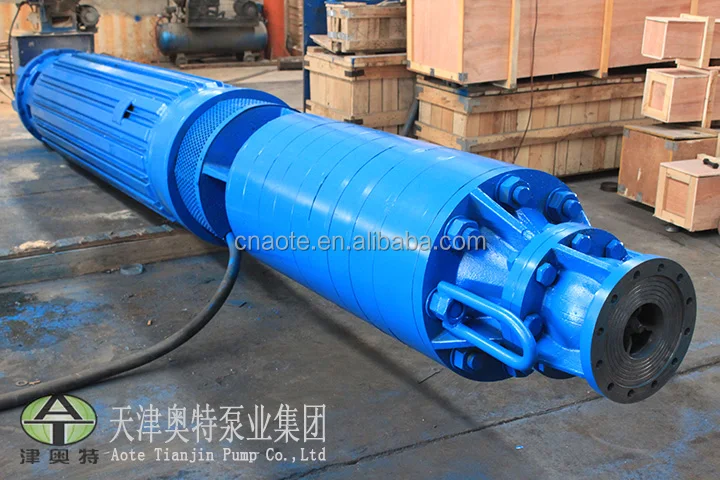

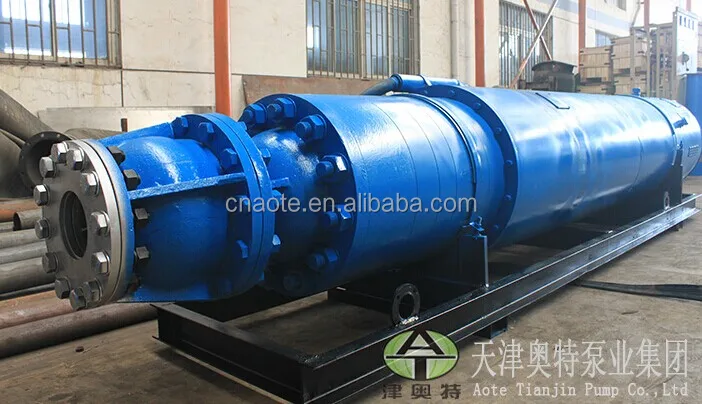

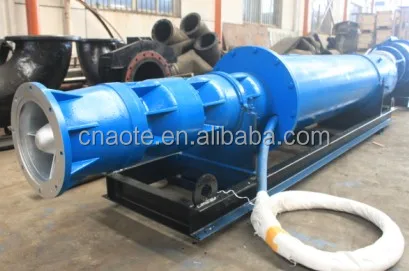

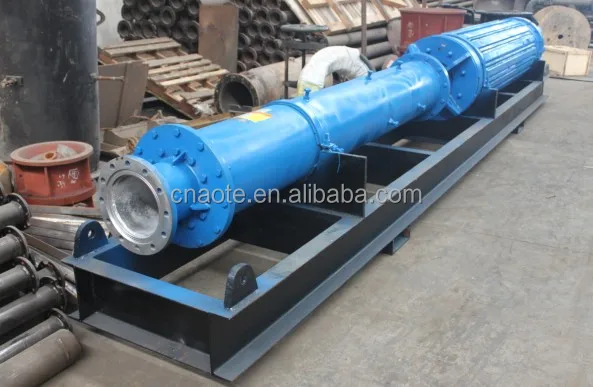

Mine underground water drainage pump with centrifugal structure
- Category: >>>
- Supplier: Aote Tianjin Pump Co. Ltd.
Share on (60703366232):
Product Overview
Description
Mine underground water drainage pump with screw centrifugal structure
Heavy duty Mine water pump(single suction or double suction ) have the technical advantages – complete compensation of axial thrust, 50 % lower flow velocity and smaller-diameter impellers. heavy duty Mine extraction water pump also provides economic benefits: maximum operational reliability, minimum wear and extremely long service life, which can quite often exceed 15 years. Mine water pump(vertical or horizontal, large flow), is a new water lifting equipment developed by us , it is widely used to draw water from rivers or lakes, water drainage in mines, construction or rebuilding of urban tap water system, secondary regional water supply systems. This is a bottom suction type of pump. It can pump all the water on ground. It uses submersible three-phase asynchronous motor. It takes little space, easy to install and use, reliable, and has a long service life.
Main Introduce
| Type | Single suction/Double suction Submersible water Pump(Mine) |
|---|---|
| Flow Rate | Up to 1700 m3/h |
| Head | Up to 1500 meter |
| Temperature | Up to 140 °C |
| Materials | Cast iron, stainless steel, bronze, duplex stainless steel |
| Driver | Electric |
| Voltage | 380V/400V/460V/660V/3000V/6000V/10000V |
| Frequency | 50hz/60hz |
| Installation | Vertical or horizontal or customize |
| Maximum Power | 6000KW(8000HP) |
| Model description (AT- ZPQK/SXQK 560-425/5 - 1150) | |
| AT | Our brand Aote |
| ZPQK | Single Suction self balanced Mine Pump |
| SXQK | Double Suction self balanced Mine Pump |
| 560 | Capacity (m3/h) |
| 425 | Head (m) |
| 5 | Stages |
| Application | |
| Pure, slightly polluted and abrasive raw water, pure water, Mineral water, seawater, service water, Mine water and cooling water. |
ATSXQK400 series Mine water pump
| Flow rate 400m3/h. Single stage head 100m. Double suction heavy duty electric submersile motor pumps | ||||||||
| Type | Flow rate(m3/h) | Head(m) | (%) | Power(kw) | Voltage(kv) | Outer diameter(mm) | Height(mm) | Weight(kg) |
| ATSXQK400-100/2 | 350 | 114 | 68 | 180 | 0.38 | 620 | 4471 | 2208 |
| 400 | 100 | 76.4 | ||||||
| 450 | 89 | 66 | ||||||
| ATSXQK400-200/4 | 350 | 228 | 68 | 350 | 0.66 | 620 | 4401 | 3185 |
| 400 | 200 | 76.4 | ||||||
| 450 | 178 | 66 | ||||||
| ATSXQK400-300/6 | 350 | 342 | 68 | 520 | 6 | 620 | 6106 | 4899 |
| 400 | 300 | 76.4 | ||||||
| 450 | 267 | 66 | ||||||
| ATSXQK400-400/8 | 350 | 456 | 68 | 720 | 6 | 620 | 5526 | 7373 |
| 400 | 400 | 76.4 | ||||||
| 450 | 356 | 66 | ||||||
| ATSXQK400-500/10 | 350 | 570 | 68 | 850 | 6 | 620 | 5956 | 8587 |
| 400 | 500 | 76.4 | ||||||
| 450 | 445 | 66 | ||||||
| ATSXPQK400-600/12 | 350 | 684 | 68 | 1150 | 6 | 620 | 6208 | 9781 |
| 400 | 600 | 76.4 | ||||||
| 450 | 534 | 66 | ||||||
| ATSXQK400-700/14 | 350 | 798 | 68 | 1300 | 6 | 620 | 6588 | 10965 |
| 400 | 700 | 76.4 | ||||||
| 450 | 623 | 66 | ||||||
| ATSXQK400-800/16 | 350 | 912 | 68 | 1500 | 6 | 620 | 6988 | 12189 |
| 400 | 800 | 76.4 | ||||||
| 450 | 712 | 66 | ||||||
| ATSXQK400-900/18 | 350 | 1026 | 68 | 1700 | 6 | 620 | 7143 | 13153 |
| 400 | 900 | 76.4 | ||||||
| 450 | 801 | 66 | ||||||
| ATSXQK400-1000/20 | 350 | 1140 | 68 | 1900 | 6 | 620 | 7558 | 14427 |
| 400 | 1000 | 76.4 | ||||||
| 450 | 890 | 66 | ||||||

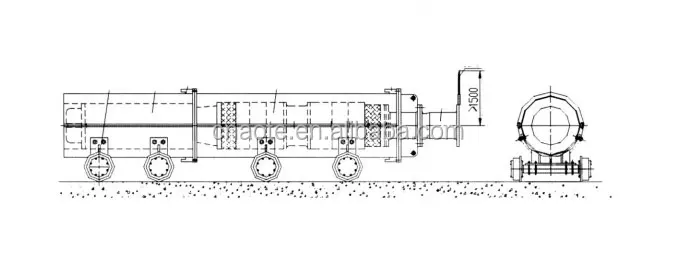

Installation (horizontal)
High lift large volume Mine water Pump
Contact Us
Company Information
Aote Tianjin Pump Co., Ltd. was established in 2004,which is a professional manufacturer in production, sales, research and development of submersible motors and submersible pumps.
Main products: Submersible motor pumps, stainless steel submersible borehole pumps, sea water pumps, deep well submersible pumps, electric submersible oil pumps, sewage pumps, ZPQK/SXQK single suction and double suction mining submersible motor pumps, QZB/QHB axial flow pumps, mixed flow pumps,LX screw centrifugal pump and High voltage and low voltage 3 phase submersible Ac motor.
Our Services
1.Customized design is available.
2.All products have one year warranty and we sure the products will free from maintenance within warranty period.
3.Reply your inquiry in 24 working hours.
4.All products will be well packed before shipping.
5.Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers.
6.High quality material,advanced machines,skilled technicians to ensure quality.
7.Have our own engineer team,each machine is design as customer's specific requirement,the performance is higher 20%~40% than other factory with the same cost.
Payment terms
30% deposit by T/T in advance, pay 70% balance when the products are finshed.
