Original Huawei WDM DWDM Transport System OSN 8800 T16

Share on (60703423984):


Price:

Quantity:


Product Overview

Description

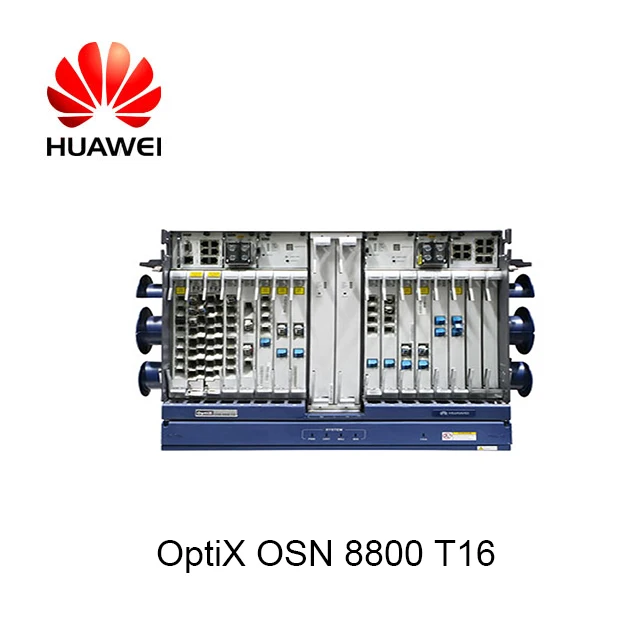

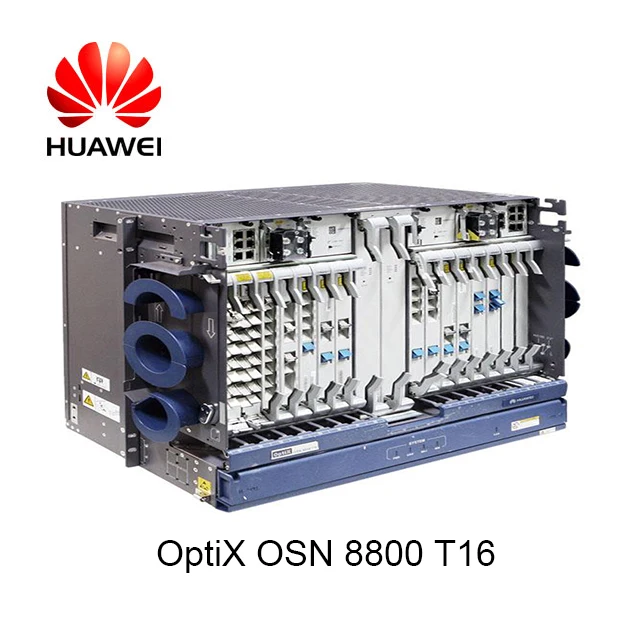

Original Huawei Optix WDM Transport System OSN8800 T16





Product Description

Mid-range 10/40/100 GE platform for integrated OTN/WDM/SDH networking. Carrier-grade reliability with up to 8 Tbit/s capacity ideal for core networks and Metropolitan Area Networks in broadcast television, Smart Grid electric power, and transportation industries.

Advanced networking and management features include OTN grooming, long-haul WDM, Tbit/s cross-connection, OTN, and SDH support, and end-to-end monitoring and dynamic fault detection. Visual management interfaces simplify O&M and reduce TCO.1.png



Highlights



Huawei’s OptiX OSN 8800 intelligent OTN platform for reliable OTN/WDM backbone networks and long-haul transmission of multiple services over Tbit/s connections

  • High-performance, 8 Tbit/s-capacity broadband fibers, single-wavelength 10G/100G transmission, 10G/100G hybrid transmission, easy bandwidth expansion, and long-haul transmission capabilities
  • Fast scheduling for optical flow switching optimizes bandwidth utilization
  • Unified encapsulation and mapping of services from 100 Mbit/s to 100 Gbit/s enables transmission of various services over one network
  • Up to 99.9999% reliability minimizes service interruption with traditional 1 + 1 protection schemes and ASON features at both the electrical and optical layers

Specifications



Secifications

OptiX OSN 8800 UPS

OptiX OSN 8800 T16

OptiX OSN 8800 T32

OptiX OSN 8800 T64

Dimensions (H x W x D)

397 mm x 442 mm x 291 mm

450 mm x 498 mm x 295 mm

900 mm x 498 mm x 295 mm

900 mm x 498 mm x 580 mm

Number of Service Slots

16

16

32

64

Switching Capability



1.6T ODUk, 640G VC4 & 20G VC3 & VC12, 800G Packet

3.2T ODUk, 1.28T VC4 & 80G VC3 & VC12, 1.6T Packet

6.4T ODUk, 1.28T VC4 & 80G VC3 & VC12

Channel Spacing

50 GHz to 100 GHz fixed grid for 40 to 80 wavelengths

37.5 GHz to 400 GHz flex grid

Rate per Channel (maximum)

100 GE, 200 GE, 400 GE

Wavelength Range

DWDM: 1,529.16 nm to 1,560.61 nm (C band, ITU-T G.694.1)

Power Supply

-48V DC to -60V DC

Packaging & Shipping

Packaging

1. All products will be packed in carton, so the product can get effective protection to avoid damage.

2. Packaging according to customer requirement.

Shipping

1. We shipping via DHL  / FedEx / TNT etc for samll orders. Yow can get your packages in about 3-5 days all over the world.

2. For big order, we will arrange Air cargo  for your shipment, so it will be much cheaper than DHL, UPS etc.

3. You can choose your own shipping agent, we will provide good cooperation for it.



Company Information

Combasst Industry Development (Shanghai) Co,.Ltd, which provides main services in terms of broadband communications and information technology industries, is a high-tech enterprise integrating research and development, production, sales, and service. Our products mainly cover the optical signal transmission and access, signal transmission and access, photoelectric signal conversion and photoelectric signal.

The clients include major national telecom carriers, as well as radio and television, electricity, mining and other industry professional net users. We have already established long-term friendly and cooperative relations with them. In addition, our company has been actively expanding into foreign markets. The products are exported to many foreign clients in Europe, America, Southeast Asia, and the Middle East as well as Japan, Korea and other neighboring countries and regions.

We will constantly improve ourselves and feed back with our superior-quality products and meticulous care to all walks of partners, creating a win-win situation.

Basic Information

Combasst Industry Development (Shanghai) Co,.Ltd

Address: Room 110,No.389 JinWan Road, ShangHai , China

QQ:3426774980



Our Services

1,Customes can contact us for any question by Telephone, Skype, Trademanager, E-mail, Whatsapp, QQ etc.

2,All products have been tested and packaged in good condition before dispatch.

3,COMBASST will be responsible for defects in workmanship & materials and product’s quality issue while the product is used properly according to the manual and in warranty.

4,We provide 3-5 year warranty and life-long technical support for  all our product.

5,Any part that upon COMBASST’s examination proves defective, return or other solutions per discussion.

6,Return and Freight:

    1).Under Warranty: The customer is responsible for freight & insurance charges, includes custom charges

        when the equipment and/or parts is shipped to Manufacturer/Supplier for service.

         COMBASST is responsible for the freight & insurance charges to the customer.

    2).Warranty period: The customer is responsible for any freight & insurance charges.

7,We can provide detail documents and remote technology support for device installation and configuration if needed
