POWERJET injection molding machine for PET Preforms with high speed PET1500 V6

Share on:


Price:RUB 2,466,076.80
Price in USD:Details

Quantity:


Product Overview

Description

High speed mineral water bottle pet preform plastic injection moulding machine price for 5 gal bottles

POWERJET injection molding machine for PET Preforms with high speed PET1500-V6



PET PREFORM INJECTION MOLDING MACHINE
Powerjet PET Preform Injection Molding Machine are specialized for different sizes of PET preforms. With PET special screw, it highly increases the plasticizing speed and shot weight.



Shoot Weight – 4975g(Max)
Clamping Force – 128~680(Ton)
Motor Type – Servo Or Variable
Applications – Specialized For Different Sizes Of PET Preform



FEATURES:
1:PET Special Screw
PET screw highly increases the plasticizing speed and shot weight, lowers the plasticizing temperature and AA value, also achieves better products transparency.


2:Energy-Saving 30%~50%
The servo motor control system can save energy by 30%~50%, while the variable pump control system can save energy by 25% ~ 45%.


3:Pressure Synchronization System
Optional with pressure holding and charge at the same time, which can increase the productivity by 15%~25%.


4:Max Shot Weight
Different models are available for the choice of customers, Max shot weight: 5000g

High speed mineral water bottle pet preform plastic injection moulding machine price for 5 gal bottlesHigh speed mineral water bottle pet preform plastic injection moulding machine price for 5 gal bottlesHigh speed mineral water bottle pet preform plastic injection moulding machine price for 5 gal bottlesHigh speed mineral water bottle pet preform plastic injection moulding machine price for 5 gal bottlesHigh speed mineral water bottle pet preform plastic injection moulding machine price for 5 gal bottlesHigh speed mineral water bottle pet preform plastic injection moulding machine price for 5 gal bottlesHigh speed mineral water bottle pet preform plastic injection moulding machine price for 5 gal bottlesHigh speed mineral water bottle pet preform plastic injection moulding machine price for 5 gal bottles



  DESCRIPTION UNIT PET1500
CLAMPING UNIT Clamping force KN 2880
Opening stroke mm 550
Max.datlight mm 1160
Platen size mm 850*850
Space between bars mm 610*610
Max.mold height mm 610
Min.mold height mm 280
Ejector stroke mm 175
Ejector force KN 111
INJECTION UNIT Screw diameter mm 75
Shot volume cm3 1303
Screw stroke mm 295
POWER UNIT Hydraulic system Pressure MPa    17.5
Pump motor power KW 30
Heater power KW 20

Please feel free to consult us whenever you want to know more information. Thanks~

About our company:

High speed mineral water bottle pet preform plastic injection moulding machine price for 5 gal bottlesHigh speed mineral water bottle pet preform plastic injection moulding machine price for 5 gal bottlesHigh speed mineral water bottle pet preform plastic injection moulding machine price for 5 gal bottles

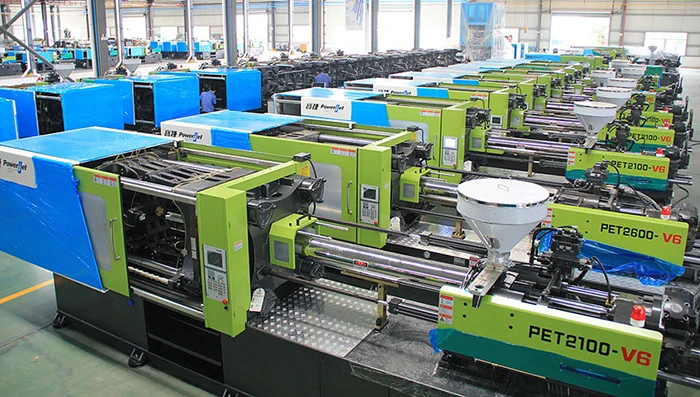

 Powerjet Plastic Machinery Co., LTD Focus On Manufacturing And Development Of Injection Molding Machine And Blow Molding Machine Over 20 Years. Powerjet And Installed Over 18,500 Molding Machines Worldwide And Renowned In "Energy-Saving, High Performance, High Speed, Precision".Factory in 50,000 square meters, with more than 350 staff members, over 20 branch offices across the country with the advanced experience and lean production.

And we also focus on the development of special injection molding machines according to the customer's need, like machines for PET preform, PVC/PPR fitting, thin-walled product, silicone, batelite, and multi-material products, and also provide the turnkey projects for the customers.



Our Services & Strength

Established distributors in multiple countries like Thailand, Malaysia, Indonesia, Vietnam, Uzbekistan, USA, Mexico, Brazil, and Pakistan. With a global sales network, our local offices and agents can provide more convenient and sincere services.
