Product Overview

Description


Product Description

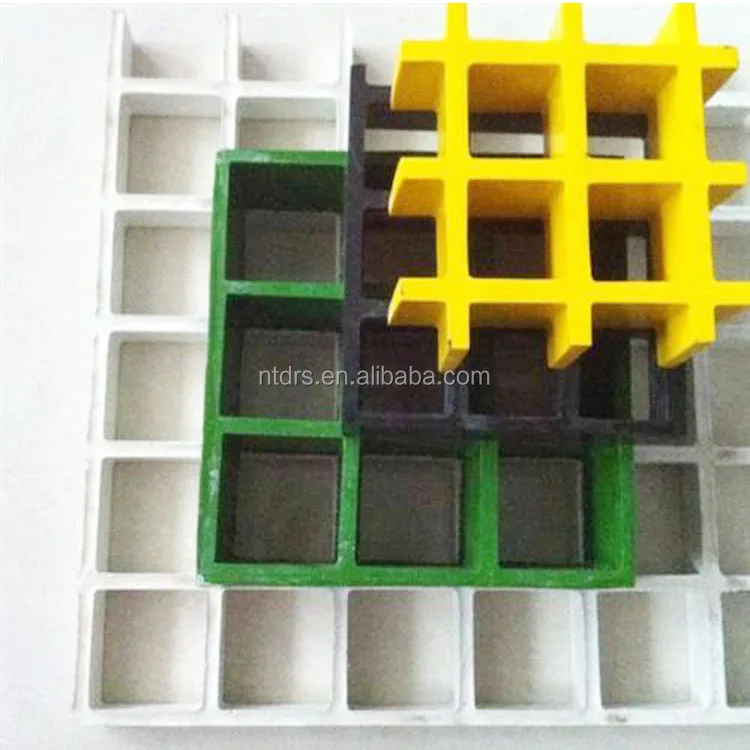

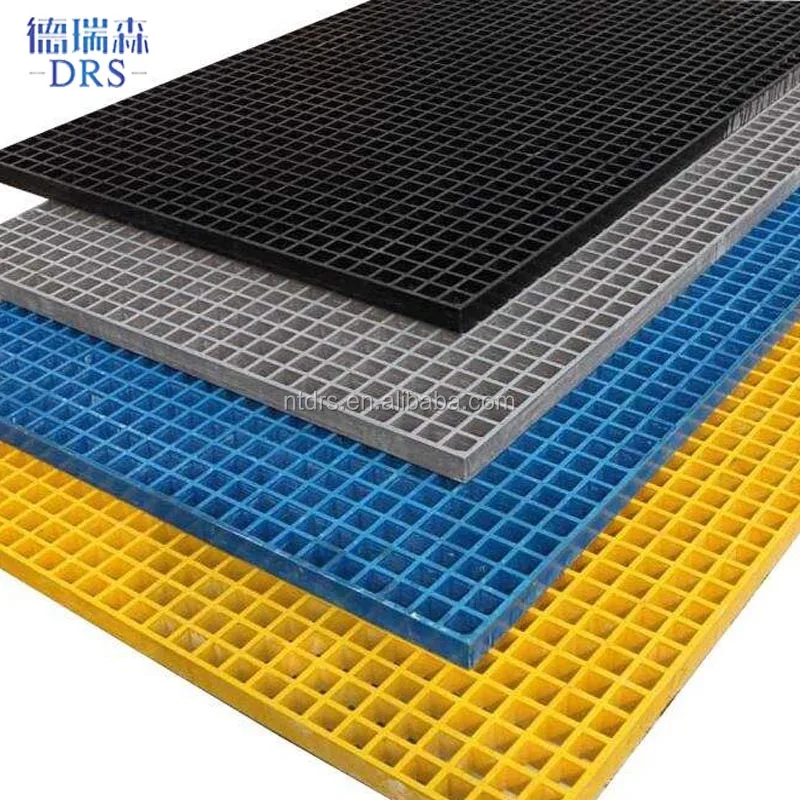

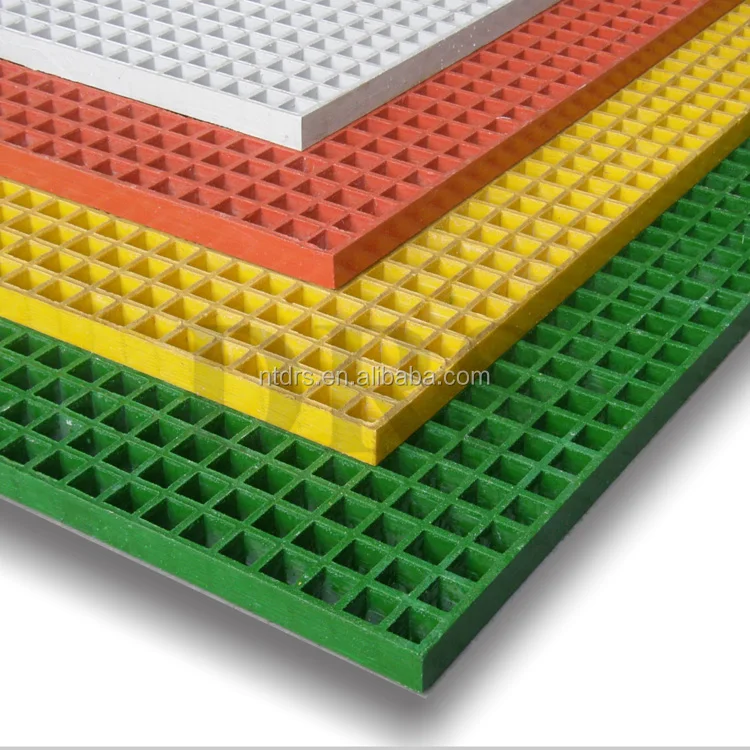

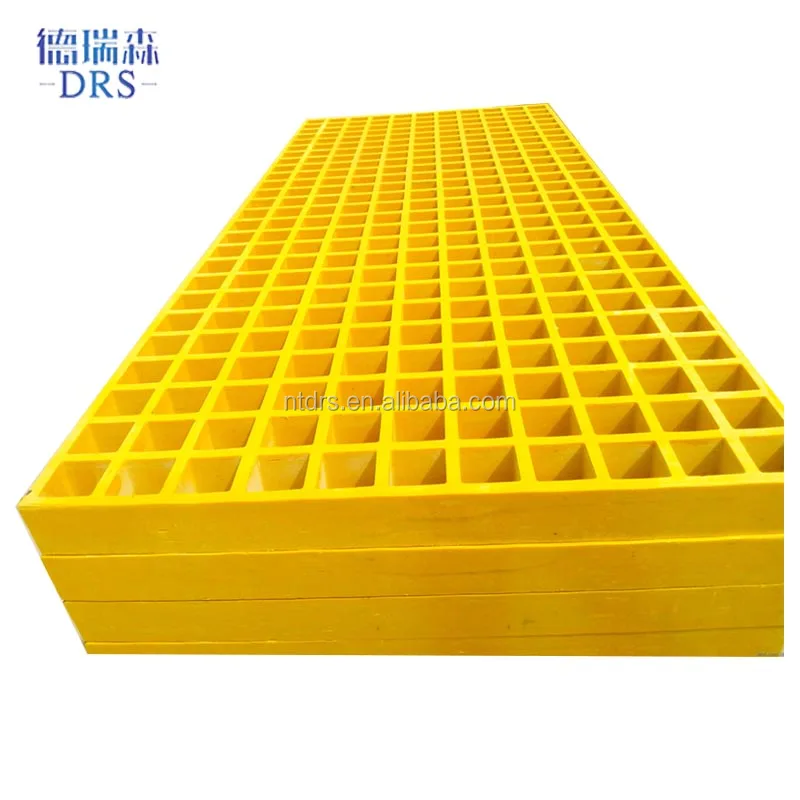

insulation plastic floor car mesh frp grille


\t

Parameters

\t
Type
\t
insulation plastic floor car mesh frp grille
\t
Material
\t
ECR Glass Fiber + Resin  (ORTHO,ISO,VE,PHENOLIC)+Filling (ATH)
\t
Mesh Size
\t
38*38*38mm，40*40*40mm, etc. can be customized (pls check detail as below form)
\t
Color
\t
According to RAL Book.Yellow, Orange, Blue, Green, Grey, etc. can be cutomized
\t
Surface
\t
Gritted,  Smooth, Concave, Solid Top Covered

Anti-Fire/Corrosion/UV

Light Weight/High Strength

Safety/Easy Installation

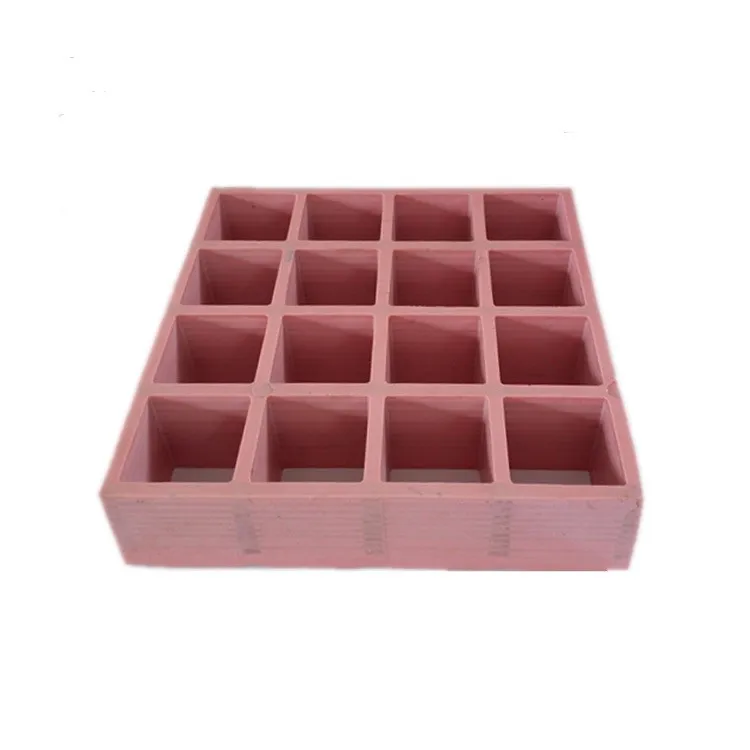

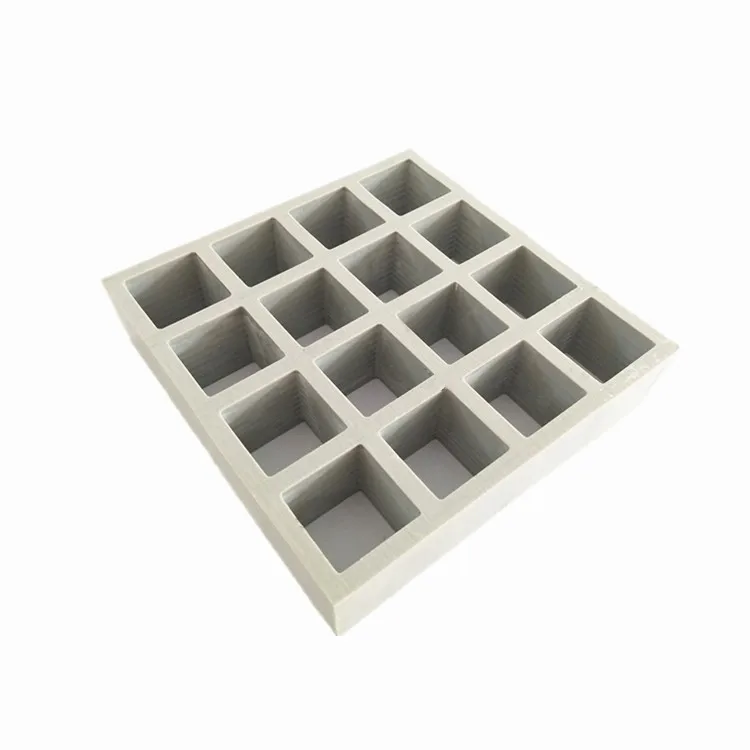

Size-Molded Grating
\t

Mesh Size(mm)

\t

Thickness (mm)

\t

Bar Thickness(mm)

\t

Standard Panel Size(mm)

\t

38x38

\t

13

\t

6.0/5.0

\t

1220x3660,1220x4000,1220x2440,921x3055

\t

14

\t

6.0/5.0

\t

1220x3660,1220x4000,1220x2440,921x3055

\t

15

\t

6.0/5.0

\t

1220x3660,1220x4000,1220x2440

\t

20

\t

6.0/5.0

\t

1220x3660,1220x4000,1524x4010,997x3012

\t

25

\t

6.5/5.0

\t

1220x3660,1226x4010,1524x4000,1530x4010,1997x3012

\t

30

\t

6.5/5.0

\t

1220x3660,1220x4010,1524x4010,921x3055

\t

38

\t

7.0/5.0

\t

1220x3660,1220x4010,2100x4240,998x4010,1220x2440

\t

50

\t

9.5/7.5

\t

1220x4010,1220x3666,1230x4010,1220x2440,921x3055

\t

60

\t

10.5/8.5

\t

1230x4010

\t

70

\t

11.0/9.0

\t

1230x4010

\t

40x40

\t

25

\t

7.0/5.0

\t

1007x3007,1007x4007,1247x4047,1527x4047

\t

30

\t

7.0/5.0

\t

1527x4047,1007x3007,1247x4047

\t

38

\t

7.0/5.0

\t

1527x4047,1247x4047,1007x3007,1007x4047

\t

40

\t

7.0/5.0

\t

1527x4047,1007x3007,1007x4047,1247x4047

\t

50x50

\t

15

\t

6.0/5.0

\t

1228x4020,1220x3660,1220x2440

\t

40

\t

6.8/5.0

\t

1787x4530,1225x4530

\t

25

\t

7.0/6.0

\t

1220x3660,1226x4020,1220x2440,915x3050

\t

50

\t

8.0/6.0

\t

1524x4000,1220x3660,1220x2440,1220x4000

\t

83x83

\t

38

\t

7.0/5.0

\t

1007x4007,1007x3007,1007x4255

\t

40

\t

7.0/5.0

\t

1007x4007,1007x3007,1007x4255

\t

13x13/40x40

micro mesh

\t

25

\t

6.5/4.5/5.0

\t

1247x4047,1007x3007,1007x4047,1530x4047

\t

30

\t

6.5/4.5/5.0

\t

1527x4047,1247x4047,1007x3007,1007x4047

\t

38

\t

6.5/4.5/5.0

\t

1527x4047,1247x4047,1007x3007,1007x4047

\t

19x19/38x38

mini mesh

\t

25

\t

6.5/5.0

\t

1220x3660,1220x2440,921x3055,1226x4007,1268x4007

\t

30

\t

6.5/5.0

\t

1220x3660,1220x2440,921x3055,1220x4000,1530x4047

\t

38

\t

6.5/5.0

\t

1220x3660,1220x2440,921x3055,1220x4000,1226x4010

\t

20x20/40x40

mini mesh

\t

14

\t

6.5/5.0

\t

1007x3007,1247x4047

\t

22

\t

6.5/5.0

\t

1527x4047,1007x3007,1247x4047

\t

25

\t

6.5/5.0

\t

1527x4047,1247x4047

\t

30

\t

7.0/5.0

\t

1527x4047,1007x3007,1007x4047,1247x4047

\t

38

\t

7.0/5.0

\t

1527x4047,1007x3007,1007x4047,1247x4047

\t

40

\t

7.0/5.0

\t

1527x4047,1007x3007,1007x4047,1247x4047

\t

25x25/50x50

mini mesh

\t

50

\t

8.0/6.0

\t

1532x4020

\t

26x26/52x52

mini mesh

\t

30

\t

7.0/6.0

\t

1530x4000,1532x4050

\t

38

\t

6.0/5.0

\t

1517x4015

\t

25x50

\t

38

\t

11.0/9.0

\t

1220x1835

\t

50

\t

12.0/9.0

\t

1220x1835

\t

25x100

\t

25

\t

7.0/5.0

\t

1220x3660,915x3050

\t

38x100

\t

38

\t

8.0/6.0

\t

1226x3665,1530x4047,921x3050

\t

25x152

\t

38

\t

8.0/6.5

\t

1220x3660,1220x2440,1220x4124,921x3050

\t

38x152

\t

38

\t

8.0/6.0

\t

1220x3660,1220x2440,915x3050

Application-Grating

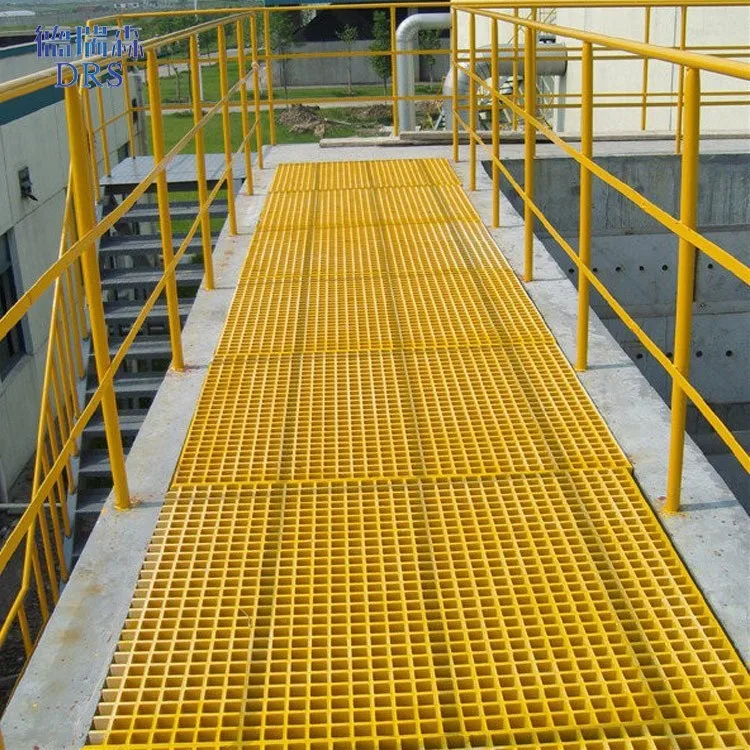

Walkway / Platform Grating

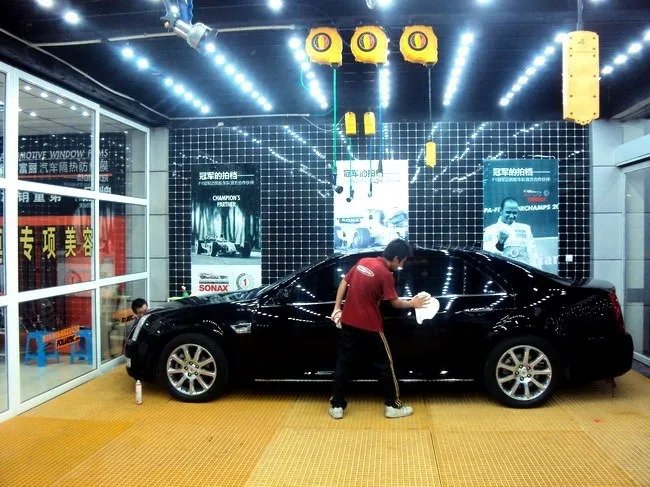

Car Wash Floor Drain Grating

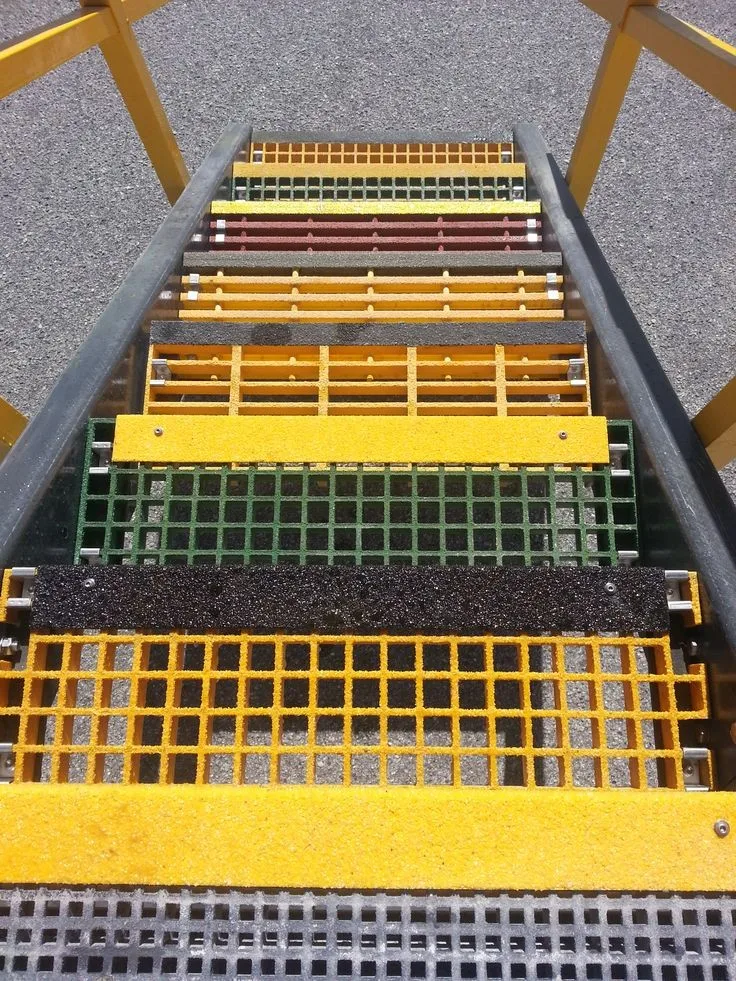

Stair Grating

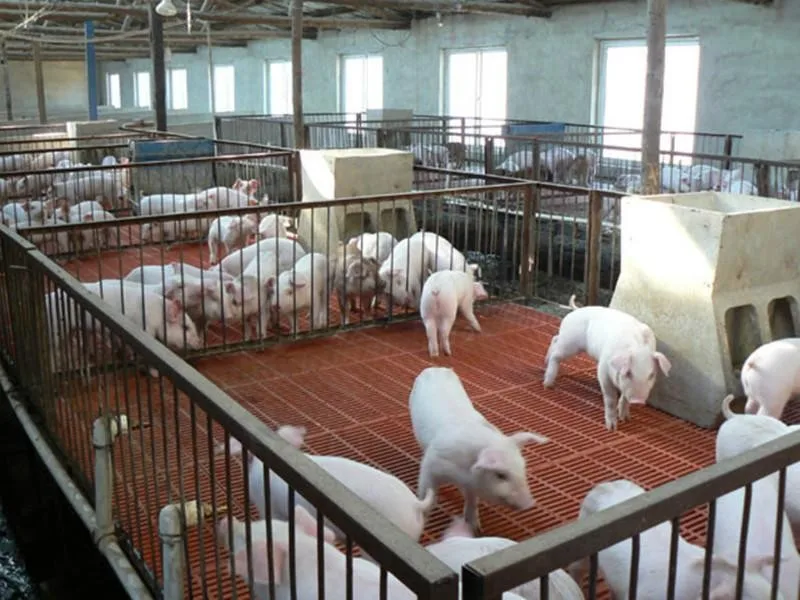

Farm & Breed Industry Floor Grating

Decorative Ceiling Roofing Grating

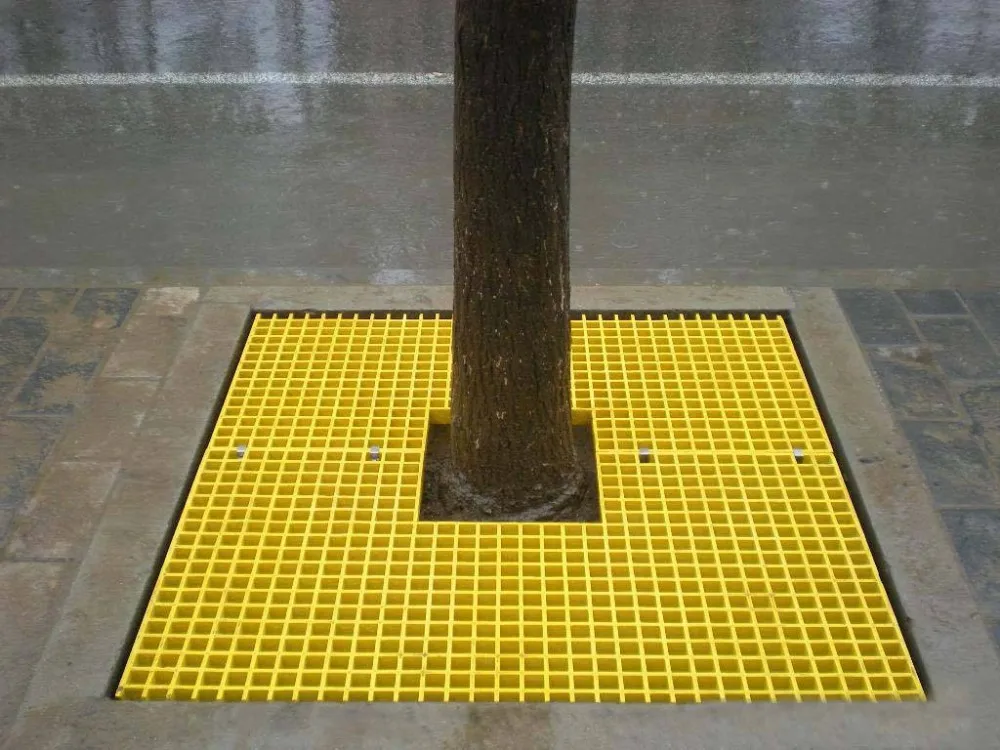

Tree Protective Grating

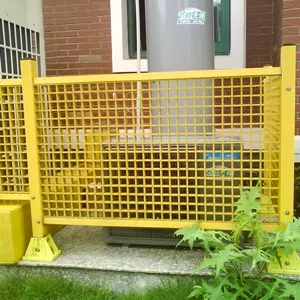

Fence Grating

Drain Grating

Marine Industry Platform Grating
