Competitive high quality Stainless Steel Valve Stem AT OP 03 tube ball stem for ball valve
- Category: >>>
- Supplier: Wenzhou Antong Valve Co. Ltd.
Share on (60703450496):
Product Overview
Description

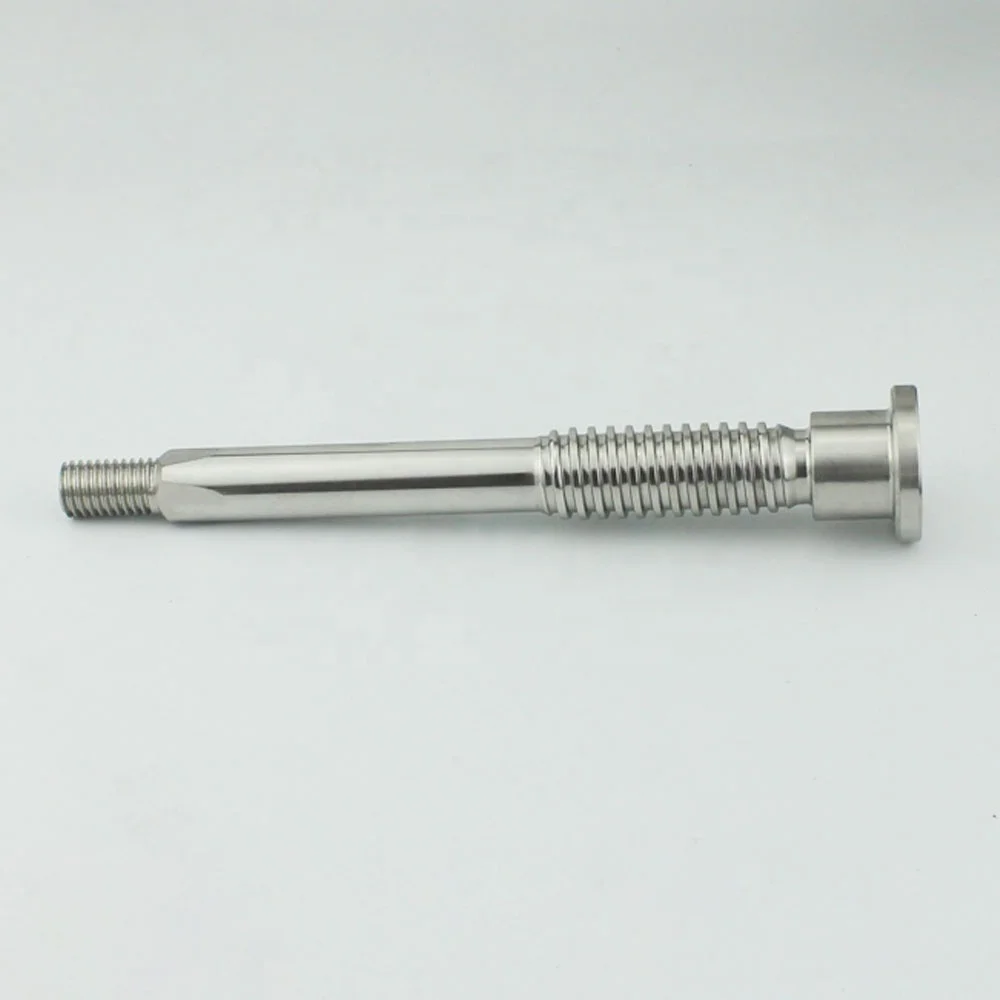

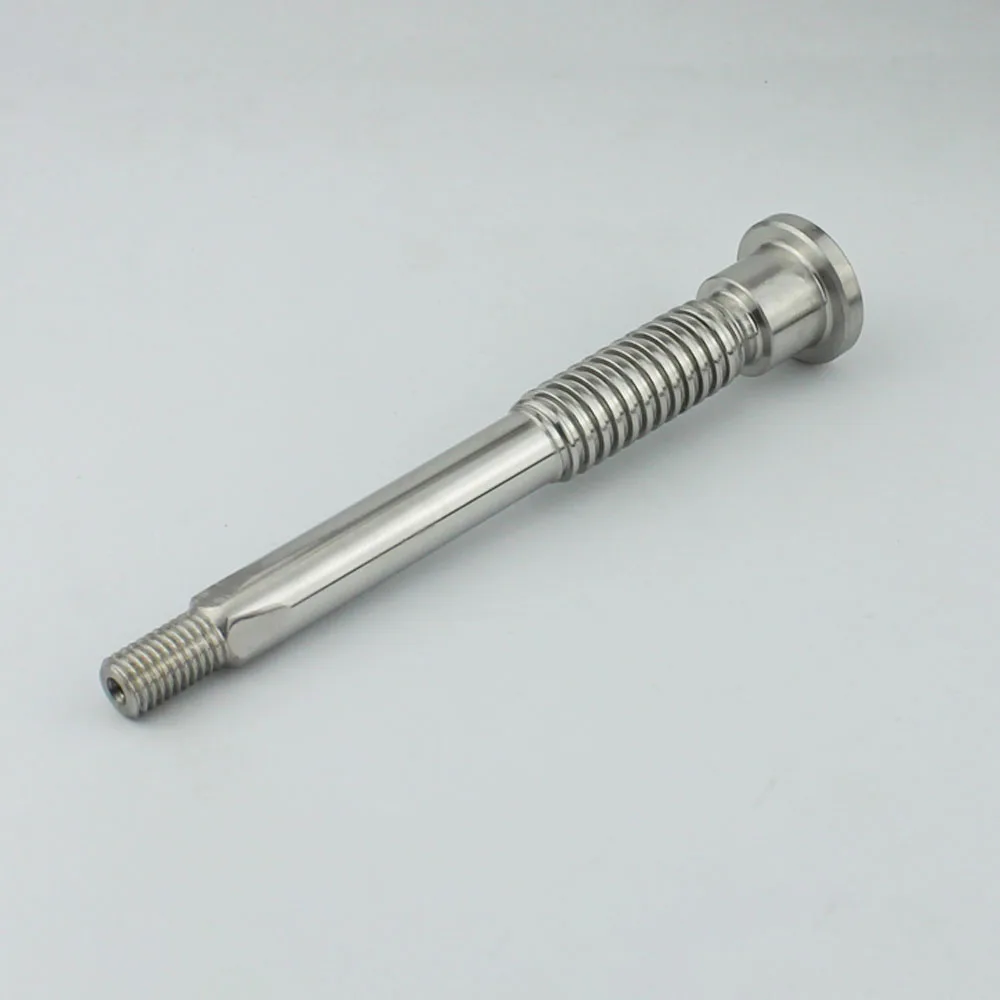

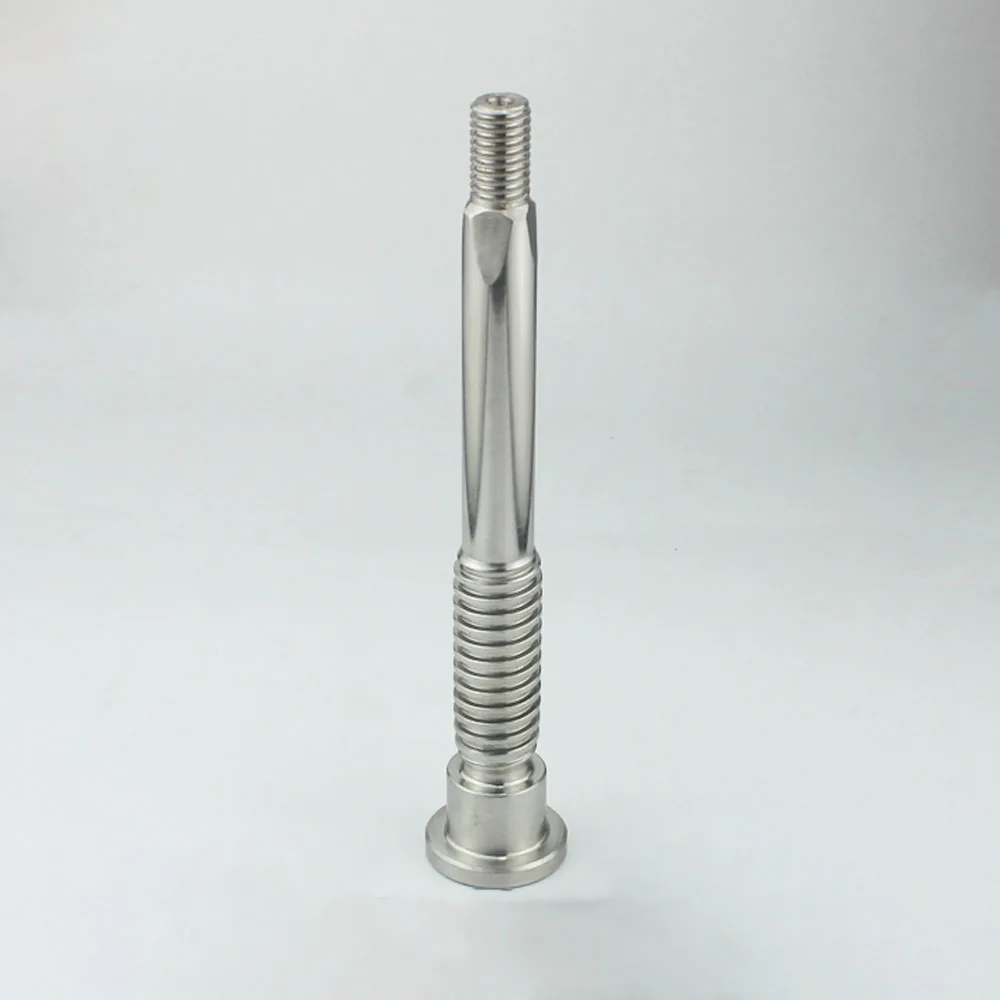

Competitive best seller Stainless Steel Valve Stem AT-OP-03
Product Description
|
Stainless Steel Valve Stem |
|
|
Material |
Stainless Steel |
|
Connection |
Customize by customers’ request |
|
Standard |
JB/T2203-1999 |
|
Sample |
7-10 days to make by drawings |
|
Packing |
Bag,inner box,carton packing in pallet |
|
Delivery time |
25-30 days after confirm the order |
|
OEM |
We can produce by customer drawings |
|
Inspect |
The products were inspected before shipment |
| Option Material List | |||
| 201 | F304 | F316 | |
| %C | 0.15MAX | 0.08MAX | 0.07MAX |
| %Si | 1.00MAX | 1.00MAX | 1.00MAX |
| %Mn | 5.50-7.50 | 2.00MAX | 2.00MAX |
| %P | 0.06MAX | 0.045MAX | 0.045MAX |
| %S | 0.03MAX | 0.03MAX | 0.03MAX |
| %Cr | 16.00-18.00 | 18.00-20.00 | 16.50-18.00 |
| %Ni | 3.50-5.50 | 8.00-11.00 | 10.00-14.00 |
| %N | 0.25MAX | 0.10MAX | |
| %Mo | 2.00-3.00 | ||
| F6AISI410 | NO6625 | F51 | |
| %C | 0.08-0.15 | 0.10MAX | 0.03MAX |
| %Si | 1.00MAX | 0.50MAX | 1.00MAX |
| %Mn | 1.00MAX | 0.50MAX | 2.00MAX |
| %P | 0.04MAX | 0.015MAX | 0.03MAX |
| %S | 0.03MAX | 0.015MAX | 0.02MAX |
| %Cr | 11.50-13.50 | 20.00-23.00 | 21.00-23.00 |
| %Ni | 58.00MIN | ||
| %N | 0.08-0.20 | ||
| %Mo | 8.00-10.00 | 2.50-3.50 | |
| Option Valve Ball Specification | |
| Floating Valve Ball | Option Size:NPS 2-12(DN50-300) |
| Trunnion Valve Ball | Option Size:NPS2-24(DN50-600) |
| Hollow Valve Ball | Option Size:NPS 2-12(DN50-300) |
| Hard Seal Valve Ball | Option Size:NPS2-18(DN50-600) |
| Stem Valve Ball | Option Size:NPS 1-6(DN25-150) |
| V Port Valve Ball | Option Size:NPS0.4-12(DN10-300) |
| Special Valve Ball | Option Size:NPS 1-12(DN25-300) |
| L Through Valve Ball | Option Size:NPS2-12(DN50-300) |
| Three Way Valve Ball | Option Size:NPS 2-12(DN50-300) |
| Four Way Valve Ball | Option Size:NPS1-10(DN25-250) |
Product Testing
Company Information
Wenzhou Antong Valve Co.,Ltd.
is a dedicated to developing high-precision,high-tech,multi-performance ball manufacture.
Companies with strong innovation ability and years of production experience in production
Management,and the introduction of western Siemens CNC equipment-spherical grinding
Machines,machining centers,and spherical roundness measuring instrument,access to domestic
And international customer recognition and praise.
Supply first-class products
is a self design,production,sales and services as one of professional ball and ball manufacturing
Companies,specializes in producing all kinds sphere,varieties:floating ball,fixed ball,tee ball,stone
Sphere,V-regulating sphere seal dedicated special sphere,as well as various rules billiard balls and
Steel plate TIG.
Quality policy
Unity and hard work,pragmatic innovation,pay attention to quality.Revitalize the industry,
Carefully manufactured.
Packaging & Shipping
FAQ
Q: Can I have a sample order for valve?
A: Yes,we welcome sample order to test and check quality.Mixed samples
Are acceptable.
Q: Could you print our company LOGO on the nameplate and package?
A:Yes,we can do that.
Q:Do you have any MOQ limit for valve order?
A:According to the product specification to set up the order.
Q:How do you ship the goods and how long does it take to arrive?
A:We usually ship by sea.It usually takes 30 days to arrive.Airline shipping
Also optional.
Q:How to proceed an order for valve?
A:Firstly let us know your requirements or application.Secondly We quote
according to your requirements or our suggestions.Thirdly customer confirms
The samples and places deposit for formal order.Fourthly We arrange the
Production.
Q:Do you offer guarantee for the products?
A:Yes,we offer 10 years warranty to our products.
Q:How many days the products will be ready?
A:Generally 3 to 4 weeks,depends on the quantity.
