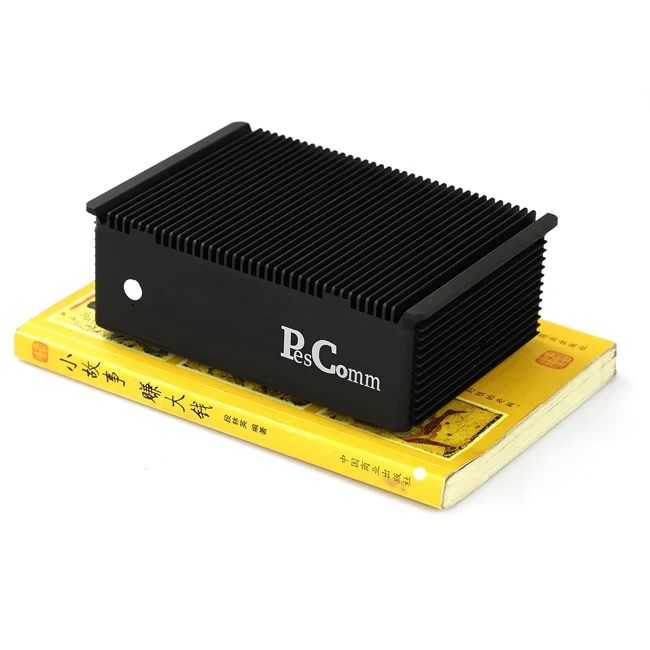

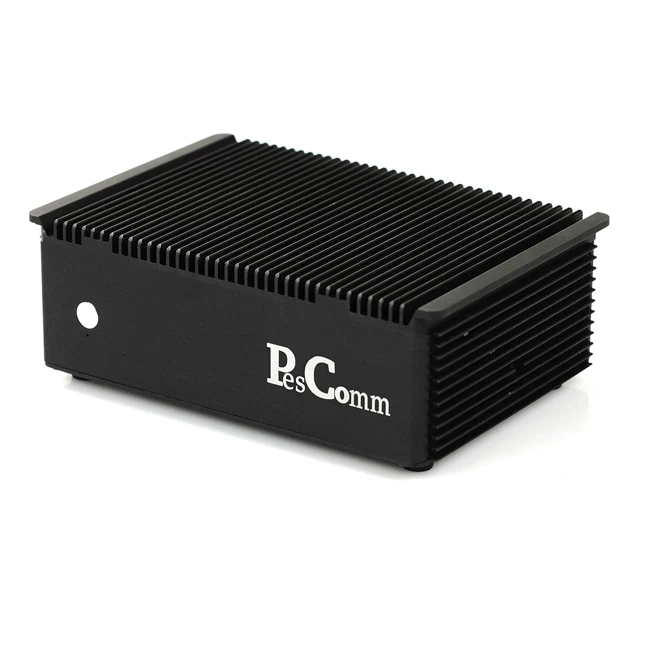

Small linux computer Atom N2800 Rugged Din RAIL PC, Linux Fanless computing with RS232/ RS485/RS422/wifi

Share on (60703531300):


Price:

Quantity:


Product Overview

Description


Product Description

Fanless industrial pc K802

Main Board\t"•Intel® Atom™ N2800 Dual Core processor, 1.86GHz, 1M Cache
•Integrated Intel GMA 3650"

Main Memory\t•1 x DDR3 , support up to 2 GB DDR3 1333/800

Storage\t•1 x 2.5" SATA HDD drive bay

Lan\t•Realtek RT8111E, 10/100/1000M, Support PXE, Wake on Lan

Audio\t•Realtek ALC662

Watchdog Timer\t•255 levels, 0~255 sec

BIOS\t•AMI 16MB DPI Flash ROM

Expansion\t"•2 x Mini-PCIe socket onboard
•Default: support optional Wi-Fi module
•Option: support 3G module"

I/O Interface-Front\t•Power on/ off switch

I/O Interface-Rear\t"•4 x USB 2.0
•2 x RJ45
•1 x VGA
•1 x HDMI
•1 x Audio
•2x COM
•1x 12V DC IN
•1x Antenna holes (Either optional Wi-Fi or Mobile wireless module)"

Power Requirements\t•12V DC IN

Dimensions\t•176 mm (W) x 110 mm (D) x 59mm (H)

Construction\t•Aluminum Chassis

Environment\t"•Operating temperature: Ambient with air flow: -10°C to 60°C (with industrial grade devices)(According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
•Storage temperature: -20°C ~ 80°C
•Relative humidity: 10% to 93% (Non-condensing)
•Anti-Vibration: 5Hz~500Hz/1Grms/3Axis
•Anti-Shock: 15G, 11ms Duration"

Detailed Images
Similar models

Fanless industrial pc K900

CPU: D2550/N2800

RAM: 1/2/4GB DDR3

Memory: 16/32/64/128/256GB SSD/500GB HDD

I/O ports:6 x USB 2.0+2x RS232 Or 4 x USB 2.0+5x RS232
/1 x RJ45/1 x VGA/1 x HDMI/1 x MIC-in /1 x Audio/1x DC IN/2 x Antenna holes (Either optional Wi-Fi or Mobile wireless module)

Fanless industrial pc K700

CPU: 1037U/J1900/I3 4010U/I5 4200U/I7 4510U/6100U/6200U
RAM: 2/4/8GB DDR3
Memory: 16/32/64/128/256GB SSD/500GB HDD
I/O ports:6 x USB 2.0+2x RS232 Or 4 x USB 2.0+5x RS232
/1 x RJ45/1 x VGA/1 x HDMI/1 x MIC-in /1 x Audio/1x DC IN/2 x Antenna holes (Either optional Wi-Fi or Mobile wireless module)

Fanless firewall computer K905

CPU: J1900/D2550/D525
RAM: 2/4/8GB DDR3
Memory: 16/32/64/128/256GB SSD/500GB HDD
I/O ports:4 x RJ45+2x RS232
/2 xUSB2.0/1 x VGA/1x DC IN

1U mini computer

CPU: J1900/1037u/i5 5200u
RAM: 1/2/4/8GB DDR3
Memory: 16/32/64/128/256GB SSD/500GB HDD
I/O ports:•4 x USB 2.0/2x COM/1 x RJ45 or 2 x RJ45 /1 x VGA/1 x MIC-in /1 x Headphone/1 x DC IN/1x Parallel(LPT)/1x PS/2

Packing & Delivery

1,Packaging details: Normal package use carton( Pearl cotton inside).

2,Shippingand delivery: Air freight:DHL,FEDEX,TNT,UPS,EMS

                                                    Sea freight

3,Delivery 3~25 working days,it depends on quantity,sample take 3-5 days.
