NC Series MCB NC-100A 125A Air Circuit Breaker DZ47-100H Miniature Circuit Breaker
Product Description
NC-100H series high breaking capacity MCB protects and controls of 220/415V
circuit against overload and short circuit in electrical distribution system rated current up to 100A,
and it is also applicable for unfrequent switchover electric apparatus and lighting circuit under normal condition.The products comply with IEC60947.2
Standard
IEC60947-2
Electrical features
Rated current in
A
63,80,100,125
Poles
1P,2P,3P,4P
Rated voltage Ue
V
240/15
Insulation coltage Ui
V
500
Rated frequency
Hz
50/60
Rated breaking capacity
A
6000
Rated impulse withstand voltage (1.2/50)Uipm
V
4000
Dielectric test voltage at and ind.Freq.for 1min
KV
2
Pollution degree
2
Themo-magnetic release characteristic
C,D
Mechanical features
Electrical life
4000
Machanical life
10000
Contact position indicator
YES
Protection degree
IP20
Reference temperature of setting of thermal element
°C
30
Ambient temperature(with daily average≤35°C)
°C
-5~+40
Storage temperature
°C
-25...+70
Installation
Terminal connection type
Pin-type busbar
Terminal size top/bottom for cable
mm²
35
Terminal size top/bottom for busbar
mm²
35
Tightening torque
N*m
2.5
Mounting
35mm DIN rail
Connection
From top and bottom
Drawing

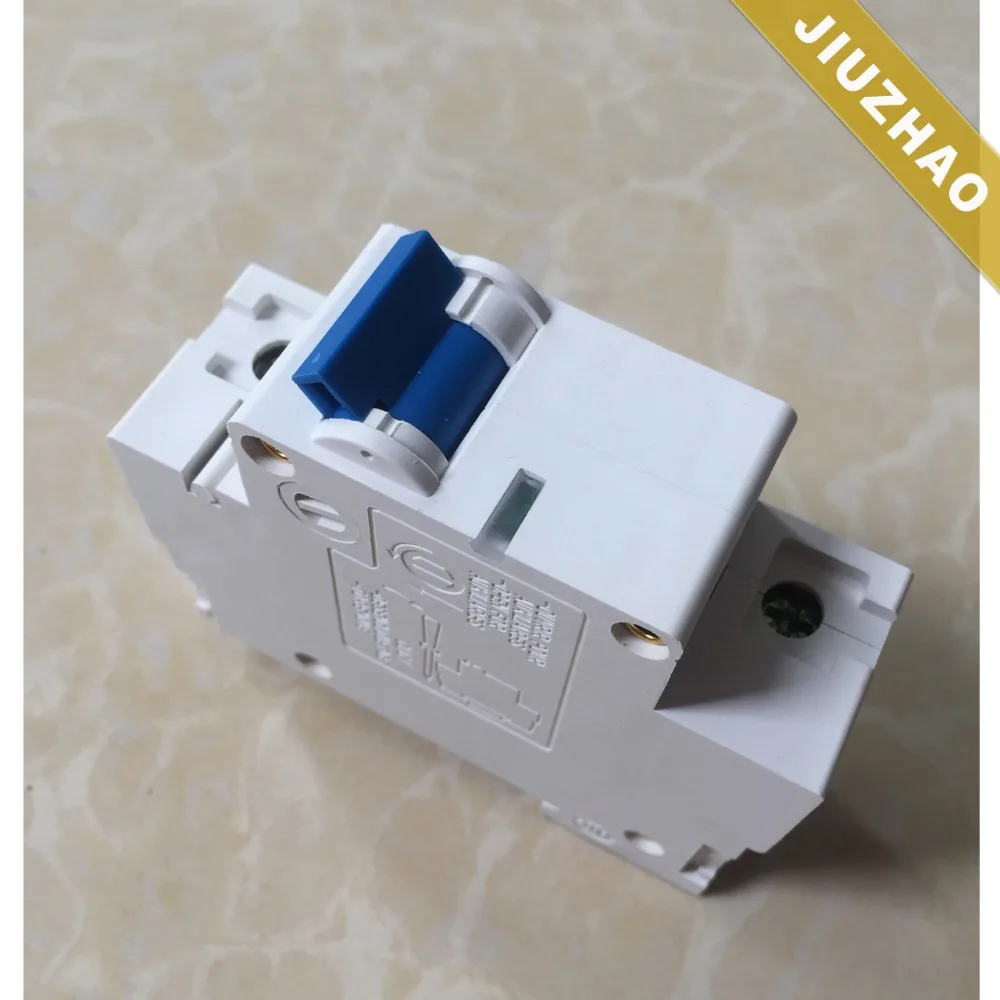

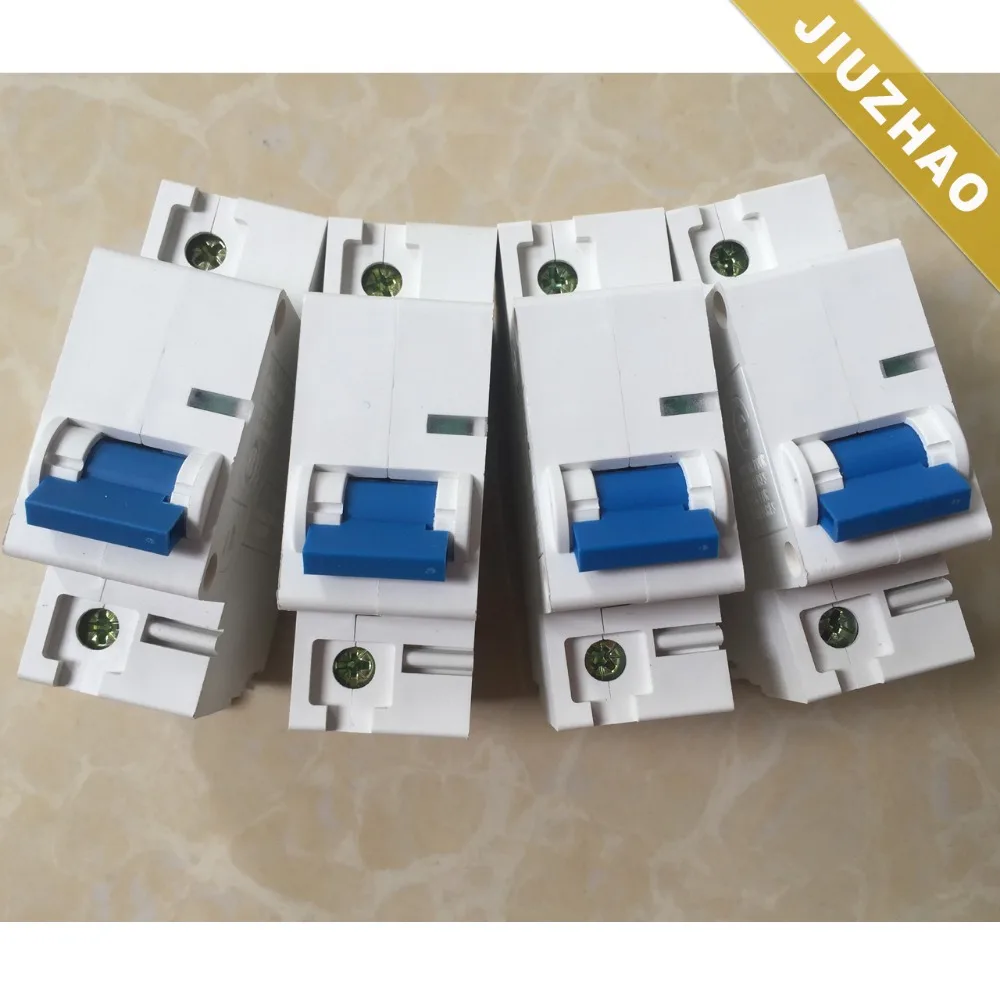

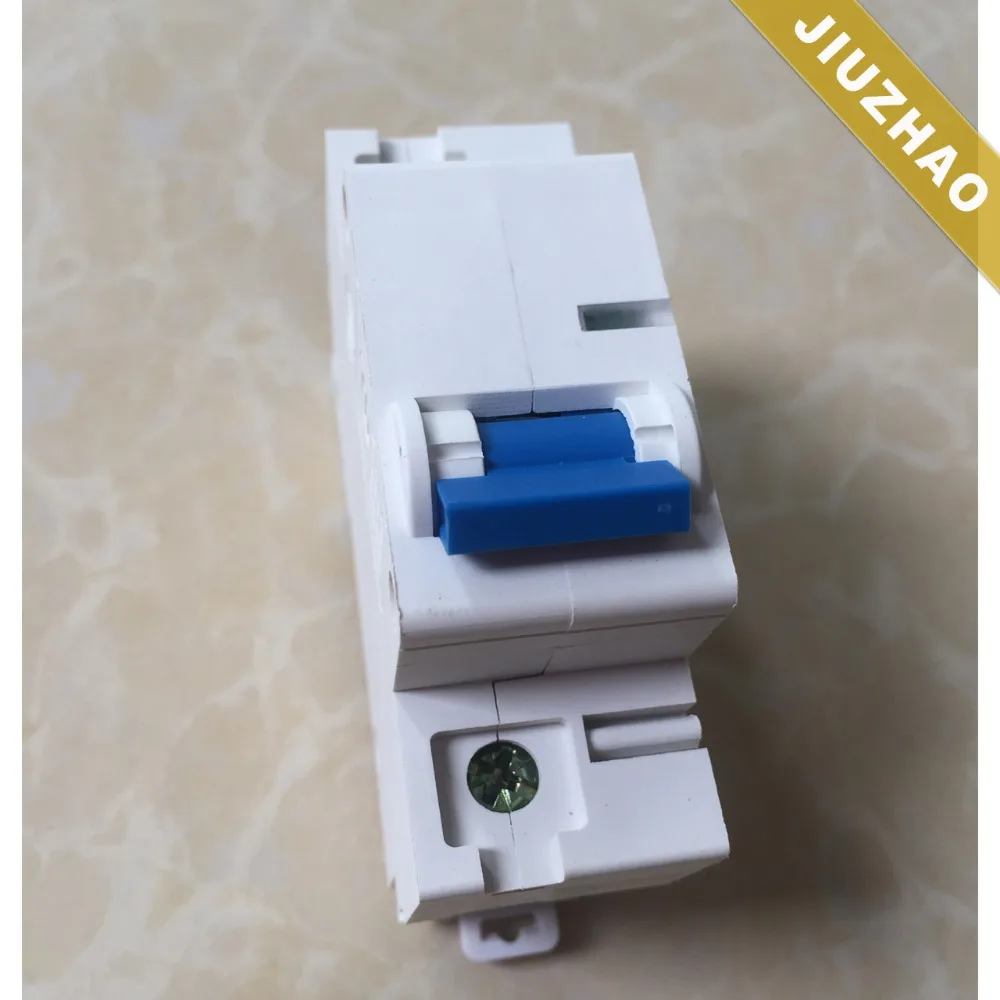

Detailed Images
