Bus Digital LED Video Board Passenger Information Display
- Category: >>>
- Supplier: Xiamen Xinsenyue Technology Co. Ltd.
Share on (60703622746):
Product Overview
Description
Products Description
What Is Advantage Stretched Display?
The mainstream aspect ratio of the TFT LCD panel in the market is 4:3 or 16:9. But for some applications, bar type shape of display panel would be much better than the current mainstream 4:3 or 16:9 to display the required information. Bar Type TFT-LCD displays are perfect for industrial equipment, automotive application, server system, POS system, dynamic information displays and advertising display.
Space-saving & multimedia interface control

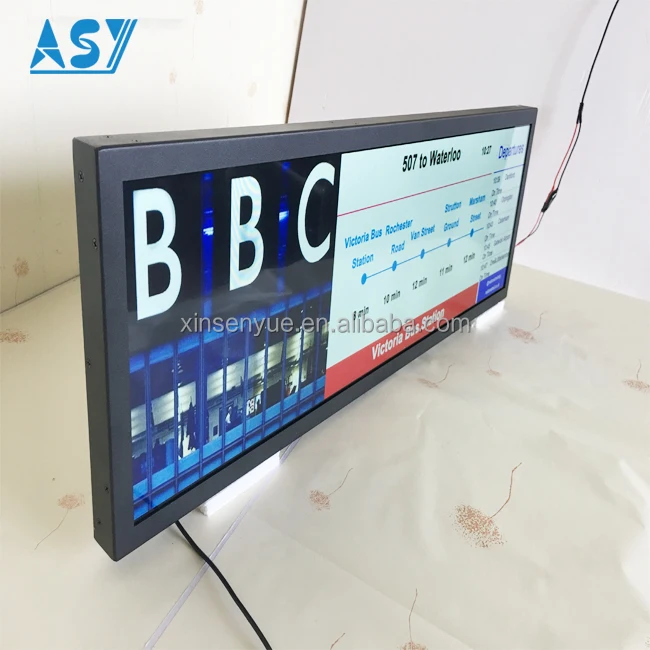

The stretched lcd installed in the bus, train, subway, mounting on the side; under the vehicle roof, It reduce the effects for the drivers and avoid the direction eye catch from passengers. It is the perfect displayer.
Product Details
Item | XSY286LV01 |
Screen Size | 28.6 inch (Size customized) |
Luminance(cd/m2) | 500 |
Response Time(ms) | 8 |
Display colors | 16.7M |
Viewing Angle:θT/θB/θL/θRV | 89/89/89/89 |
Operating system (selectable) | Android |
Resolution | 1920*540 |

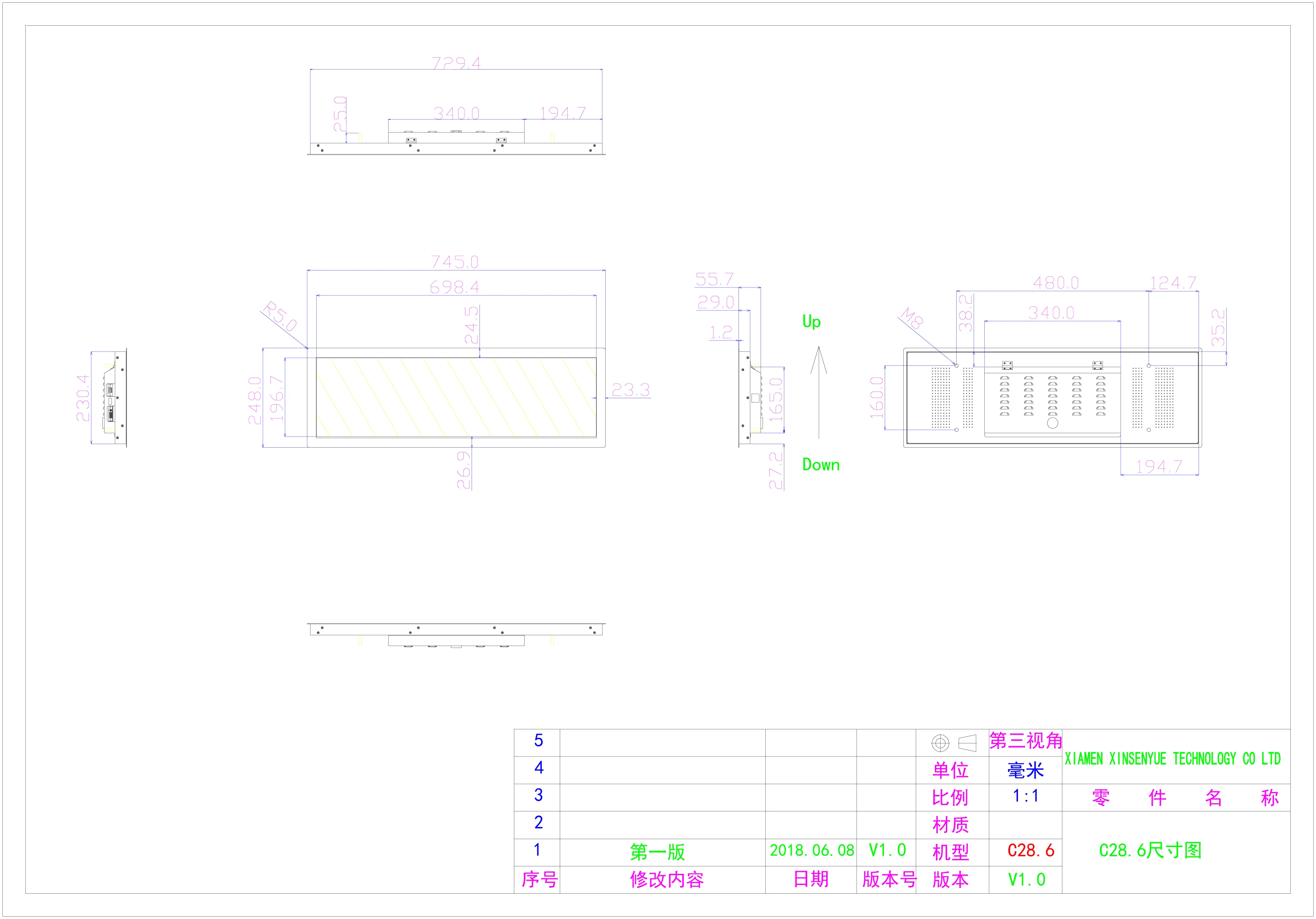

Display area dimension | 698.4x196.4mm |
Module size(W*H*D) | 735x236x58mm |
Weight(kg) | 6 |
Operation temperature( ℃) | -20~60 |
Operation humidity | 10%~90% |
Voltage(V) | DC 9~30 |
Power(W) | 50 |
There are 3 types of connector interface:
1>. Monitor: HDM1 / VGA
2>. USB
3>. Android: HDM1 / USB / RJ45 / WIFI
1>. Monitor
the stretched lcd is a monitor, should be connected to PC / terminal.
2>. USB
the stretched lcd build in APK, update display content via usb slot.
3>. Android version
the stretched lcd build in Android OS, CMS, support update display content in internet.
