230v 150W/M2 electric radiant Heating cable Floor Heating Mat kits Weekly Programmable Thermostat
- Category: >>>
- Supplier: Anbang Electric Co. Ltd.
Share on (60703631127):
Product Overview
Description

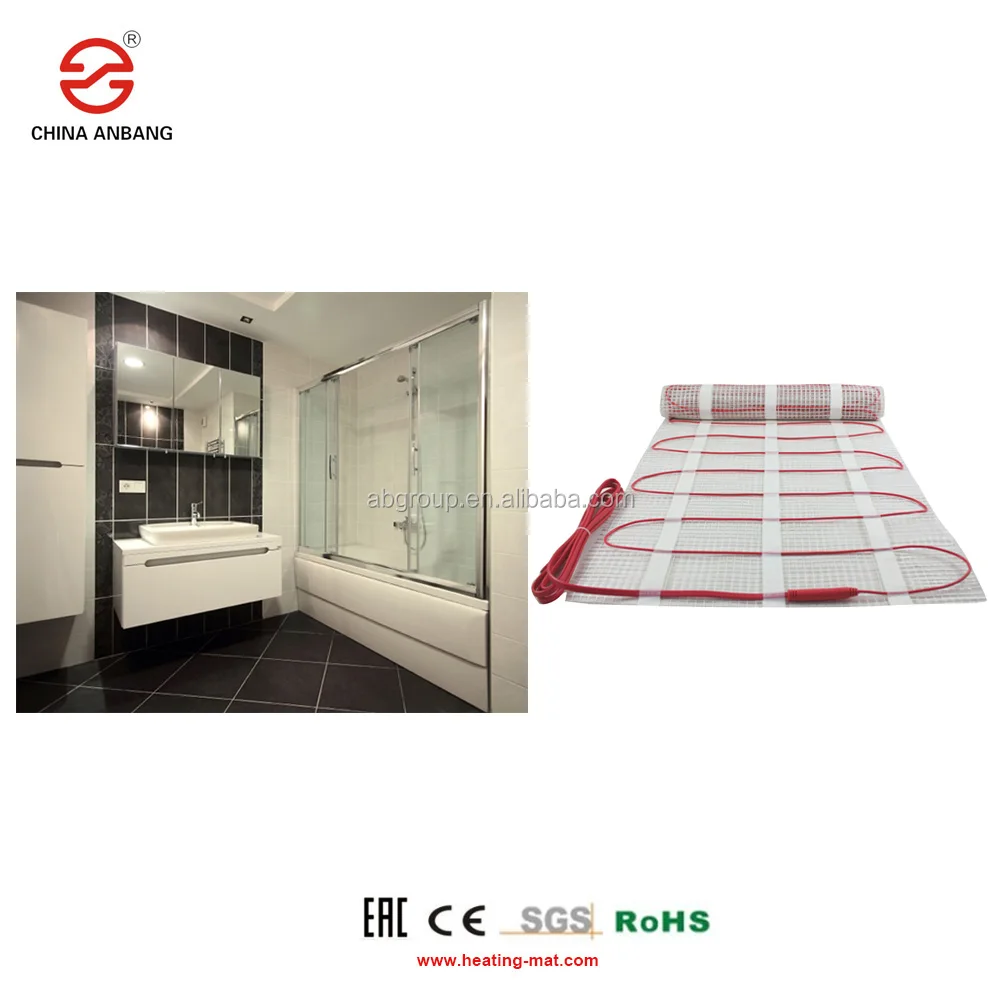

5M2 120v 150W/M2 Twin conductor electric radiant Teflon cable Floor Heating Mat kits Weekly Programmable Thermostat
Product Description
The underfloor heating mat is designed for easy installation and suitable for various floor decorative materials, like concrete floor, wood floor, the old tiles floor or terrazo floor. It is installed in the tile adhesive and almost doesn't affect floor elevation.
150w/m2 underfloor heating mats can be used as a primary heating source providing you have adequate insulation. These mats most commonly used for kitchen,dinning room,large bathroom and most other area with tiled floor
200w/m2 underfloor heating mats are generally used for the area of high heater loss, such as conservatoruies.
Specification and Structure:
| Average power per sqm: 150w/m2 |
| Voltage:110V, 120V,220V 230V |
| Available power: 75w-2250w |
| Cable linear power: 12w/m, 15w/m, 18w/m |
| Diameter of cable: 3.8mm,making small bending radius |
| Cable spacing: 50mm/80mm (It can be customized) |
| Twin conductor: multi-wire Nickle-copper Alloy heating core provides excellent physical flexibility and stability |
| Tolerance of conductor resistance:-5%+10% |
| FEP insulation: -200℃~260℃ |
| Double Protection: Aluminium Foil plus Braided Cooper Mesh to eliminate electromagnetic radiation,connected to the earth in case of electro leakage. |
| Joint: The connecting part between the heating cable and the power line.To produce multi-protected joint, we adopt double shooting technique to ensure its good physical properties with outstanding water proof virtue. |
| Fiberglass mesh:high temperrature resistant, inflammable. |
Easy Installation:
Parameter:
| Specification | Power Output (W) | Mat size (m*m) | Area (m²) | Inner Box Size (cm) | Quantity per carton(pcs) | Carton Size (cm) |
| ABDX/150-1.0 | 150 | 0.5*2 | 1 | 13.5*13.5*51.5 | 12pcs/ctns | 55.5x42x53.5 |
| ABDX/150-1.5 | 225 | 0.5*3 | 1.5 | |||
| ABDX/150-2.0 | 300 | 0.5*4 | 2 | |||
| ABDX/150-2.5 | 375 | 0.5*5 | 2.5 | |||
| ABDX150-3.0 | 450 | 0.5*6 | 3 | |||
| ABDX/150-3.5 | 525 | 0.5*7 | 3.5 | |||
| ABDX/150-4.0 | 600 | 0.5*8 | 4 | 18.5x18.5x51.5 | 6pcs/ctns | 57x38.5x53.5 |
| ABDX/150-4.5 | 675 | 0.5*9 | 4.5 | |||
| ABDX/150-5.0 | 750 | 0.5*10 | 5 | |||
| ABDX/150-6.0 | 900 | 0.5*12 | 6 | |||
| ABDX/150-7.0 | 1050 | 0.5*14 | 7 | |||
| ABDX/150-8.0 | 1200 | 0.5*16 | 8 | |||
| ABDX/150-9.0 | 1350 | 0.5*18 | 9 | 23.5x23.5x51.5 | 4pcs/ctns | 48.5x48.5x53.5 |
| ABDX/150-10 | 1500 | 0.5*20 | 10 | |||
| ABDX/150-11 | 1650 | 0.5*22 | 11 | |||
| ABDX/150-12 | 1800 | 0.5*24 | 12 |
The heating mat for underfloor heating /wall heating/roof heating/outdoor heating etc.
Color: White net + red wire , white net + blue wire , red net + blue cable wire ( can be customized)

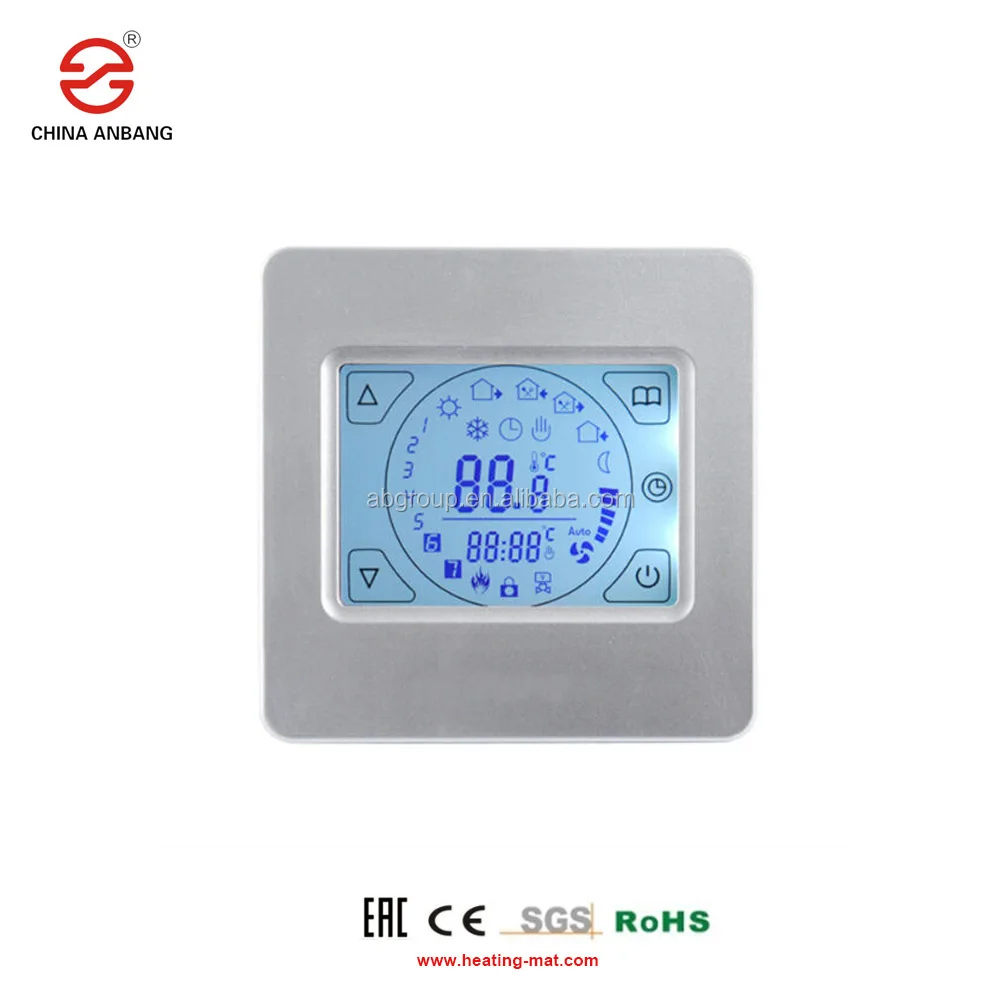

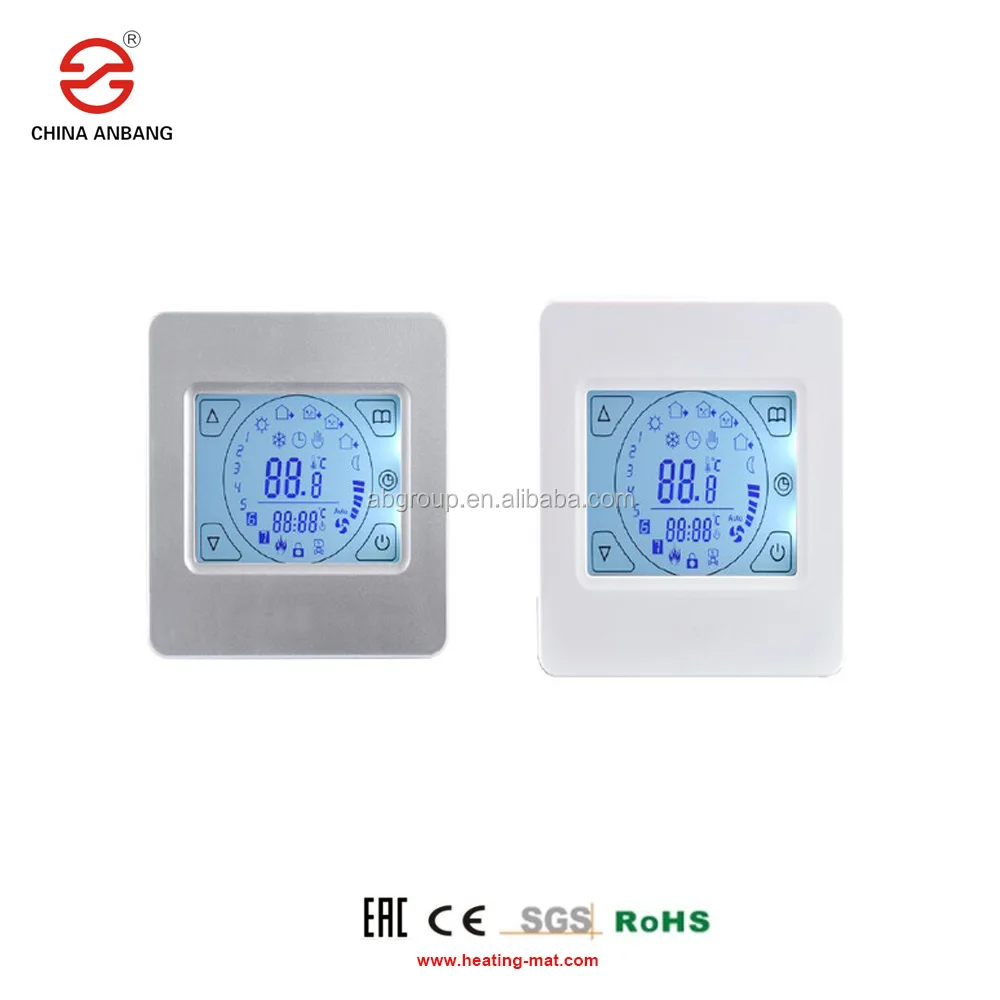

ABE92 Touch Screen Programmable Thermostat
Voltage: AC2220V/ 230V
Power consumption: 2W
Setting range: 5°C~90°C( can adjust to 35°C~90°C)
Limitation range: 5°C~6°C( factory setting: 35°C)
Switch differential: 0.5°C~10°C adjustable factory setting 1°C
Switching differential: ±0.5K
Ambient temperature: -5°C~50°C
Protective housing: IP20
Housing material: self-extinguishing PC
Floor sensor: rubber-thermoplastic NTC sensor,
cable length is 3m
Packing Details:White inner box and export carton
Delivery time:Within two weeks upon receipt of payment.
Our Services
Provide OEM and ODM service
After-sale service available
Sample orders are available
Free design and installation guide
Company Information
Company profile
Welcome to Anbang, built in 2004, Register capital to be a RMB103million. Anbang group is a professional production of various types of electric tracing cables enterprise, located in Tianchang City, Chuzhou, Anhui province, which is 110km far away from Nanjing Airport, Headquarters is located in Beijing world trade center. We are the leading enterprise in the field of electrical heating.
Our factory covers 63000 square meters and own more than 300 employees.Our enterprise through the ISO9001:2008 quality management system certification; ISO14000 environment management certification. The products have CE,ROHS,EMC certification,
We have advanced equipments, high technology and an excellent quality inspection system that strictly performs under the quality control of ISO9001. Our main products: electric heating cable; electric underfloor heating mats; self-regulation heating cable MI heating cable etc. are popular for indoor floor warm use and outdoor snow melting use; pipeline freeze protection. Our mainly markets for America, Europe, The Middle East and Asia neighboring countries.
The company has always attached importance to technical innovation and quality management, focus on the introduction of the outstanding talented person and the advanced equipment, now our products of high quality and because of its superior performance. We sincerely hope to establish business relations with customers from all over the world.
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: PayPal and T/T are preferred, so just tell us which is easier to you. Then we will send you our bank details. Or as your requirements.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, Trade Manager or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 7~10 working days. For bulk orders, usually 15~20working days and depends on your design.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEX to ship samples. For bulk orders, we support shipping by air or by sea.
Q6: Can you customize according to our designs and put our logo on the products?
A6: Yes, we support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM is welcome.
