Product Description

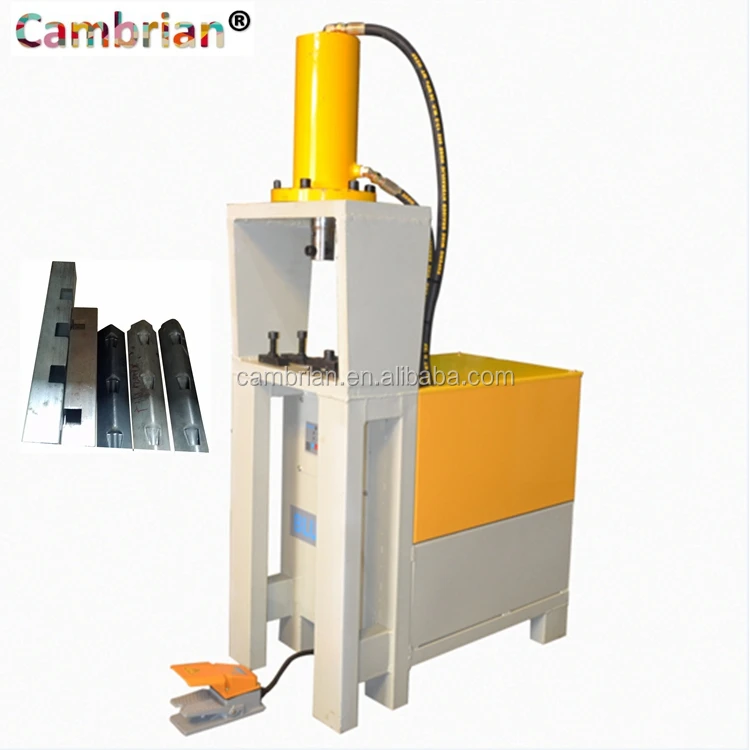

Best quality steel tube punching machine with lowest price
Punching Machine Suitable for Material : can punch steel pipes , Aluminum Pipes , Zinc-iron
Pipes , Galavized Pipes Ect for windon , door , security fence , Bed making
Punching Machine Power : Hydraulic pressure with electric motor
Through Changing Mold , One machine can produce different shape and size Holes for different pipes
Model
RP-200
RP-150
RP-80
Hydraulic oil tank
2 pc
2 pc
2 pc
Pressure
About 200KN
About 150KN
About 80KN
Motor power
7.5 kw
5.5kw
4kw
Voltage
380v 50hz 3phase
380v 50hz 3phase
380v 50hz 3phase
Working speed
30-60times/min
30-60times/min
30-60times/min
Punching hole size
As require
As require
As require
Punching thickness(for steel)
0.5-4mm
0.5-3mm
0.5-2 mm
Punching tube length
3-6m
3-6m
3-6m
Tube support frame length
3m
3m
3m
Punching molds with machine
2pcs
2pcs
2pcs

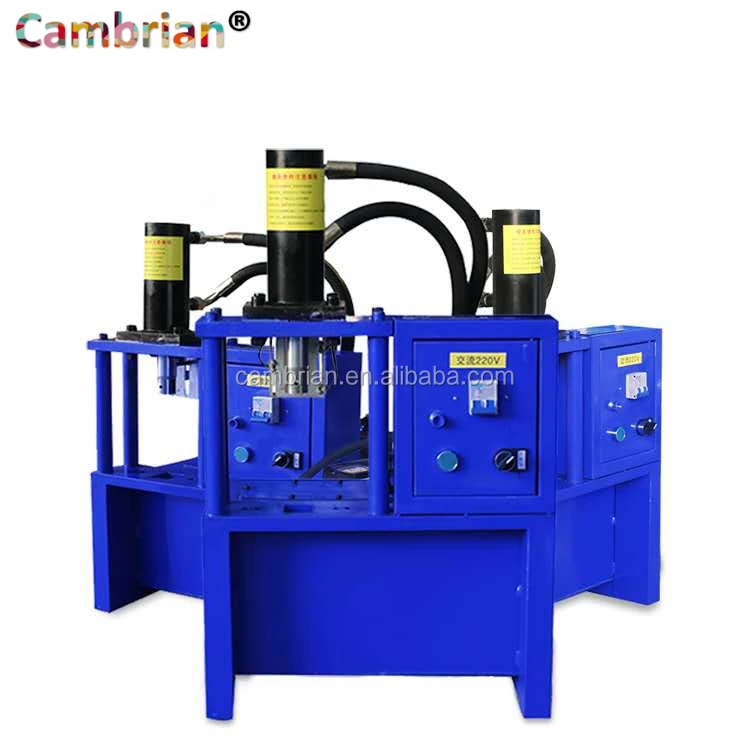

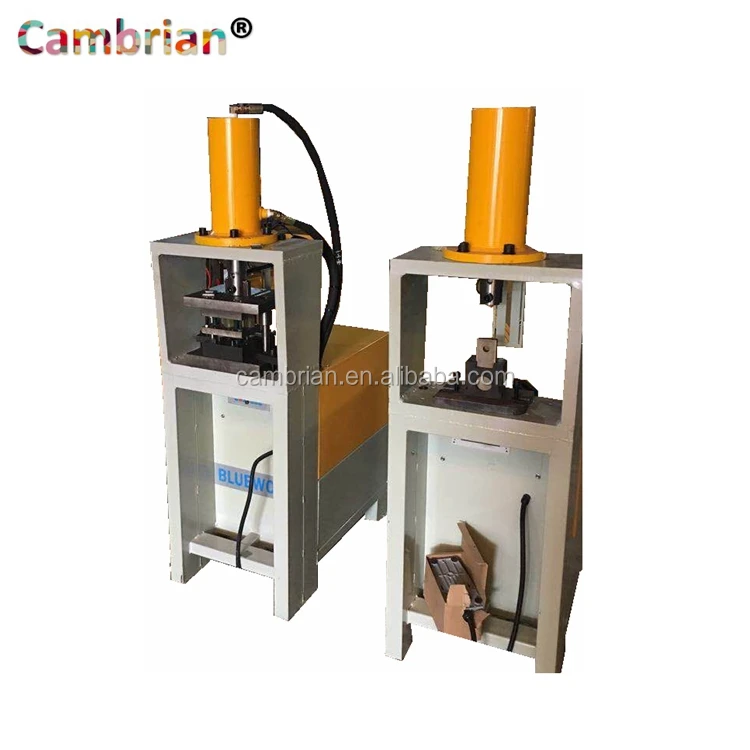

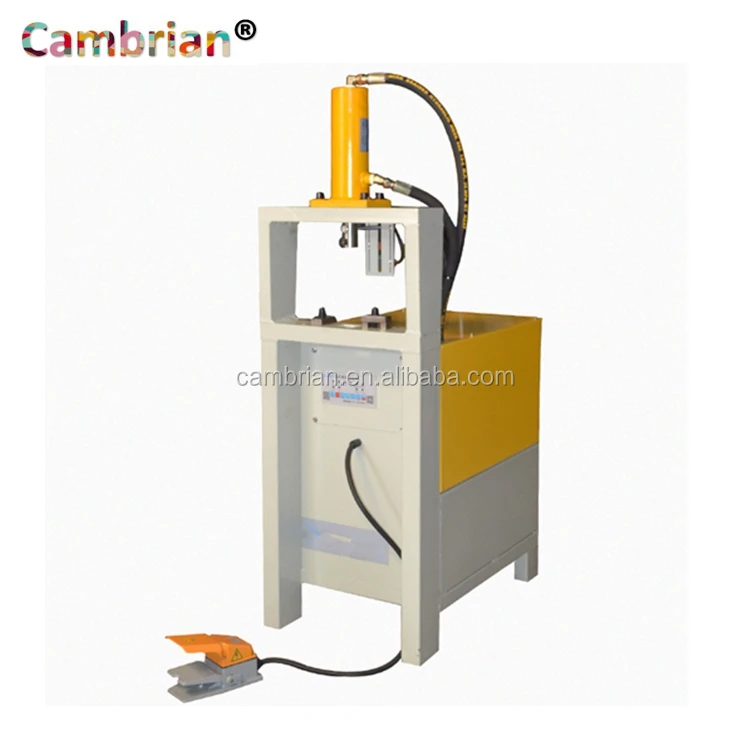

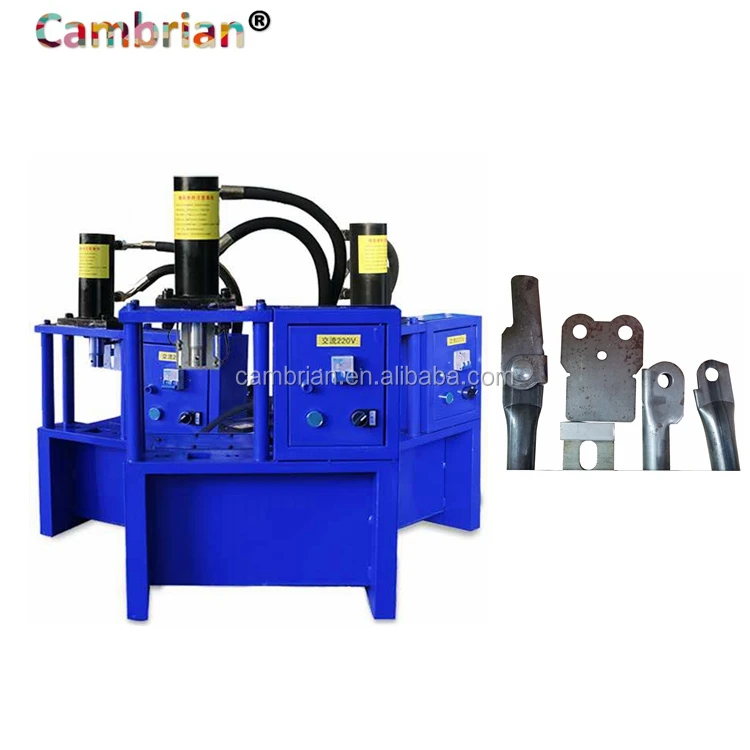

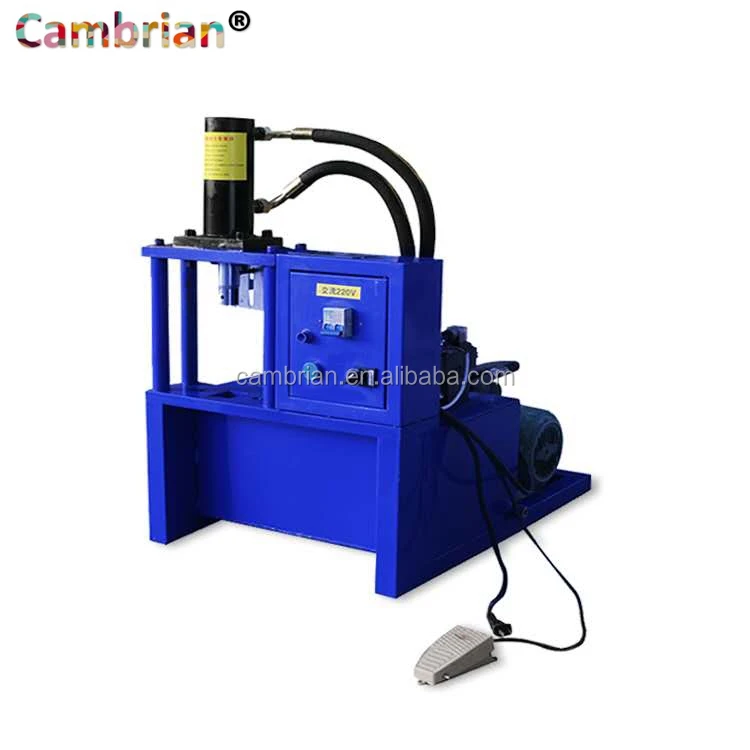

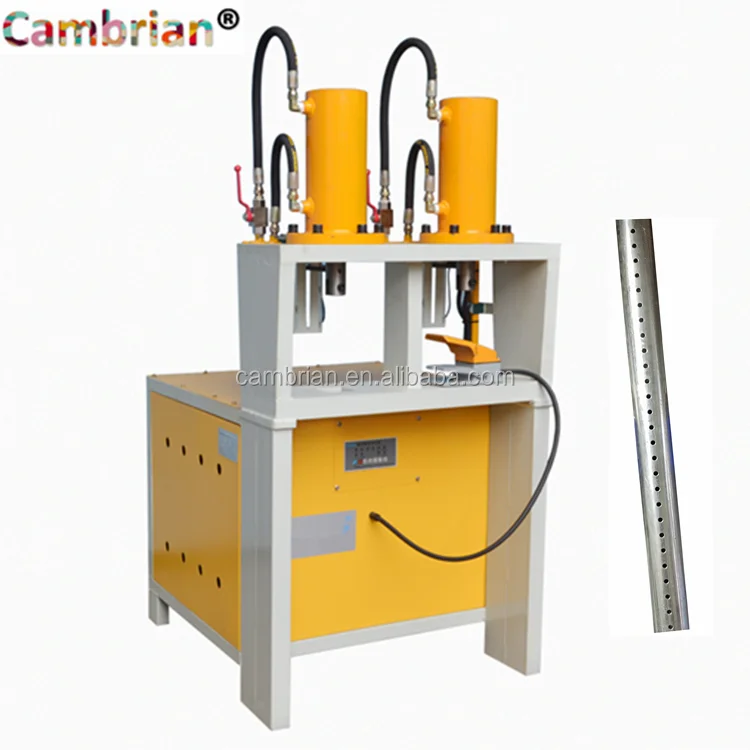

Detailed Images
Best quality steel tube punching machine with lowest price

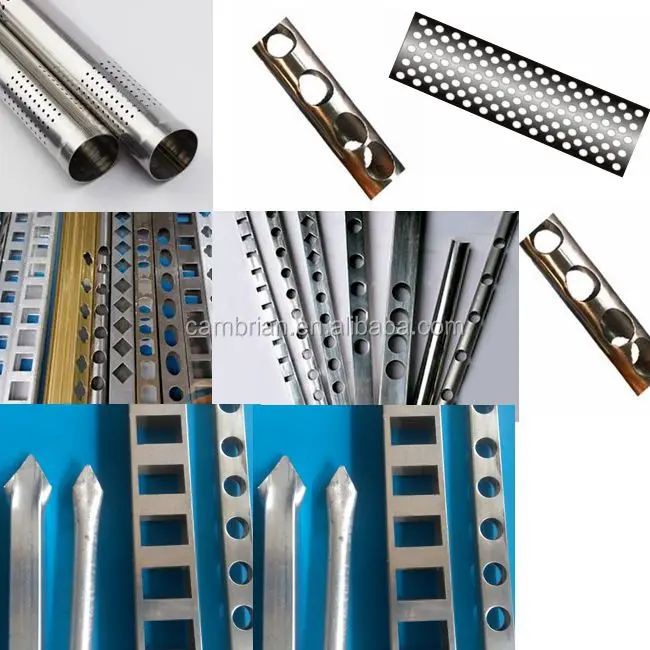

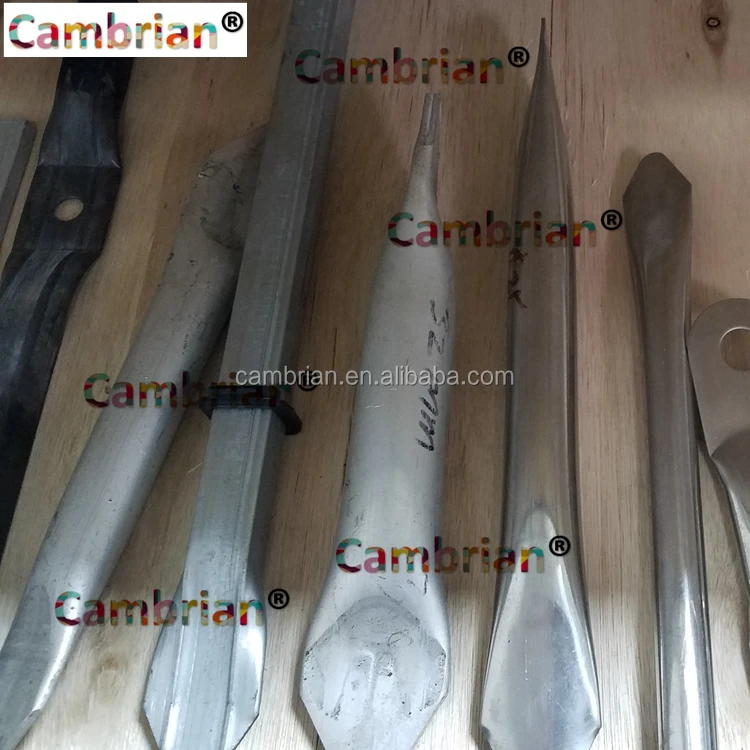

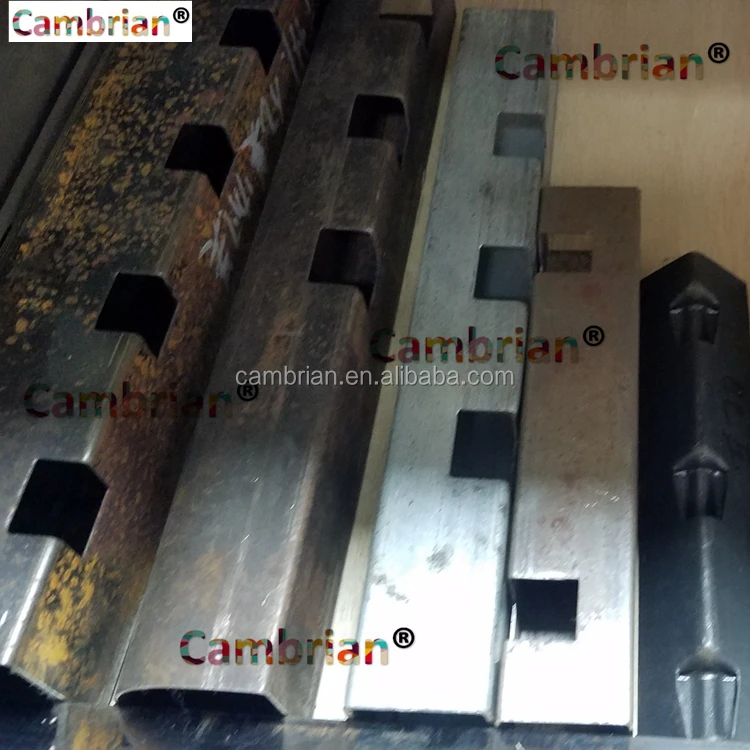

1.Easy and fast punch 2. Change mold easily, We can customize it as per request. 3. The hole shape can be customized as per the request. 4. Hydrau-cylinder control ,more stable 5. Punching holes are smooth and no burrs and no deformation. 6. Half Hole or Completely hole are available
1.Touch Screen settings, CNC control system, precise servo motor positioning, module storage
memory function, equipped with hydraulic and Servo System. 2.Mould replacement: change the die easily without adjusting the dies to reduce the mould damage
rate and pipe fittings rejection rate due to the dies setting error. Skillful workers can change the
mould within 10 minutes. 3.Step-less operation adjustment, hydraulic loops designed with zero load, combined with
extremely low frequency oil pump motor, effectively reduced noise, increased motor efficiency and
service duration. 4.When the oil cylinder is moving downward, the machine is designed with hydraulic difference
driving loops rated at high or low RPM .it is also featured with high speed downward moving, low
speed processing and hi-speed position resume .it is available to increase the formation stability of
work pieces during puncturing. In addition to increasing the activation speed, it can effectively reduce
HP load to save electrical energy. 5.The electrical control system is designed with the human machine interface, range adjustment use
digital scale, setting low speed position, floor level position, and operation precise and easy.

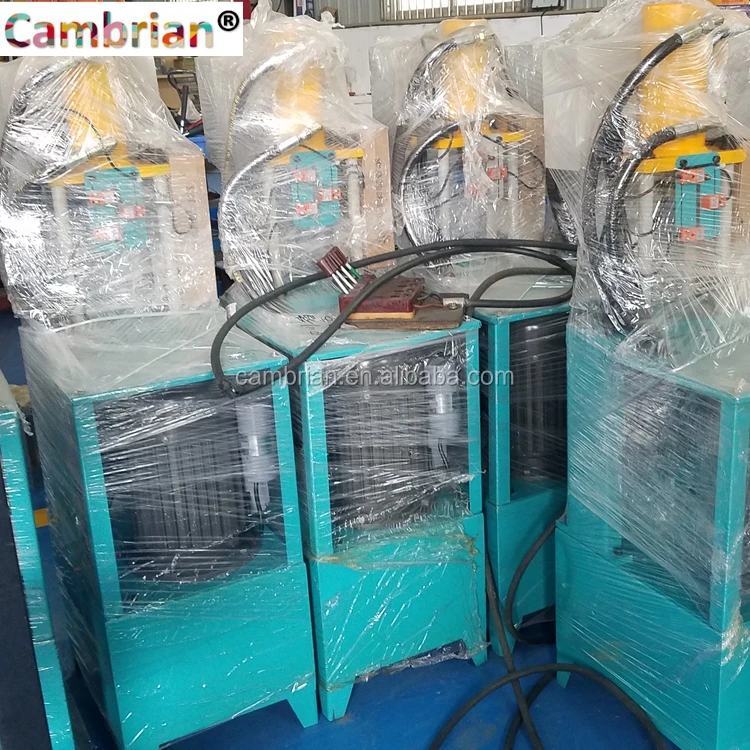

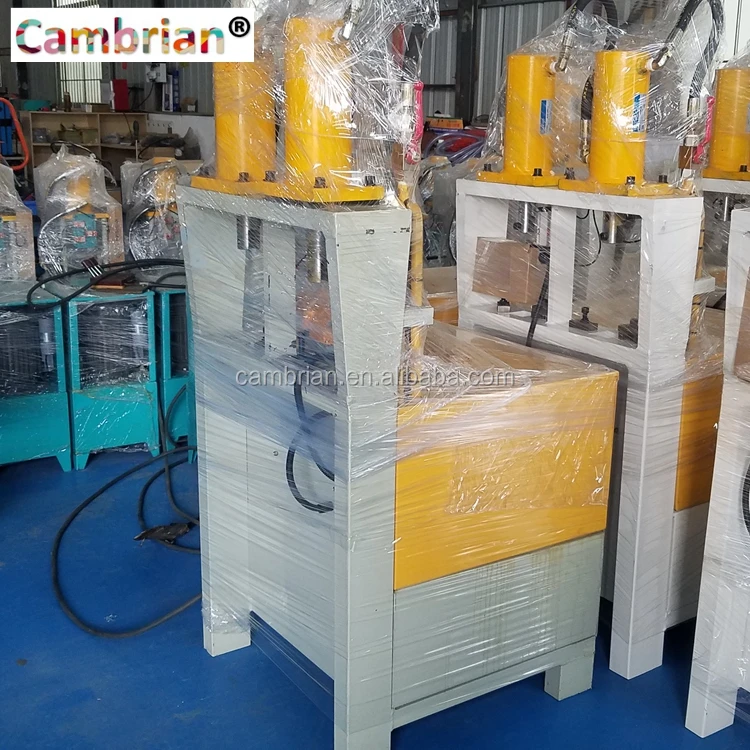

Packaging & Shipping
Best quality steel tube punching machine with lowest price

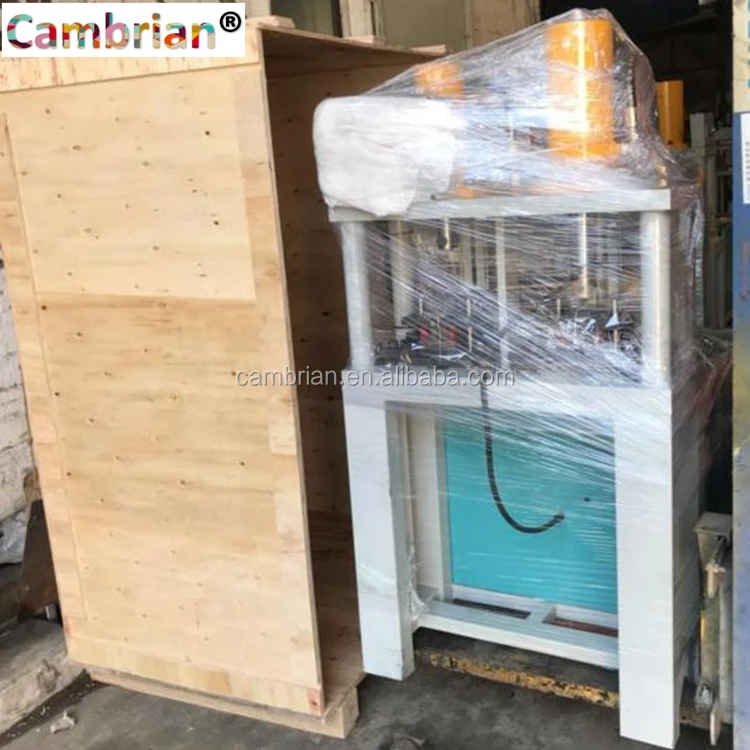

Wooden case packing with seal belt.
Best quality steel tube punching machine with lowest price
Company Information
Zhengzhou Cambrian Machinery & Electronic Co.,Ltd . have been designing, developing, manufacturing
and marketing Machinery for more than 10 years. After these years of development, we have high quality professional teams, skillful talents, strong technical
force, strong and independent research and development capabilities, advanced production equipment and a perfect aftersales service
system. So choose us, equaling to choose the competitive price and stable quality both.
FAQ
What product can you make?
3 tons small hydraulic stainless steel security net punching machine
Student bed frame column punching, snap stamping
Furniture accessories punching machine elliptical tube punching can tap the lock screw
