Full continuous shea nut butter press & extraction machine, shea oil press machine
- Category: >>>
- Supplier: Henan Huatai Cereals And Oils Machinery Co. Ltd.
Share on (60703828502):
Product Overview
Description
Product Description
Full continuous shea nut butter pressing&extraction plant main parts:
Pretreatment&Prepress:
a. Cleaning device:remove various impurities in raw material shea nut, such as: iron,
stones, clump, such as the plant leaf, clean up till impurity content does not exceed 0.2%.
b.Crushing machine: crushed into 6-8 pieces. In order to meet the requirements
of crushing, the shea nut is suitable for crushing with the moisture of 7% to 12%.
c. Softening process:the purpose of softening is to adjust the moisture and temperature
of oil, and make it soft.
d.Flaking process: rolling raw material into flakes, and the purpose is to increae surface
area, destroy the peanut cell tissue, shorten the way of oil out from cake.
e:Cooking process: use steam cooking, inject direct steam and cook the flakes to meet the
requirement of oil press.
f.Pre-press: press the flakes to leave about 16%-18% in the cake. The cake will go to extraction
process.
g.Press: press the cake till 6%-8% shea butter left in the cake.

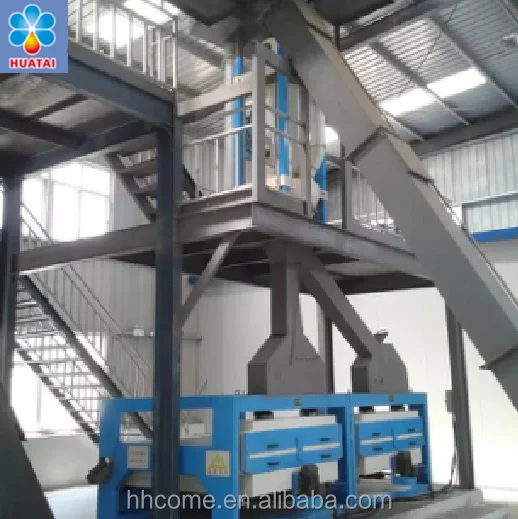

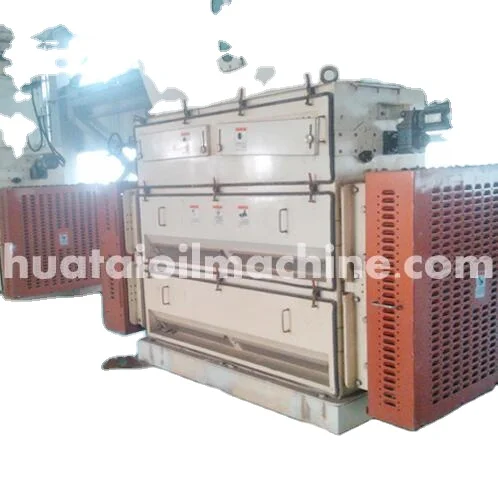

Cleaning sieve
Destoner

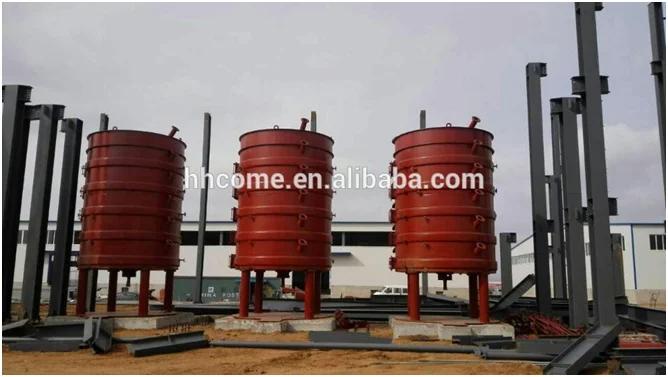

Cooking pot

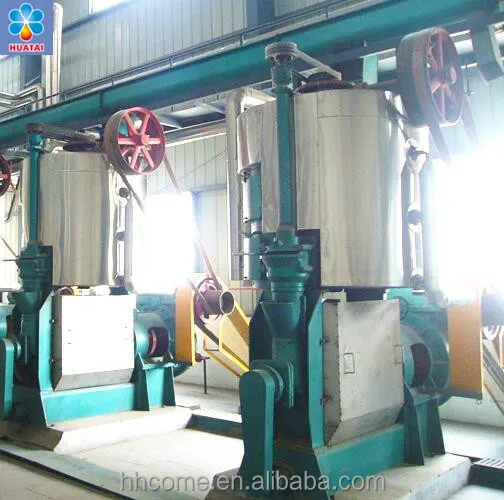

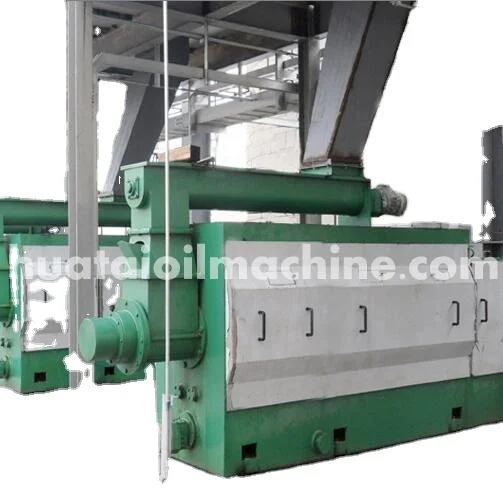

Oil press
Oil press
Refining section
The main refining plant processes: degumming, dehydration, bleaching, deacidification, deodorization, dewaxing, degreasing. Crude oil in squeeze, extraction crude oil
can be obtained national quality standards of edible oil through
refining plant
Refining workshop process: fully continuous refining equipment, refining equipment, and semi-continuous batch refining equipment.
Huatai Oil refining machinery characteristics:
1, continuous alkali refining shorten the contact time of oil and lye, reduce fat saponification, low power consumption and improve efficiency;
2, bleaching and steam stirring decolorization premixed combination of technology, improve the decolorization efficiency, saving the amount of clay, simple operation; a negative pressure and oxygen in the air to avoid contact with hot oil, to ensure the quality of oil, acid value rise suppression, reduce excessive oxidation number.
3, using the new continuous physical refining deacidification deodorization, deacidification deodorizing suitable for high acid value and low gum content of the vegetable oil, the actual production proves that the process has the following salient features: strong acid removal ability, good heat decolorization, refining rate, good quality oil.
4. The process multiple heat exchange systems take advantage of the heat, reduce steam consumption, the production process also has an adjustable, flexible operation, high automatic degree of sanitation.
Applicable oil: soybean oil, sunflower oil, rapeseed oil, cottonseed oil, peanut oil, palm oil, copra oil, rice bran oil, animal oil all need refining oil.
Refining plant capacity: 10-1000T / D

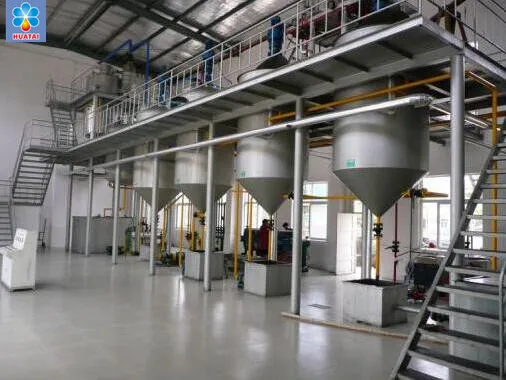

Refining workshop
Continous oil refining machine
Packaging & Shipping
Our Services
1.We are resonsible for installation and debugging;
2.Instruct operation workers about the operation skills and offer technical service.
3.Quality warranty of the whole set of equipment is offered;
Main Projects Scope:
| Project name | capacity | suitable for raw material |
| oil pressing production line | 10--800t/d | sunflower seed, soybean, peanut, sesame, corn germ, tea seed, rapeseed, cottonseed, etc |
| oil solvent-extracting production line | 30--800t/d | pressed oil cake, soybean flakes, rice bran pallet, etc. |
| oil refining production line | 3--500t/d | all kinds of vegetable oil, animal oil, etc. |
| palm oil mill production line | 5t/h--90t/h | palm fruit bunch |
| oil fractionation production line | 20--500t/d | refined palm oil |
| Oilseeds protein, phospholipids | 50--500t/d | soybean meal, etc. |
| Natural pigment extraction production line | 30--500t/d | piment, vegetable , etc |
| grain deep processing line | 20--1000t/d | corn, wheat, beans, etc. |
Company Information

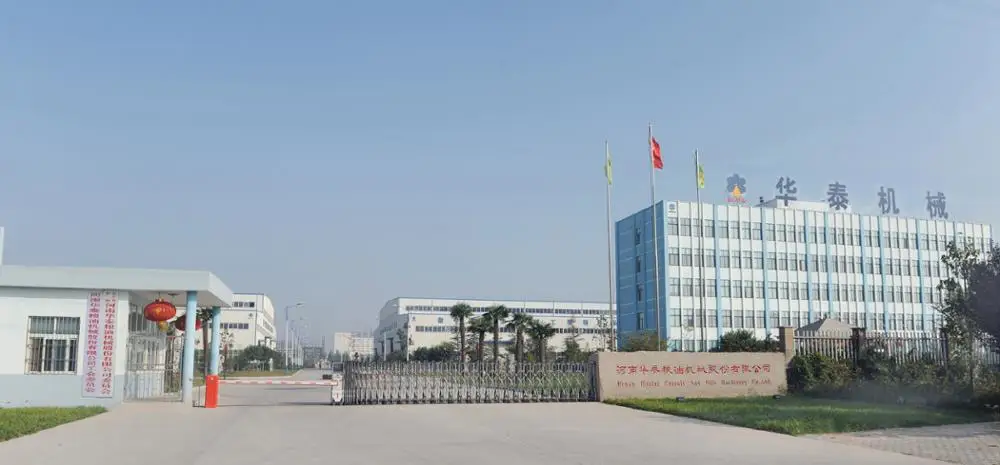

Henan Huatai Food & Oil Machinery Engineering Co., Ltd. , formerly Henan Huaxian Grain Machine Factory, is TOP 10 oil machine manufacturer,also the first and the biggest rice bran oil machine manufacturer in China.We are a large scale oil machinery manufacturer integrating research, development, design, manufacture and installation. Established in 1988, we have 210 senior engineering technicians among 580 staff, with investment amount of USD60,000.000, covering 10 hectares of factory area, 8 production workshops, 2 machining workshops,12 installation departments.We have 202 sets of automatic processing equipment, annual processing capacity is more than 3000 sets.
Our oil machines sell well in more than 30 provinces, cities and districts, and exported to Kazakhstan, Tajikistan, Uzbekistan, Russia, Bolivia, Peru, Egypt, Bangladesh, Myanmar, Malaysia, Indonesia,Solomon Islands, Sudan, Rwanda and other countries and regions, and now we have developed into a major oil machinery manufacturing base in China.
Customer visiting
Any products you need, please feel free to contact with us.
We will design the equipment according to your actural conditions and give the resonable price.
