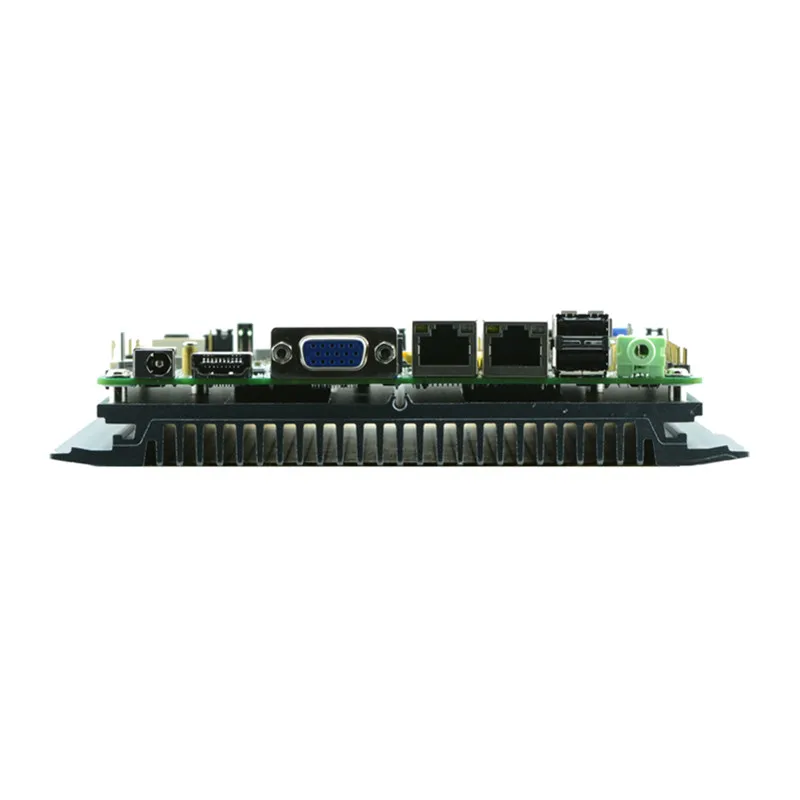

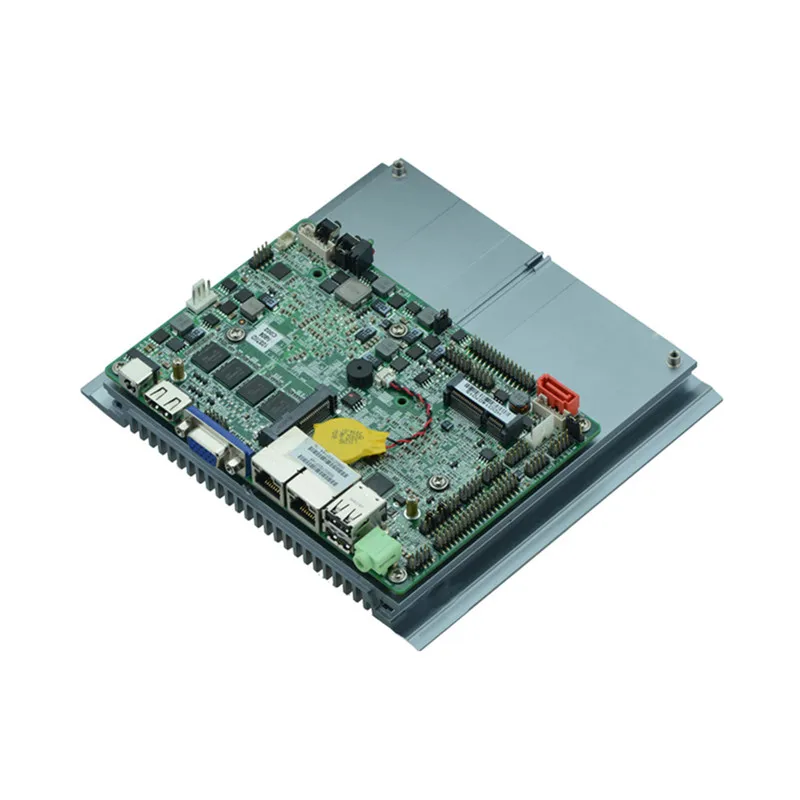

X86 Intel i3 3217U processor dual ethernet ports lan nic linux win7 3.5 inch MINI Car pc motherboard with 2 x LAN port
- Category: >>>
- Supplier: Shenzhen Armortec Technology Co. Ltd.
Share on (60703836653):
Product Overview
Description
Feature:
Integrated Intel 1037U, Core i3 3217U, Core i5 3317U 22nm processor TDP 17W
Intel Sandy /Ivy Bridge Celeron/I3/I5/I7 BGA1023 low power processor
Adopt Intel NM70 Express chipset
2 x Intel® 82583V Gigabit Ethernet, support Wake-on-LAN/PXE

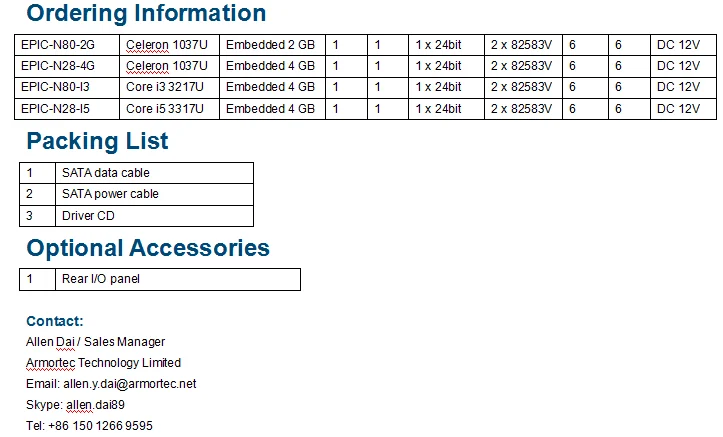

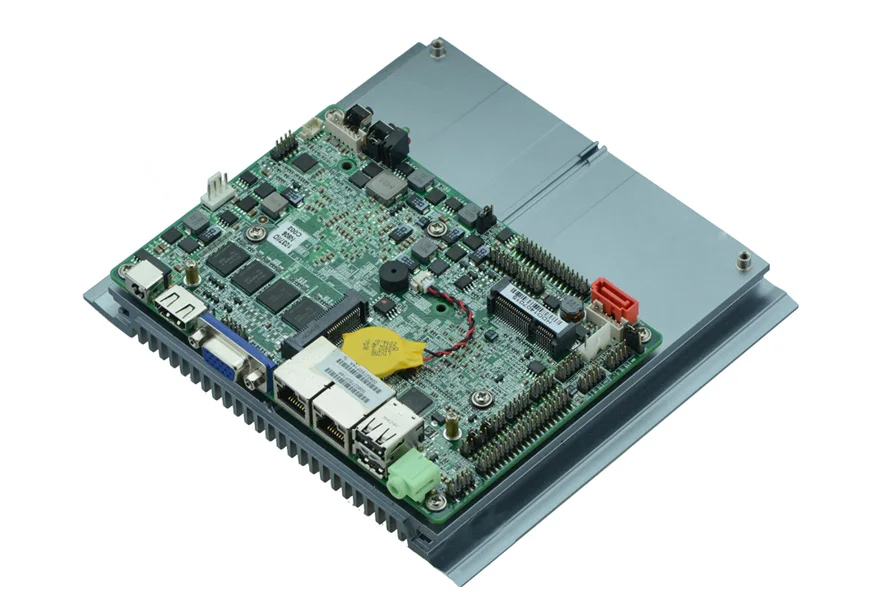

Specification: EPIC-N80
Model No. | EPIC-N80 | |
Form Factor | 3.5 inch | |
Processor System | CPU | Intel Celeron 1037U, Core i3 3217U, Core i5 3317U, |
Socket | FCBGA1023 | |
Max. Speed | 1.80 GHz/1.8GHz/1.7GHz | |
TDP | 17 W | |
Front Bus | - | |
L2 Cache | 2MB SmartCache | |
L3 Cache | - | |
Chipset | Intel NM70 | |
BIOS | AMI 32 Mbit, SPI | |
Expansion Slot | PCI | - |
Mini PCIe | 1 | |
PCIe | - | |
Memory | Technology | Embedded DDR3 2 GB / 4 GB express speed memory chip |
Max. Capacity | 4 GB | |
Socket | Embedded | |
Graphic | Controller | Intel HD Graphics |
LCD | Dual channel 24-bit LVDS | |
VGA | 1 | |
DP | - | |
Ethernet | Controller | Intel 82583V |
Speed | 10/100/1000 Mbps | |
Interface | RJ-45 x 2 | |
TPM | 1 | |
SATA | Max Transit Rate | 300 MB/s, 600 MB/s |
Channel | 2 | |
eSATA/mSATA | 1 | |

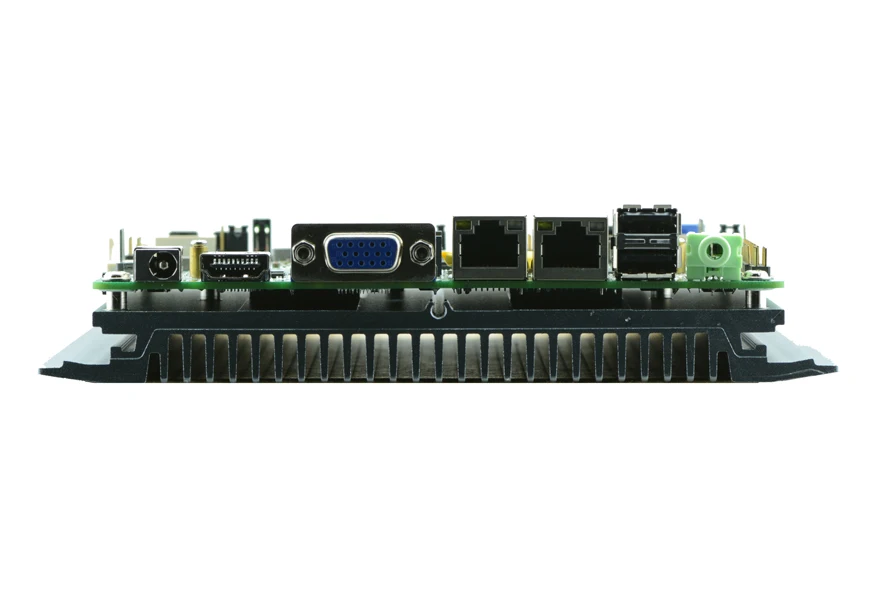

Rear I/O | VGA/DVI/DP | 1/-/1/- |
Ethernet | 2 | |
USB | 2(USB 2.0) | |
Audio | 1 xLine-out | |
Serial | - | |
Parallel | - | |
PS/2 | - | |
DC Hole | 1 | |
Internal I/O | LVDS | 1 |
VGA | 1, same signal with DB15 | |
USB | 4(USB 2.0) | |
COM | 6(RS 232), COM2 supports RS422/RS485 | |
LPT | - | |
SATA | 3 | |
Compact Flash | - | |
IDE | - | |
SIM | 1 | |
PS/2 | 1 | |
GPIO | 1 | |
Watchdog Timer | Watchdog Timer 1~255 Level Time Interval | |
Power | Power Type | Desktop adapter |
Power Supply Voltage | DC 12V | |
Environment | Operating Temperature | -10℃~60℃ |
Storage Temperature | -20℃~70℃ | |
Relative Humidity | 5%~95%, Non-condensing | |
Mechanical | Dimension(W x D) | 148 mm x 102mm |
Opertating System | Win, Linux | |
Certification | EMC | CE, FCC |
Producing Process :
SMT
DPI
AOI
Assembly
Burn- in Room
Packaging
Test And Packing into box
Shippment
Established in 2011, Armortec Technology Limited has grown rapidly in the industrial motherboard industry, diversifying itself from a manufacturer for industrial motherboard to industrial PC, mini PC, firewall server and industrial motherboards. This has made Armortec the choice vendor for many of the quality-oriented manufacturers that integrate PC assemblies into their non-PC equipment where unique form factor, 24/7/365 operation, strict revision control, harsh operating environments, and 5 to 7+ years product life cycles are required.
Armortec is a company that is fully committed to developing its products, services and consumer relations through extensive R&D, strict Quality Assurance practices, and effective outreach initiatives. Customer loyalty through interaction, focus and feedback are policies that help form the Armortec culture, as well as a commitment to achieve, and a dedication to innovate.
In their efforts, Armortec's global achievements in the industry have received both recognition and respect, proving their level of quality and commitment time and time again. Armortec continue to develop award-winning products, offering a complete range of networking solutions consisting of industrial motherboard, industrial PC, mini PC, firewall servers, NAS PC, ATM PC, POS PC and so on.
Through technological advancements and the power of imagination, Armortec is continuing to grow, endlessly striving to achieve their goal of becoming one of the top 3 industrial PC and mini PC providers in China. While continuing to develop their global market share, Armortec will never cease to promote opportunities to further advance through the world of networking and innovation.
Armortec - Technology Creates Future.
Our Services
1.Warranty: 1 year, the second year and the third year, we can
repair it free. but we will charge for the parts that need to change.
2.We can sell one sample for your test.
3.We can provide OEM/ODM services.
4.We ensure offer great products, services and favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
Question: Can you put my brand name (logo) on these products?
Answer: Yes, We can support OEM/ODM service, the process of customization is following:
1: Provide your specific requirement.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.
Question: How much do I need to pay for your OEM service?
Answer: You should pay extra 500$,but we will return the 500$ to you when your order over 100 pieces.
Question: How did I trust your company?
Answer: We have 12 years export from Alibaba, and our factory have more than 16 years' R&D Manufaturing experiences.
Question: After I get the products, If the products are broken , what kind of After-sales service you support?
Answer: First, please contact us and tell us problems, we can give good solutions to you, Second, you can return the goods, and we repair. We want to make a long time business with you, not one time.
