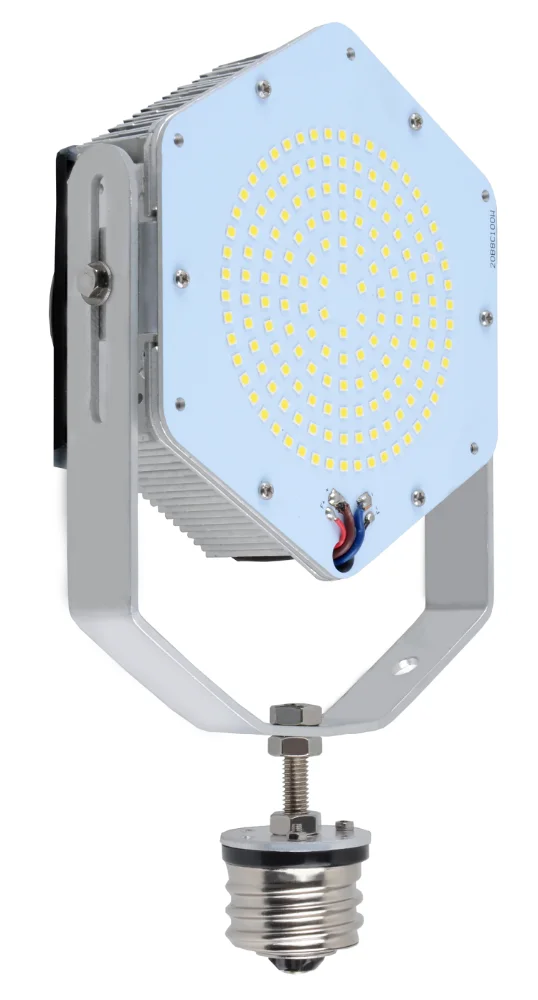

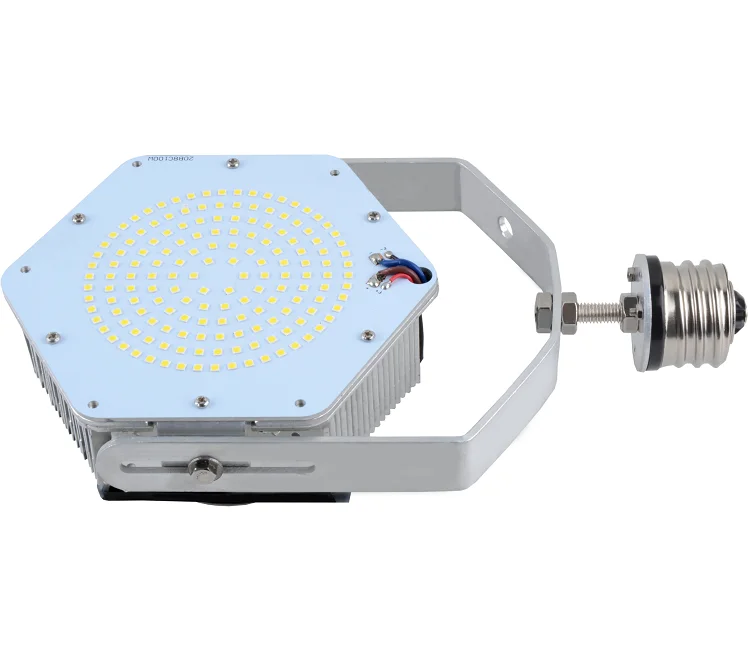

E39 retrofit kits led 150w hexagon for shoe box fixture

Product Overview

Description

Main Feature

• 5 years warranty.
• 0-10V Dimmable Optional.
• Various beam angle of 120 degree.
• Original SMD 3030 LEDs which is up to 133Lm/W.

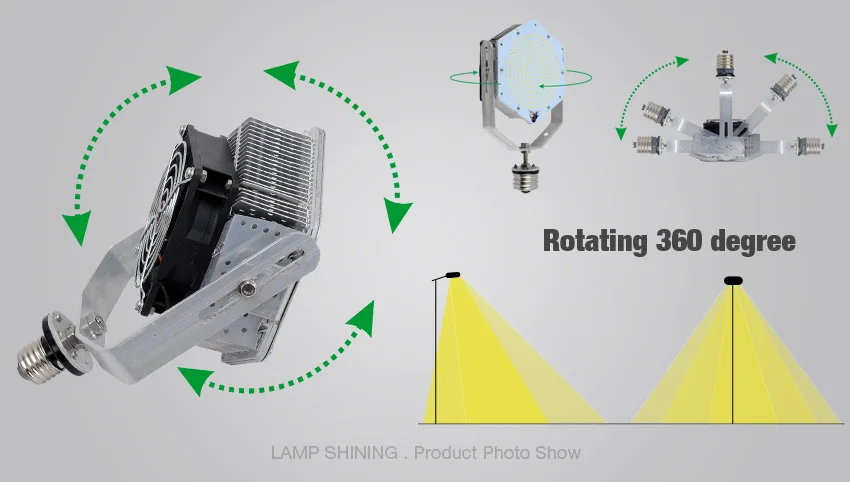

• Arm adjustable with any beam angle.

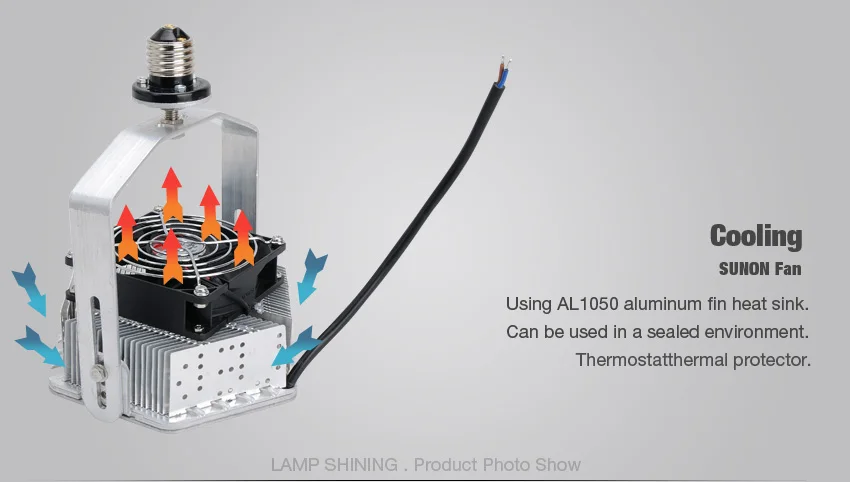

• With a big Sunon fan(60,000hours).
• Body Temperature:<55 oC  @Ta=25 oC
• With the most excellent quality meanwell driver.
• Available with both 100-300VAC & 347VAC & 480VAC.

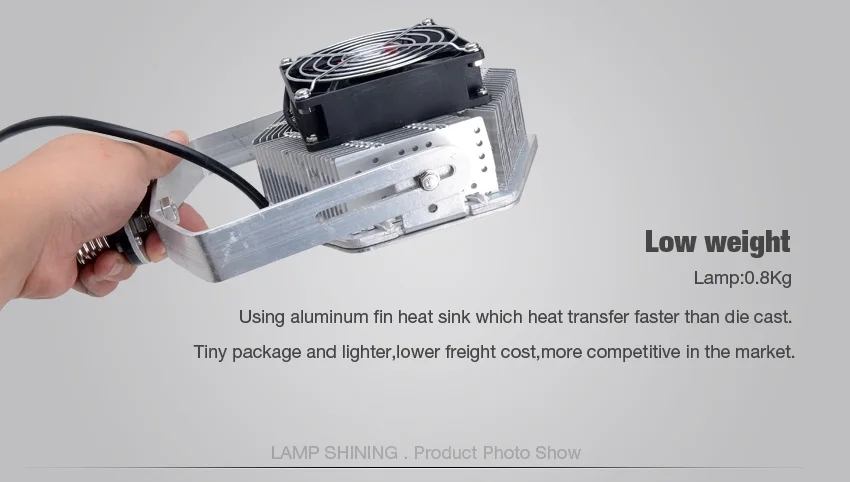

• Using aluminum fin heat sink which heat transfer faster than die cast.
• Tiny package and lighter,lower freight cost,more competitive in the market.
• Avaialble for low bay fixture,street pole,canopy,parking lot shoebox,wall pack,high bay fixtures etc.
• ETL cETL TUV CE RoHS SAA FCC DLC Ctick certified



Outer Dimension







Specifications

Model	LSRK-150WXY
Wattage	150W
Luminous Flux	20000 Lm
Light Source	SMD 3030
LED QTY	240pcs
Driver Power	External Meanwell Driver HLG-150H-48A
Dimension	E27/E26 : Dia145*230mm / 9.05''   (Shortest size)
	E27/E26 : Dia145*300mm  / 11.8''  (Longest size)
	E40/E39 : Dia145*234mm / 9.84''   (Shortest size)
	E40/E39 : Dia145*288mm / 12.59'' (Longest size)
Equivalent	500W metal halide / HID lamp Equivalent
CCT	3000K/4000-4500K/5000-5700K/6000-6500K
Input Voltage	100-300VAC,50/60Hz
Power Factor	>0.95
Cap Type	E40 E39 (mogul)  , E26  E27 (Medium)
optical lens	N/A
Construction	Aluminum fin heat sink bulit-in+ Sunon Fan
Beam Angle	120°
IP Rating	IP60
CRI	>80
Working Tempe / Humidity	-45 to + 50 Deg C / @Ta=25 Deg C
Warranty	5 year Warranty
Rated Lifespan	50,000+ hours
Certified	ETL cETL TUV CE RoHS SAA FCC DLC Ctick certified

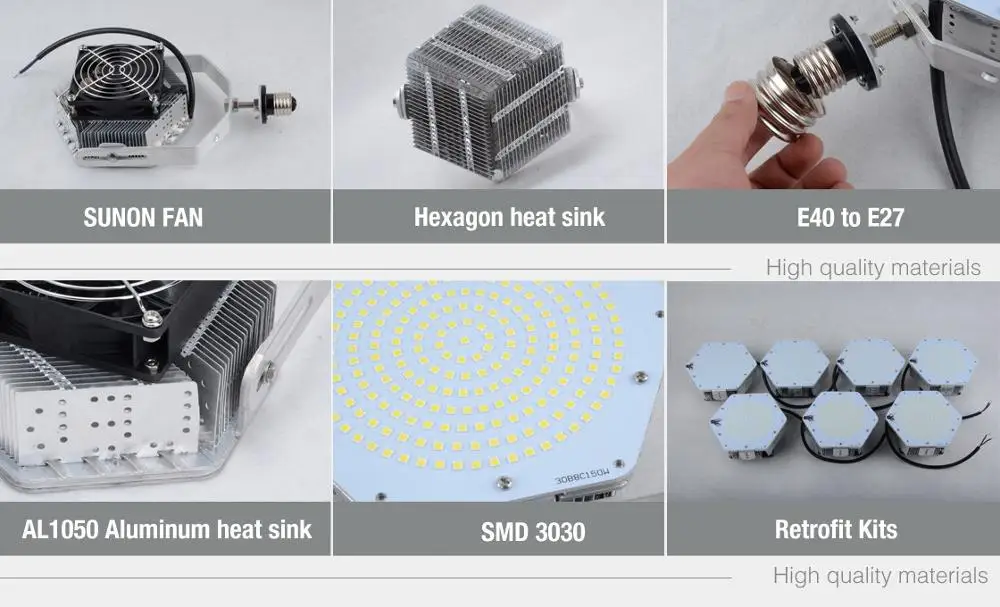

Main Construction Features





DETAIL DESCRIPTION





Accessoriess options

1,When you are using this led retrofit kit in the canopy,wall pack and parking lot shoebox fixture,you may need a kit to have the driver fixed ( Picture 1 )

2,When you have less space to put a lamp with E26 or E39 base,you may choose to use the arm fixed kit (Picture 2)

3,When your traditional fixture has a E40 lamp socket,you may need an adaptor(Picture 3)

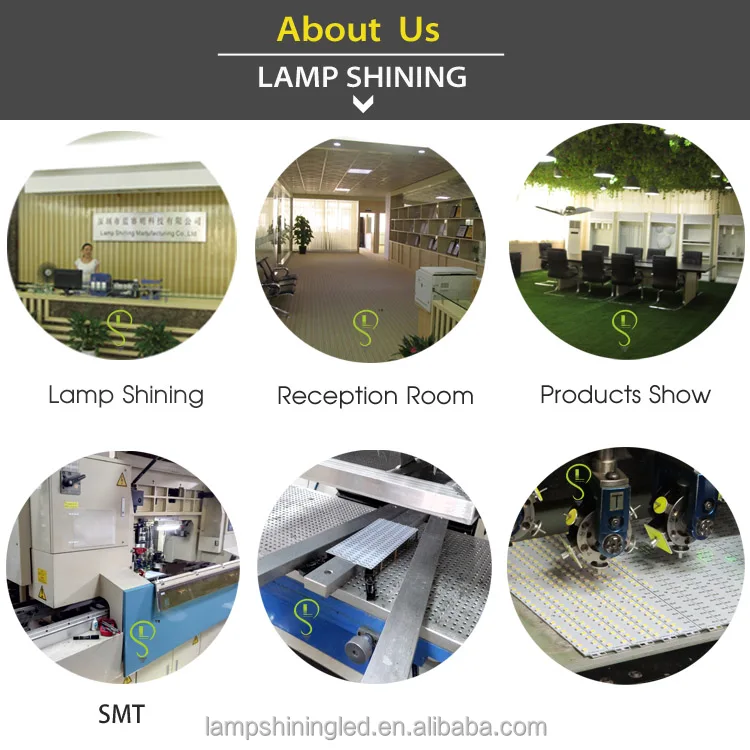

About us



Package



Inner Box

L * W * H	32*29*16cm
Gross Weight	0. 8kg
Package qty	1pc/CTN



Outter Carton:

L * W * H	63*61*33cm
Gross Weight	14.8kg
Package qty	8pcs/CTN



FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 10~15 days for order quantity more than.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
