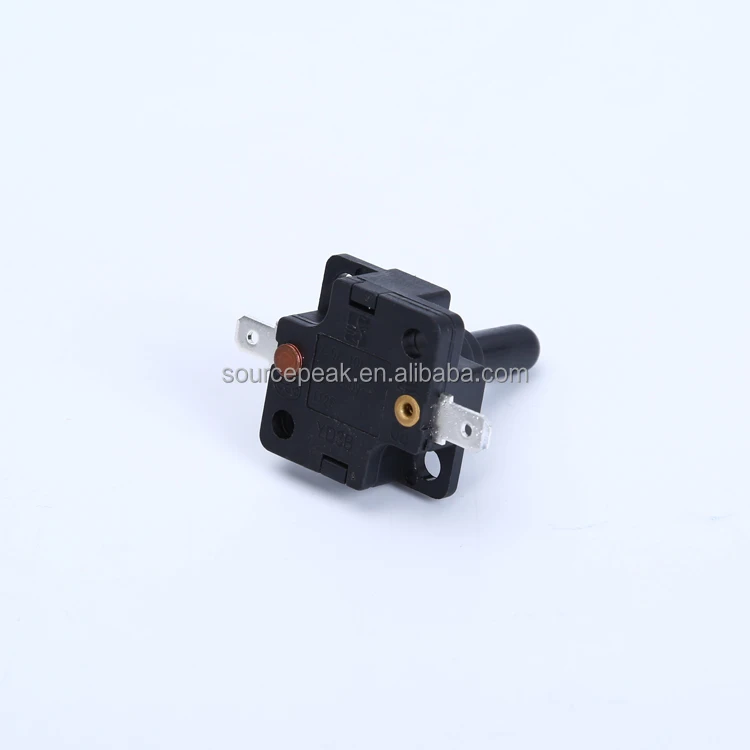

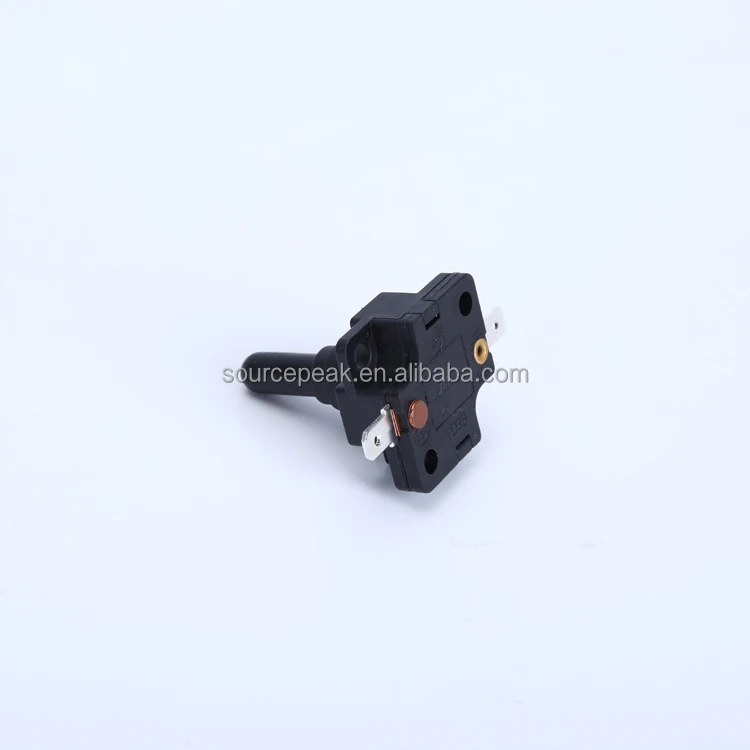

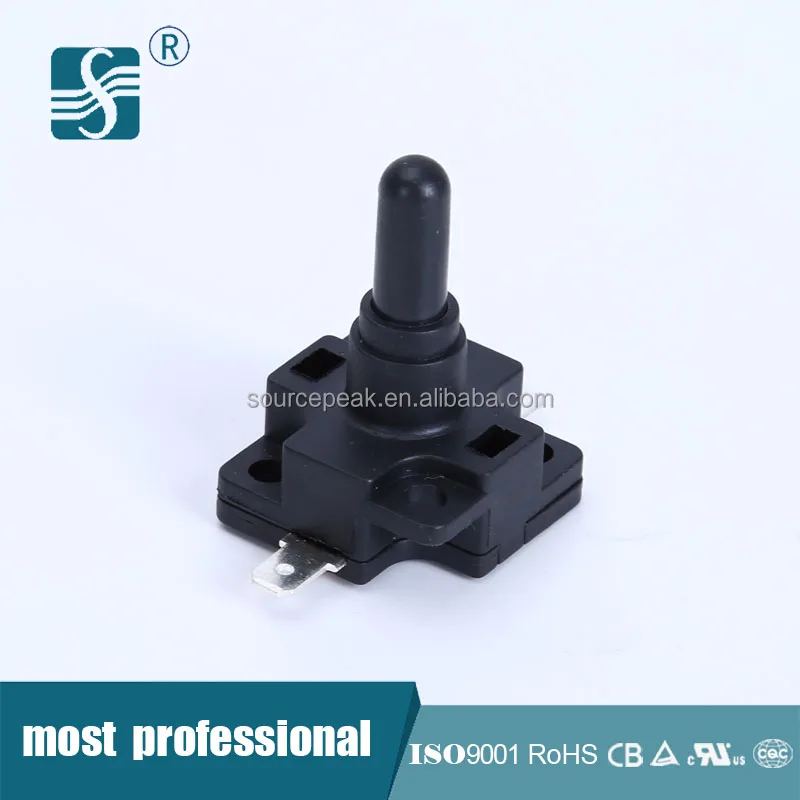

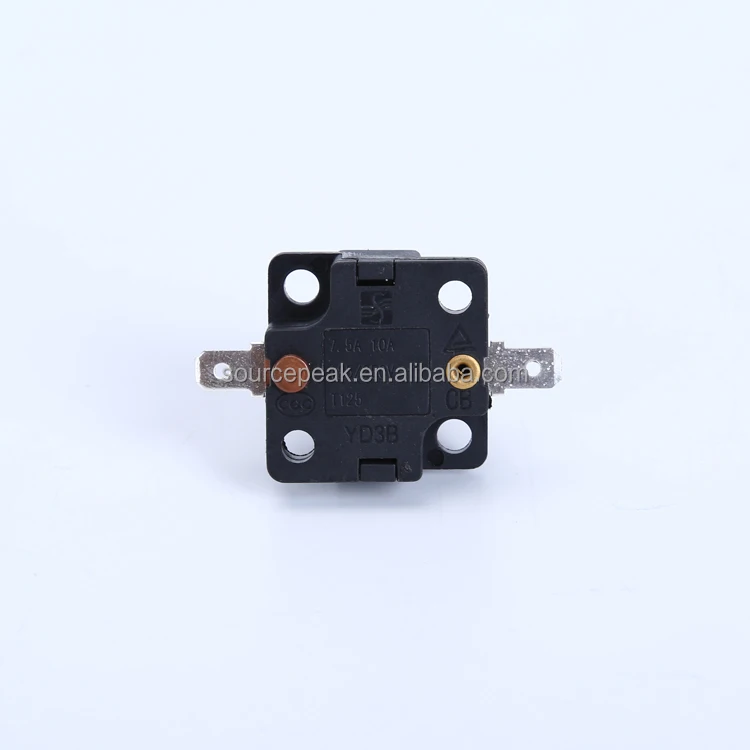

10A 125/250VAC Household Appliances Black Push Button Electric Safety Switch
- Category: >>>
- Supplier: Foshan Shunde Yuanfeng Electronics Co. Ltd.
Share on (60704074506):
Product Overview
Description
10A 125/250VAC Household Appliances Black Push Button Electric Safety Switch
Product Specification:
Items | Specification | |
Dumping angle | 25°~45° | |
Reset angle | ≥15° | |
Working frequency | Mechanical 60 times/min;electric 25 times/min | |
Working current | 16(4)A | |
Working voltage | AC125V/250V | |
Insulation resistance | ≥100MΩ(500VDC) | |
Contact resistance | ≤30mΩ | |
Withstand Voltage | Between homopolar disjoint terminals | AC1000V,50/60Hz,1min |
Between electrical metal parts and earth(enclosure) | AC3750V,50/60Hz,1min | |
Between terminals and de-energized metal parts | AC3750V,50/60Hz,1min | |
Vibration resistance | 10~55Hz,1.5mm Double-amplitude | |
Electrical Life | 10000 times | |
Protective structure | IEC IP40 | |
Electric shock proof protection grade | Class I | |
PTI | 175V | |
Working environmental temperature | -25℃~+125℃ | |
Material | PA66 G30,Phenolic resin | |

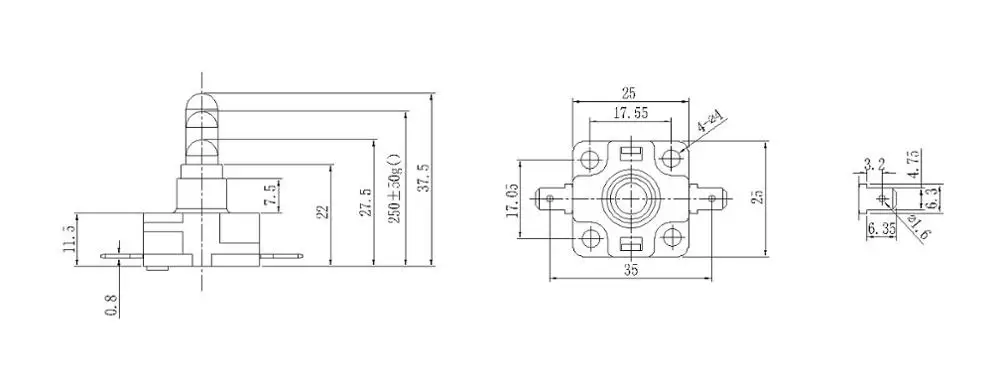

Detailed Images:
FAQ
Q1.Why choose your company?
1. Manufacture experience: 18 years experience in this field.
2.High management standard for quality control.
3. Competitive production capacity and fast shipping.
4. Good quality, competitive price.
5. We provide OEM/ODM service, accepted new design
Q2. How to get the price quickly?
Tell us your requirement, such as working temperature, working pressure,where you will use the products.
Q3.How is the delivery time?
It depends on your quantity, it will take 1 or 30 days as usual
Q4.Could you offer FORM A, FORM E or Co?
Yes, of course,we can prepare relative documents to foreign affairs office or other office for this certificate
Q5. Where is your shipping port?
Normally is Guangzhou& Shunde
Q6. What is your packing?
Standard packing is carton box,other packing for option
Q7. How do you make our business long -term and good relationship?
Always offer good quality goods with competitive price and best service
