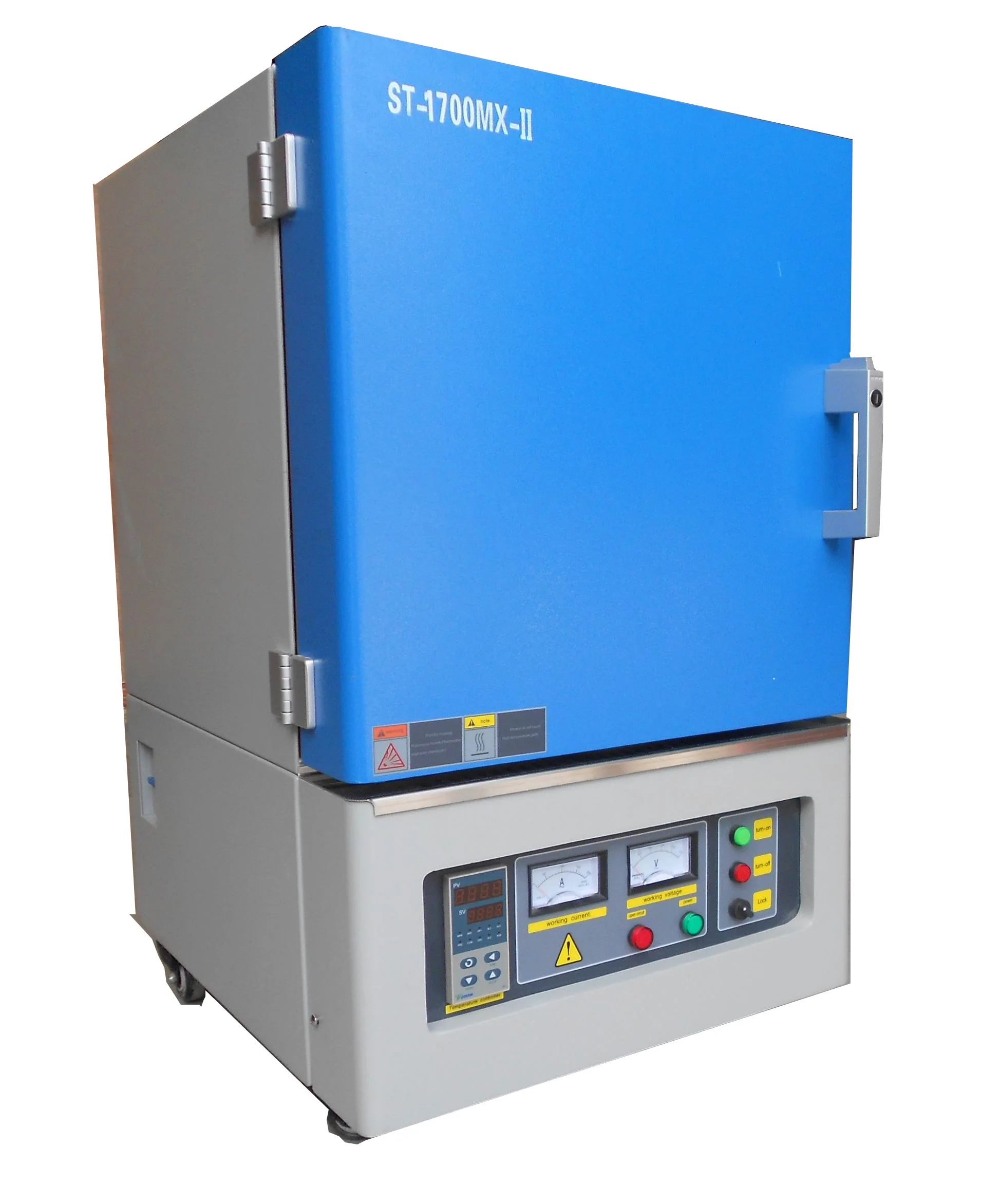

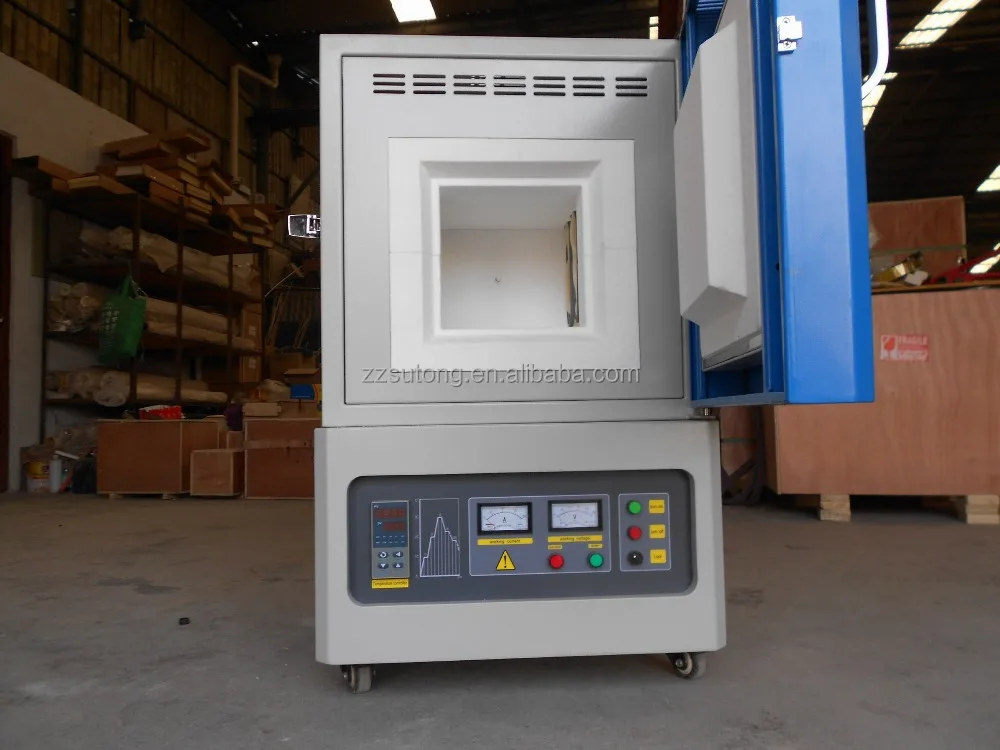

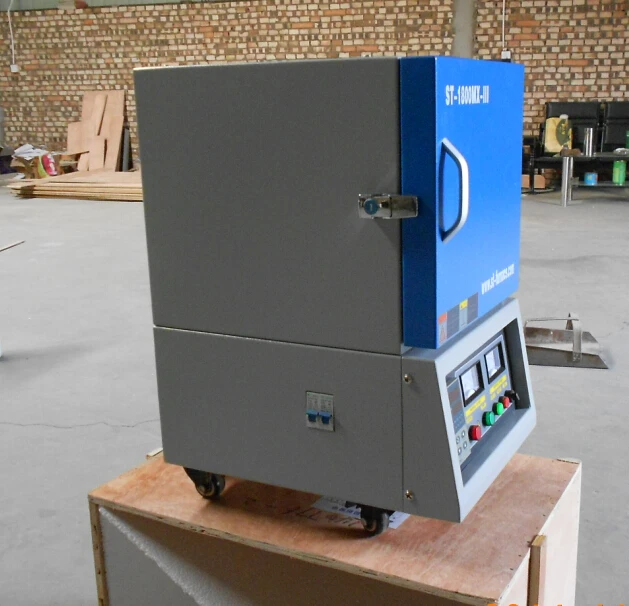

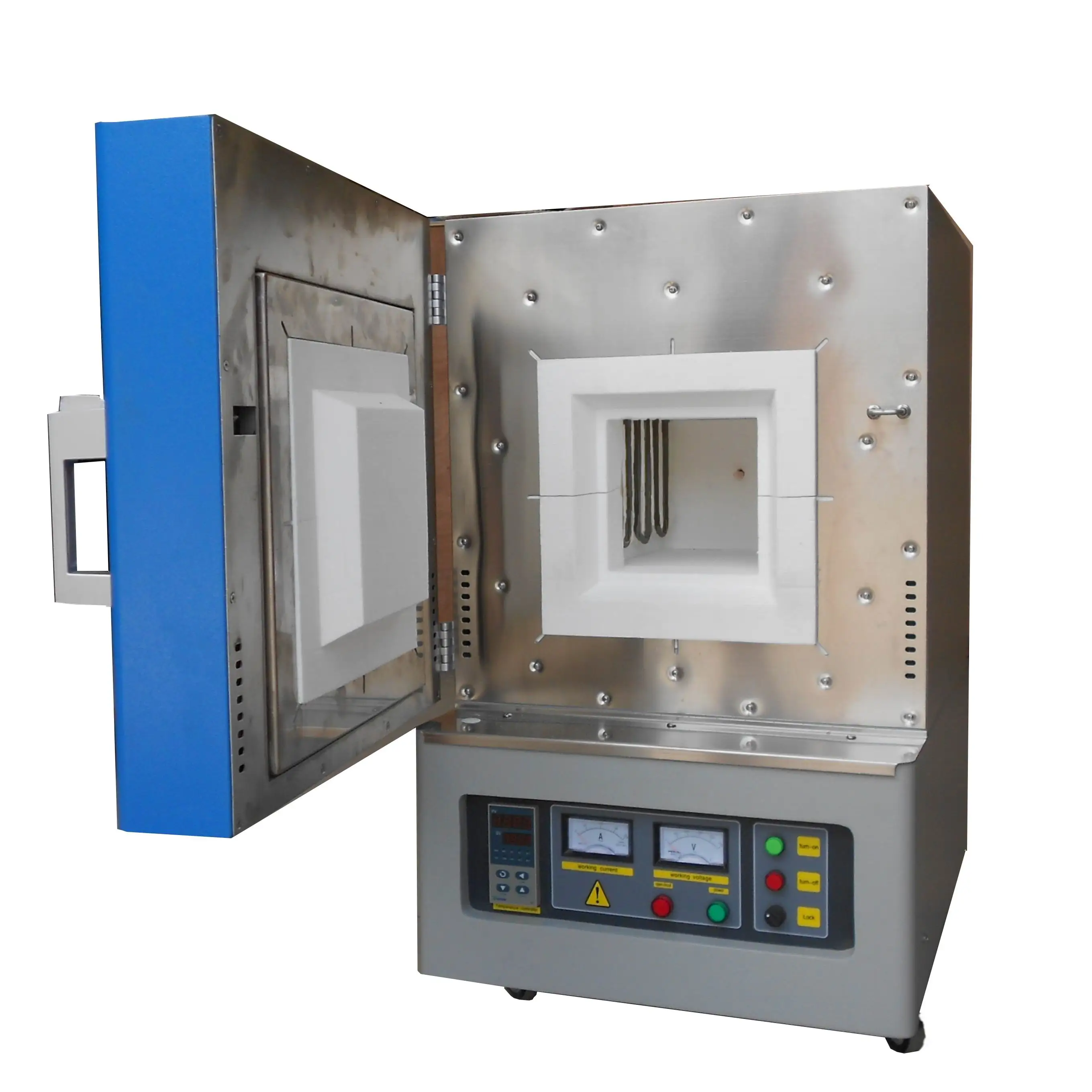

200x200x300mm 12L 1800C ceramic heating chamber furnace for preheating

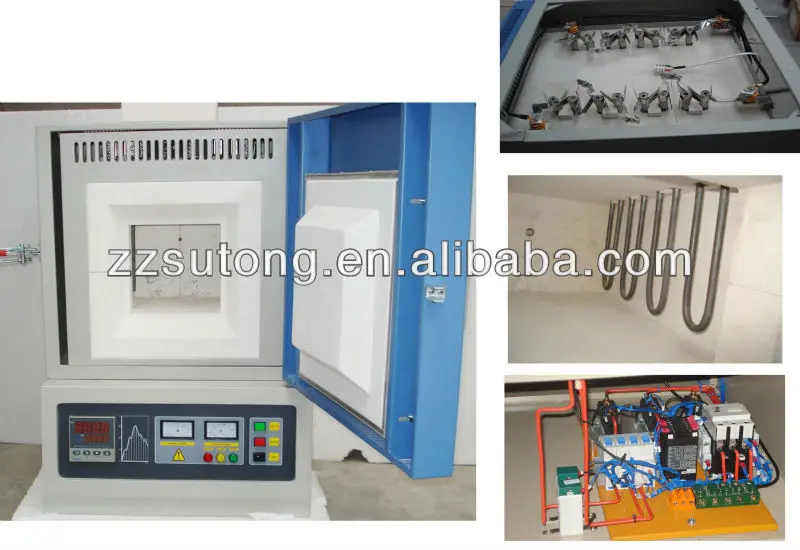

ST-1800MX ceramic chamber furance is a good-effective electric laboratory furnace for metal preheating. The furnace consists of high quality alumina fiber brick and MoSi2 heating elements with special design, and can be used up to 1700°C.
Model: ST-1800MX electric laboratory furnace
Size: All standard sizes and made-to-order
Featurese (electric laboratory furnace)
1. Operation Temperature: 1700°C (1800°C for short time).
2. PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).
3. Power control with 30 segments programmable.
4.Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.
5.Heavy duty double layer structure with cooling fan. Lower teperature in outside case.
High temperature electric laboratory furnace (1700 C)
Descriptions of ceramic heating chamber heating furnace :
| Chamber Size | ST-1800MX-IV (All standerd sizes and made-to-order) |
| Working Temp. | 1700°C (continuous) |
| Max Temp. | 1800°C (for short time) |
| Temp. Control | 30 steps programmable and PID automatic control |
| Heating Rate | 0~15°C/min (suggestion: ≤10°C) |
| Temp. Accuracy | +/-1°C |
| Heating Element | Molybdenum Disilicide (MoSi2) |
| Working Voltage | AC 220V, Single Phase, 60/50 Hz (or according to your requirement) |
| Max. Power | 8 KW |
| Outside Size | 500x485x700mm |
| Net Weight | 269 Kg |

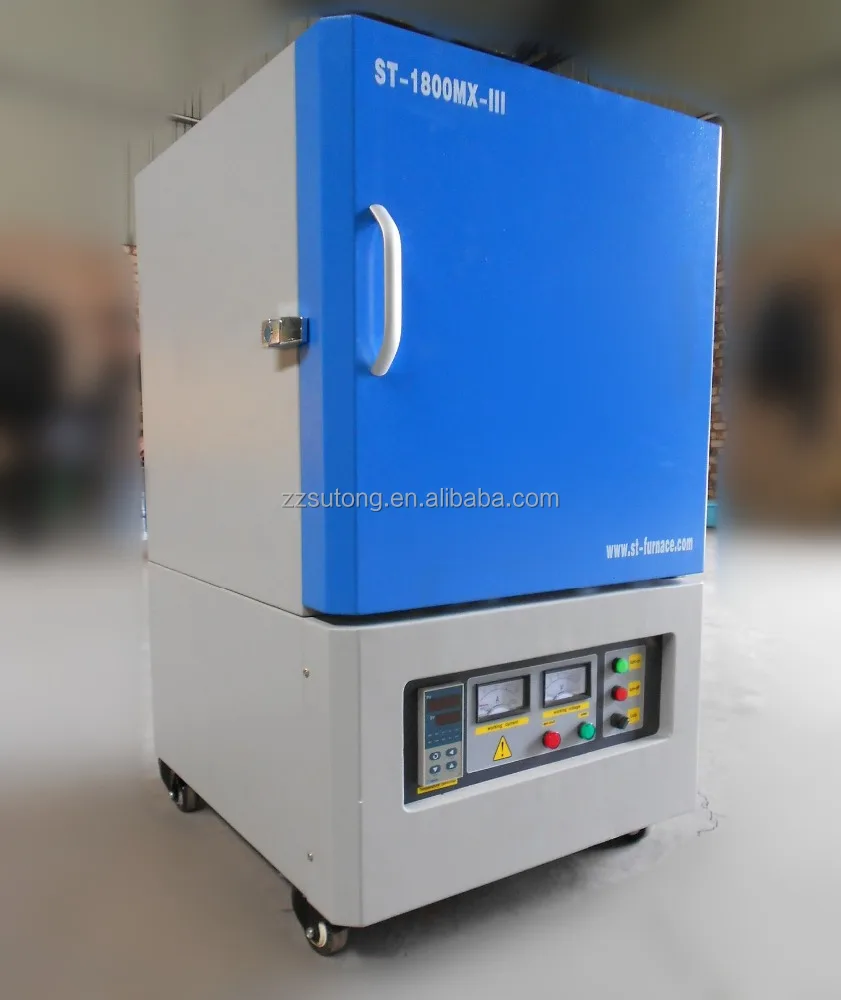

ST-1800MX Ceramic Heating Chamber Heating Furnace
| model | chamber size (W×H×D mm) | Rated power | Work power | Furnace door open way |
| ST-1800MX-M | 100x100x100 | 1.5KW | AC 1-phase 110-240V 50/60Hz | front to right open or left open front to Up open or down open |
| ST-1800MX- 1 | 150x150x150 | 3.5KW | ||
| ST-1800MX- 2 | 150x150x200 | 4.5KW | front to right open or down open | |
| ST-1800MX- 3 | 200x200x200 | 6.0KW | front to right open or down open | |
| ST-1800MX-4 |
200x200x300 | 7.5KW | front to right open or left open | |
| ST-1800MX- 5 | 250x250x300 | 11KW | front to right open or left open | |
| ST-1800MX- 6 | 300x300x400 | 17KW | AC 3-phase 120-440V 50/60Hz | front to right open or left open |
| ST-1800MX- 7 | 350x350x400 | 20KW | front to right open or left open | |
| ST-1800MX- 8 | 400x400x400 | 24KW | front to right open or left open | |
| ST-1800MX- 9 | 500x500x500 | 36KW | front to right open or left open | |
| ST-1800MX- 10 | 600x600x600 | 54KW | front to right open or left open |

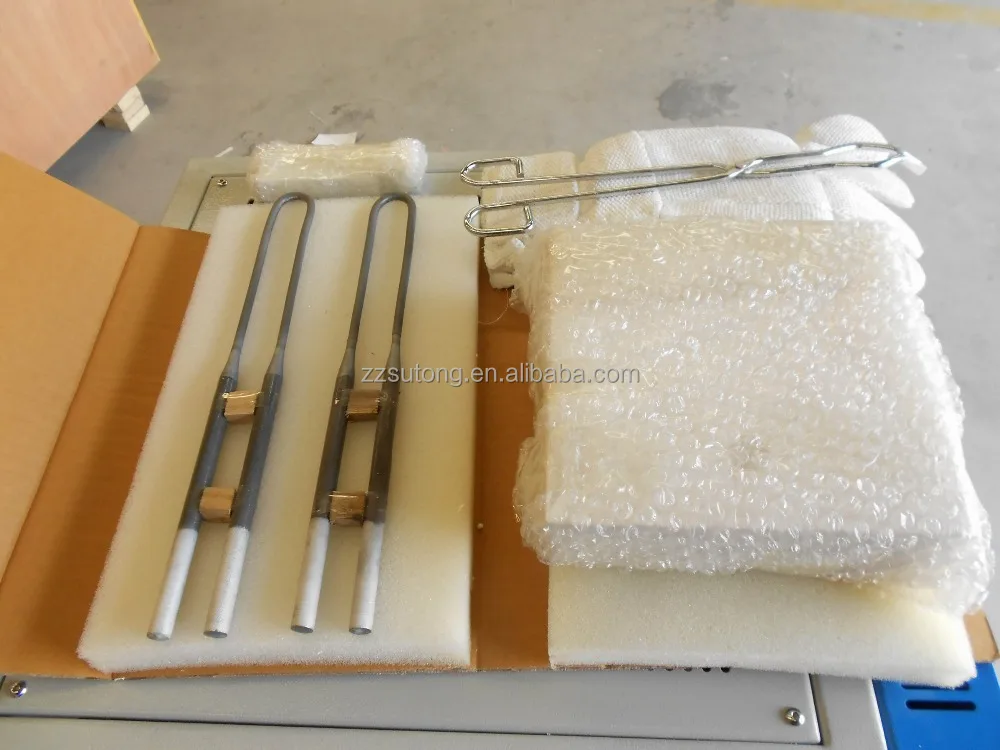

Furnace with accessories :
Our services
package of furnace :
♥ .Packing detailed: plastic foam inside, woooden box outside and according to custom requirement.
Delivery times :
♥ For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;
♥ Other customized sizes the delivery time is from 15 days to 30 days according to different products request.
Our Warranty :
Warranty: One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.
Our advantages:
♥ We are a manufacturer in China. So we can control the cost well.
♥ We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.
♥ We supply good service after sale, you can be assured about that
Our service :
♥ Reply your inquiry and questions in 24 hours.
♥ Our professional technicians answer all your questions in English.
♥ Customized design is available.
