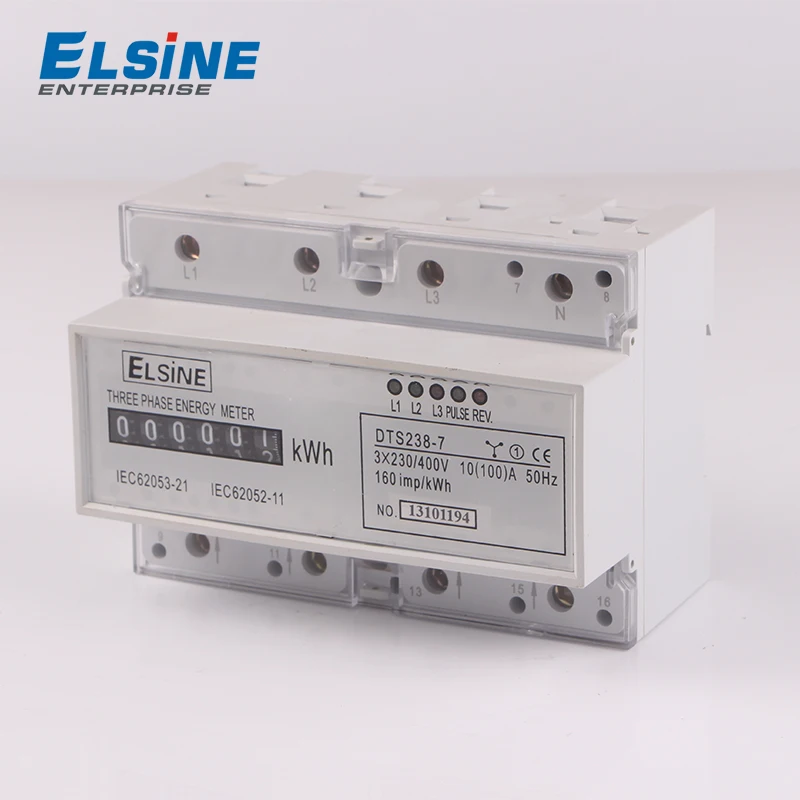

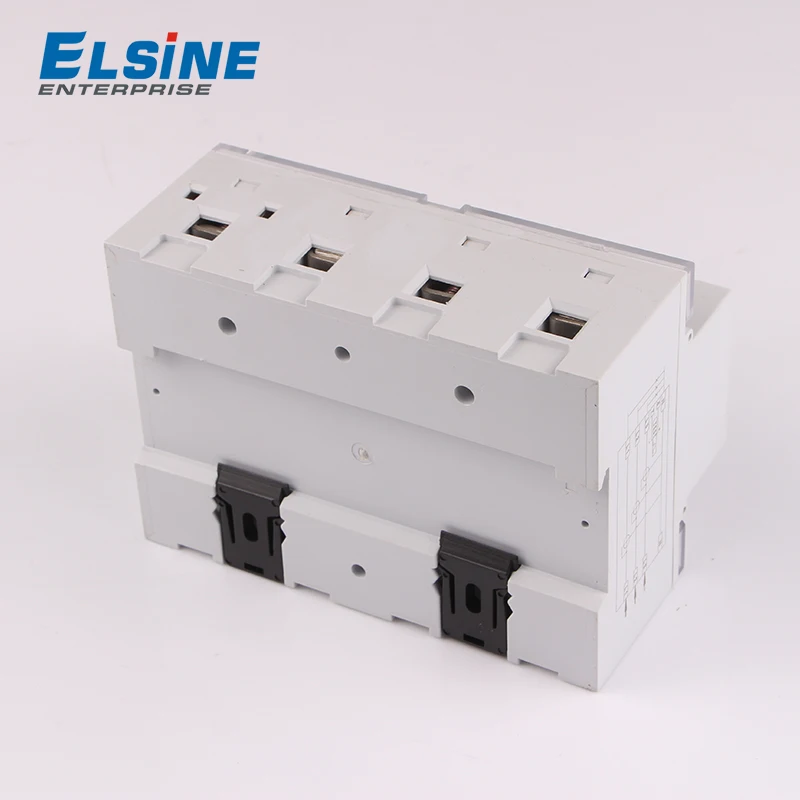

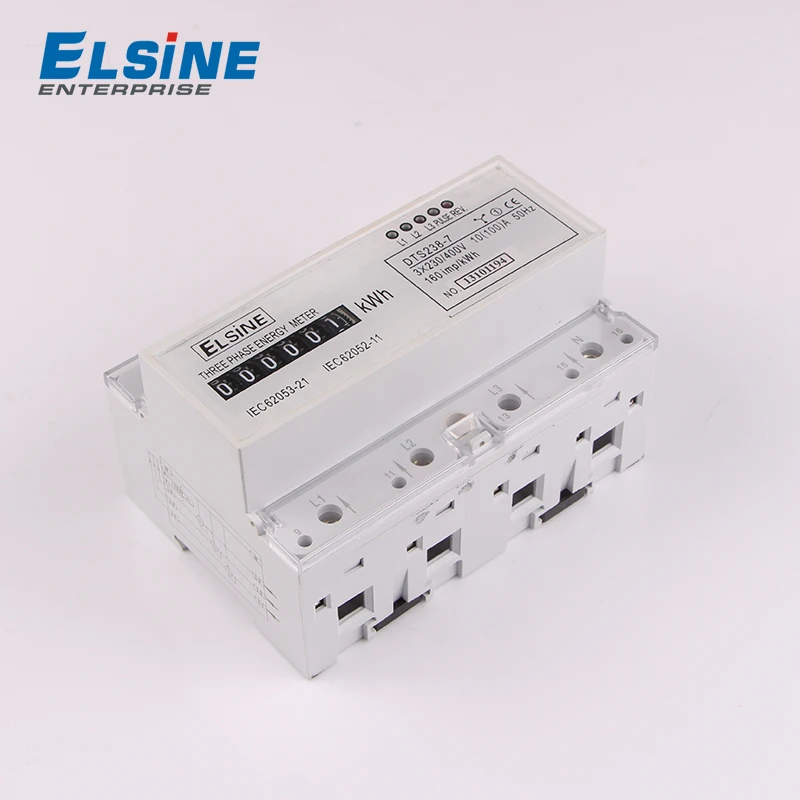

DDS238 7 mechanical lcd display Three phase din rail type watt hour energy meter
- Category: >>>
- Supplier: Wenzhou Elsine Electric Co. Ltd.
Share on (60704197249):
Product Overview
Description
Product Description
The meter is used in three phase four wire/three wire/two phase three wire power grid .The meter is designed to measure AC active energy.All of its functions comply with the relative technical requirement for class 1 three phase watt hour meter in IEC620531-21.It is a long life meter with the advantage of high stability,high over load capability,low power loss and small volume.
Basic Function
1.mechanical step register 5+1 or 6,LCD display 6+1(default)or 5+2
2.Bi-directional total active energy measurement,reverse active energy measure in the total active energy
3.Pulse LED indication.Recerse connection LED indication
4.35mm dia rail installation
Option Function
1.The LCD display meter can measure and display the total forward/reverse active energy
2.LCD display direct connection type order reset function(DTS238-7 RO type)

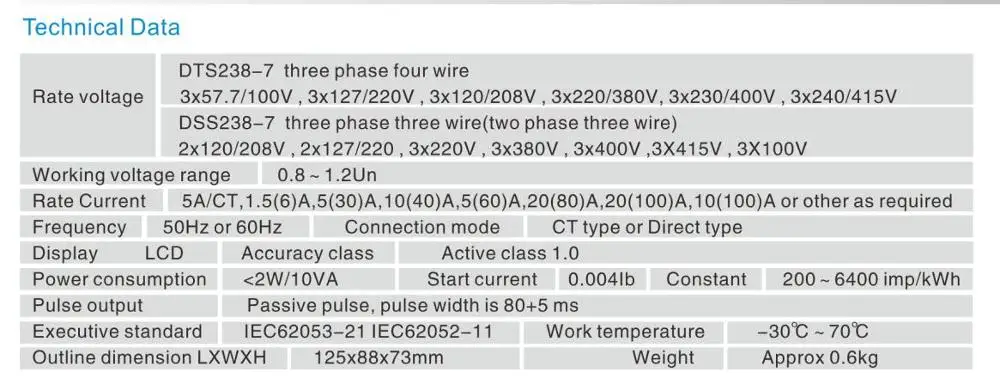

Technical Data

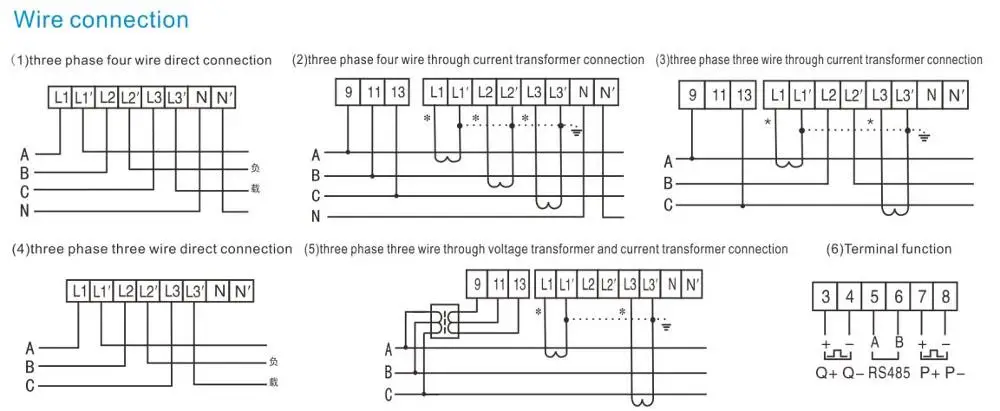

Wire connection
Company Information
Certifications
FAQ
Q 1. What's the payment term?
A. We accept T/T, L/C, Western Union, Cash
Q 2. What's the delivery time ?
A. Usually it would take about 25 days for production
Q 3. What is the standard of package?
A. Export standard package or special package according to customer requirement
Q 4. What kind of product quality your factory offer?
A. We offer most competitive prices with best quality, copper coil with silver contact.
Q 5. Do you accept OEM and ODM business?
A. We do,for OEM service please send us your authorization, also your quantity should large enough.
Q 6. Could you offer certificate of origin?
A. We can prepare relative documents to foreign affairs office or other office to apply the certificate.
Q7. What kind of certificate you have ?
A. Our company already achieve ISO, and for products, we have CE, SEMKO,CB, BSI, GS, TUV, VDE.
