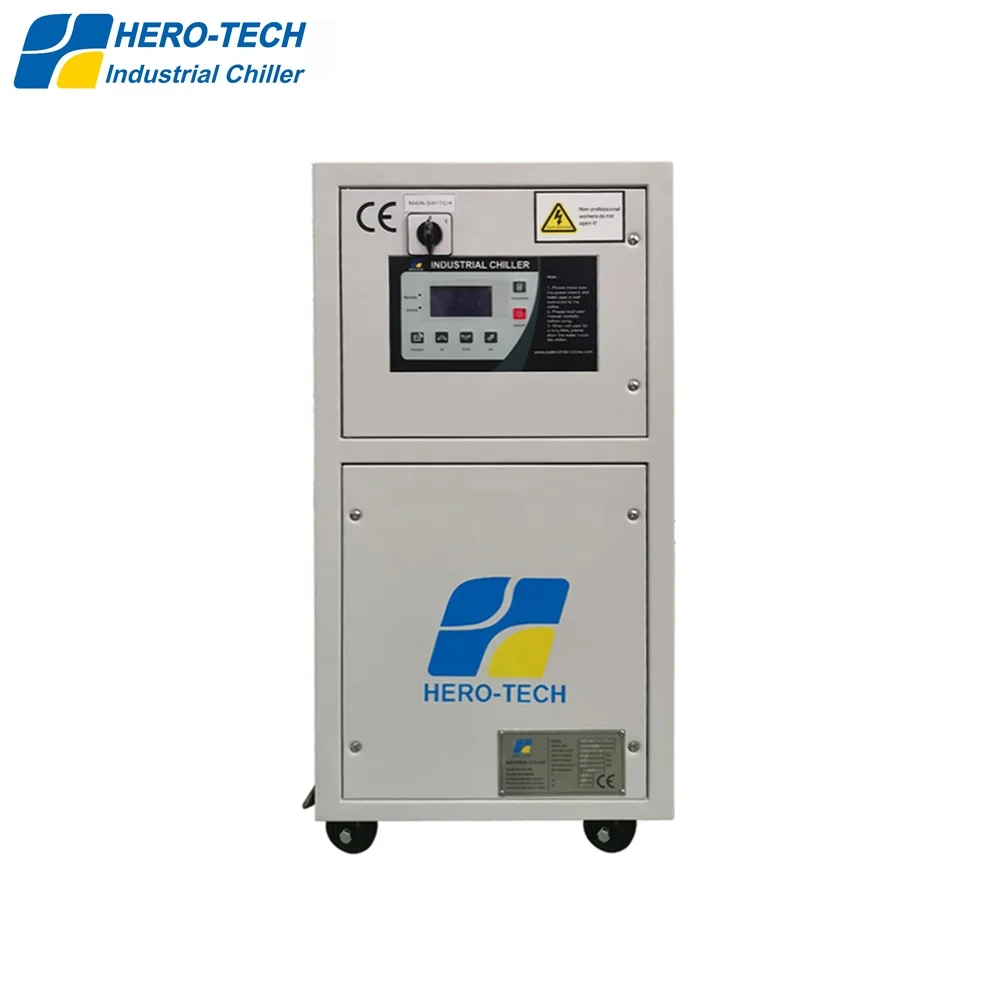

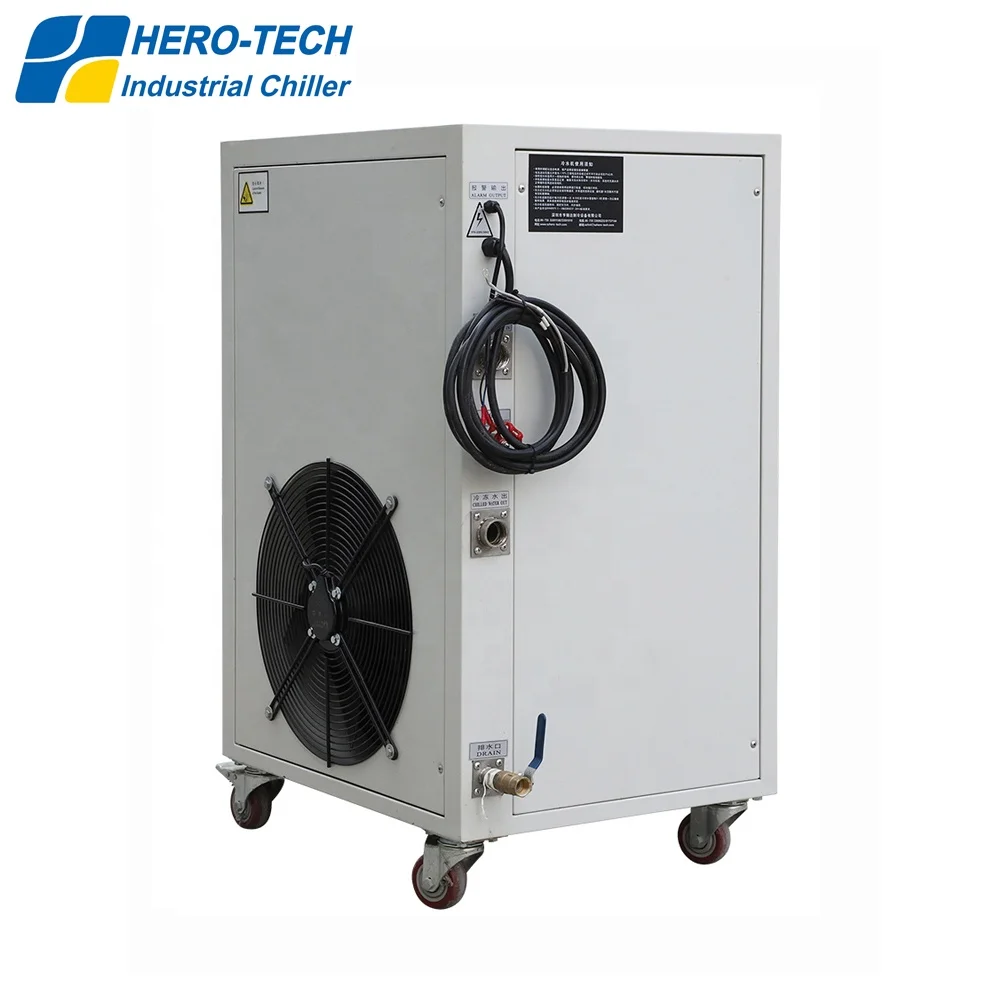

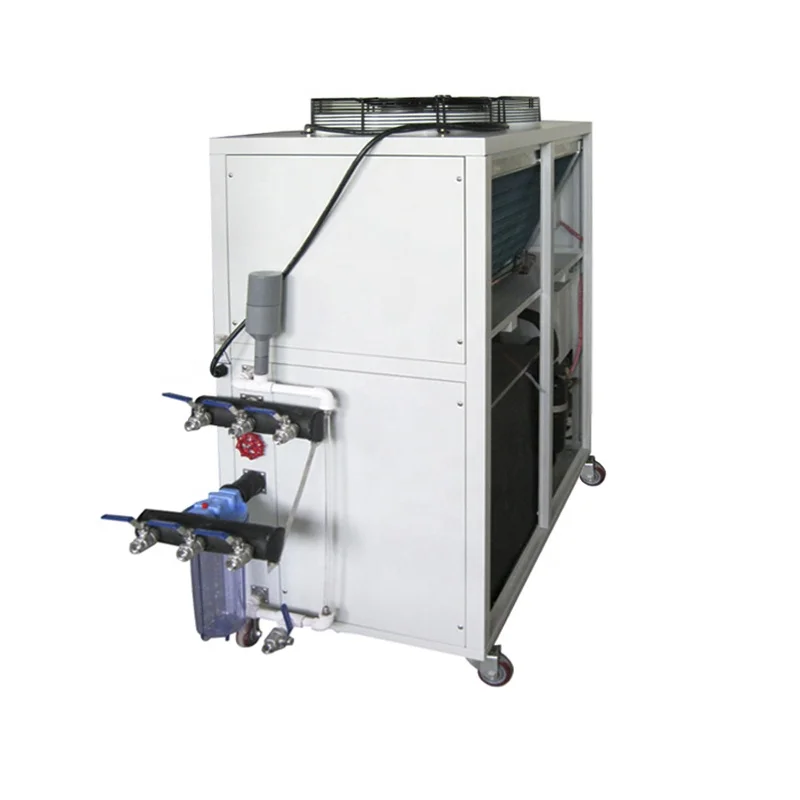

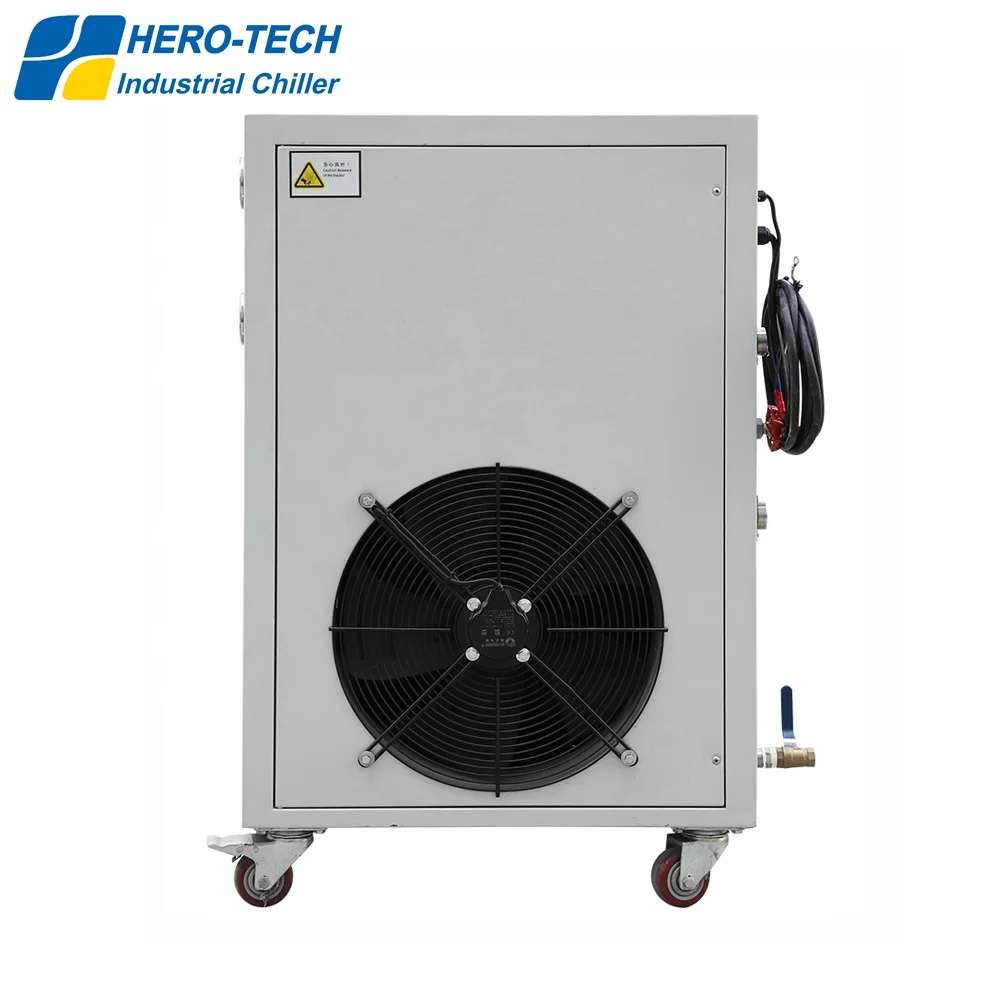

1.5hp 1ton 3.5kw portable cooling water chiller for laser machine

Product Overview

Description



HERO-TECH 1.5hp 1ton 3.5kw portable cooling units centrifugal chiller for laser printer

In laser system. Laser source and beam controller would need to be cooled. Cooling water is normally required in the rage of 15℃ to 22℃, with ±1℃ or 2℃ accuracy and sometimes within ± 0.1℃. HTL-A series laser water chiller can make the temperature be adjusted precisely. Laser has special requirements for conductivity and corrosiveness of cooling water, normally water loop should be stainless steel materials.

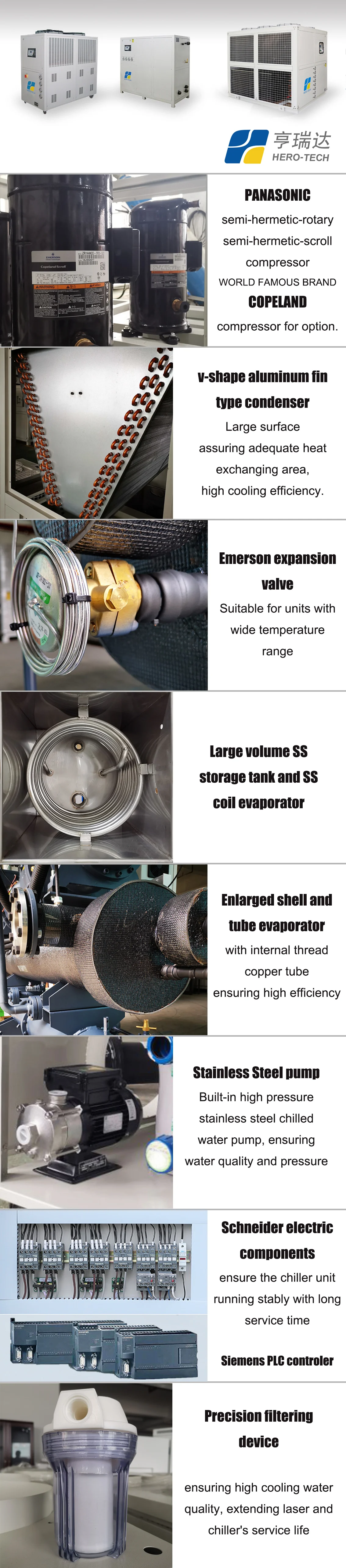

•Original famous brand Semi-hermetic hermetic –scroll compressor adopted, feature sufficient cooling capacity, stable performance, and excellent quality.

•Precision filtering device can be offered upon request, including particulate matter filtration and deionizer ensuring high cooling water quality, extending laser and chiller's service life.

•Refrigerant circuit with top brand hermetic scroll compressor control panel

•Complete with associated control equipment with digital microprocessor

•Compact design, easy to install and operate, convenient to clean and maintenance.

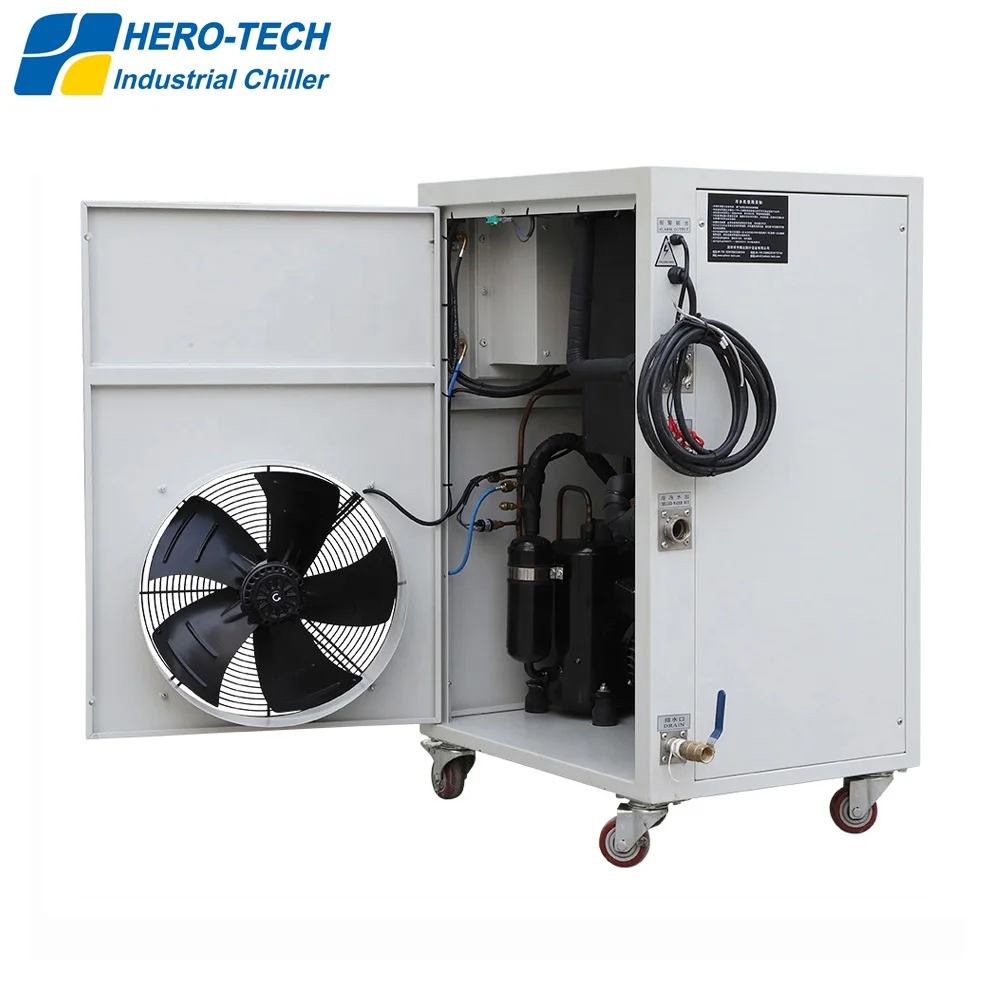

•Removable side panels for ease of access

•Process circuit with thermal insulation

•Sight glass with low level switch

•Threaded couplings for prompt connection to the user’s plant

•Swivel wheels for easy positioning

•Multi-protection devices: flow switch, water pressure switch, acoustic and optical alarm system.

•Protection signal output: water flow alarm signal output, water level alarm signal output, temperature protection alarm signal output, ensuring laser and chiller running safely.

•1PH 220V 50HZ or 3PH 380V-415 50HZ/60HZ for standard design. Different design available on request.
Dependable, versatile, high-efficiency cooling.

Model			HTL-1.5A
Nominal cooling capacity		Kcal/h	3264
		kw	3.79
Input power		kw	2.07
Power source			1PH 220V 50HZ
Refrigerant
Type			R22
Control			capillary
Compressor
Type			Hermetic-rotary
Motor power		kw	1.52
Condenser
Type			Finned coil + low noise axial fan
Air volume		m³/h	1500
Fan power		kw	0.18
Evaporator
Type			Shell and tube(ss plate heat exchanger)
Chilled water volume		m³/h	0.59
Tank volume		liter	20
Pipe connection		m³/h	1/2
Pump
Power		kw	0.37
Lift		m	20
Flow switch			Operate flow>3.5L/min, release flow<1.4L/min
Safety devices			Compressor inner protection, over current protection, high/low pressure protection, over temperature protection, flow rate protection, phase sequence/phase missing protection, low level coolant protection, anti freezing protection, exhaust overheat protection
Dimension	Length	mm	650
	Width	mm	520
	Height	mm	1030
Net weight		kg	75
Note: The above specifications are according to the following design conditions: 1.Chilled water inlet/outlet temperature 12℃/7℃ 2.Cooling air inlet/outlet temperature 30℃/38℃ We reserve the right to modify the specifications without further notice.



Laser chiller is mainly applied for laser marker, laser engraving machine, laser welder, laser cutting machine, laser inject machine, etc, for maintaining required temperature of laser equipment, so to ensure normal running .

About us

Hero-Tech refrigeration Equipment Co., Ltd, subordinated to Hero-Tech Group, was founded in Shenzhen Guangdong Province in 2005, with registered capital RMB5,000,000.00. And we have our own heat exchanger processing factory and Casing processing factory.

Since its inception, Hero-Tech adhered to Germany technique and management and passed certification of ISO9001:2000 and CE. 20 years experience in industrial refrigeration made Hero-Tech front-runner status in China. Meanwhile, oversea sales network was built and improved, covering dozens of countries and areas, such as the Occident, Middle-East, South-East Asia and Australia. It brings continuing rapid growth of annual export volume. Till the end of 2019, export value contributes more than 70% of the annual sales turnover.

“Professional, therefore take the lead”. After years of development, Hero-Tech has domestic and foreign customers consistent high praise because of excellent product performance and high efficiency service.

Exhibition

Q1: Could you help us to recommend the model for our project?

A1: Yes, we have engineer to check the details and choose the correct model for you. Based on the following:

Cooling capacity; If you don’t know, you can offer the flow rate to your machine, temperature in and temperature out from your using part; Environment

temperature; Refrigerant type, R22, R407c or other, pls clarify; Voltage; Application industry; Pump flow and pressure requirements;

Any other special requirements.

Q2: How to ensure your product with good quality?
A2: All our products with CE certificate and our company Strictly comply with ISO900 quality management system. We use the worldwide famous brand accessories, such as DANFOSS, COPELAND, SANYO, BITZER, HANBELL compressors, Schneider electrical components, DANFOSS/EMERSON refrigeration components.

The units will be fully tested before package and The packing will be carefully checked.

Q3: What's the warranty?
A3: 1 year warranty for all parts; Whole life labor free!

Q4: Are you a manufacturer?
A4: Yes, we have more than 23 years in industrial refrigeration business. Our factory located in Shenzhen; Welcome to visit us at anytime. Also have patent on the chillers’ design.

Q5: How can I place an order?
A5: Contact our online customer service, or call us via Cel number +86 15920056387 directly.
