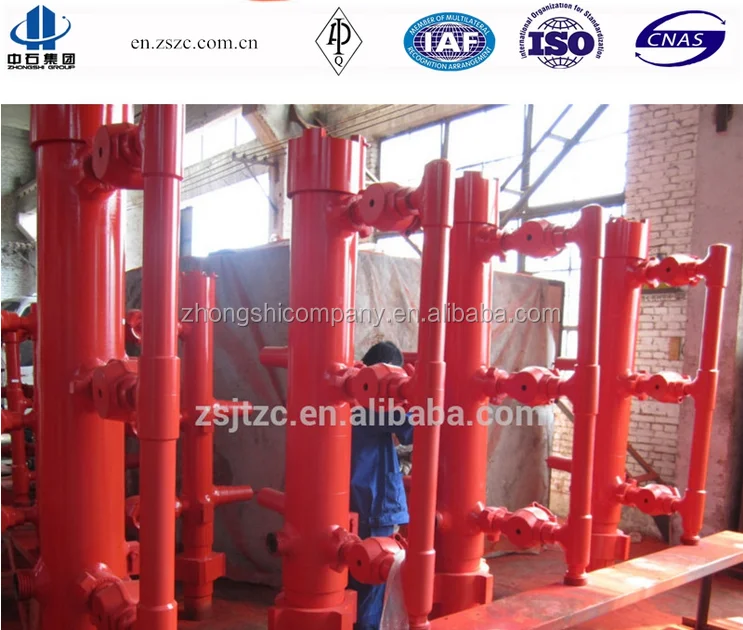

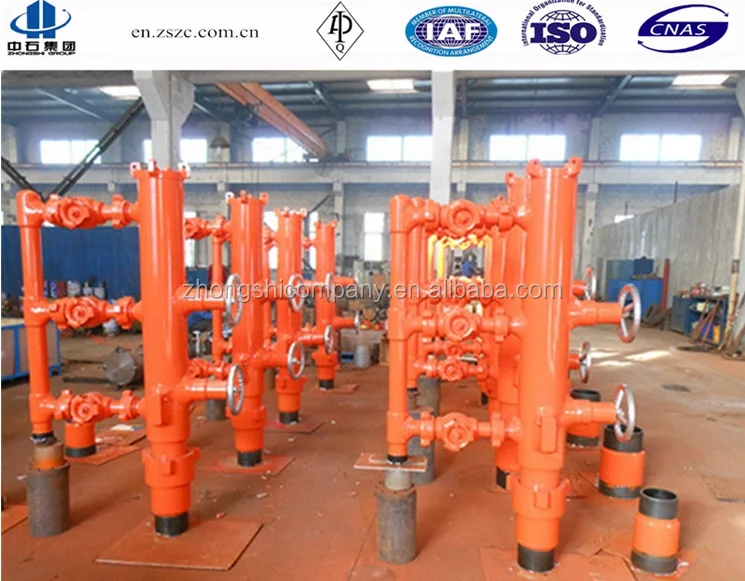

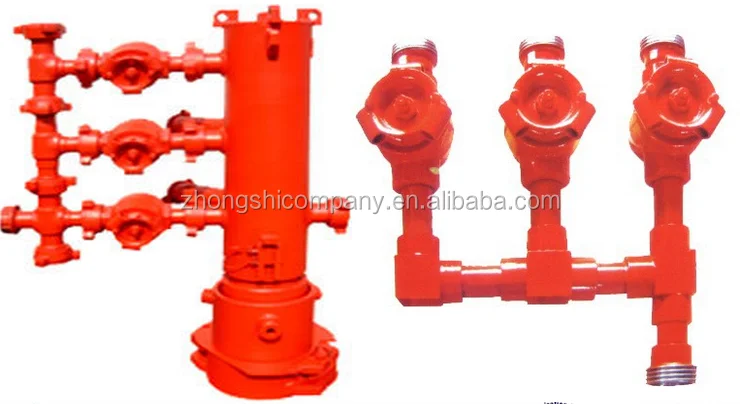

Double plug type casing/drill pipe cement head with BTC thread
- Category: >>>
- Supplier: Puyang Zhongshi Group Co. Ltd.
Share on (60704231391):
Product Overview
Description
Features:

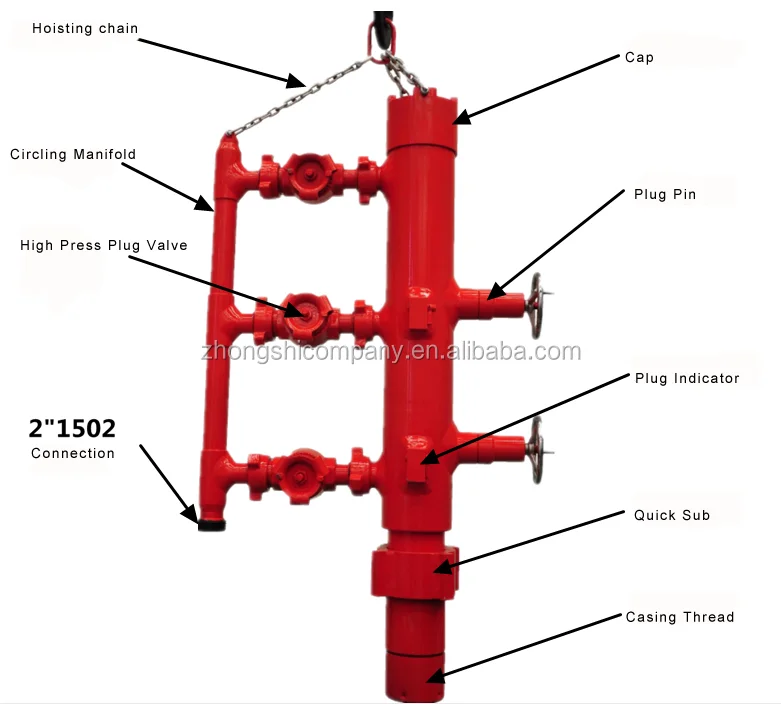

Double plugs cementing head is special tool for pumping slurry and releasing plug.It can couple with two plugs simultaneously,and makes the drilling fluid fill into casing in turn and
quickly.This can simplify the cementing operation, prevent cement pollution.
Features
Quick-latch adapter is designed to offer easier, faster and safer makeup for two-stage cementing.
It is manufactured utilizing API grade steels with API 8 round, buttress and premium threads.
Double balance pipe is developed.
Positive lever indicates plug releasing.
Main parts are made from AISI4145H alloy steel.
Top cover and union nut with large trapezoidial-threaded.
It makes the tool convenient to disassemble and carry.
Technical Parameters
Specifications(in) | Φ139.7
| Φ177.8
| Φ193 .7
| Φ244.5
| Φ273
| Φ339.7
|
Overall-Length, mm | 1950 | 2020 | 2020 | 2360 | 2360 | 2440 |
Manifold | 2" 1502Union | |||||
I.D. of Plug Container, mm | Φ125 | Φ160 | Φ175 | Φ225 | Φ250 | Φ320 |
Length of Plug Container,mm | 400 | 450 | 450 | 550 | 550 | 600 |
Working Pressure, MPa | 35,50 | 35,50 | 35,50 | 35,50 | 35 |
21
|

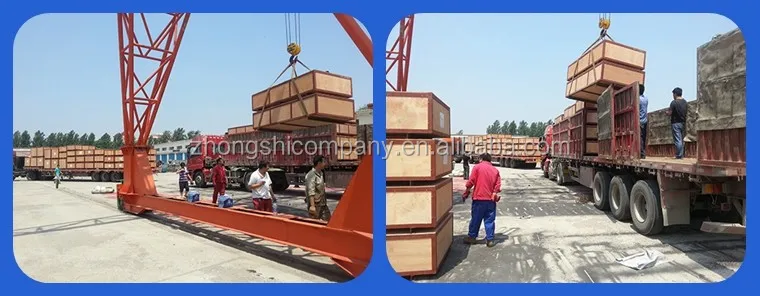

Packaging & Shipping
Teachnical Parameters:

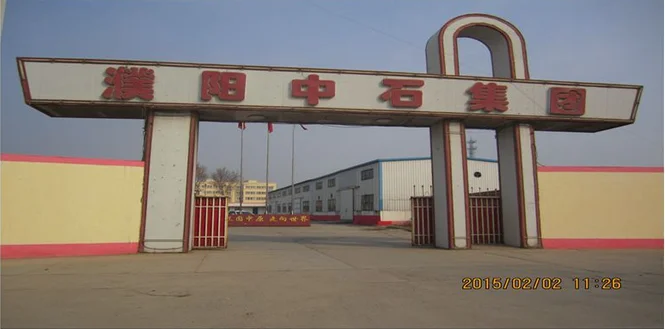

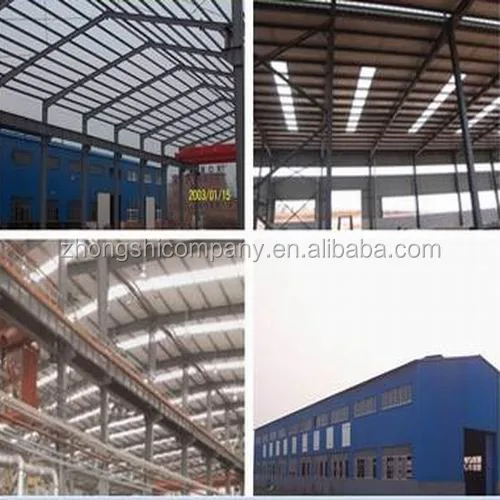

Company Information

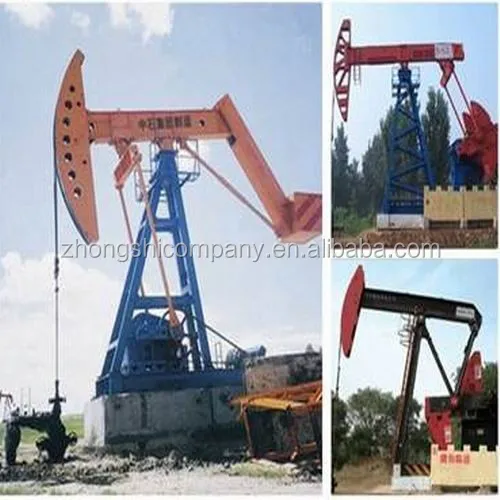

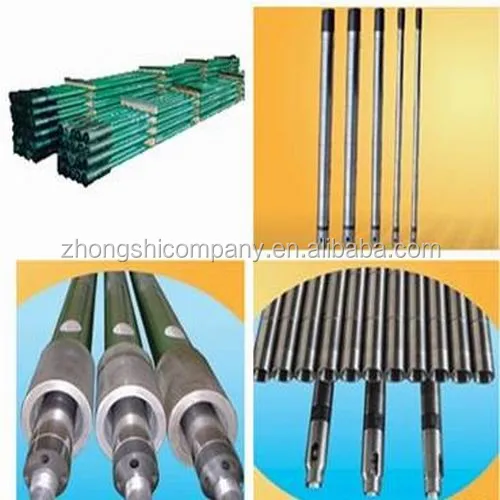

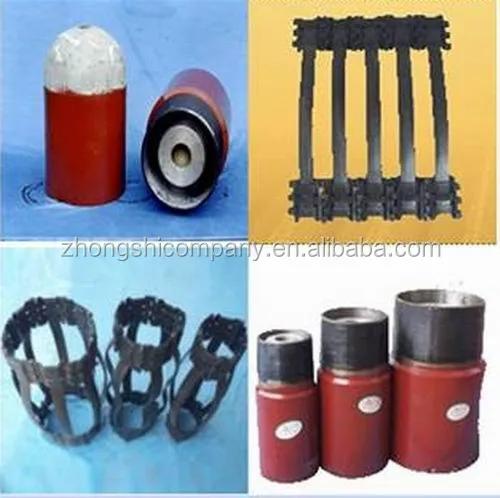

Puyang Zhongshi Group Company Ltd was founded in 1996,which is the restructured enterprise of Central Plains oilfield branch company of SINOPEC . The company registered capital is 6083 million yuan,with annual output value 200 million yuan, 580 employees, including more than 160 technical and administrative staff. Oil machinery is our main products, the leading products include pumping unit,subsurface sucker rod pump, wellhead (Christmas Tree), pressure vessels,drilling solid control series products and cementing accessories, We had attained ISO 9001 in 1998 and API Certificates in 2002 .
Our Services
All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time. If you are caught in some problems when using our products, welcome to contact us at any time.
Contact Information
kun wang
Phone &we chat:+8613290975266
