Product Overview

Description


Application

Chicken nuggets

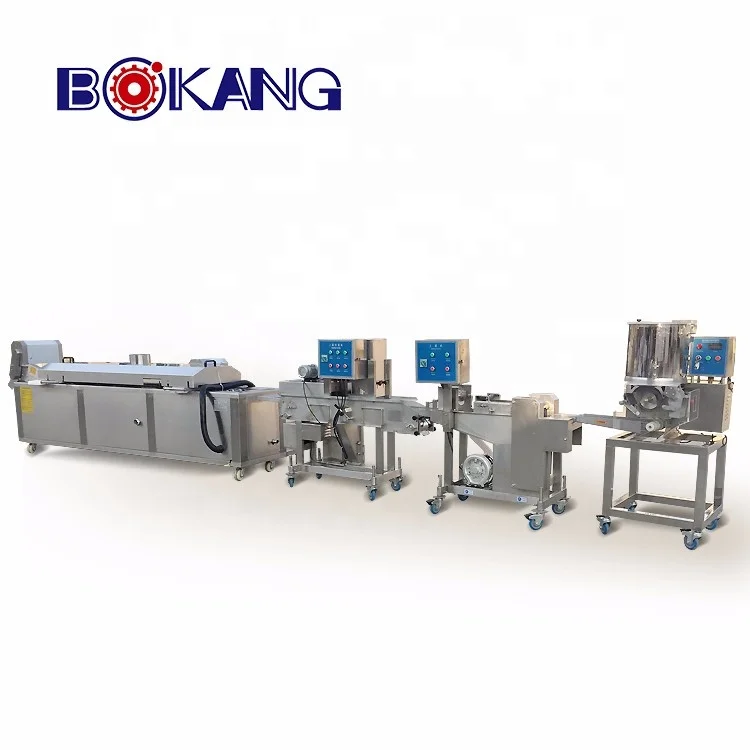

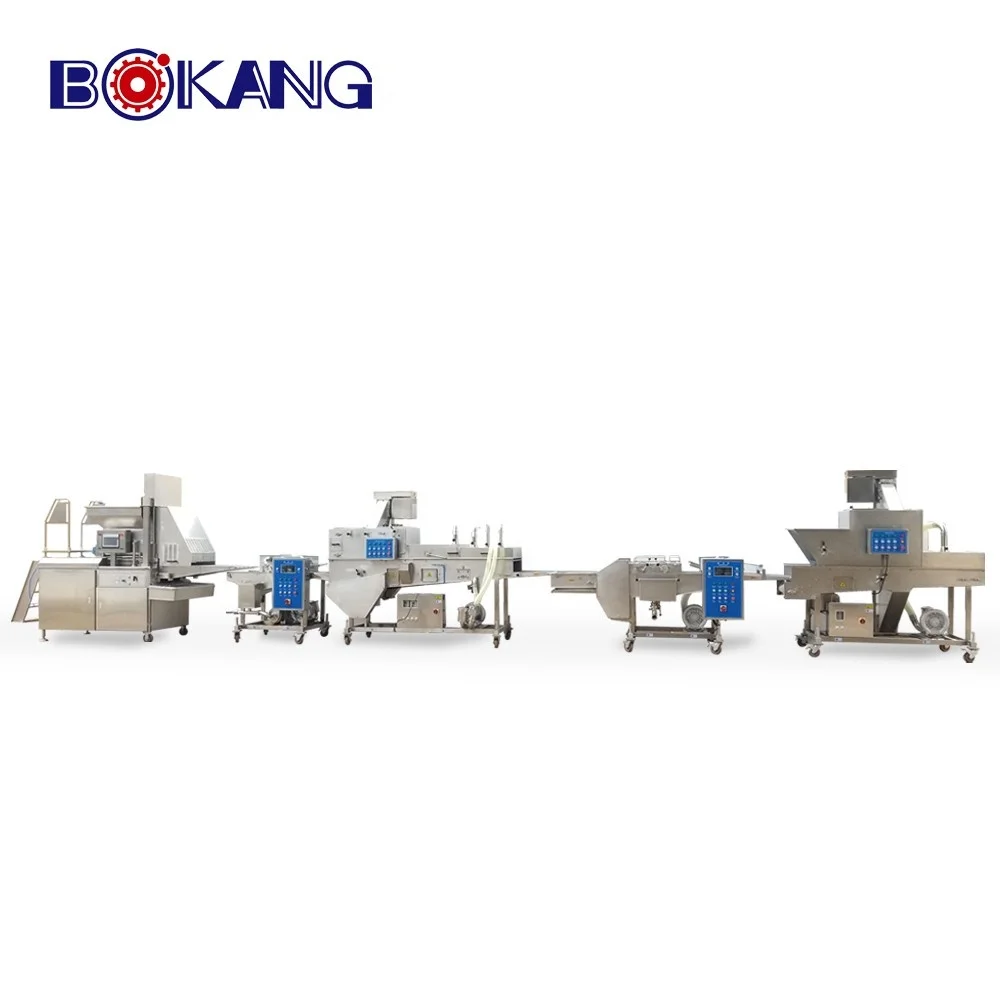

Poultry meat would be cut evenly into bite-size. It can cooperate with the coating machine to form a complete line.

Fish fillet

Cut the fish into slices or strips and apply a  coat of breadcrumbs.

Other

Chicken strips,chicken tenders, chicken popcorn, etc.

Product Description

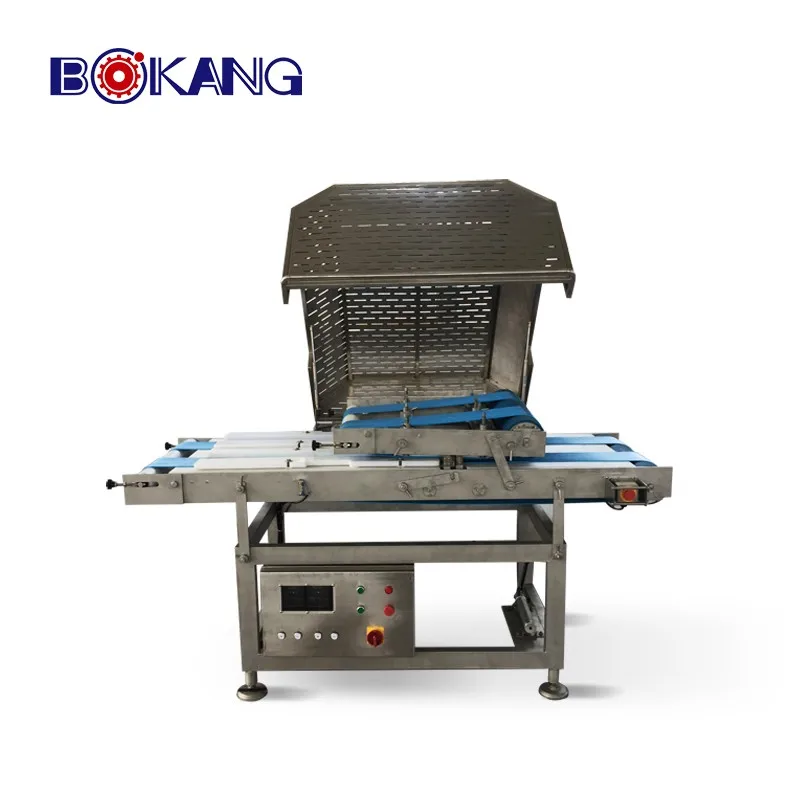

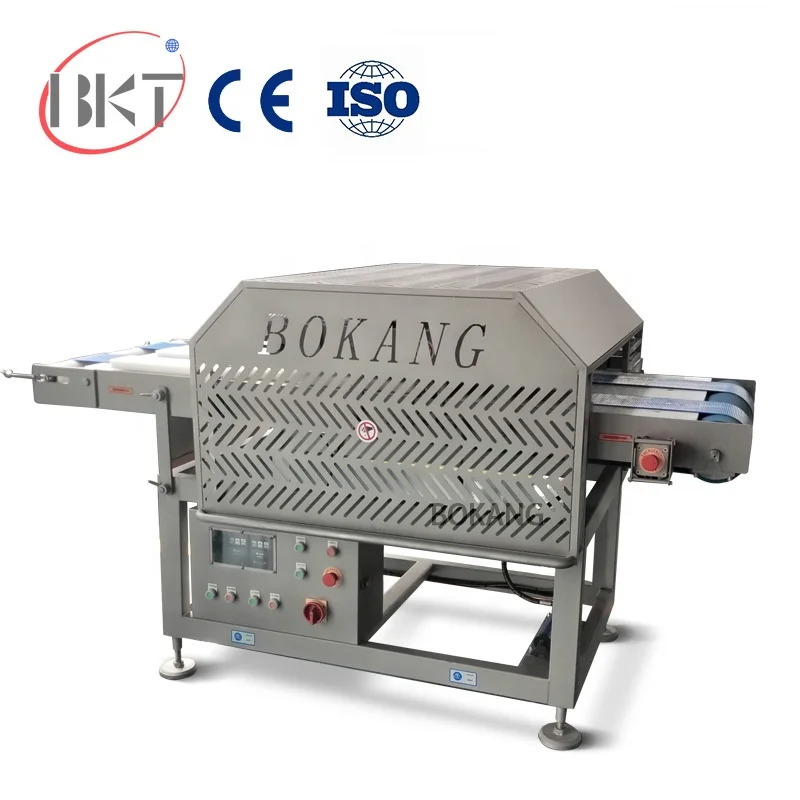

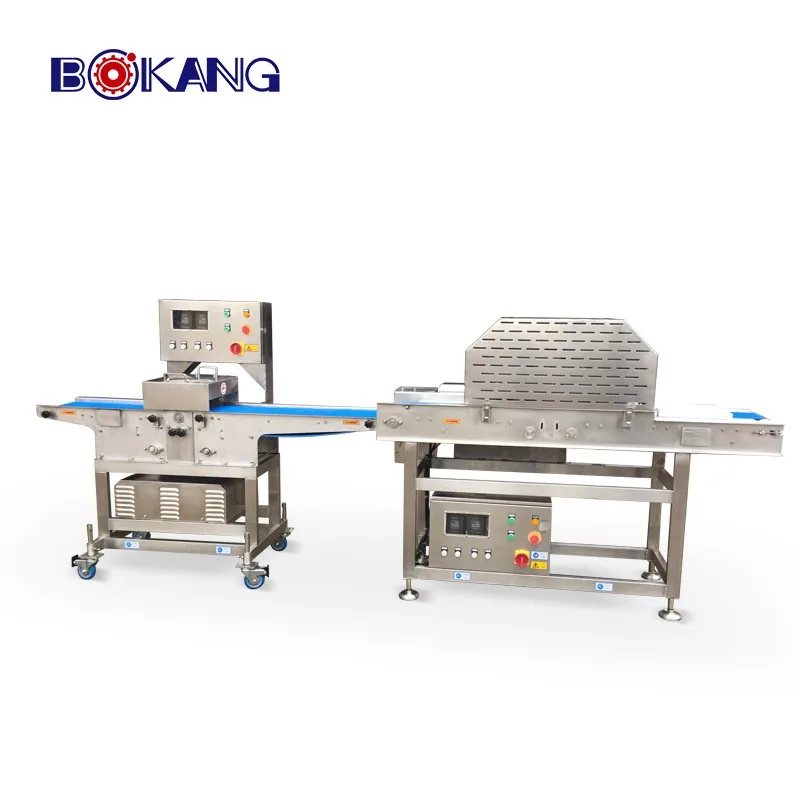

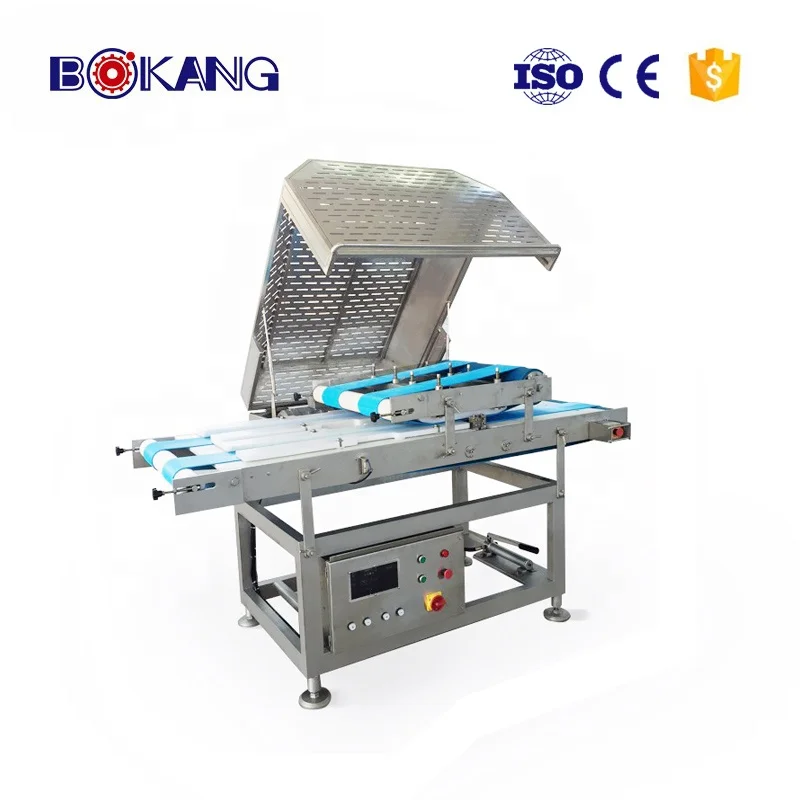

Automatic fresh chicken and meat cutting machine for food factory


Product Description

Multiple slices with Horizontal cutting.Suitable for fresh pork, beef, lamb and poultry.Also capable of butterflying.

High cutting precision with minimum width 5mm,high efficiency guaranteed by multi blade cutting.Also capable of different thickness cutting combined in single cutting.

- Cutting width is adjusted by changing blade carrier or blade sleeve.
- Floating unloading system to prevent meat from sticking on blade.
- Conveying speed can reach to 18m/min, high production capacity guaranteed.
- Detachable blade carrier, input belt and output belt, easy to clean.
- Mist spraying design smoothing the cut.
- Adopt imported module belt with long life.
-Adopt SIMENS part with safety service, CE approved.
- Adopt SS and engineering plastic, easy to clean and meet HACCP.
- Easy operation and lower maintenance.
\t
Model
\t
QTJ300
\t
QTJ500
\t
Belt speed
\t
3-18m/min(frequency adjustable)
\t
3-18m/min(frequency adjustable)
\t
Max. product width
\t
200mm
\t
400mm
\t
Max. cutting thickness
\t
Min:5mm;Max:45mm
\t
Min:5mm;Max:45mm
\t
Production capacity
\t
150-500Kg/h
\t
200-800Kg/h
\t
Input/Output height
\t
1050±50mm
\t
1050±50mm
\t
Belt width
\t
300mm
\t
500mm
\t
Power
\t
0.6KW
\t
1.9KW
\t
Overall dimension
\t
2010×700×1615mm
\t
2010×903×1615mm
Detailed Images
Conveyor belt

Brand country: Germany

Adopt imported belt with long life.

Blade

Brand country: USA

Multiple slices in single cut with minimum thickness of 3mm,maximum thickness of 50mm.


Frequency converter

Brand country: Germany
Adopt SIMENS part with safety service, CE approved.

Packing & Delivery
\t
Packaging
\t
Size
\t
2000 (L) * 900(W) * 1800 (D)
\t
Weight
\t
400Kg
\t



Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
About us

Company introduction
  Zhucheng Bokang Machinery Co.,ltd is a company supply a complete research, manufacture and sales for meat, seafood and vegetable forming and battering breading coating line. Recent years, with the rapid developing of the world marketing, we have a strict and higher requirement for the food processing. In order to get more orders in the marketing competition and supply a better service, the company design and manufacture forming, coating and other more than ten different kinds of food processing machines. It can supply batch machine in the production line and also can provide a complete line production line. Our machinery are sold to USA, UK, France, Australia, Indonesia, Saudi Arabia, Chile, Malaysia, Vietnam, North Korea, Philippines and other countries. We own a good reputation in food industry.

ABOUT US

BOKANG has been providing machines for processing meat, seafood and vegetables for over Decade years.

AFTER SALE

One year Quality Guarantee.
Training how to install the machine, training how to use the machine.
Engineers available to service machinery overseas.

Pre-Sales Service

Inquiry and food production processes consulting support.

Testing room

We provide food processes testing. Please contact us in advance if necessary.

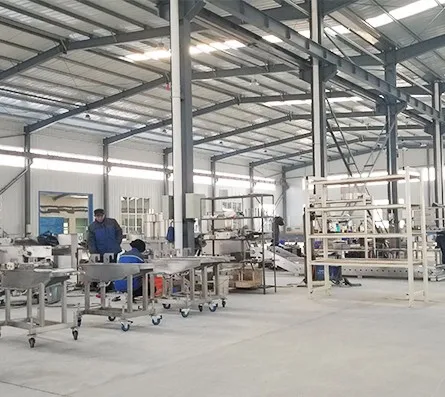

Workshop

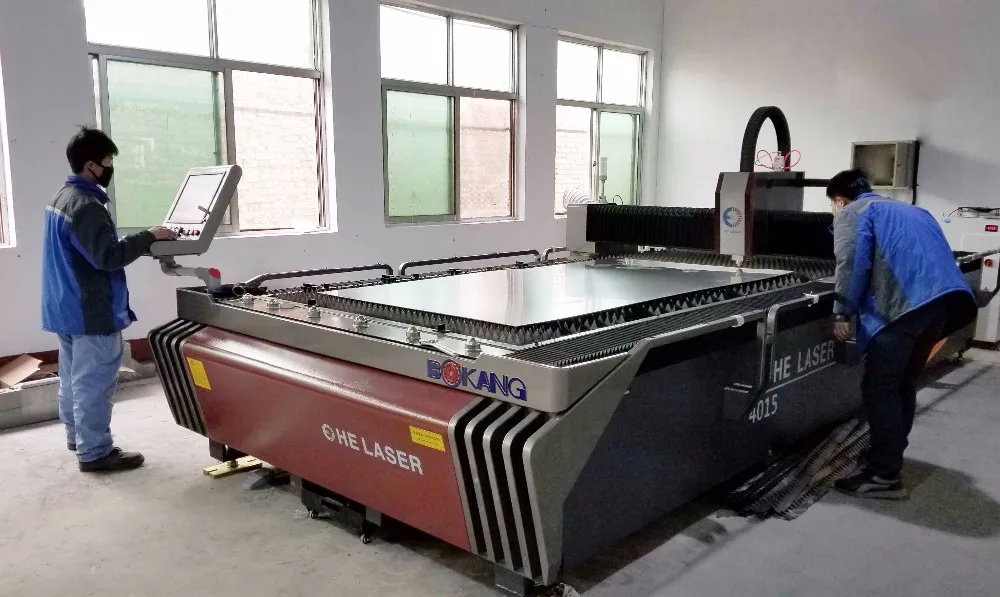

Machining Equipment
