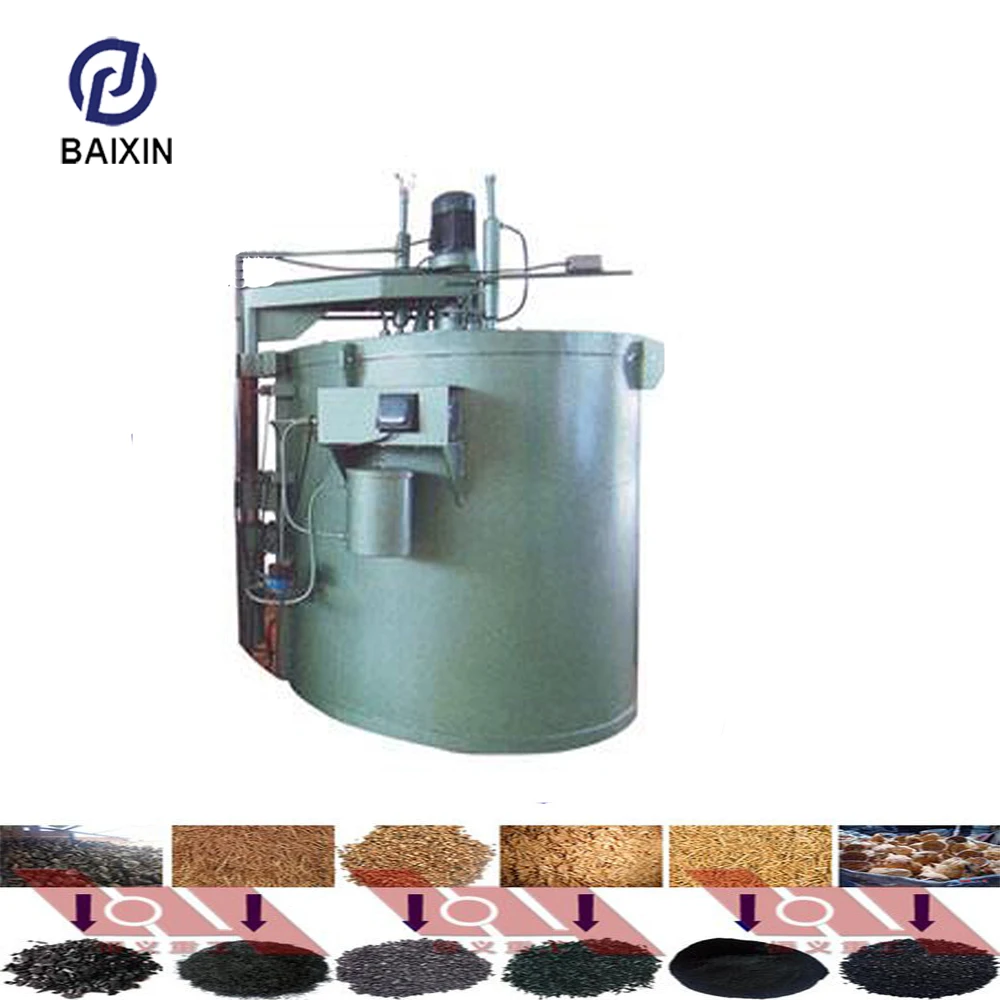

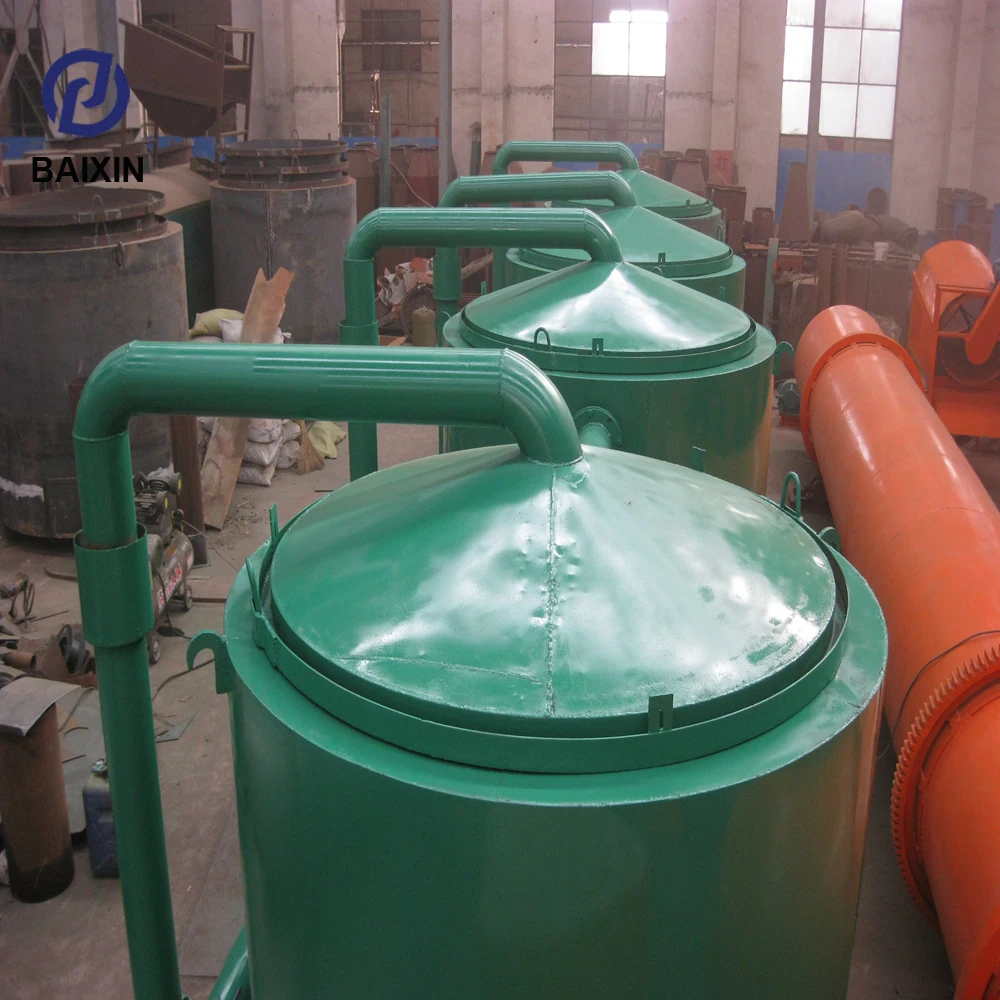

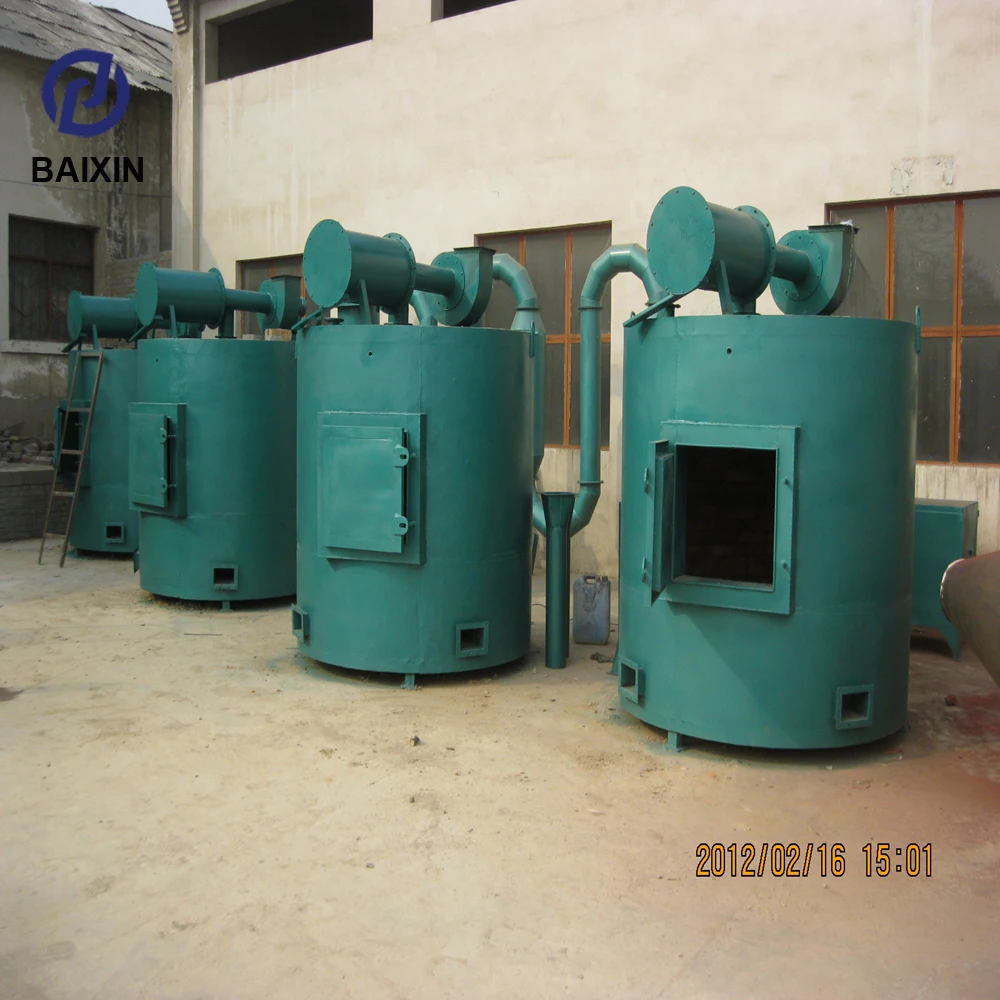

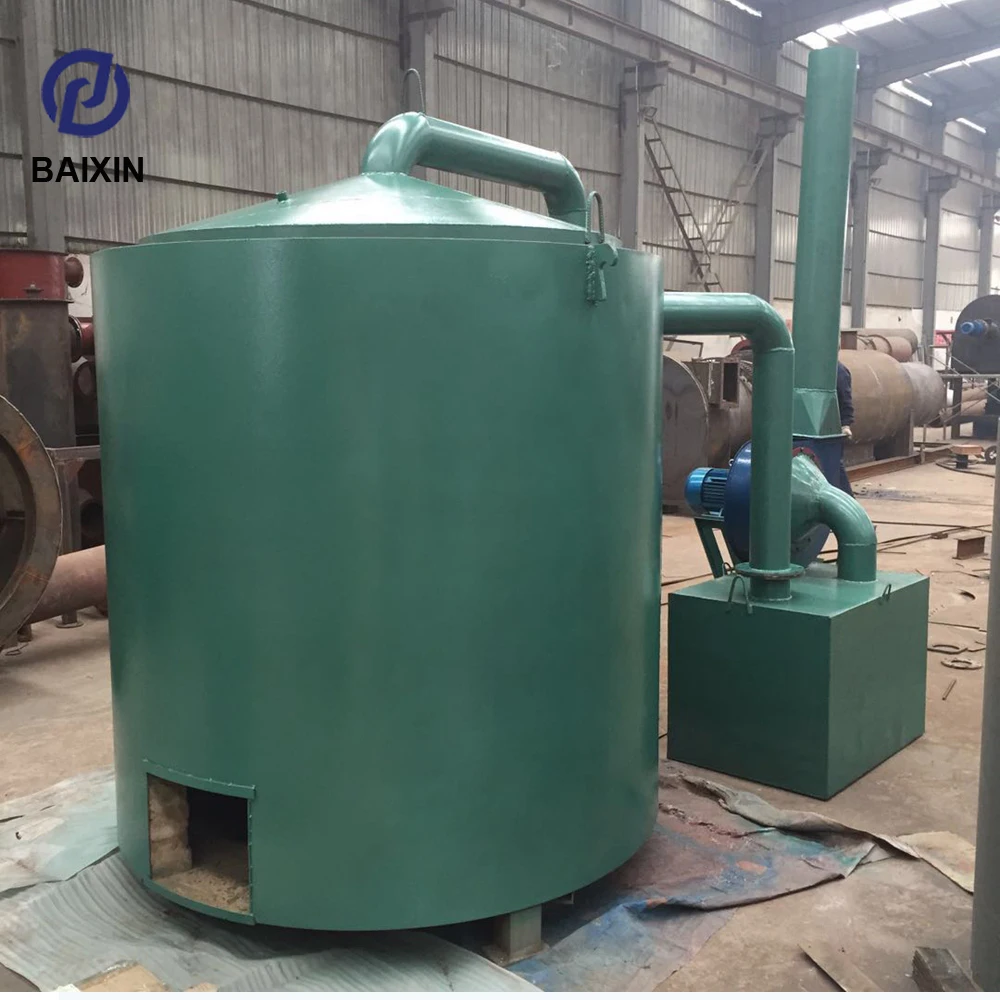

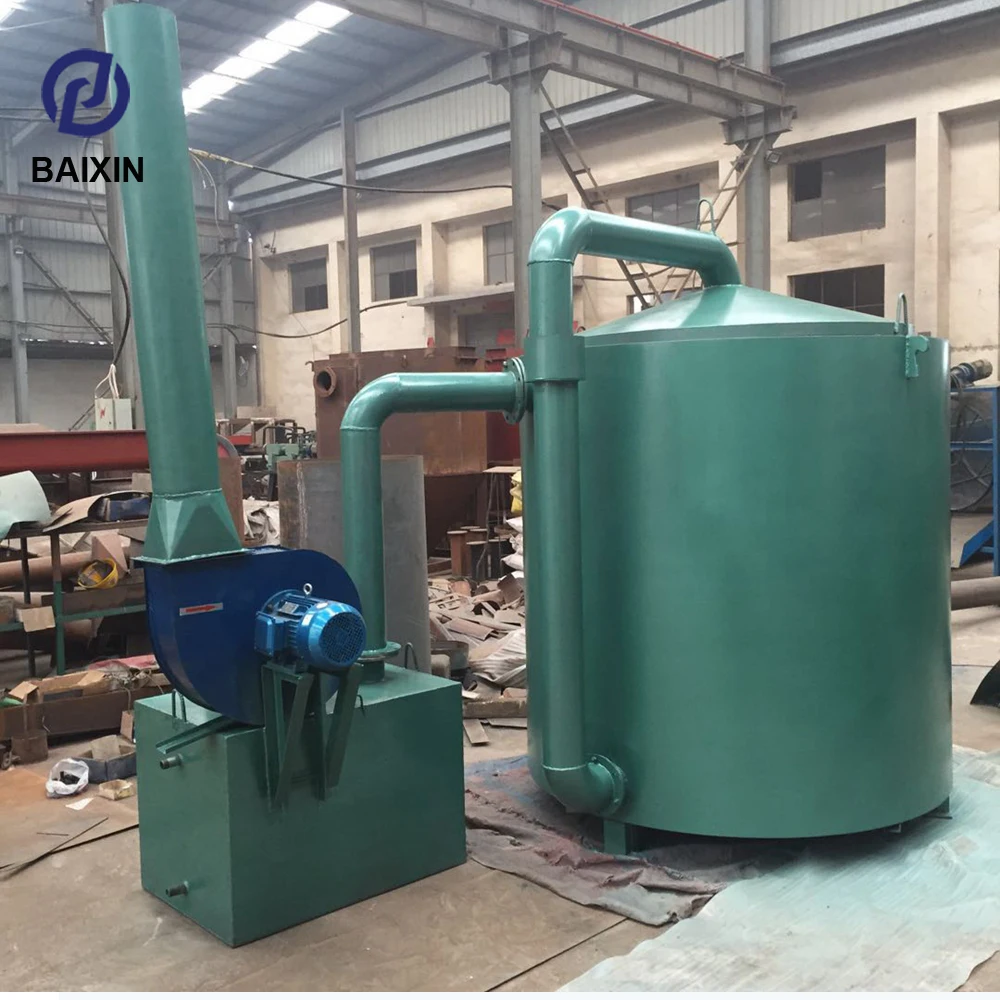

The whole machine includes one outer stove, three inner stoves, and the 3 ton hoisting tools.
When one inner stove finished carbonization, we will use the hoisting tools to hoist the inner stove out from the outer stove, then let the inner stove natural cooling, at the same time, we can put another inner stove into the outer stove, which will save a lot of time, so the productivity increases a lot, it is the ideal choice for mass production of charcoal.

Stainless steel sawdust coconut shell wood charcoal carbonization furnace

1. Easy to operate and maintain, higher safety.
2. High carbonization rate, no smoking, little pollution, high efficiency.
3. Can work continuously, so the output is large.
4. Good carbonization effect. Making the final product high quality and good appearance.

Stainless steel sawdust coconut shell wood charcoal carbonization furnace

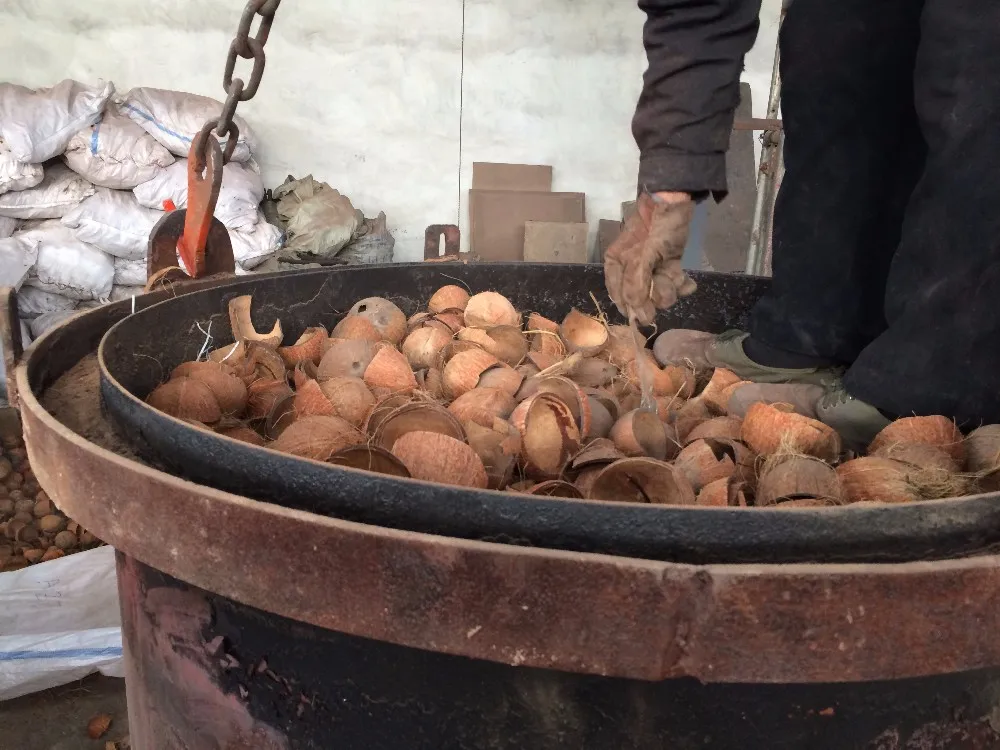

Put the raw material into the inner stove, hoist it into the outer stove for carbonizing, when one inner stove finished the carbonization.

Stainless steel sawdust coconut shell wood charcoal carbonization furnace

hoist out for natural cooling and then hoist the second inner stove into the outer stove for carbonizing, the similar process for the third inner stove.

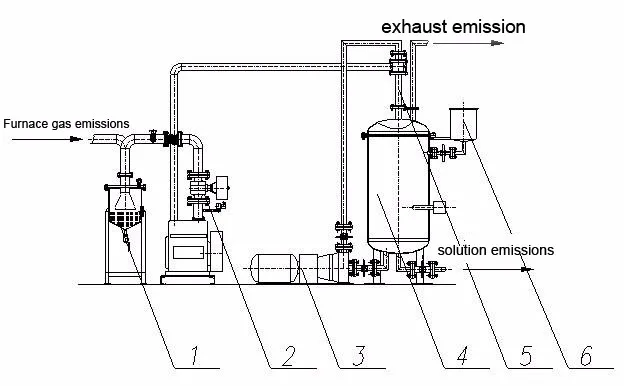

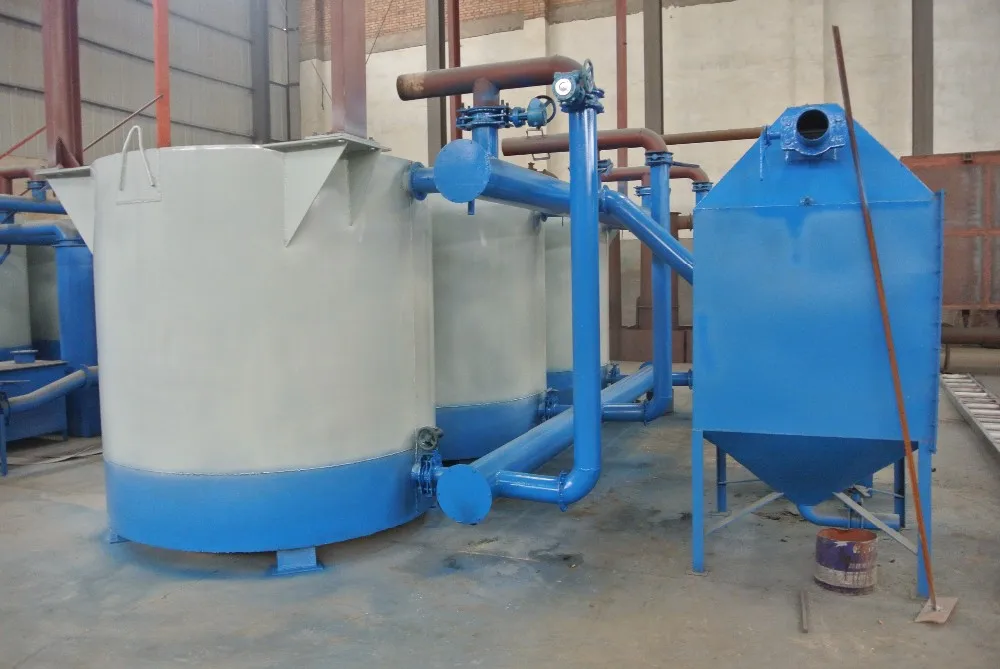

Three inner stoves continuously work in turn to improve the productivity, with smoke clean system to protect the environment.

Stainless steel sawdust coconut shell wood charcoal carbonization furnace

Put the raw material into the inner stove, hoist it into the outer stove for carbonizing, when one inner stove finished the carbonization, hoist out for natural cooling and then hoist the second inner stove into the outer stove for carbonizing, the similar process for the third inner stove.
Three inner stoves continuously work in turn to improve the productivity, with smoke clean system to protect the environment.

1) Type: Carbonization furnace BD-QH3
2) Charcoal capacity: 2-2.5T/24hrs for wood logs, wood briquettes; 1.5-1.8T/24 hrs for nut shell, coconut shell, etc.
3) Structure: One outher stove, three inner stoves, one electric hoist and one clean system
4) Outer stove diameter/height: 1.9m/1.9m
5) Inner stove diameter/height:  1.5m,1.45m,1.4m/1.5m
6) Electric hoist power:  0.5kw, 380V, three phrase, used for hositing the inner pot away from outer pot
7) Suitable materials:  Wood logs, wood briquettes, bamboo, coconut shell, palm shells, etc.

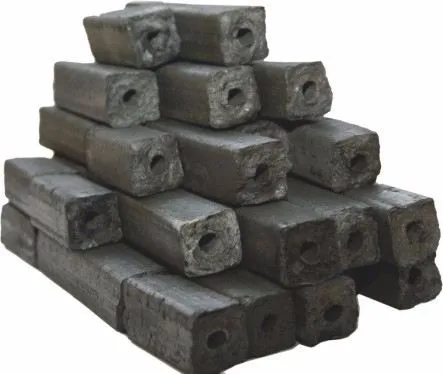

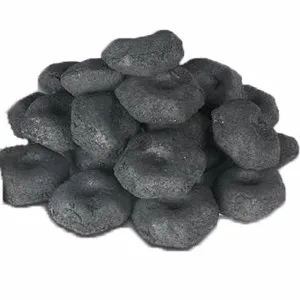

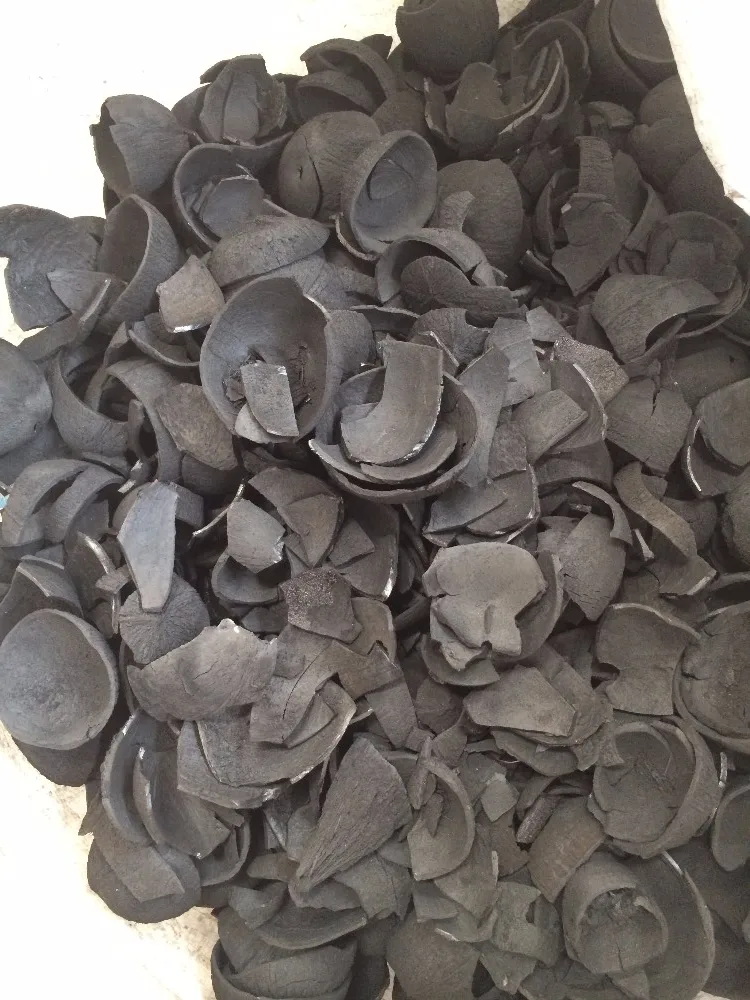

8) Final charcoal:  Wood log charcoal, wood briquette charcoal, bamboo charcoal, coconut shell charcoal, nut shell charcoal, etc.
9) Final charcoal usage: Charcoal, can be used for BBQ, boiler heating, family heating, to make active carbon and other

industrial usage.
10) Carbonizing time:  Wood logs ( 8-10hours), wood briquettes (8hours), coconut shell (6hours)
11) Carbonizing rate:  99%
12) Fuel consumption:  20-30 kg firewood or 15 kg liquefied gas per time

Pre-sale services:
Act as a good advisor and assistant of clients; enable them to get rich and competitive
from the returns of their investment.
1) Select suitable equipment model.
2) Design and manufacture products according to clients’ special requirements.
3) Train technical personnel for clients.
4) Professional suggestion for customer
Services during the sale:
Respect clients; devote ourselves to improving the total value of clients.
1)take photos(including raw material, semi-products, final products, and loading products)
2) Pre-check and accept products ahead of delivery.
3) Prepare all clearance documents, so that the customer clearance smoothly.
After-sale services:
Provide considerate services to minimize clients’ worries.
1) Provide civil engineering drawings of the equipment.
2) Free training(including installation,maintenace) to every customer.
3) Install and debug the equipment, ensure the dryer running smoothly.
4) Examine the equipment regularly.
5) Take initiative to eliminate the troubles rapidly at site.
6) Distribute the guarantee fittings door-to-door.
7) Provide technical exchange and support.
8) Provide maintenance for big items.
9) The most preferential prices to provide customers the quick-wear parts.

Stainless steel sawdust coconut shell wood charcoal carbonization furnace

Delivery time: 20 workdays usually
Payment term: 50% as prepayment by T/T and the balance before delivery from China.
Quality Guarantee Terms:
Quality guarantee term is one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
