rfid temic card hotel lock with software PY 8505

Product Overview

Description

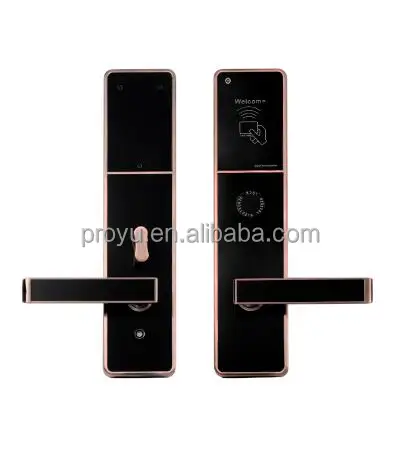

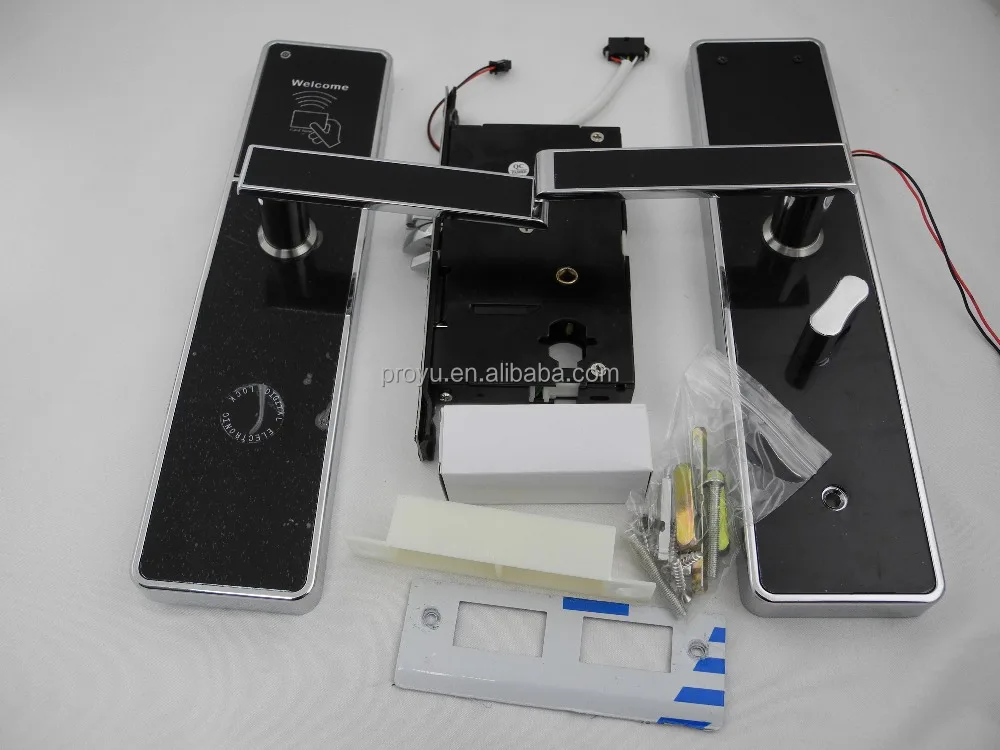

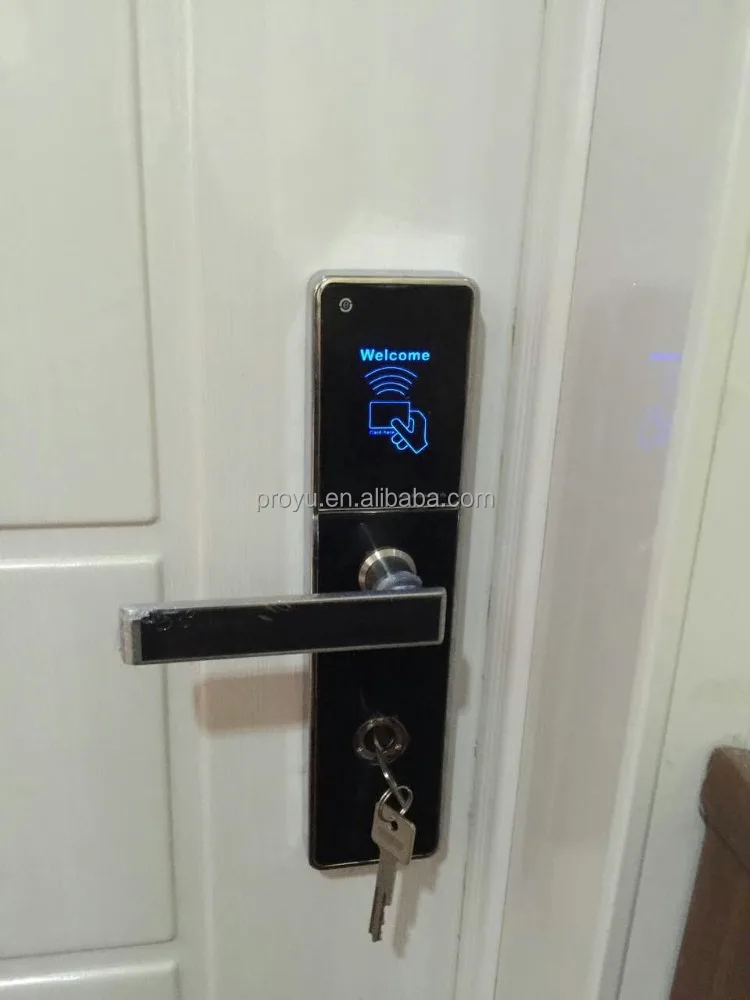

rfid temic card hotel lock with software PY-8505

Applications: Hotel, Office, Home and so on



Hotel door lock:
A: MIFARE® card for hotel lock, ( use with USB port card encoder and software)
B: Temic card hotel lock, ( use with USB port card encoder and software)
C: EM hotel lock, (use standalone, no need software)



Technology Specification:

Type	RF hotel Lock
Material	Zince alloy(stainless steel or copper)
Card Type	ID, TEMIC, MIFARE®;
Unlock Ways	Smart Card or Mechanical key
Card reading current	≤20 mA
Static consumption	≤15u A
Working Temperature	-20`C~+70`C
Opening current	300 mA(last for 0.3s)
Humidity	≤ 95% RH
Inductive distance	≤5cm
Anti-static electricity	>15,000 V
Battery	4 pieces of 5# normal battery (6V)

What in a simple system?
1.Lock (qty = guest room)---For open the door
2.Encoder (1pcs/hotel ) ---For issuing all kinds of cards
3.Switch (qty = guest room)---To get the power
4.Cards (qty = 3 times of guest room)-----For open the lock
5.Data collector (1pcs/hotel, optional by customers)-----
For getting the time and times of the entrance information from the lock
6.Self developed software (1 disk, with customer's language, free of charge)----For setting the program the whole system.

What shall I get?
- The software will be supplied to you in FREE.
- With the help of software, you will finish setting up the hotel lock easily..and in the reception of hotel, the hotel staff will make the room card for guest.

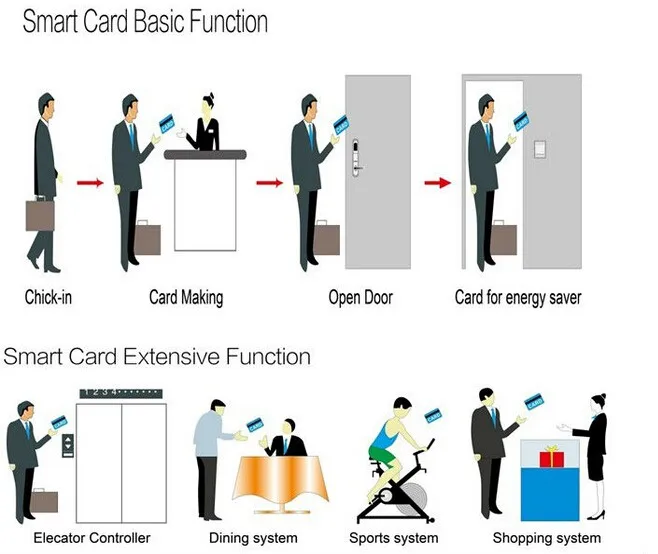

- Then the guest get the room card and walk to the right room, swipe the card to the lock for unlocking, then insert the card to Energy saving switch to get the power if required.
- As a manager, you can get the daily/monthly/yearly report with the software.
- Also, the data collector will help you to get the preserve records from lock and read them on PC.
- Preserve the latest 256 records of door opening circularly. Knowing about the dynamic at any moment.

Hotel lock system software:
1.Free offer(Not to charge any fee),also subsequent use without charge. CD-ROM (software and tutorial) will package with products.
2.Simple to Operate and with Comprehensive information.
3.Can effectively control the whole site.

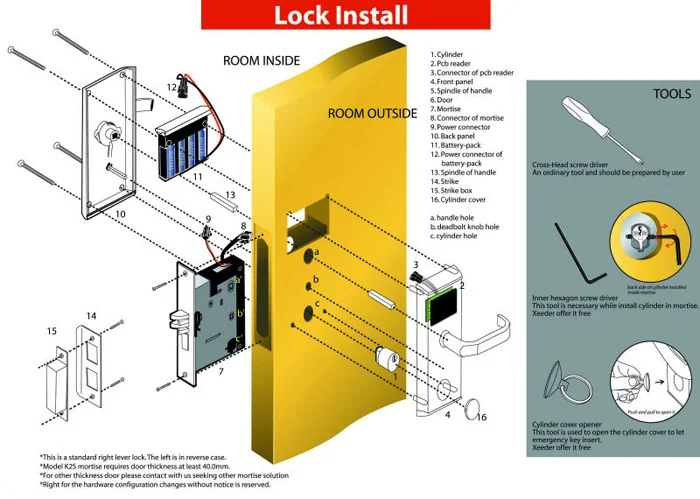

Installation:

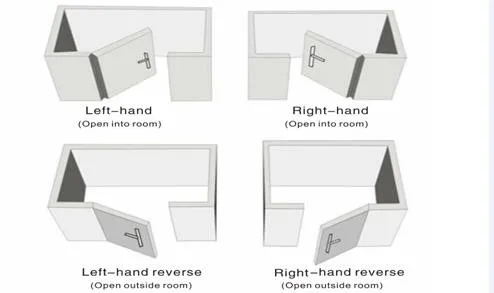

Note: When buying door lock ,please tell us the indoor /outdoor , Left handle/right handle as the floowing picture

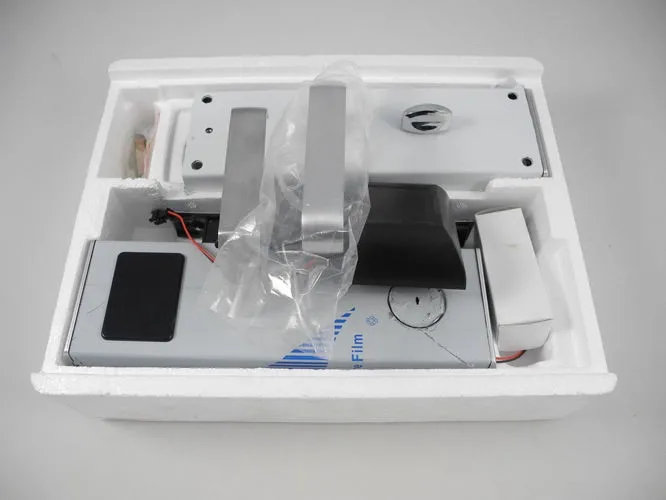

Package and Shipment:

Sample: sending out by Express(DHL/TNT/FEDEX/UPS/EMS)
Bulk quality:sending out by air freight/cargo shipping/Express



Our Services
1. Any inquiries will be replied within 24 hours.
2. OEM/ODM available. we design packing, and put your logo on keys, cylinders or plates
3. After-sale service
1). All products will have been strictly quality checked before packing.
2). All products will be well packed before shipping.
3). All our products have 1 years warranty. And we sure the products will
be free from maintenance within warranty period.
4. Timely Delivery
5. After-sales service
