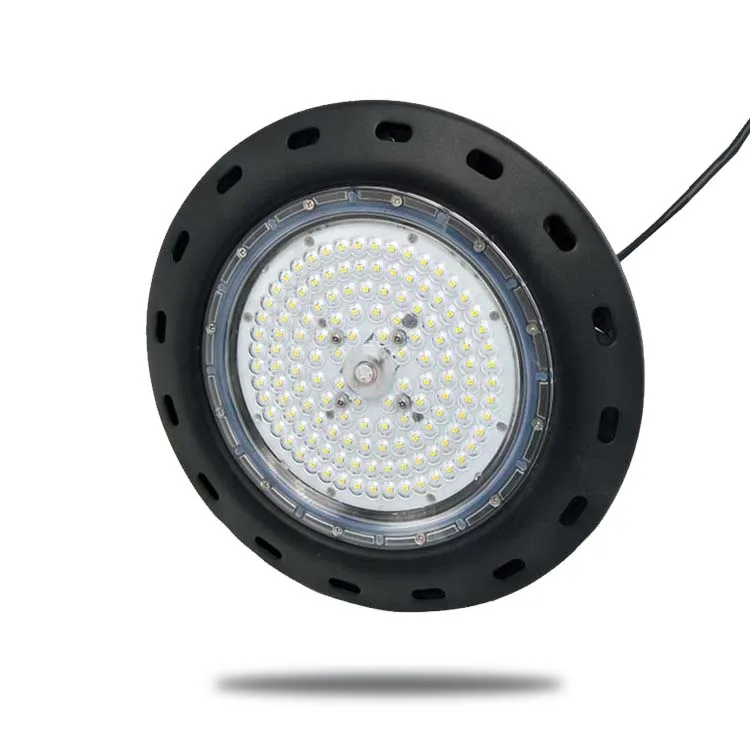

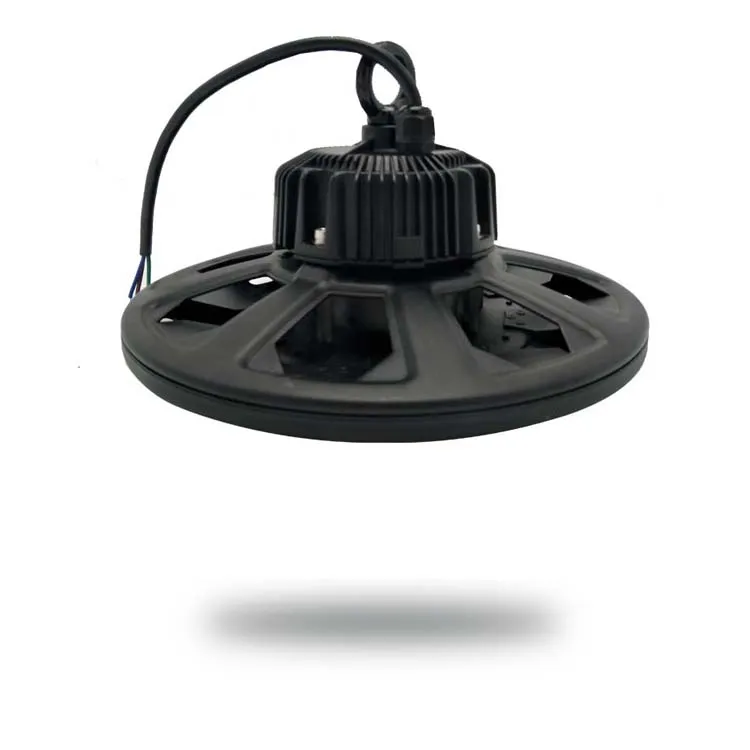

UFO210 series LED high bay light is the application of new high thermal conductivity aluminum lamp housing ,LUMILEDS 3030 LED and MEAN WELL HBG driver. Compared with the traditional industrial and mining lamp, LED high bay light has the following advantages: energy saving, low carbon and long life, good color rendering, response speed quickly.
product description
Model No
UFO1210-120W-150w
System Consumption
120W-150w
Input Voltage/Frequency
90-305VAC/
Power Factor (PF)
>0.95
Led Source
LUXEON3030 LM-80
Color Temperature
3000K 4000K 5000K 6500K
Lamp’s Luminous Efficiency
≥140Lm /W
Led Initial Flux
>15600Lm
Lumen Maintenance
70%(50,000Hrs)
Color Rendering Index
Ra≥70
IP Rating
IP65
Life span
≥50000Hrs
Appliance Class
Class Ⅰ
Materials
Aluminum
Working Temperature
-40℃ ~ +60℃
Operating humidity
10%~90%RH

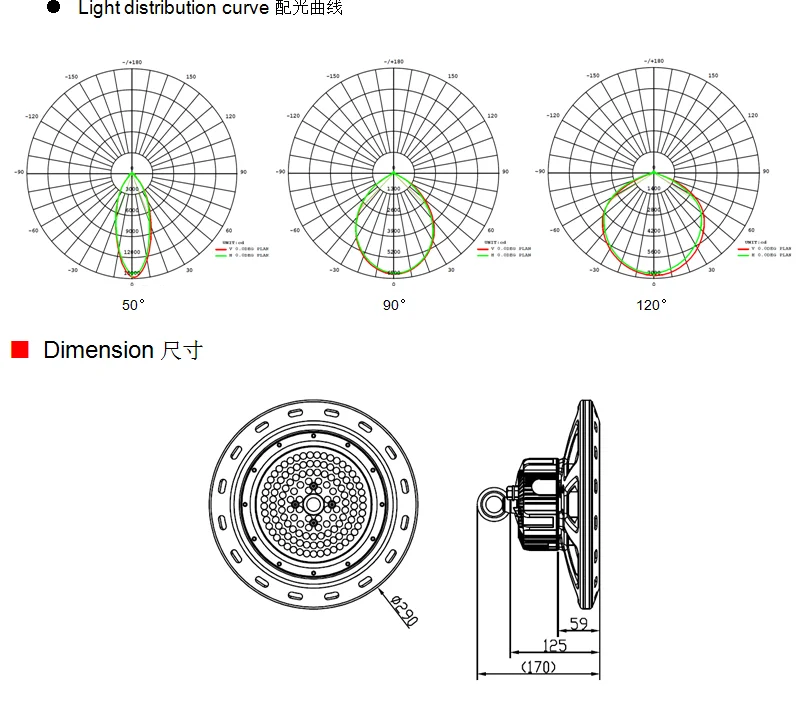

Dimension
φ290*H170mm

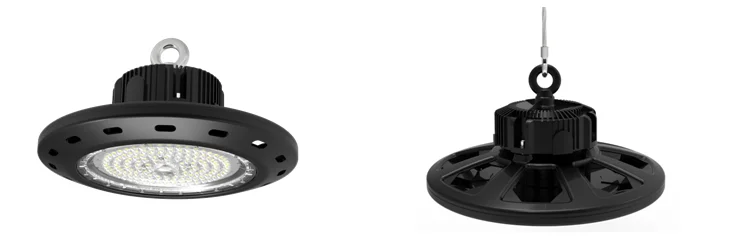

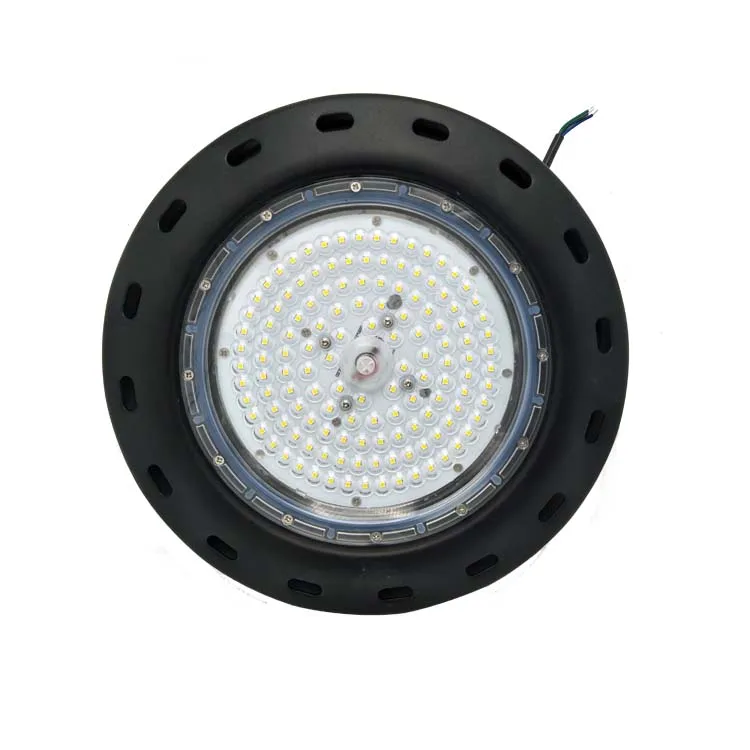

Product display
Product display

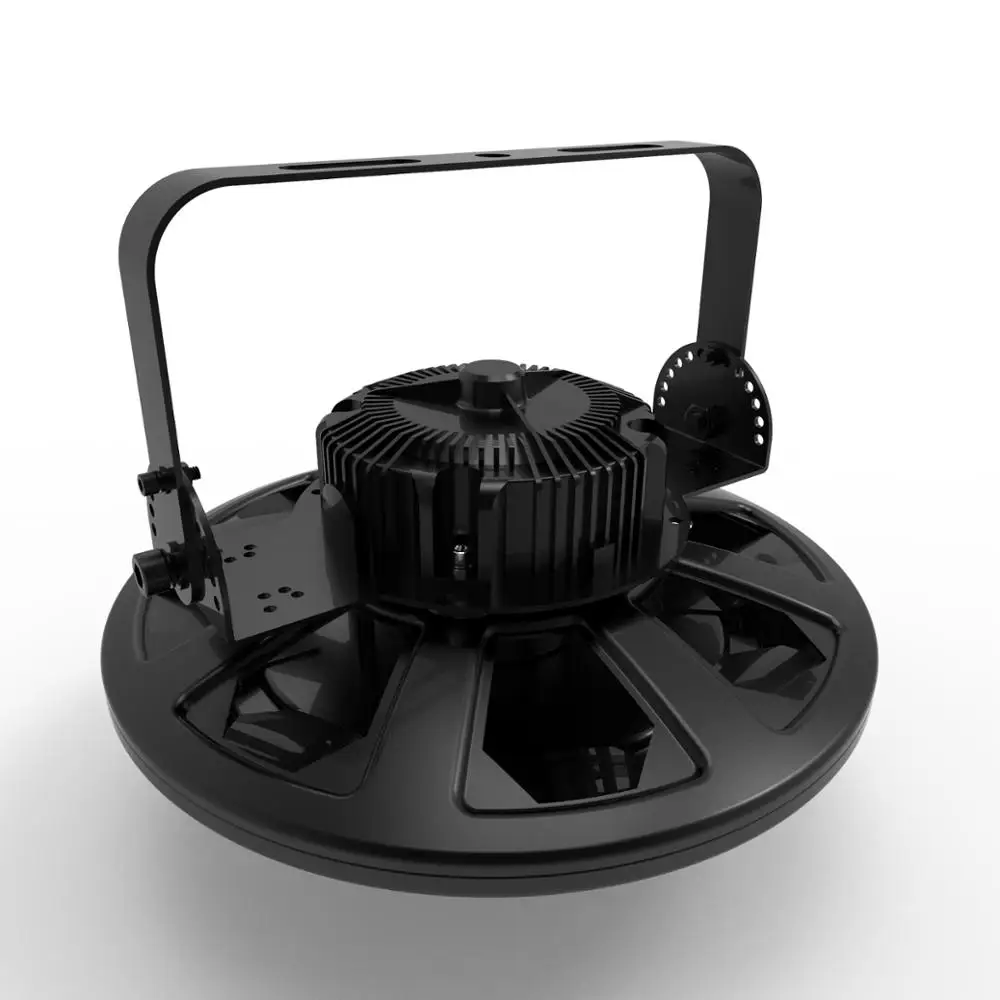

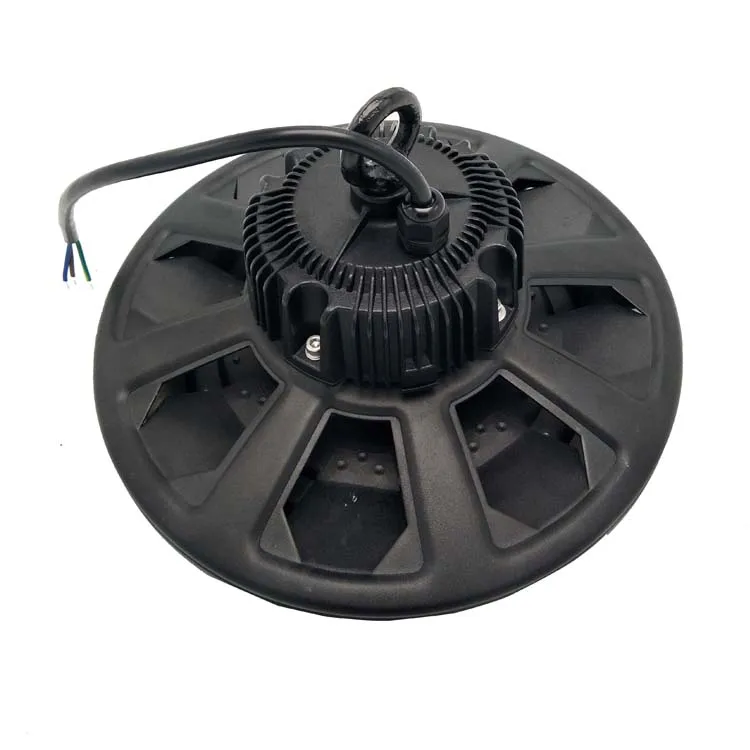

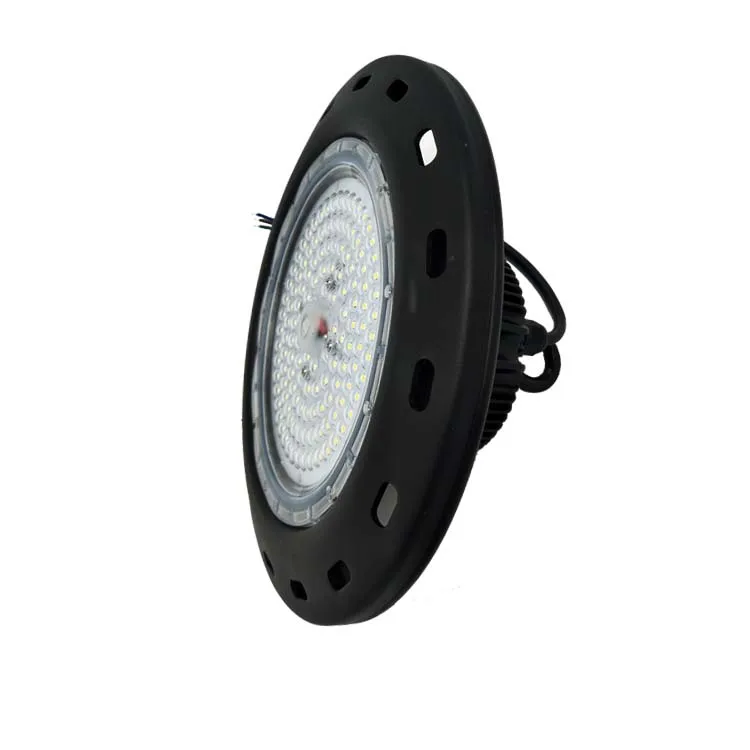

Products details
More characteristics
1 Model of sheet metal shell, high thermal conductivity, good heat radiating performance.
2 New external driver, easy to heat dissipation, improve driver service life.Light health, the light does not contain UV and IR,do not produce the ray radiation.
3 Green pollution-free, no lead, mercury or other elements of environmental pollution.
4 High performance constant current driver, no stroboscopic, be helpful for protecting eyesight.

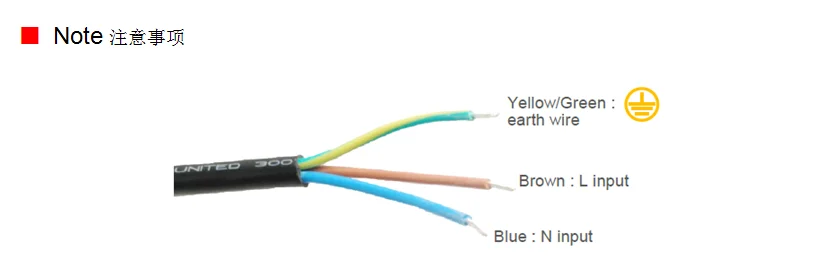

LED high bay light installation
.If the lamp outer cable or cord is damaged, must be qualified personnel to repair.That the lamps is abnormal , must cut off the power input.
.Power input end do some lightning protection measures, and guarantee the input voltage stability.
.Please mount the lamp in a dry, ventilation, clean environment, and regular cleaning and maintenance.
.Inside Lamps have high voltage parts,do not disassemble, so as to avoid the electric shock.

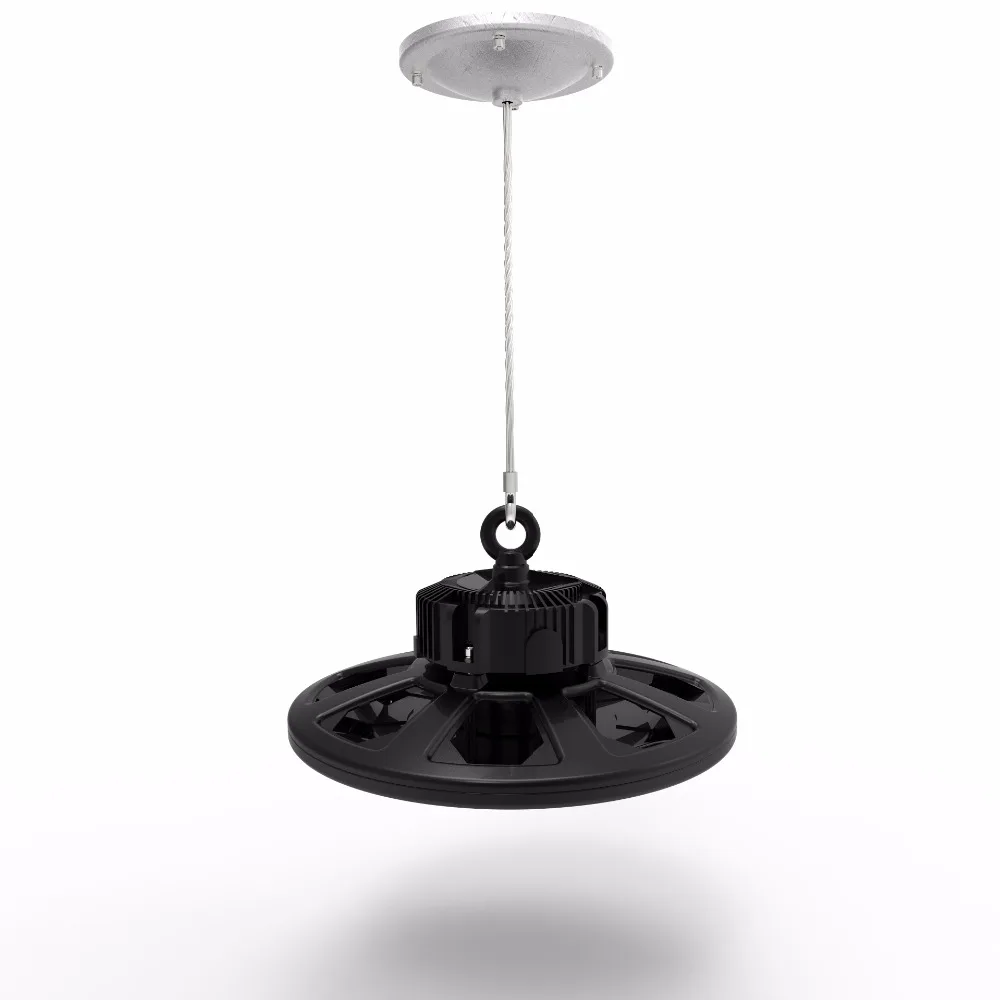

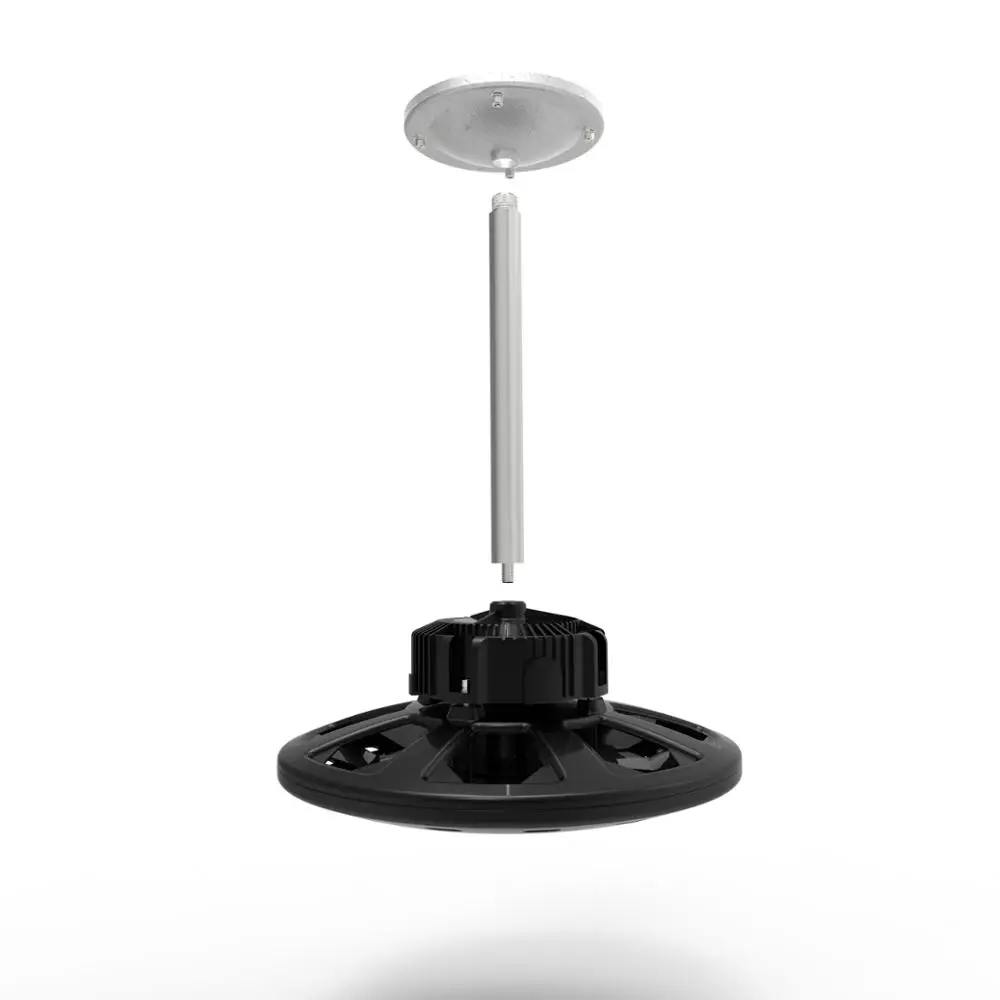

.Lamp must be vertical suspension and the supporter should can bear at least 3 times weight of the lamp.
.Luminaires should not be installed where it is draught, in case of shaking and unstable.
After service
All of our product’s warranty period is 5 years for the constant current power and LED light source guaranteed usable 3 years. Besides our warranty is based on the right storage, installing ,using and maintenance. However, the damages resulted from wrong installing and rule-breaking operations don’t belong to the warranty range. As for the quality problem during the warranty period, we would like to maintain and change. While we will charge for the material and labor cost over than the warranty period.
Hot sales
Hot sales
Production process
Company Information
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 2-3 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6:Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
