ETK 43 inch capacitive touch foil film with USB 2.0 interface for Raspberry Pi
- Category: Touch Screen Monitors >>>
- Supplier: Shenzhen Etk Technology Co. Limited
Share on (60704279223):
Product Overview
Description
ETK 43 inch capacitive touch foil film with USB 2.0 interface for Raspberry Pi
Product Description
Capacitive Touch Foil Working Principal
It's an innovation core part of touch screen, support multi-touch.Interactive touch foil turns any glass into touch screen.

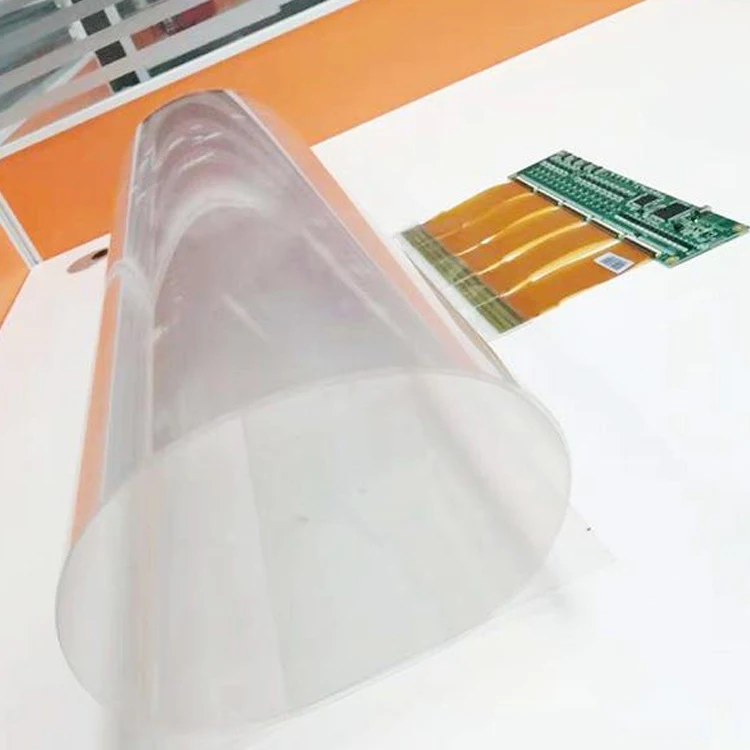

It has 3 key parts. 1st is film sensor, 2nd is electronics controller, we call it eBoard, 3rd is USB cable .
Film sensor is a green technology product, has high transparency, light and thin. the embedded nano wire grid is a sensor network, that can precisely positioning hands touch action. It use sensing technology, easily change to bullet-proof touch screen. eBoard use Sis architecture, so the PCB is small and strong noise filtering algorithm, It can detect weak signal that caused by hands.
Super advantages for 43 inch 10 points capacitive touch foil :
1. Projected Capacitance Touch Foil Technology
2. Works on glass up to 12mm thickness
3. Easy to use or install, and Simple to set up for touch foil
4. Durable flexible touch foil, very light and thin touch foil
5. Perfect 10-point-touch, Quick touch response speed
6. Can be permanent
7. Can be attached to almost every surface: Shop window, Glass, Acrylic and Rear projection film and any other non-metallic material
8. Available Size: from 17 to 100 inches sheets, bigger available on request
The Interactive Touch Foil Features:
Anti-scratch, laminate on the back of glass
Waterproof, dust-proof, bullet-proof
No expose components, safety
Industrial temperature range: -20 °C to +70 °C
Thin and light, the sensor thickness only 0.17mm
Glass touch, the maximum thickness of glass can up to 12mm
Only hands valid, no touch action of metal material
Zero pressure touch, even with glove.
Mouse function with Zoom in/out and rotation.
Specification
| ITEM | CAPACITIVE TOUCH FOIL | ||
| Technology Principle | Double Layer Bridge Projected Capacitive Technology,Metal Mesh Wire Matrix With Patented Graphics Substituted For ITO Layer | ||
| Series | MM80P | MM110P | MM140P |
| Size | 15-24 inch | 27-55 inch | 32-84 inch |
| Sensor Quantity | 1376 | 2714 | 4200 |
| Touch Point | 10 Touch Points | ||
| Resolution | 4096*4096 | ||
| Touch Accuracy | ≤2mm | ||
| Report Rate | 80-120 point/ms | ||
| Consumption | 0.5W-2W | ||
| Driver Type | Free Driver | ||
| Arm Reject | Support | ||
| Customize | Size,Ratio,Tail,PFC | ||
| Thickness | ≤100um | ||
| Transparency | 89-93% | ||
| Supply Power Voltage | DC 5V USB | ||
| Interface Type | USB2.0,USB 3.0,I2C | ||
| Transfer Distance | ≤50m(USB Signal Amplifier) | ||
| Cover Lens | 3-12mm | ||
| Safe Space | 2mm(Between LCD panel to Touch foil sensor) | ||
| Working Temperature | -20℃-+70℃ | ||
| Ambient Light | UV Cut 99%,180° | ||
| Touch Function | Mouse Control(Point,Drag,Zoom In,Zoom Out,Rotate,Writing) | ||
| Aligment | Automatic | ||
| OS Support | Android,Windows 7/8/10,Linux | ||
| Program Level | Standard HID-USB Device | ||
Working Condition
Capacitive touch foil is metal mesh touch sensor,It should works with cover glass.
Capacitive touch foil can works with LCD panel and projector,Here are two picture for of working graph for your application:
Capacitive touch foil work with Projector:
Capacitive touch foil with LCD panel:
Accessory

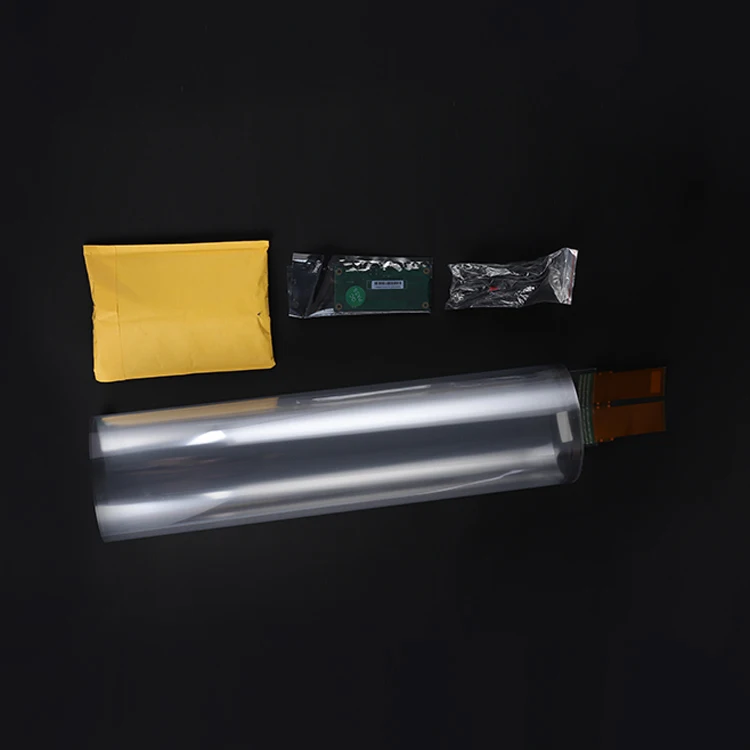

Every capacitive touch foil sold as kit,it including Sis controller card,USB cable.
Packaging & Shipping
One package tube can contain up to 3 PCS of touch foil and accessories.
Application
Capacitive touch foil is suitable for Store Window Display,Indoor/Outdoor kiosk,Exhibition shows,Touch table,Here are more applications of capacitive touch foil for your reference:

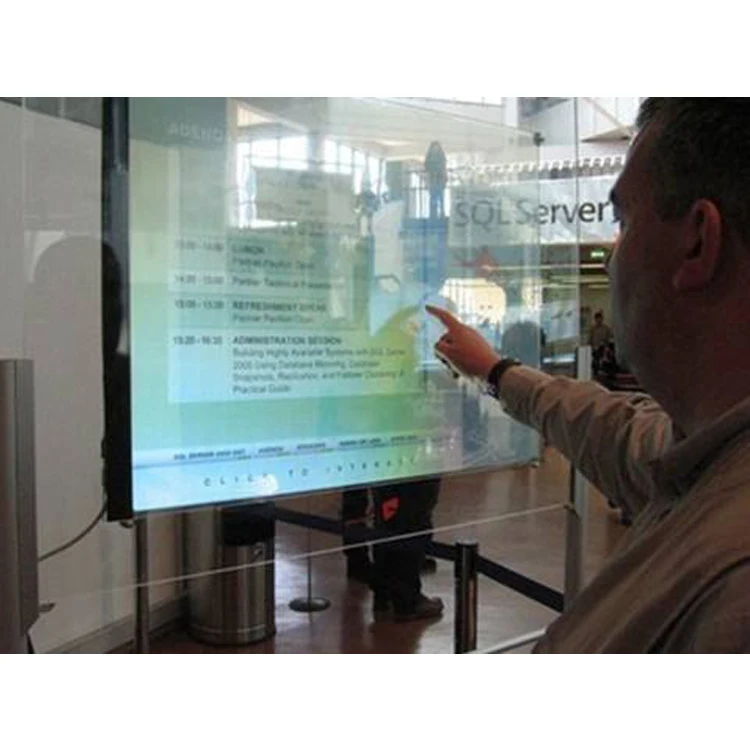

Capacitive touch foil for Exhibition and Store Window Display:
Capacitive touch foil used for Smart Mirror display for Smart Home Device.
Our Services
*Your inquiry answer within half an hour
*Our capacitive touch foil will be testing one by one before shipment
*Testing video and package picture send to you before shipment
*Manual user is accepted
*Every kit of capacitive touch foil with 1 year free warranty
*Sample order delivery in 2 days,Bulk order delivery in 7 days
*Paypal,Alibaba payment are available for you,Your money is safety with us
*We can help customer purchase cover glass,and aligment capacitive touch foil on cover glass for customer for free
We helped customer aligment capacitive touch foil and cover glass before:

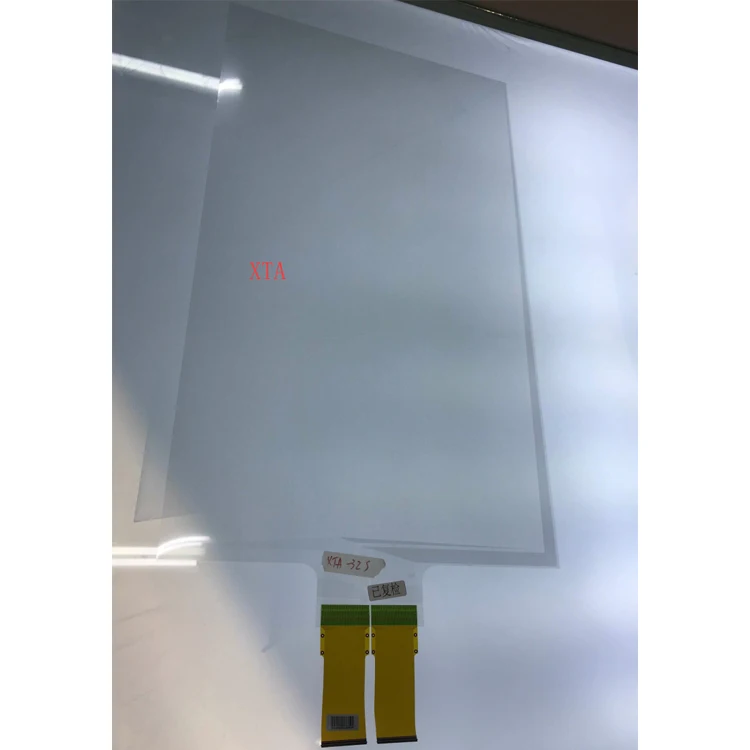

This is capacitive touch foil with PFC bottom model:
This is capacitive touch foil with PFC side model:
FAQ
Q: What the Touch Foil it is?
A: It's an innovation core part of touch screen, support multi-touch. Holographic, precision ,transparent,flexible,curve-able,water-proof,contamination-proof, only hands-touch valid, especially unique touch technology in outdoor application. It's a magical product.
Q: What OS you support?
A: The Touch Foil support WIN XP/ 7/ 8/10, Linux, include 32 bit & 64 bit system and Android.
Q: How can I use this amazing product?
A: Laminate on the back of glass, connect and then plus the USB interface to your PC, config the driver, then you can use it. Very easy and simple for using, once config completed, you can use it as easy as iPad . We also have video guide of lamination and driver config.
Q: How many points your multitouch support?
A: We support 10 more points,for bigger size than 32 inch,we have 20/40 touch points for you,Price is more expensive for 20/40 touch points.
Q: How's the handwriting performance?
A: The Touch Foil have best-in-class handwriting performance, high speed and good linearity.
Q: I found your controller board are detachable, what's the advantages?
A: The Touch Foil have 3 core parts, each are Touch film - Sensor, Controller board, Driver - Software, we use module-design method. the main advantages of detachable is that when you laminate the Touch Foil on glass, no need to think about water-proof of Controller board, also when the Controller board broken, you can easily replace by a new board. your maintenance would be easy and cost down.
Q: What solution you provide?
A: We provide many solutions to our partners; include all-in-one touch device, magic touch window, mirror touch, touch table, touch Kiosk, touch Digital Signage, interactive projection, touch wall, interactive ground, and so on.
Q: The length of USB is only 10M valid, the distance between my control center and thru- glass touch screen is far more than 30M. any solution?
A: Yes, we have verified USB extender for your long distance application.
Q: About digital signage application, How about the distance between LCD and Touch Foil?
A: Depends on different LCD manufacturer, some are minimum 1mm, some are 5mm, others are 8mm, even more. The display card of LCD is the key noise, so select a best display card of LCD is important. in accord of our experience, the display card provide by big manufacturer is better. a test is necessary before your LCD application.
Q: How about software application?
A: Our touch foil is plug and play,free driver for Windows 7/8/10 original system,for Android and Linux system,we can provide drivers and guide user,you can install driver for Android and Linux by yourself.
Q: Can I connect two Touch Foil to one PC?
A: No, the Touch Foil will not work. Because Touch Foil touch is USB auto-detective. Two Touch Foil will make driver confusion.
Q: I found the noise is big, when I integrated Touch Foil with LCD, How can I get rid of the noise?
A : 1st, you can connect the Touch Foil with the ground wire, so as to get rid of static electricity. 2nd make the gap between LCD and the Touch Foil much more. 3rd make sure that the lamination-substrate is glass not others. Transparent plastic is OK, but gather static electricity function is strong, so, it's not a stable substrate.
